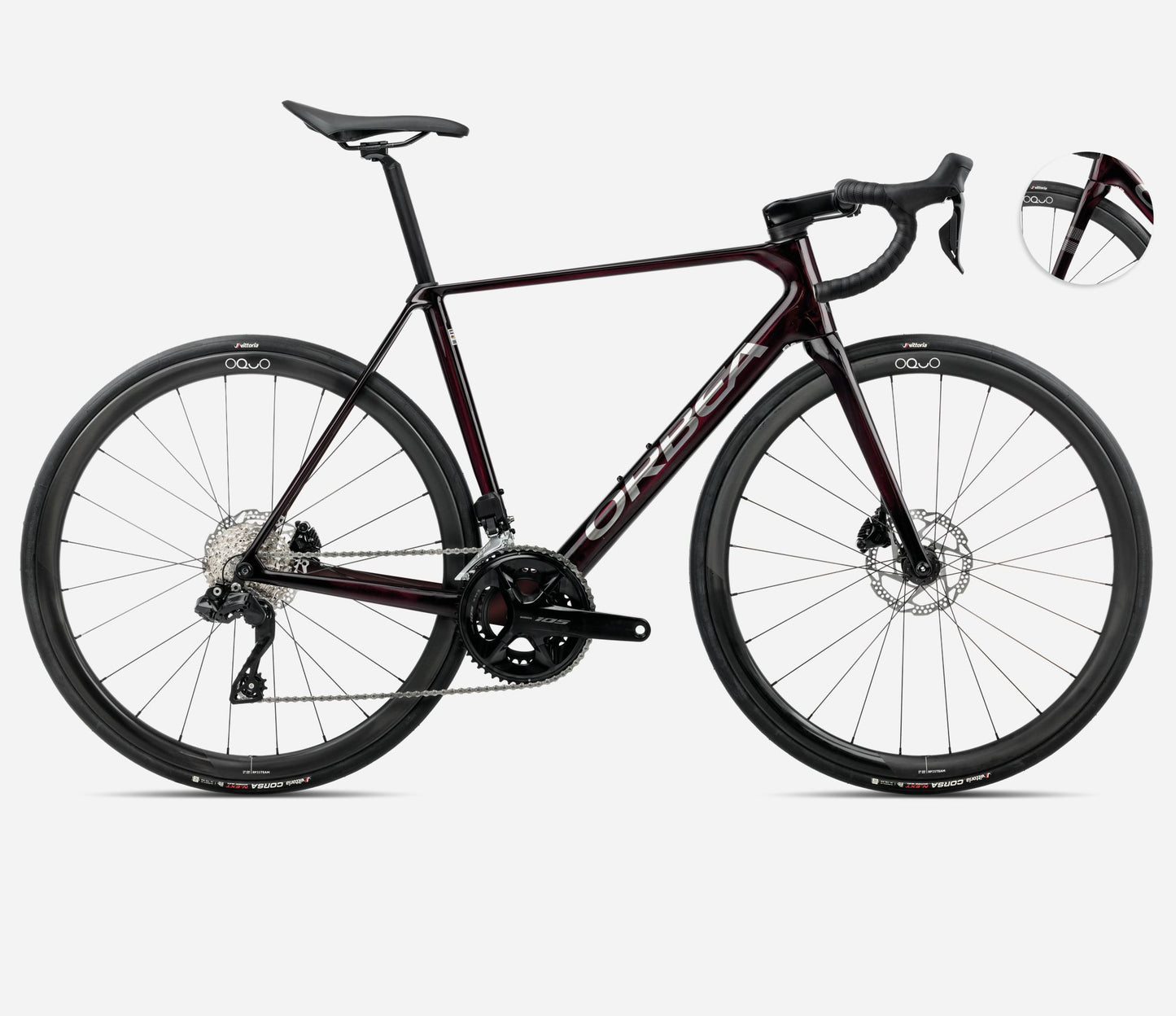

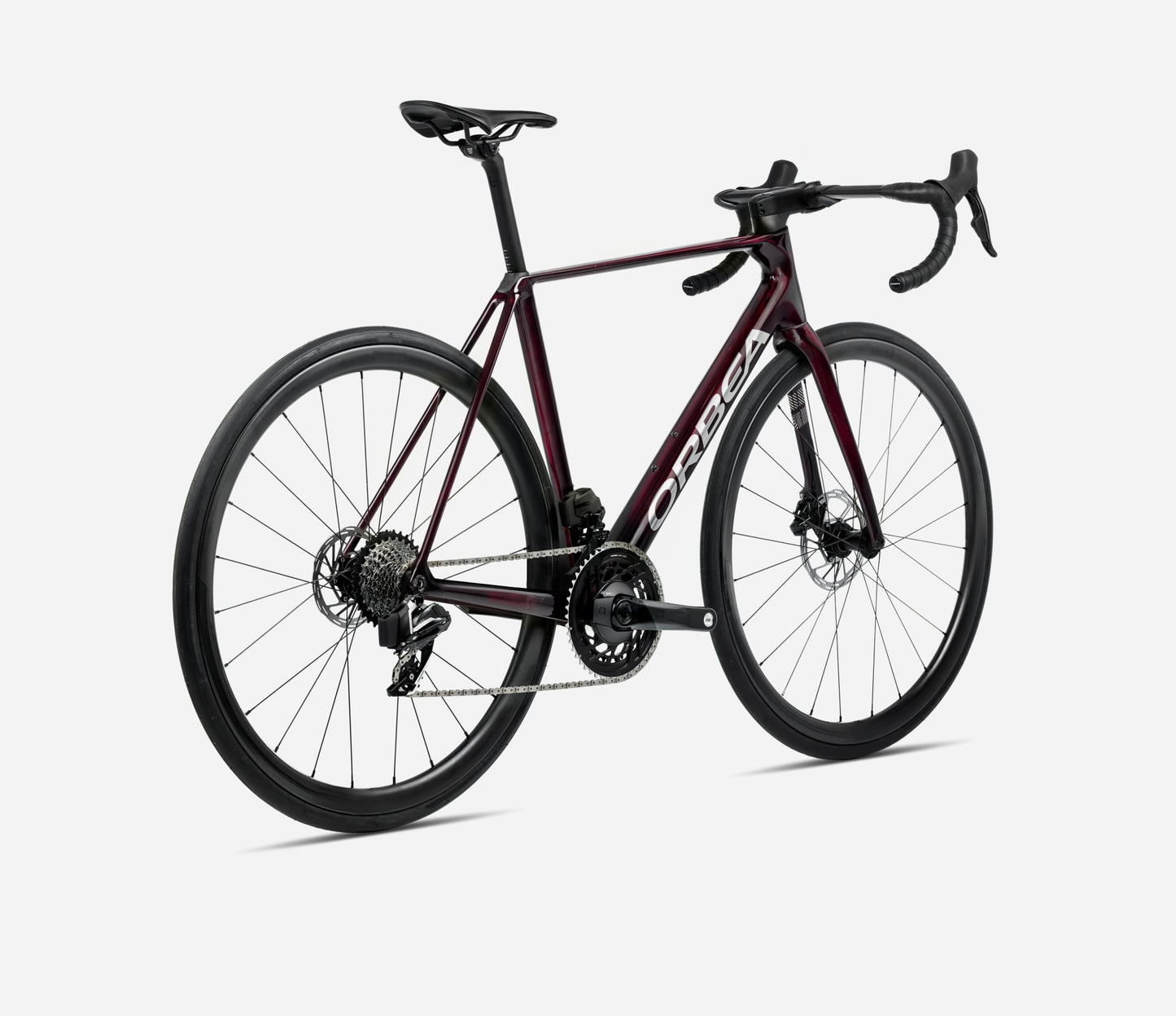

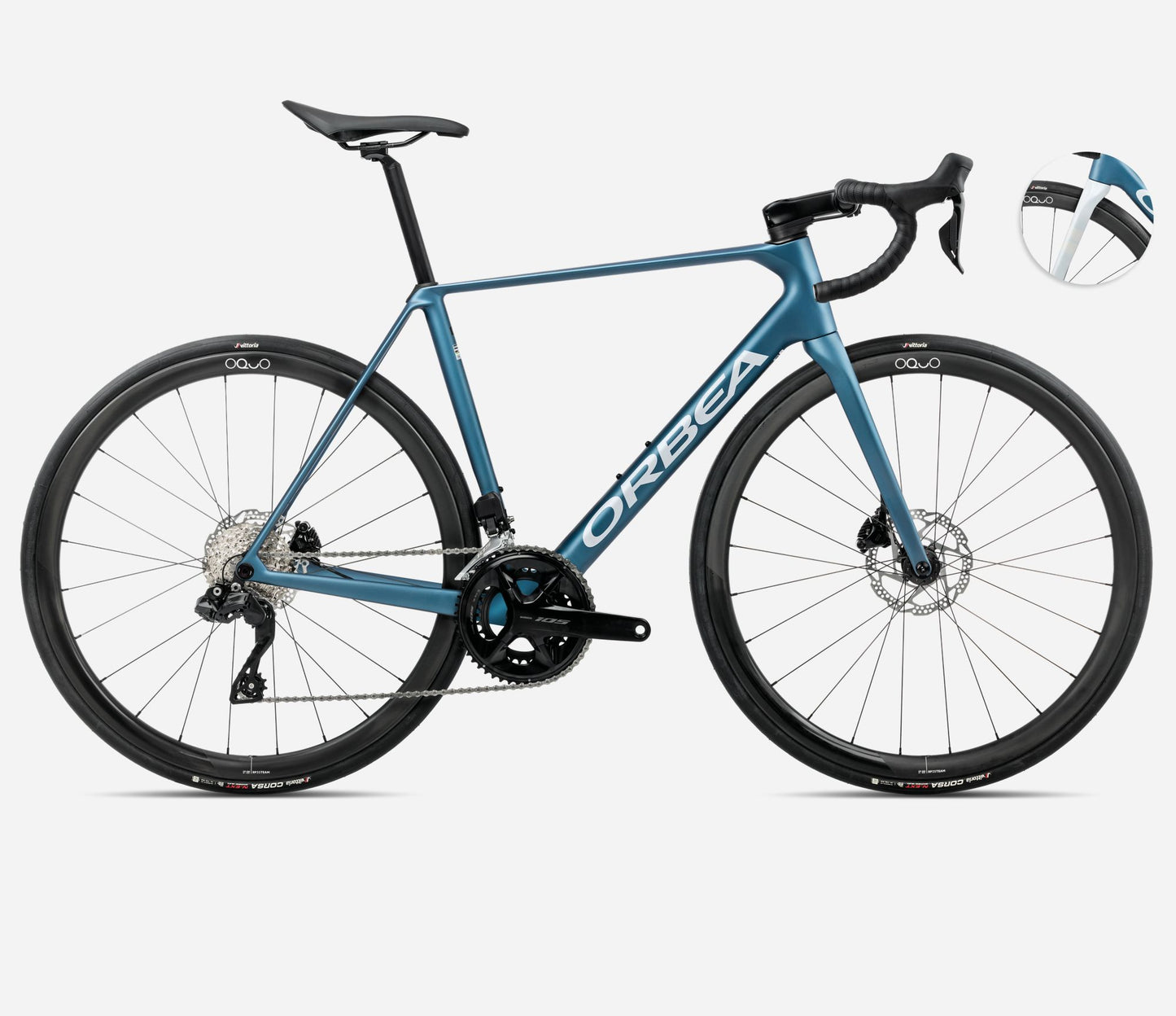

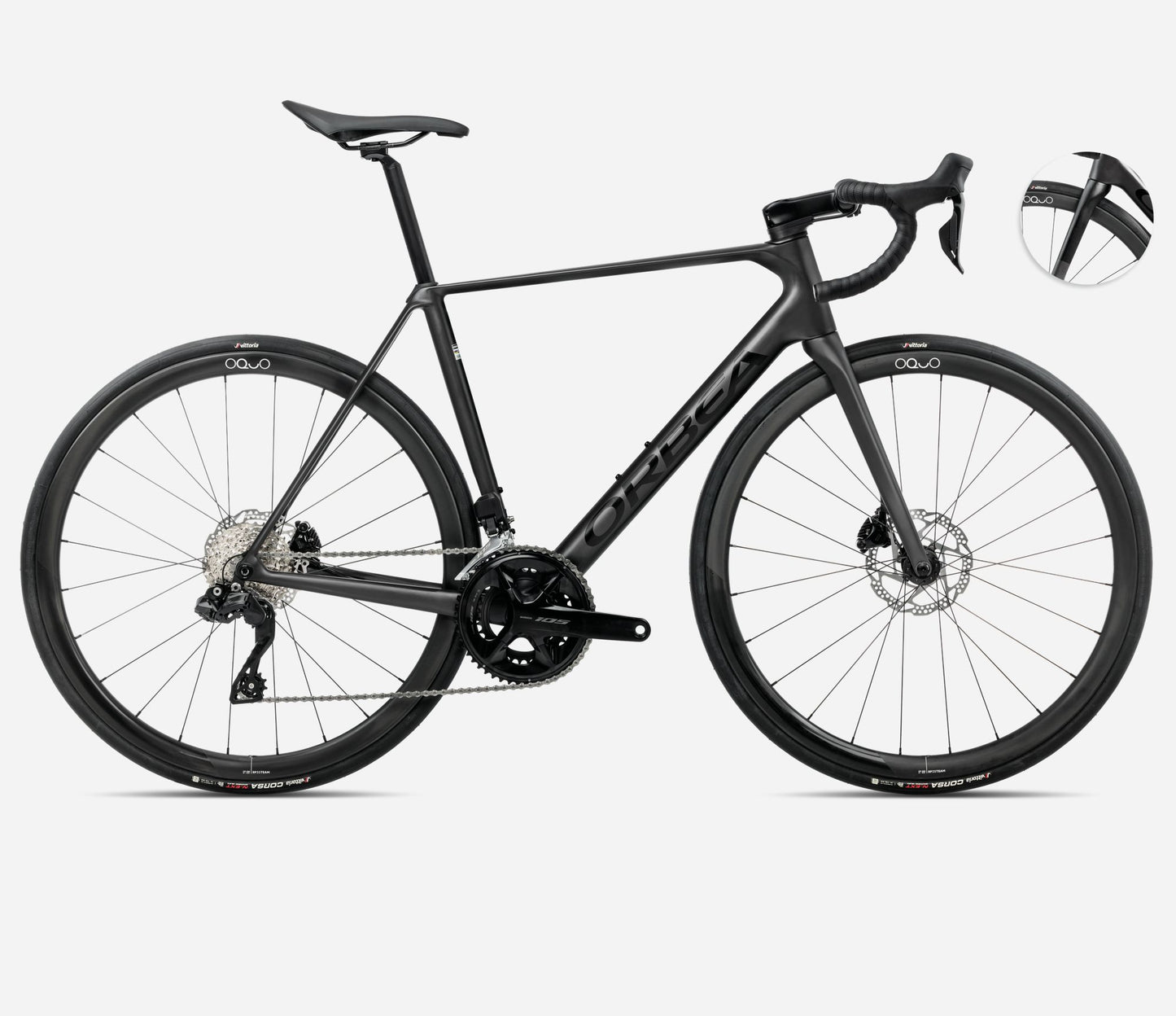

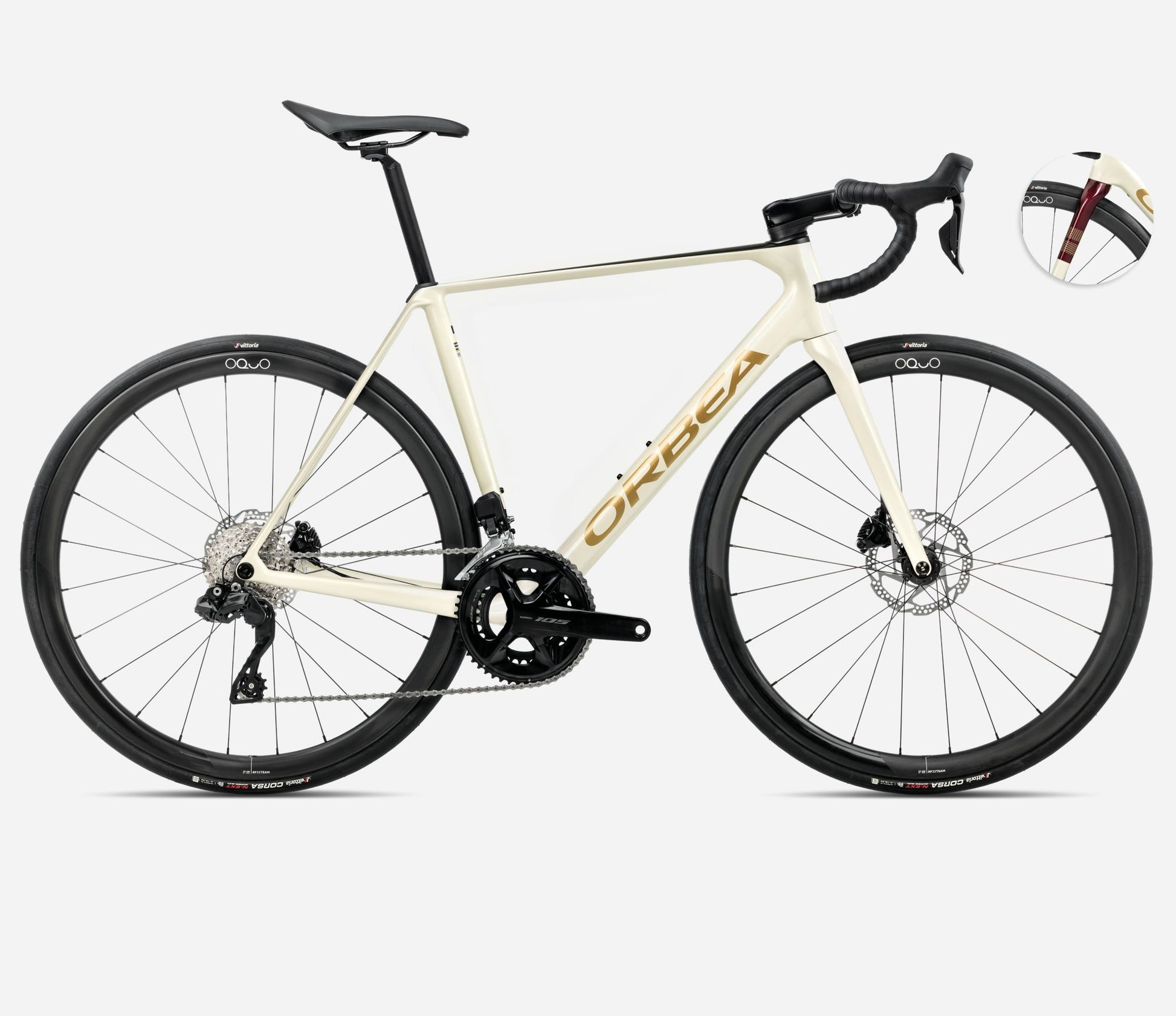

NEW 2025 Orbea Orca M35i Carbon Road Bike, Shimano 105 Di2 + Carbon Wheels

BUILD KIT:

• Frame: Orbea Orca carbon OMR 2024, monocoque construction, HS 1.5", BB 386mm, powermeter compatible, rear thru axle 12x142mm, thread M12x2 P1, internal cable routing
• Fork: Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1.5" tapered head tube compatible, thru axle 12x100mm, thread M12x2 P1
• Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
• Crankset: Shimano 105 R7100 34x50t
• Shifters: Shimano Di2 R7170
• Cassette: Shimano 105 R7100 11-34t 12-speed
• Rear Derailleur: Shimano 105 Di2 R7150
• Front Derailleur: Shimano 105 Di2 R7150
• Chain: Shimano M6100
• Handlebar: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
• Stem: OC Road Performance RP22, -5º
• Brakes: Shimano R7170 Hydraulic Disc
• Wheels: Oquo Road Performance RP35TEAM
• Tires: Vittoria Corsa N.Ext G2.0 Foldable 700x28c
• Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Hollow
• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Hollow
• Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
• Saddle: Fizik Aliante R5

SIZING: Orbea recommends the following sizes based on rider height:

• 47cm: 5'1" - 5'3"
• 49cm: 5'3" - 5'5"
• 51cm: 5'6" - 5'8"
• 53cm: 5'8" - 5'10"
• 55cm: 5'11" - 6'1"
• 57cm: 6'1" - 6'3"
• 60cm: 6'4" - 6'9"
