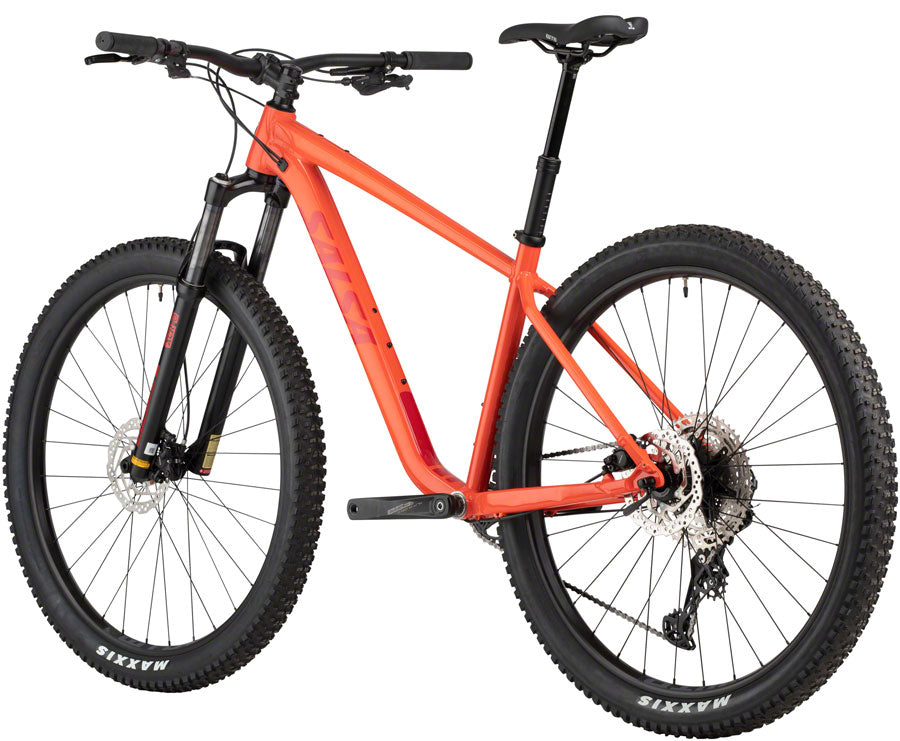

NEW Salsa Rangefinder Deore 11 29 - Orange Hardtail Mountain Bike
NEW Salsa Rangefinder Deore 11 29 - Orange Hardtail Mountain Bike
Regular price
$ 1,099.00 USD
Regular price
$ 1,199.00 USD
Sale price
$ 1,099.00 USD
Unit price
/
per
Shipping calculated at checkout.
| ATC SKU: | 210000043638 |
| UPC: | 657993271810 |
| Other IDs: |
BK9485 |
PRODUCT DETAILS
Rangefinder is Salsa’s confidence-building trail hardtail. Built for riders who want to start discovering their local trail systems, Rangefinder offers geometry and spec designed for the perfect introduction to mountain biking. Rangefinder opens up singletrack and doubletrack adventures and offers provisions for bikepacking setups so riders can expand their off-road repertoires. Rangefinder is mountain biking for the masses.
- 6061-T6 alloy frame
- Internally-routed shift, brake and dropper post housing
- 120 mm suspension fork and dropper post
- 1x drivetrain keeps shifting simple with plenty of gear range
- Hydraulic brakes offer confident stopping power
- Compatible with 29" or 27.5 plus wheels and tires
- Carry what you need with the integrated top tube bag mount, two bottle cage mounts in the frame on M, L, and XL sizes, one accessory mount under the down tube, and rear rack mounts
- Geometry that grants confidence to newer mountain bikers
BUILD KIT:
- Frame: Rangefinder Aluminum
- Fork: SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm
- Color: Orange
- Rear Shock: N/A
- Seatclamp: Salsa Lip-Lock
- Front Derailleur: N/A
- Rear Derailleur: Shimano Deore M5100 SGS
- Cassette: Shimano Deore M5100 11–51t, 11-speed
- Chain: Shimano HG601
- Crankset: FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
- Shifter: Shimano Deore M5100
- Brakes: Shimano MT200 OR Promax DSK-925
- Rotors: Shimano RT10 Center Lock rotors (160 mm)
- Headset: FSA Orbit NO.57B 1.5 ZS
- Stem: Salsa Guide 31.8, 60 mm
- Handlebar: Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
- Grips / Bar Tape: Salsa File Tread
- Seatpost: TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL
- Saddle: WTB Volt Medium, Steel, 142 x 265 mm
- Front Wheel: Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i30 32h 29" rim
- Rear Wheel: Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i30 32h 29" rim
- Tires: Maxxis Rekon 29 x 2.6", EXO Wire Bead (not tubeless compatible)
GEOMETRY
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Recommended Rider Height | 5'2"–5'6" | 5'3"–5'9" | 5'8"–6'0" | 5'11"–6'3" | 6'2"–UP |
| A. Toptube Effective | 22.4" | 23.2" | 24.2" | 25.3" | 26.4" |
| B. Seat Tube Length | 14.0" | 15.0" | 17.0" | 18.5" | 20.0" |
| C. Headtube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| D. Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| E. BB Drop | 2.3" | 2.3" | 2.3" | 2.3" | 2.3" |
| F. Chainstay Length | 17.3" | 17.3" | 17.3" | 17.3" | 17.3" |
| G. Headtube Length | 3.7" | 3.9" | 4.1" | 4.5" | 4.9" |
| H. Fork Length | 20.1" | 20.1" | 20.1" | 20.1" | 20.1" |
| J. Fork Offset | 1.8" | 1.8" | 1.8" | 1.8" | 1.8" |
| K. Wheelbase | 43.3" | 44.2" | 45.2" | 46.4" | 47.5" |
| M. Stack | 23.8" | 24.0" | 24.2" | 24.6" | 24.9" |
| N. Reach | 15.6" | 16.4" | 17.3" | 18.3" | 19.3" |
| P. Standover | 26.7" | 27.5" | 29.0" | 30.3" | 31.4" |
