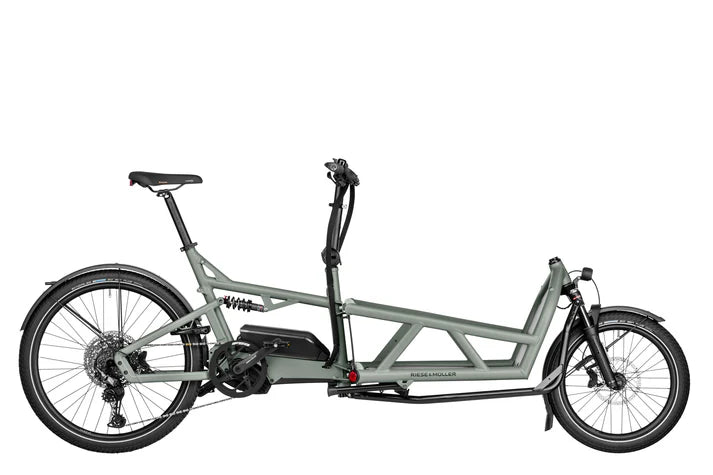

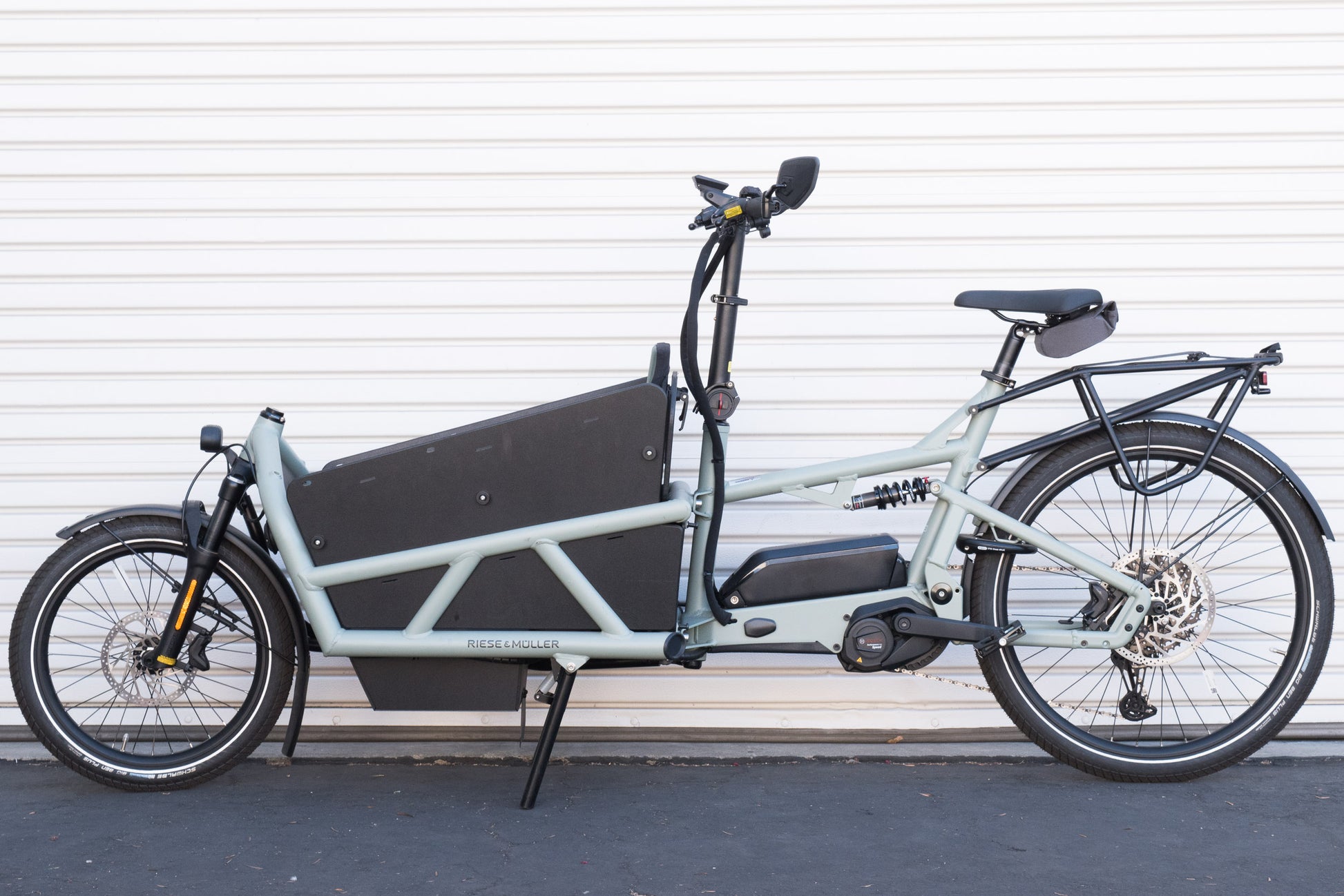

DEMO Riese & Muller Load4 60 touring HS Front Loader e-Cargo Bike, Tundra Grey Matt + Extras

The Load4 60. The ultimate across the board.

Perfect handling in every situation – on tarmac, forest trails or gravel roads: the Load4 60 is so manoeuvrable and agile that you never feel like you’re on a cargo bike. Its low centre of gravity, the Bosch Cargo Line motor and Riese & Müller Control Technology ensure a dynamic and outstanding riding experience.

LOAD4 60 VARIO HS FEATURES:

• Bosch Performance Line Speed (smart system)
• Bosch PowerPack 725 Wh (upgrade available)
• Shimano CUES, 11-speed derailleur gear
• From 36.6 kg / 81 lbs

BUILD KIT:

• Frame colour: Tundra Grey Matt
• Suspension fork: Suntour Mobie 34 CGO Boost, 20", 80mm
• Rear shock: X-Fusion Glyde
• Headset: Acros AZX-221, block lock; TH No. 9, semi-integrated
• Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm
• Seatclamp: JD, 40,0 mm, QR
• Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe 20" Smart Sam Plus 60-406 ECE-R75; Schwalbe Smart Sam Plus 57-559 Reflex
• Tubes: Schwalbe AV13; Schwalbe AV7
• Rims: Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
• Spokes: Sapim Leader 2,0 mm, Inox, black
• Front hub: Novatec Boost Cargo Disc 32H
• Rear hub: Novatec Boost, QR, 36H
• Battery: Akku Bosch PowerPack Frame 725

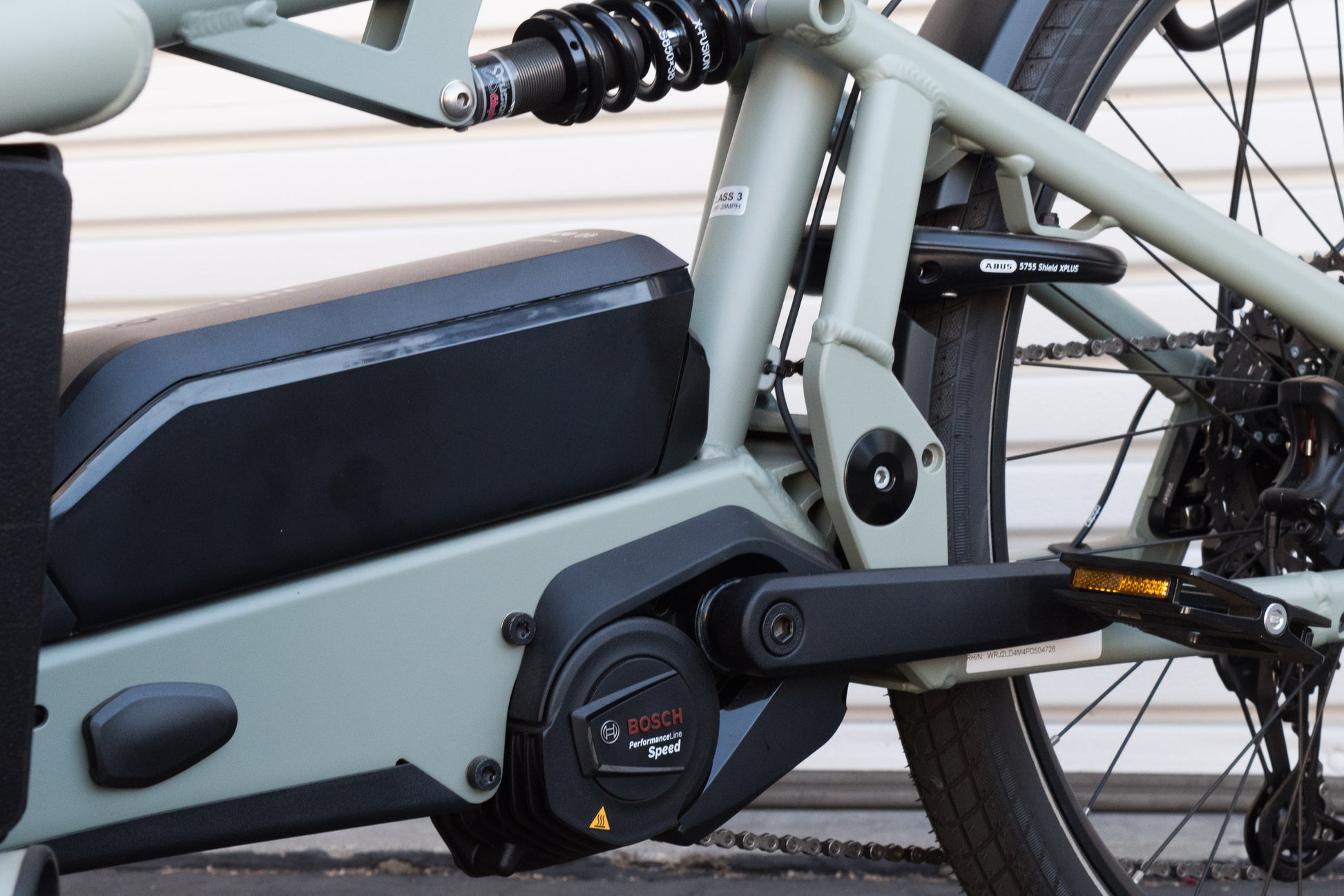

• Motor: Bosch Performance Line Speed (smart system)
• Display: Bosch Purion 200; Bosch Kiox 500; Bosch SmartphoneGrip

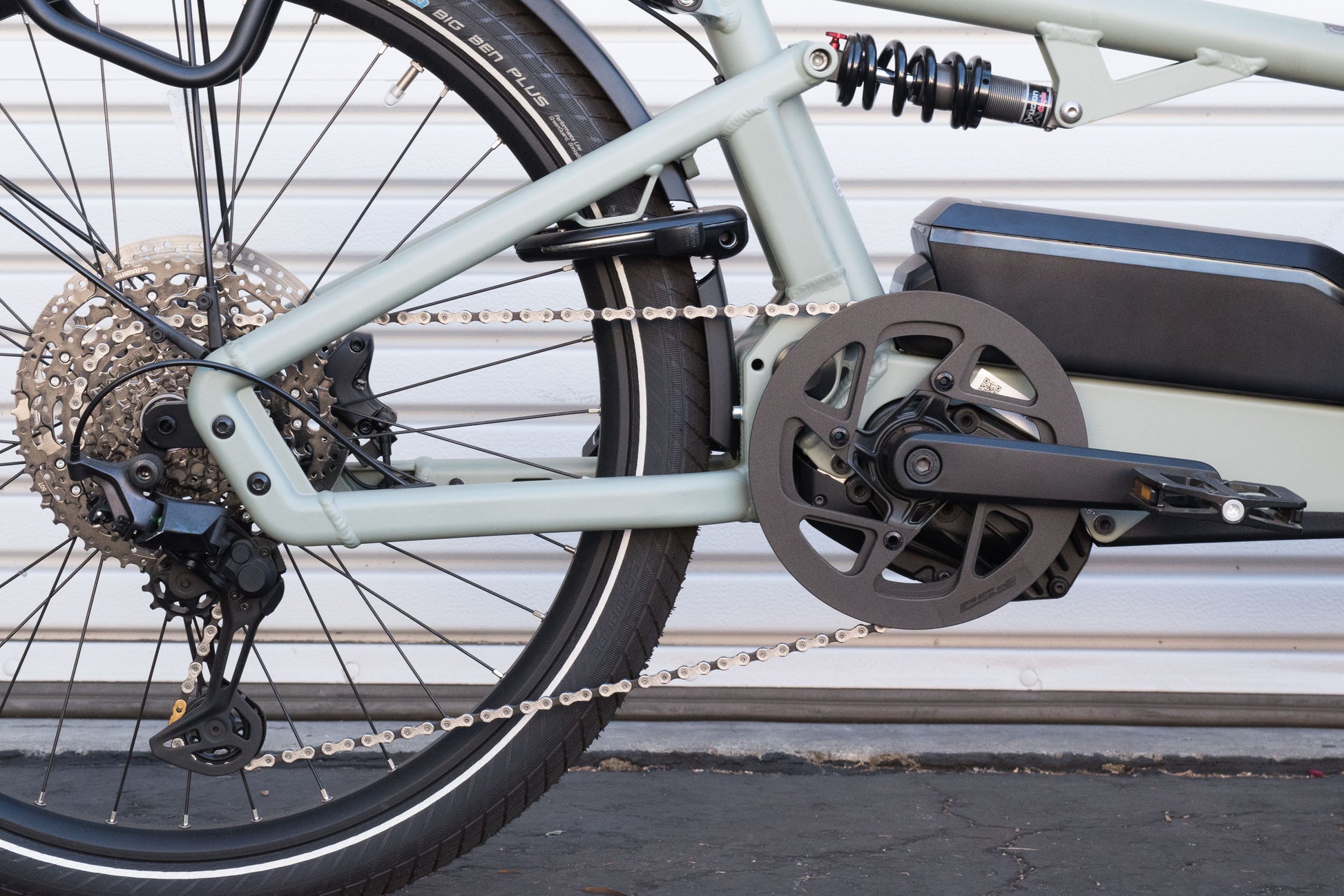

• Crankset: FSA/Riese & Müller, 170 mm
• Chain ring: 48T
• Chain guard: Chain guard
• Chain: KMC X11
• Cassette: Shimano CUES CS-LG400-11,11-50T
• Saddle: Selle Royal New Lookin Male Eco
• Pedals: VP R&M Custom
• Shifting system: Shimano CUES RD-U8000 11-S
• Shifter: Shimano XT 11-S Linkglide

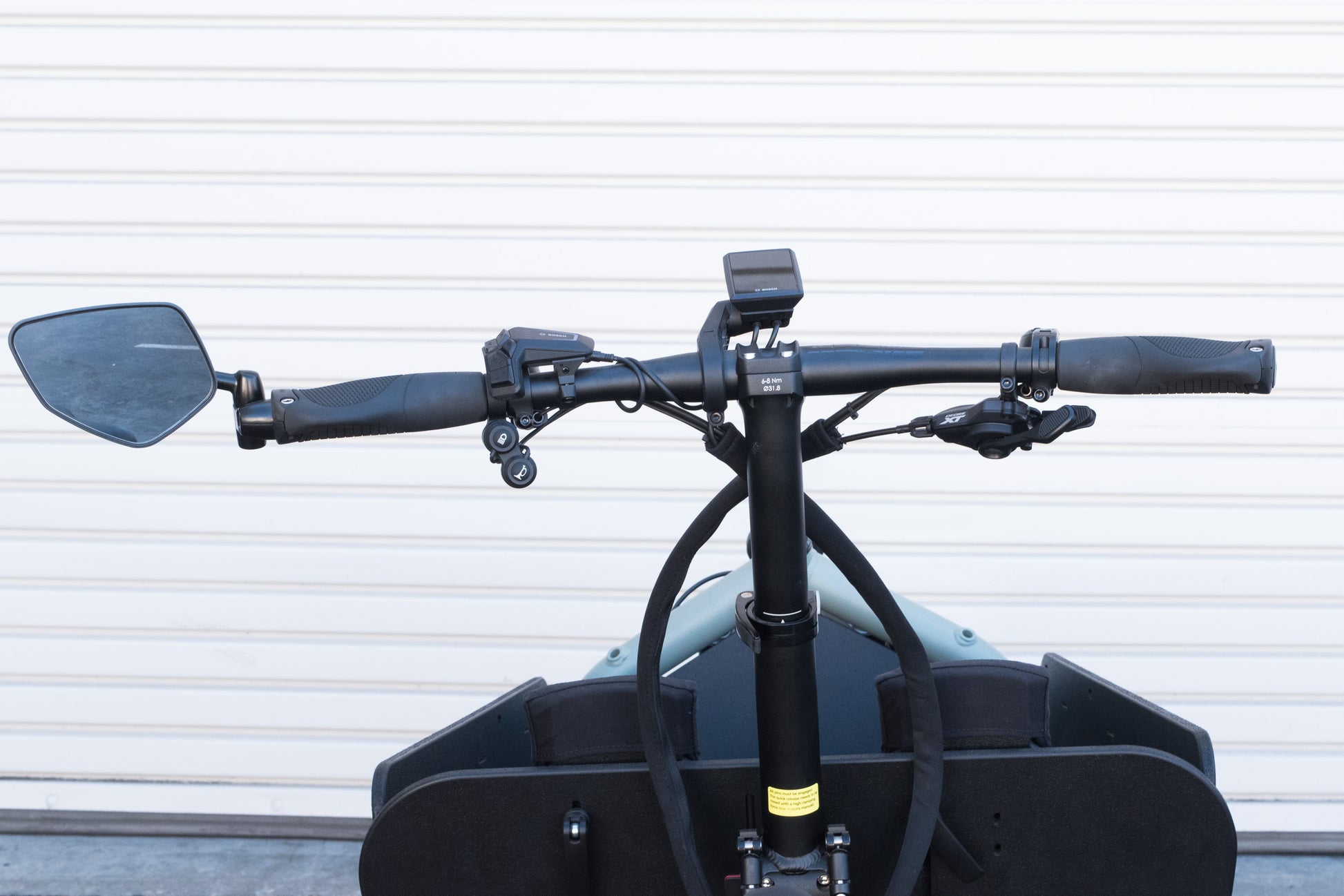

• Handlebar: FSA V-Drive, 31,8 mm, Alu
• Stem: Riese & Müller, adjustable height and angle
• Grips: Ergon ergonomic

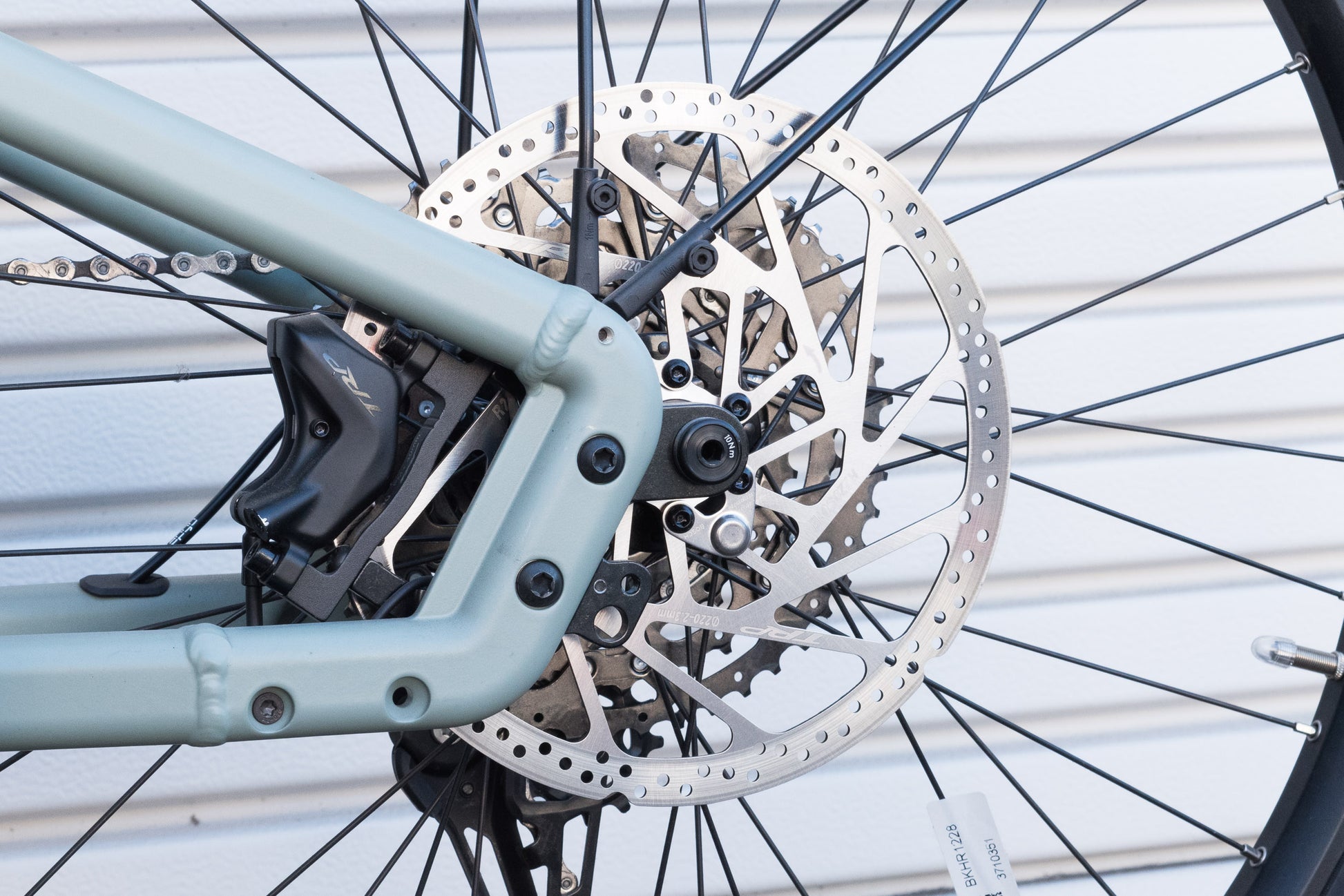

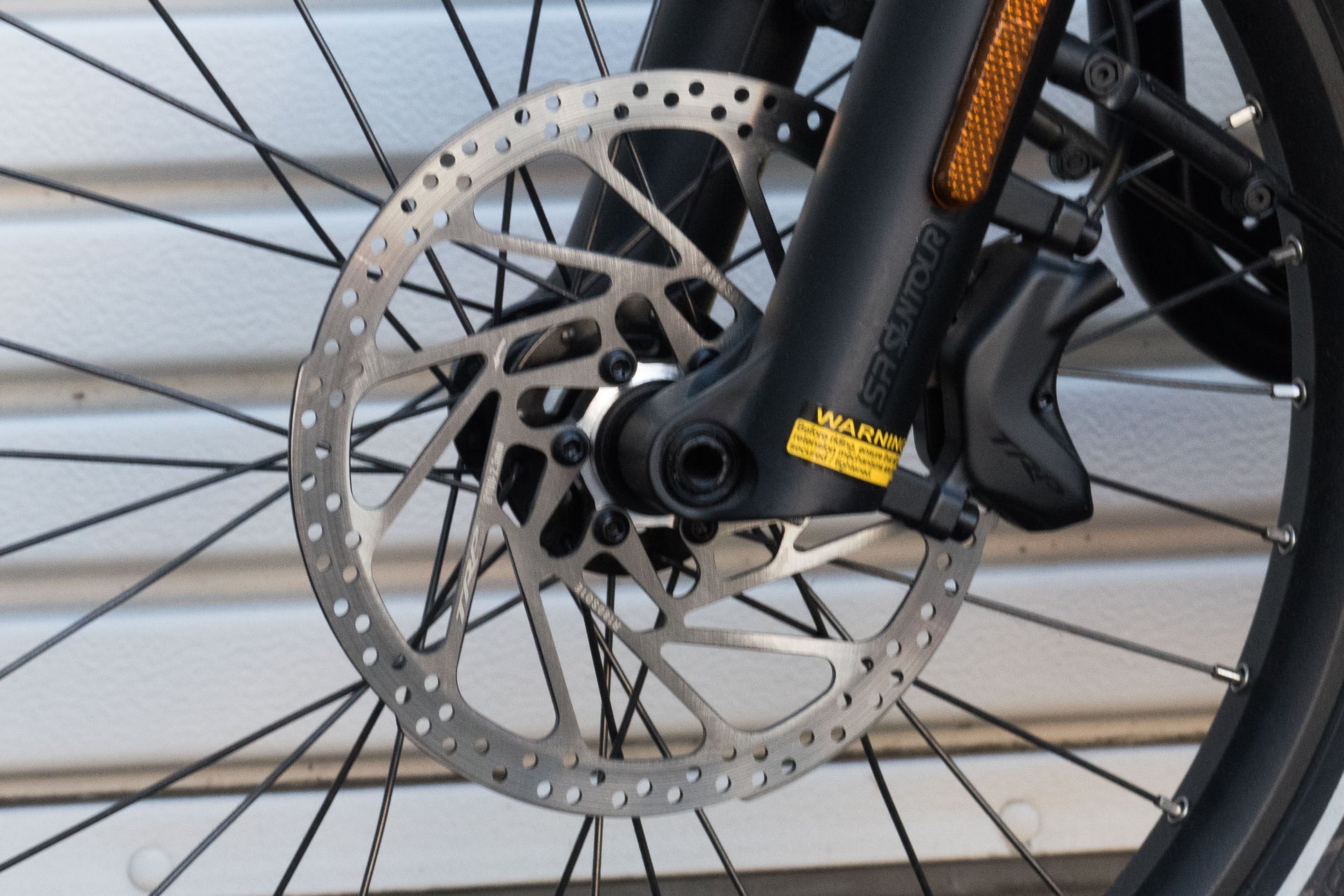

• Brakes: Tektro TRP C 2.3 disc brake; Magura MT C ABS*
• Front light: Supernova M99 Mini Pro-45

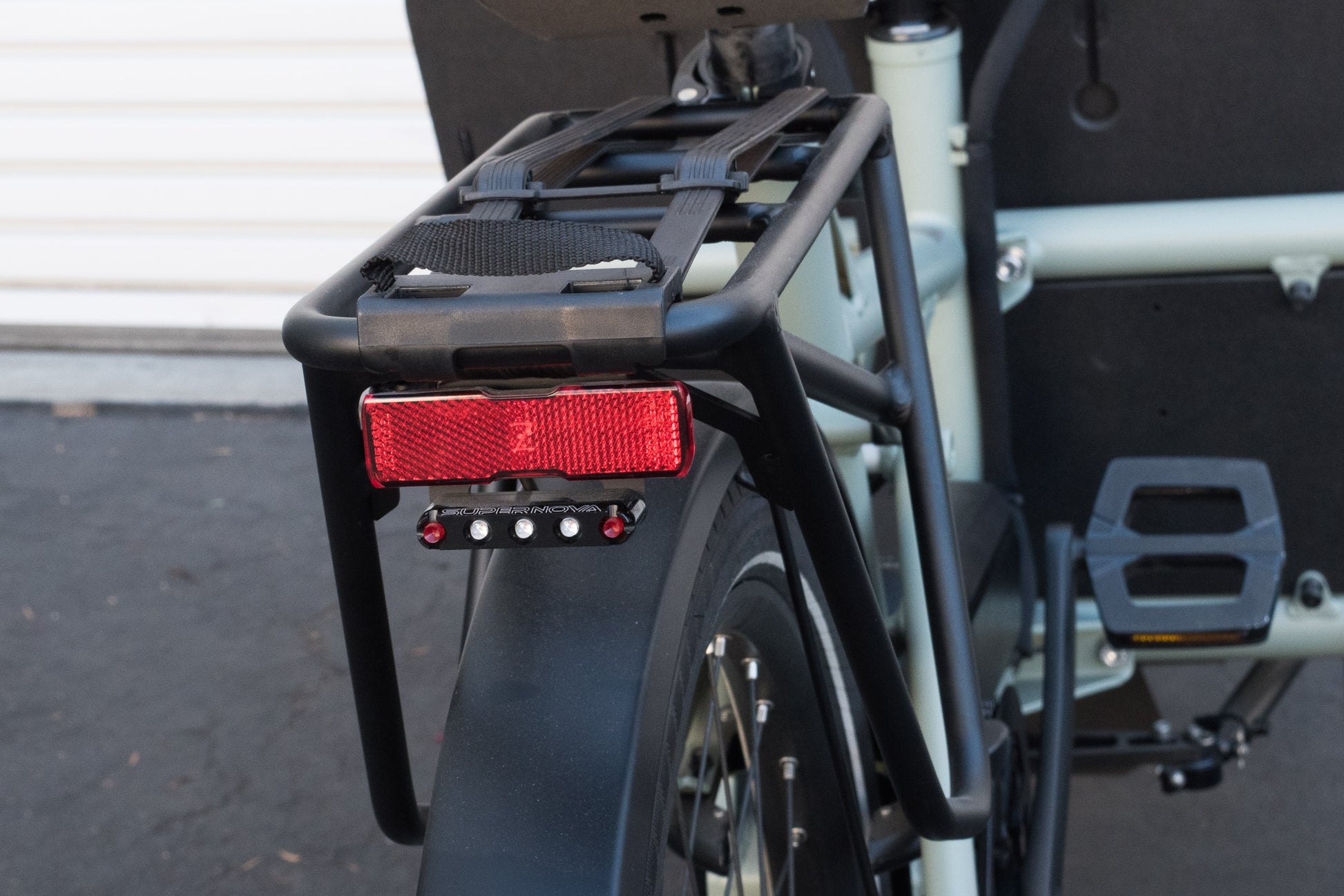

• Tail light: Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
• Mudguards: SKS A65R; SKS A69R

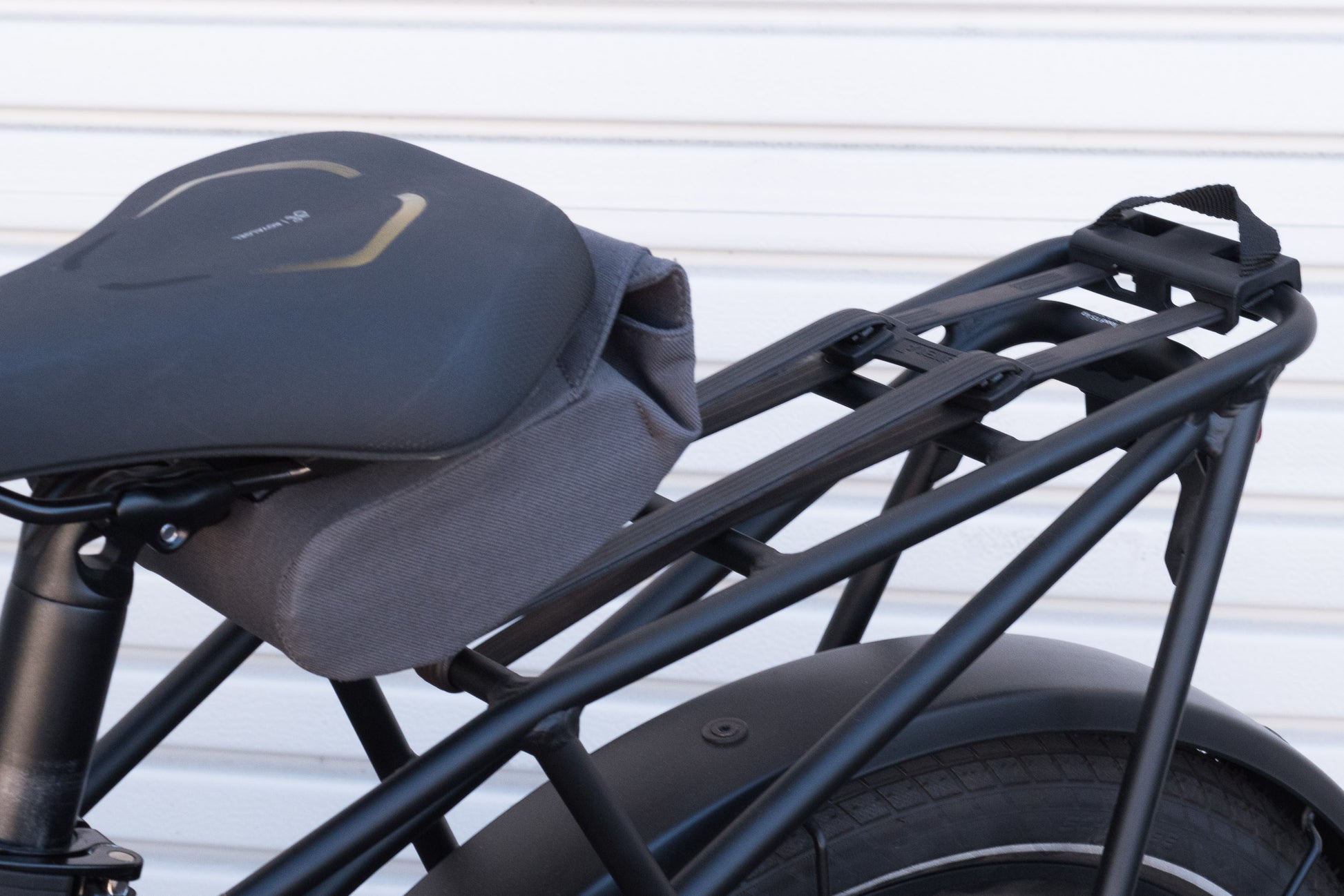

• Luggage rack: Riese & Müller
• Rubber: Bibia
• Horn: Supernova horn
• Kickstand: Riese & Müller

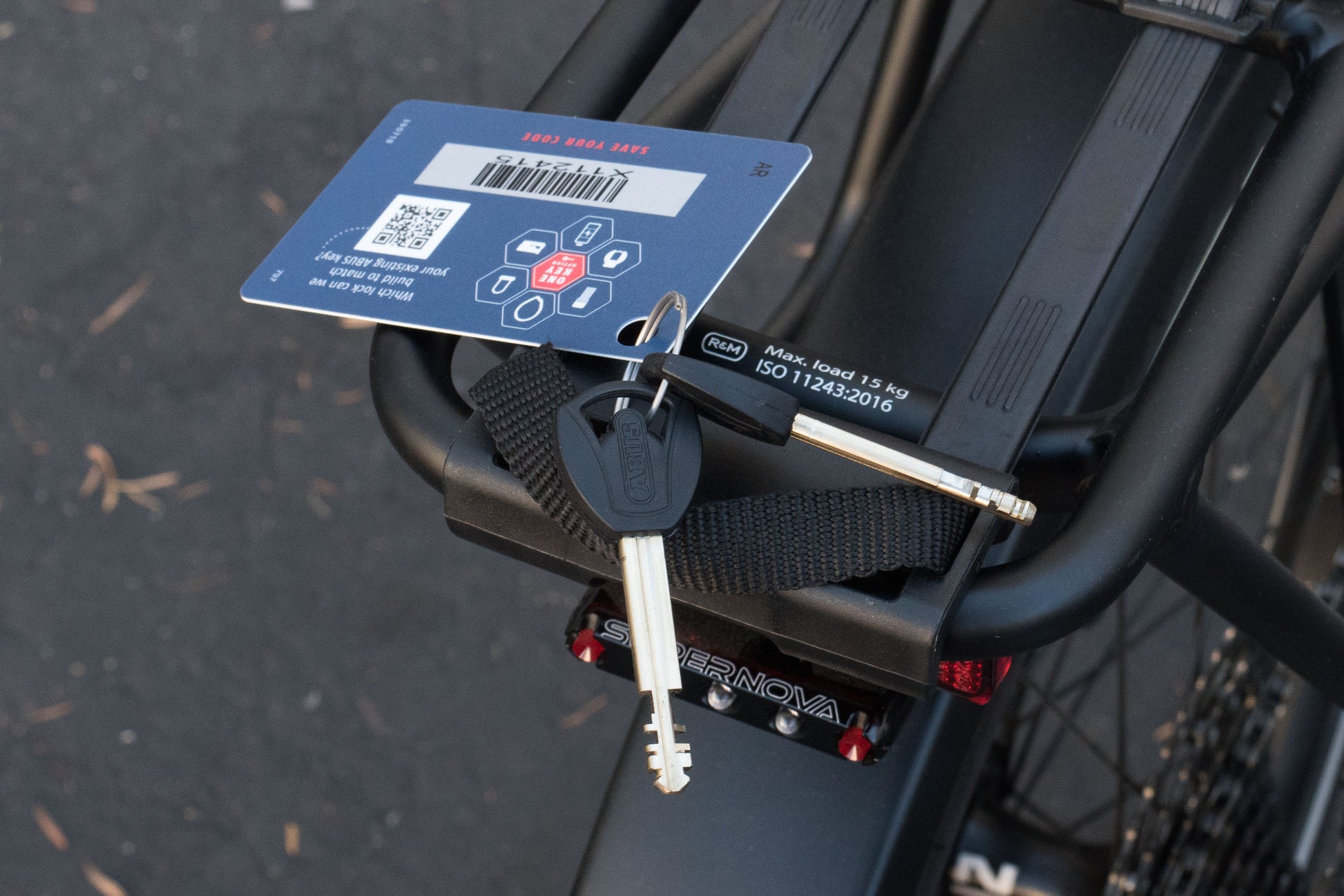

• Lock: ABUS Shield X+
• Mirror: Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*
• RX Hardware: RX Chip (für RX Services)*
• Frame size [cm]: universal*

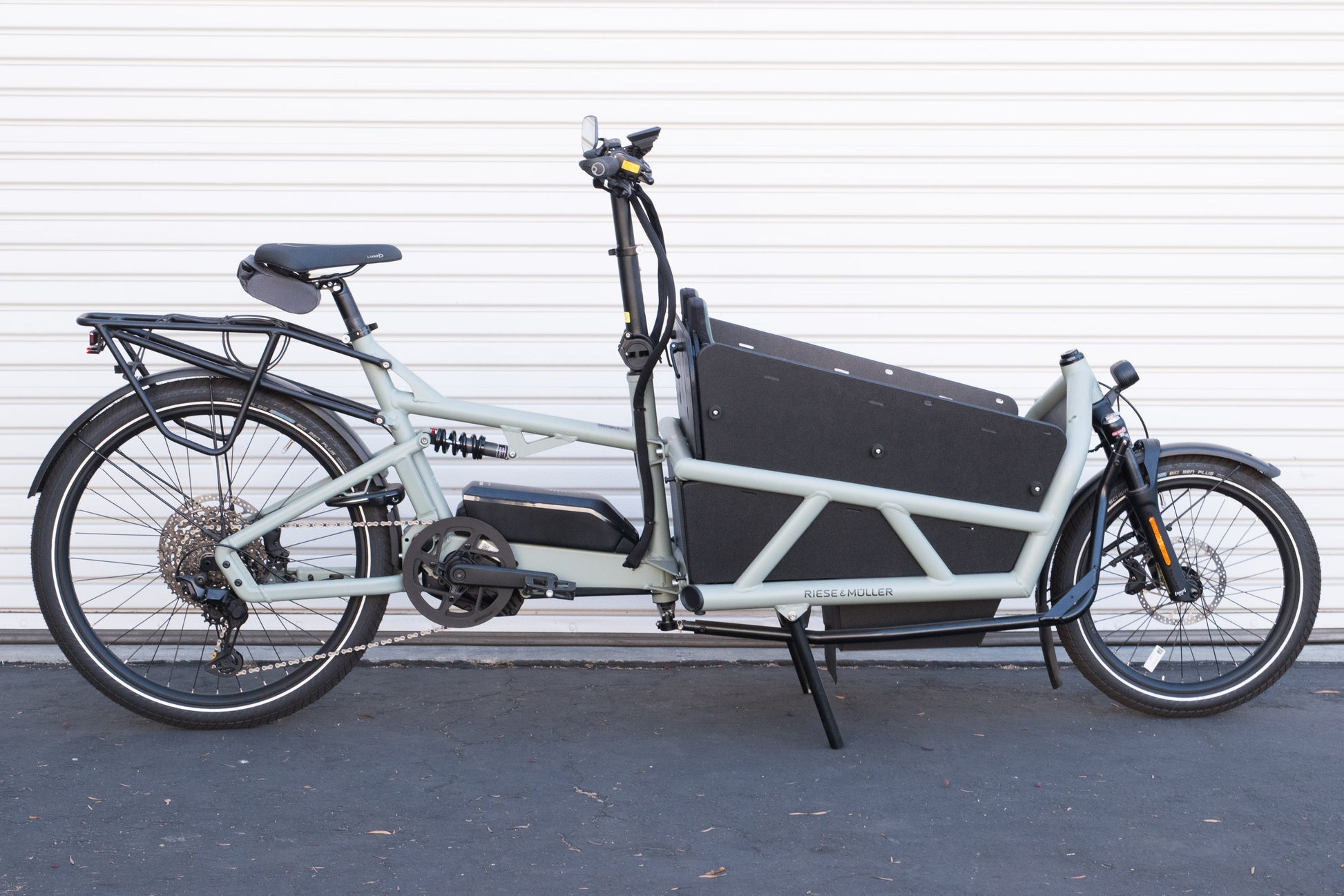

This Riese & Muller test bike has been configured with the following options:

• Frame size: universal

• Frame colour: tundra grey matt

• Display: Kiox 300

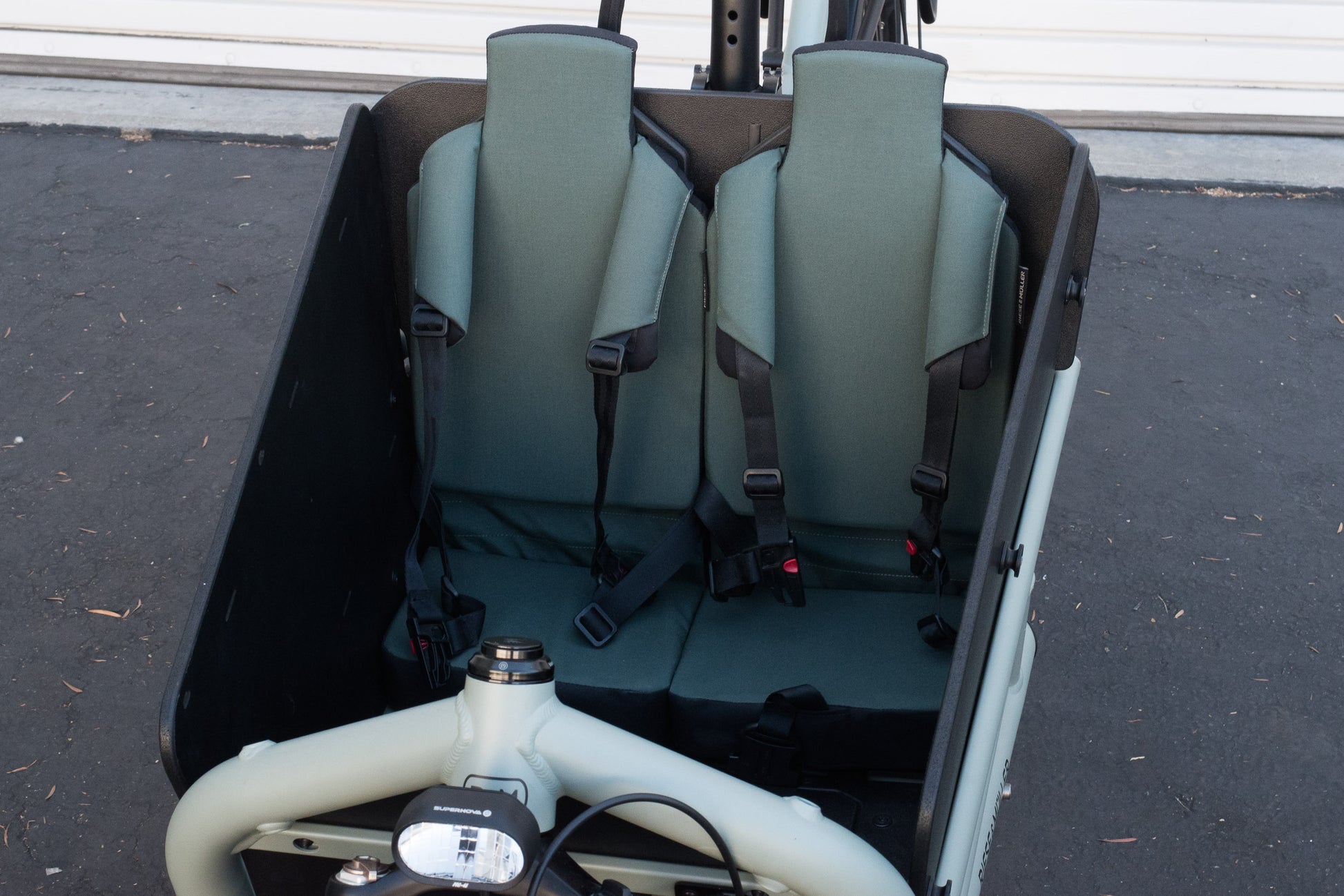

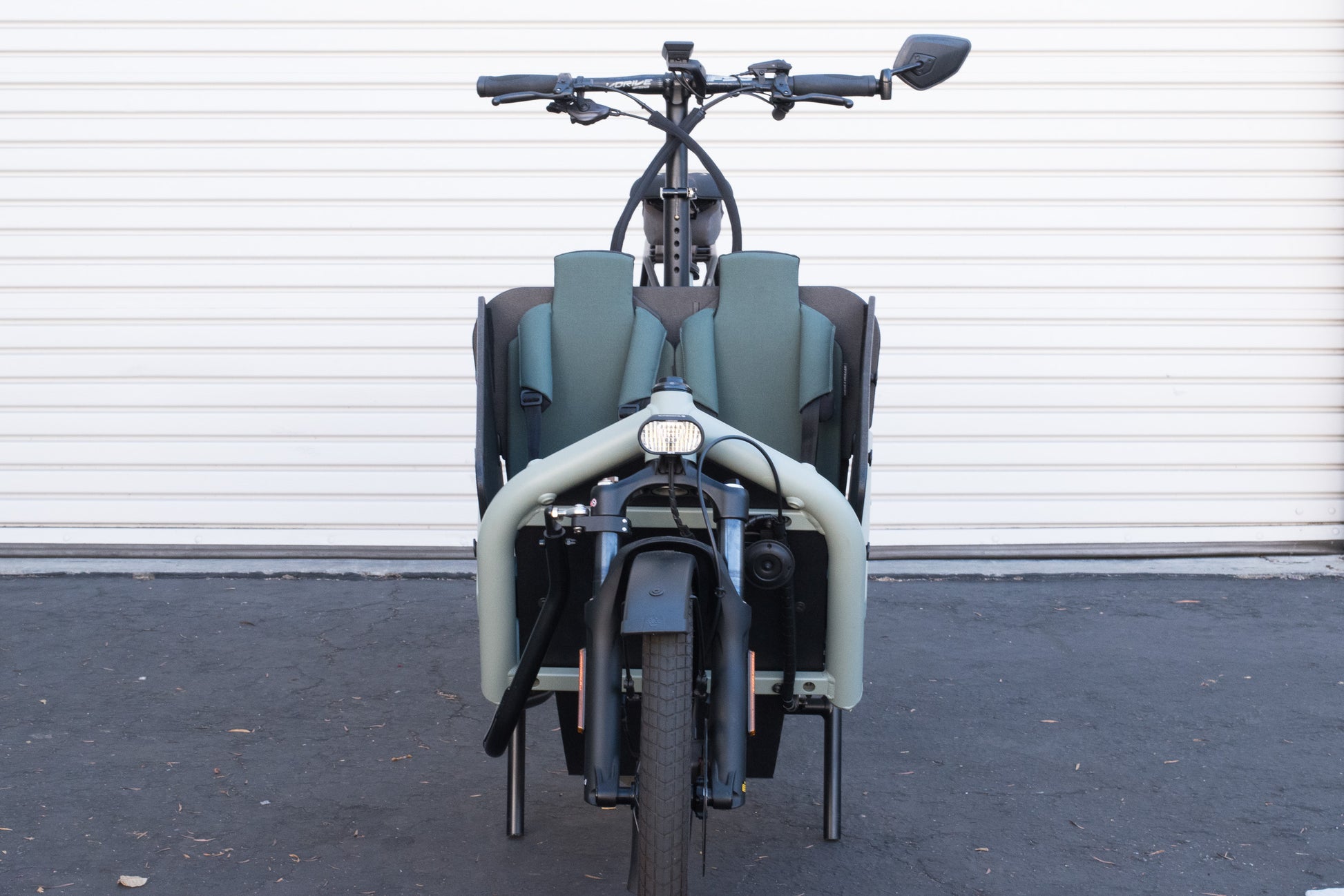

• Accessories cargo area: Two child seats with footwell

• Battery: 725 Wh

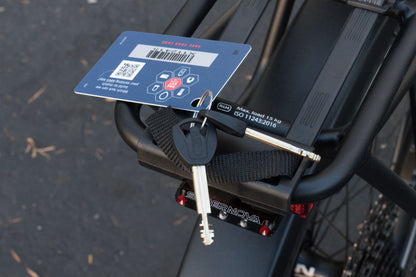

• Lock: Additional chain lock with bag

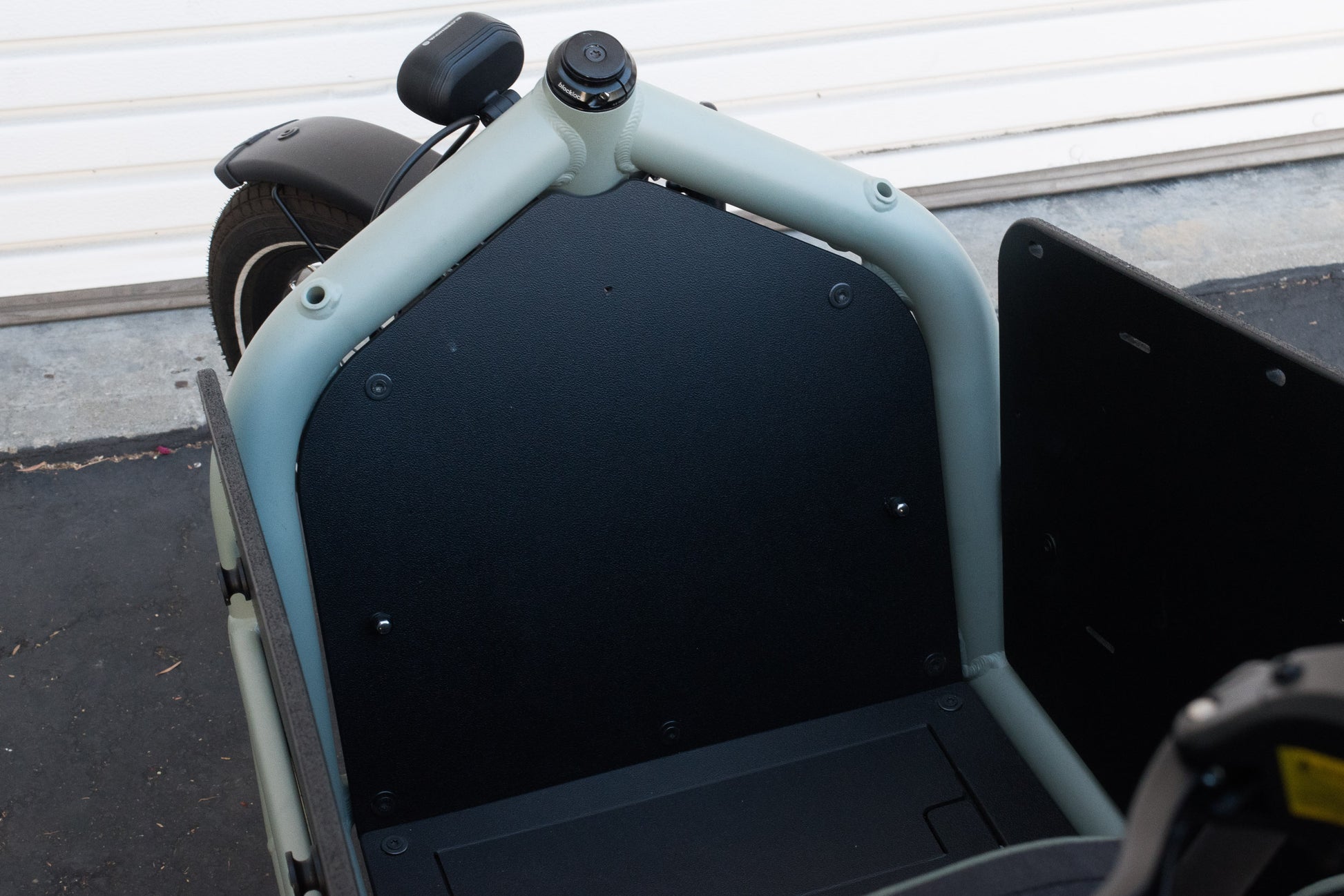

• Sidewalls / Weather protection: High sidewalls with child cover

The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits.

* May differ depending on the availability in your country, design or configuration of the model.
