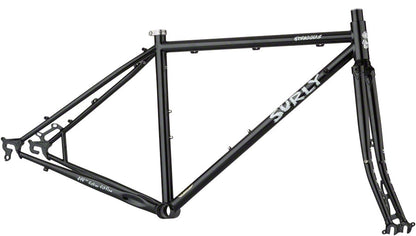

DEMO Surly Straggler Frameset - 700c, Steel, Chlorine Dream, 60cm, GRADE B
DEMO Surly Straggler Frameset - 700c, Steel, Chlorine Dream, 60cm, GRADE B
PRODUCT DETAILS
Straggler shares all of the Cross-Check's braze-ons for fenders, racks and bottle cages, and like the Cross-Check its ready to take you just about anywhere. It's a day tripper and a weekender. It's a 'rough road' road bike. It's a cyclocross bike with no pretense about racing. It's a utilitarian townie. It's a light-duty touring bike. It's an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else.
- Fender eyelets at the dropouts, front and rear rack bosses and dual water bottle mounts, downtube shifter mounts
- 100% Surly proprietary 4130 chromoly tubing. ED Coated. TIG-welded. Double-butted main triangle

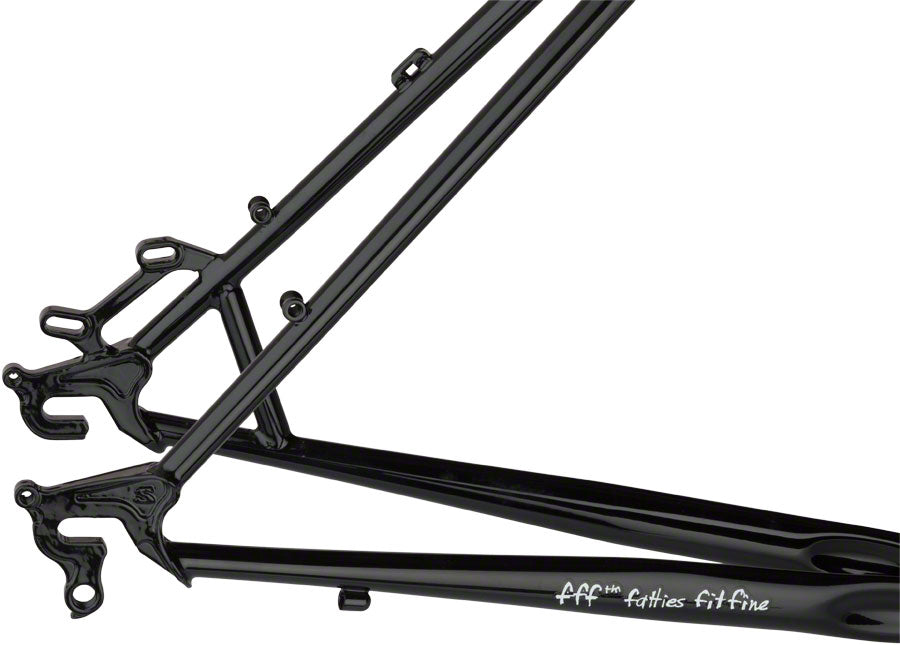

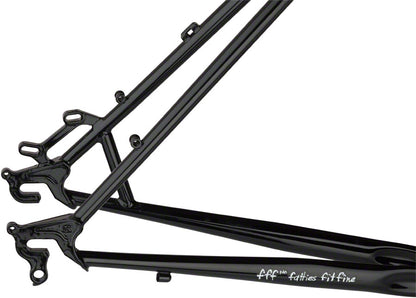

- Forward-exiting horizontal dropouts with adjusters give you singlespeed compatibility and wheelbase adjustability to help you fit the tires and fenders you want to run with that drivetrain you want to run. 135mm spacing
- Frame is ED Coated for increased life expectancy
CONDITION: GRADE B. Demo bike frame, ridden and slightly dinged. May include minor scratches, surface blemishes and component wear. Some components may have been switched, and not match advertised specification.
SIZING: Surly recommends the 60cm size for riders between 6' - 6'5."
GEOMETRY (in mm):
Frame measurements (mm) | 54cm | 56cm | 58cm | 60cm | 62cm |
---|---|---|---|---|---|
A. BB Drop | 72 | 72 | 72 | 72 | 72 |
B. Chainstay Length | 425 | 430 | 430 | 430 | 430 |
C. Fork Length - Axle to Crown | 400 | 400 | 400 | 400 | 400 |
D. Fork Offset | 44 | 44 | 44 | 44 | 44 |
E. Head Tube Angle (deg) | 72.0 | 72.0 | 72.0 | 72.0 | 72.0 |
F. Headtube Length | 107 | 121 | 146 | 165 | 185 |
G. Reach | 396.3 | 400.7 | 408.2 | 412.1 | 420.9 |
H. Seat Tube Angle (deg) | 73.0 | 72.5 | 72.5 | 72.0 | 72.0 |
I. Seat Tube Length - Center to Top | 540 | 560 | 580 | 600 | 620 |
J. Stack | 549.2 | 567.3 | 591.1 | 609.1 | 628.2 |
K. Standover | 791.7 | 809.4 | 828.7 | 846.1 | 865.0 |
L. Top Tube Length (Effective) | 565 | 580 | 595 | 610 | 625 |
M. Wheelbase | 1016.5 | 1031.9 | 1047.0 | 1056.8 | 1071.8 |
