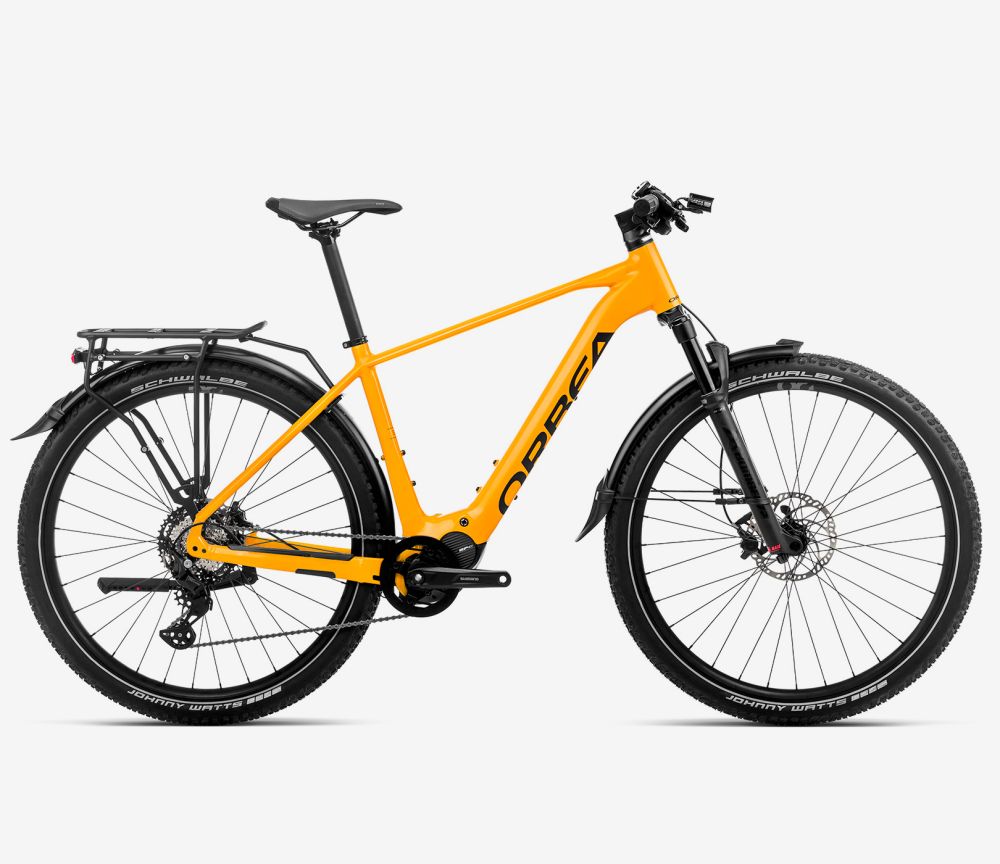

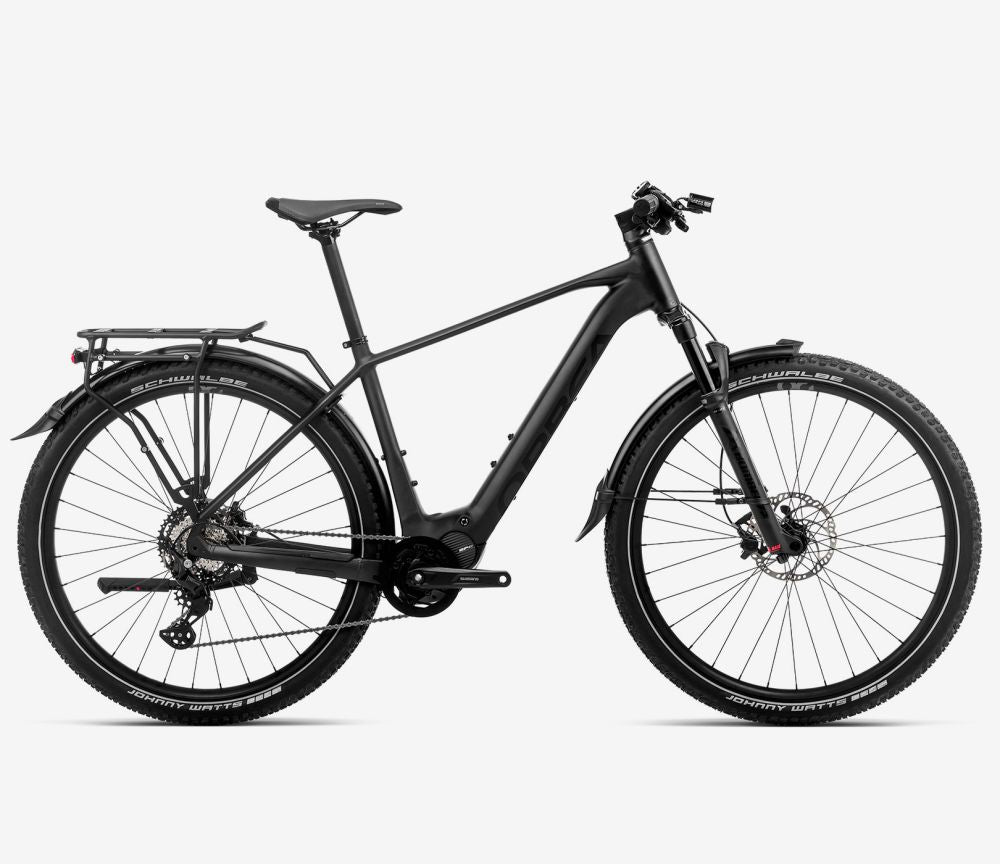

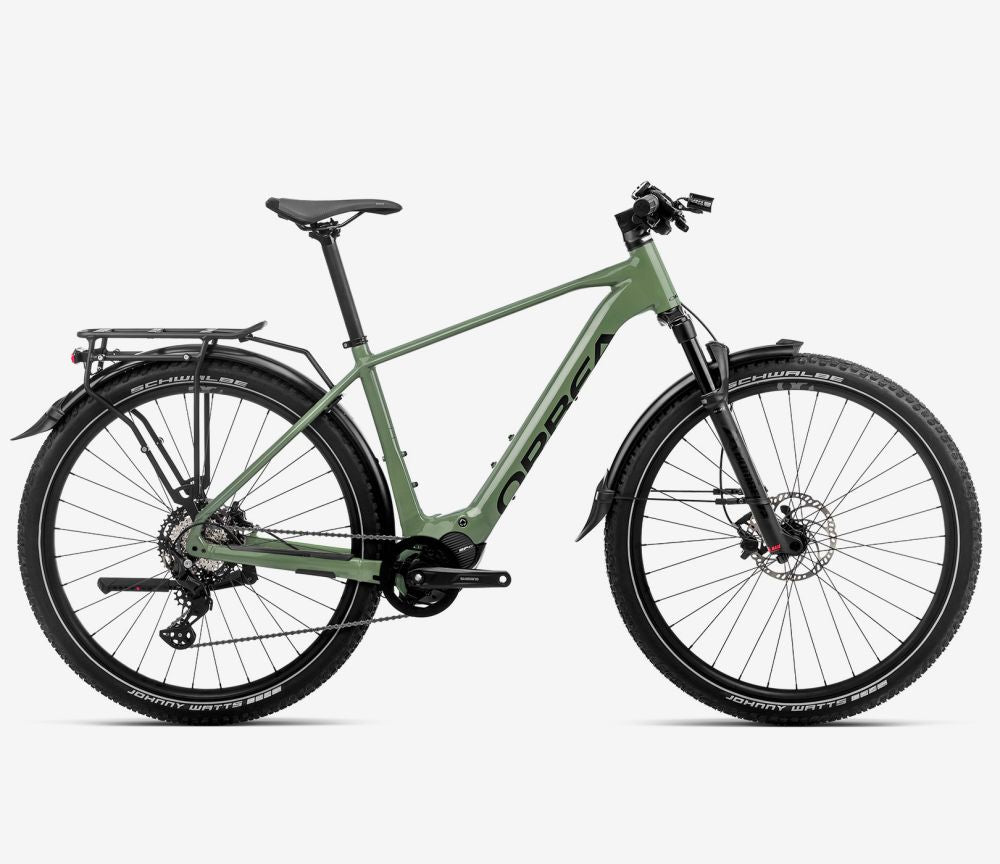

NEW 2023 Orbea Kemen SUV 30 20mph Hybrid eBike - 540Wh - Shimano EP801

BUILD KIT:

• FRAME: Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

• FORK: Marzocchi Bomber Z2 100 QR15x110 E-Bike Optimized

• HEADSET: FSA 1-1/2" Integrated Aluminium Cup

• BATTERY: Orbea Internal 540Wh (Optional 252 Wh Range Extender)

• RANGE EXTENDER: N/A

• MOTOR: Shimano EP801

• CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A

• REMOTE: Shimano EN600-L

• CHAINRING: Alloy EP8 36t w/chainguard

• CRANK: Shimano Steps EM600

• SHIFTERS: Shimano Deore M5130 Link Glide

• CASSETTE: Shimano CS-LG400 11-43t 10-Speed

• REAR DERAILLEUR: Shimano Deore M5130 Link Glide GS Shadow Plus

• CHAIN: KMC eGlide

• HANDLEBAR: OC Mountain Control MC31, Rise20, Width 800

• STEM: Alloy forged, 35mm interface, -6º, ICR

• BRAKES: Magura MT30 Hydraulic Disc Easy Route Connection

• WHEELS: Alloy, Tubeless, 29", 29c, 32H

• TIRES: Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape

• PEDALS: VP-537 Black

• REAR RACK: Orbea Kemen Suv oversize Alloy Rear Carrier, w/MIK HD and Oertlieb QL3.1 system (Max:25Kg)

• FENDERS: Curana Apollo 70mm

• FRONT POSITION LIGHT: Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.

• FRONT LIGHT: Lezyne Ebike Power STVZO Pro E115 with remote 310 lumens

• REAR LIGHT: Lezyne Super Bright Carrier STVZO Alert Technology 12 lumens

• KICKSTAND: Ursus Mooi rear adjustable

• SEATPOST: Alloy, 31.6mm, Setback 0

• SADDLE: Selle Royal Vivo 145x269mm

• GRIPS: OC Lock On

SIZING: Orbea recommends the following sizes based on rider height:

• SM: 5'1" - 5'7"
• MD: 5'5" - 5'11"
• LG: 5'9" - 6'3"
• XL: 6'1" - 6'7"
