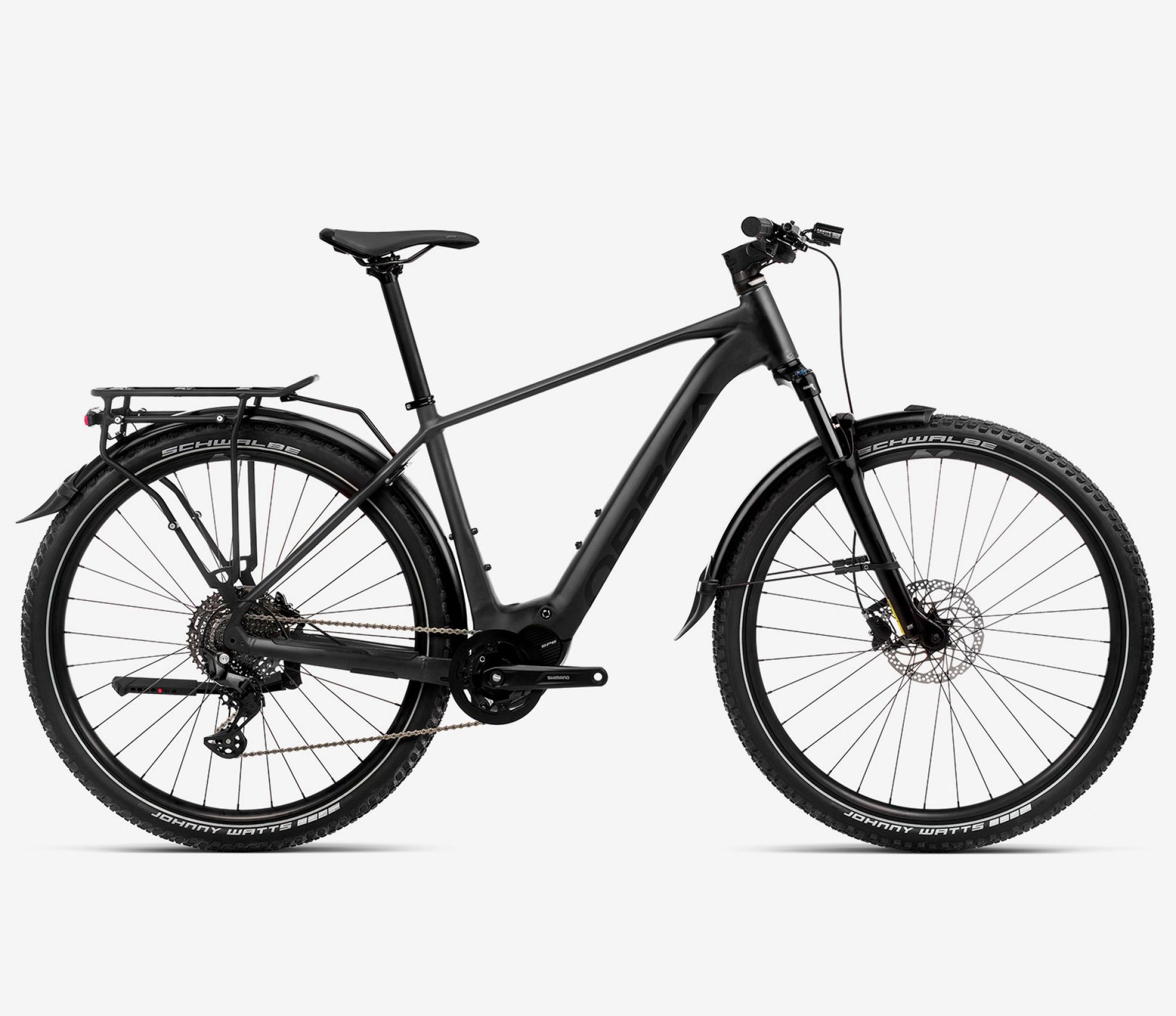

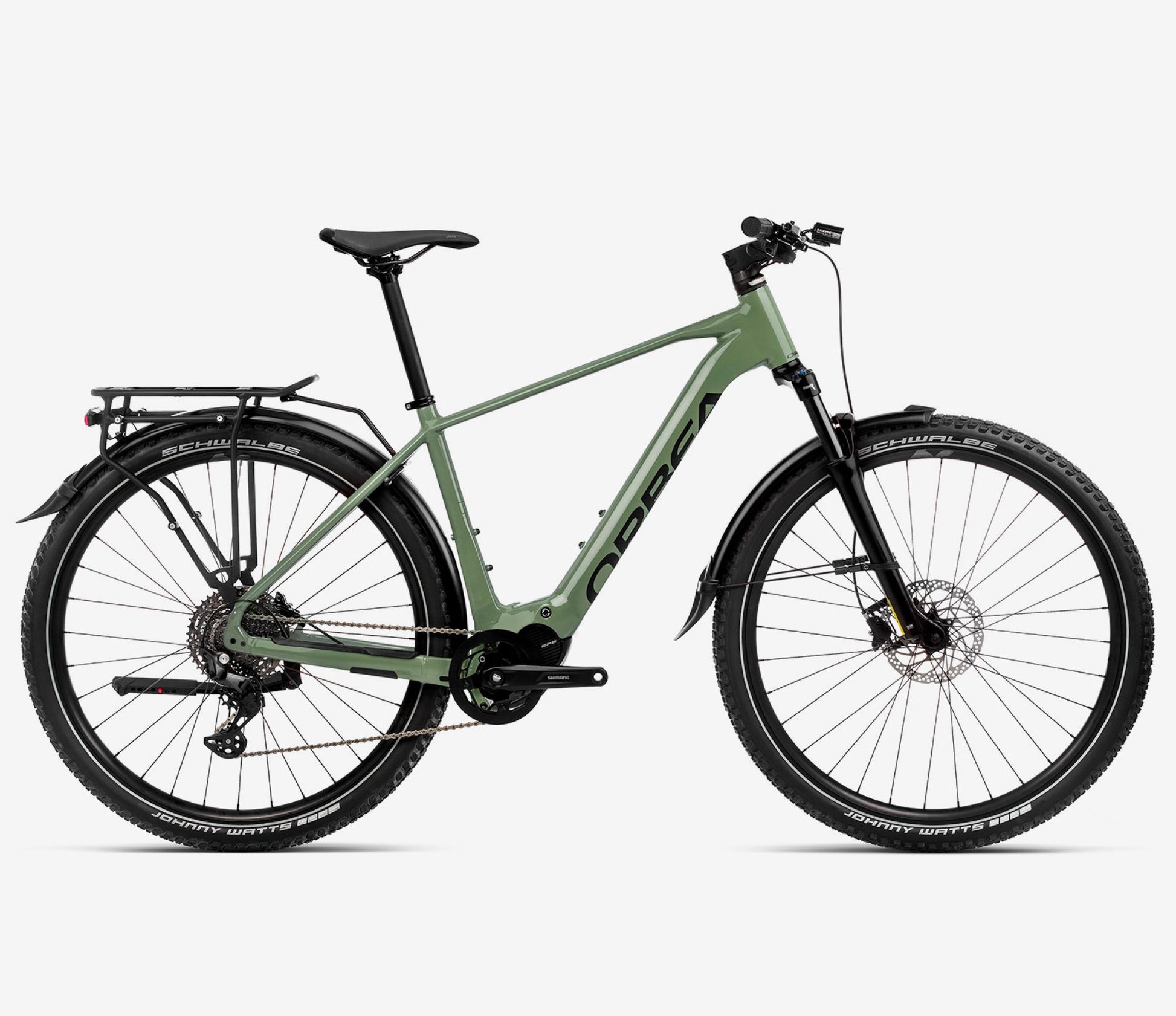

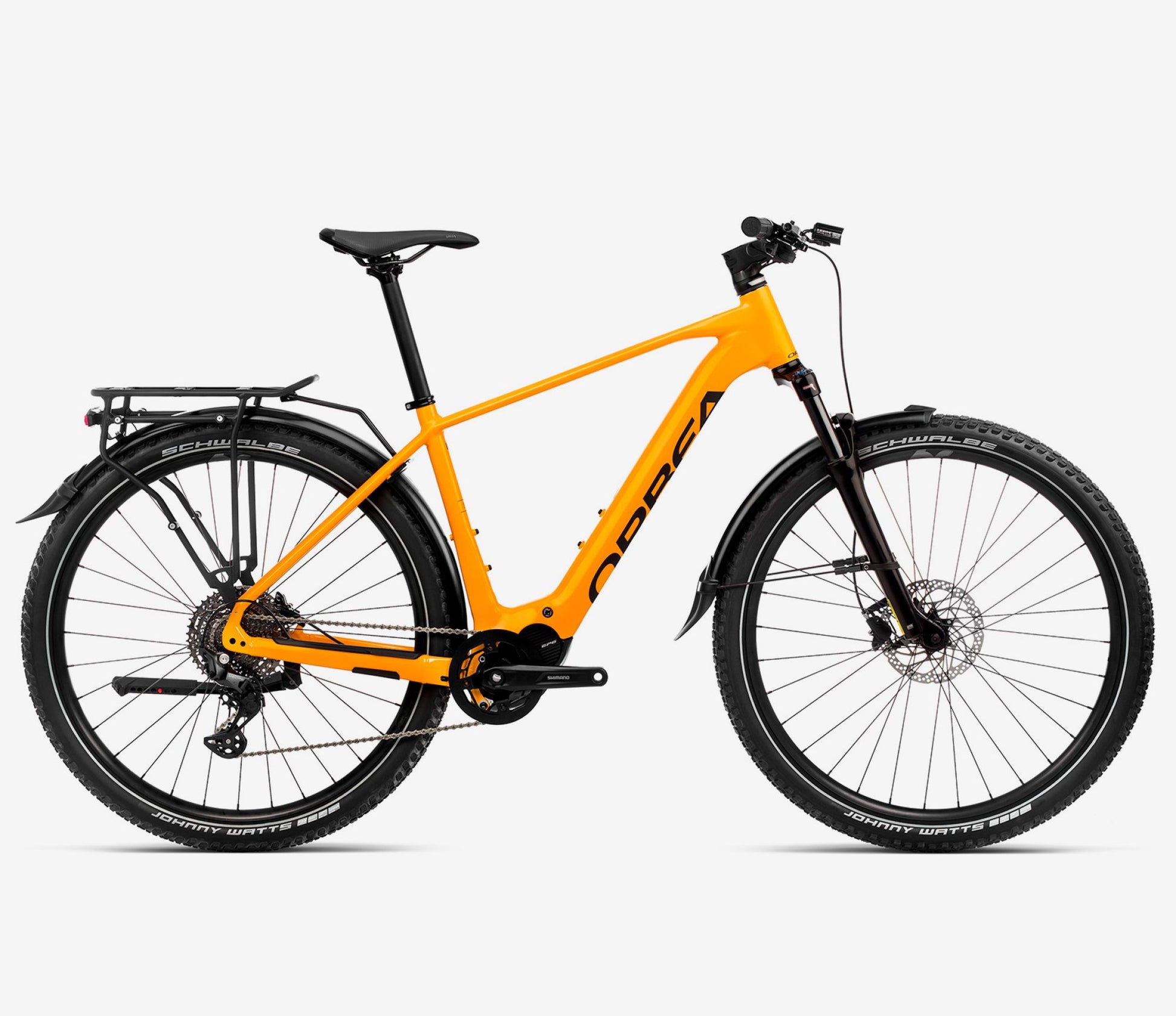

NEW 2023 Orbea Kemen SUV 40 28MPH Hybrid eBike - 540Wh - Shimano EP600

NEW 2023 Orbea Kemen SUV 40 28MPH Hybrid eBike - 540Wh - Shimano EP600

$ 2,469.97 USD
$ 3,799.00 USD $ 2,469.97 USD
Sale Sold out
Shipping calculated at checkout.
Size
Color
ATC SKU: 210000064543
EAN: 8434446306006
MFG. SKU: N68016VF

PRODUCT DETAILS

BUILD KIT:

  • FRAME: Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
  • FORK: SR Suntour X1 Coil LO 100mm QR
  • HEADSET: FSA 1-1/2" Integrated Aluminium Cup
  • BATTERY: Orbea Internal 540Wh (Optional 252 Wh Range Extender)
  • RANGE EXTENDER: N/A
  • MOTOR: Shimano EP600
  • DISPLAY: Shimano EN500
  • CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
  • CHAINRING: FSA Steel Megatooth 44t w/chainguard
  • CRANK: FSA CK-752 Shimano EP600/801 170mm
  • SHIFTERS: Shimano Deore M5130 Link Glide
  • CASSETTE: Shimano CS-LG400 11-43t 10-Speed
  • REAR DERAILLEUR: Shimano Deore M5130 Link Glide GS Shadow Plus
  • CHAIN: KMC eGlide
  • HANDLEBAR: OC Mountain Control MC31, Rise20, Width 800
  • STEM: Alloy forged, 35mm interface, -6º, ICR
  • BRAKES: Shimano MT200 Hydraulic Disc
  • WHEELS: Alloy, Tubeless, 29", 29c, 32H
  • TIRES: Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
  • PEDALS: VP-537 Black
  • REAR RACK: Orbea Kemen Suv oversize Alloy Rear Carrier, w/Mik HD and Oertlieb QL3.1 system
  • FENDERS: Curana Apollo 70mm
  • FRONT POSITION LIGHT: Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
  • FRONT LIGHT: Lezyne Ebike Power STVZO Pro E115 with remote 310 lumens
  • REAR LIGHT: Lezyne Super Bright Carrier STVZO Alert Technology 12 lumens
  • KICKSTAND: Ursus Mooi rear adjustable
  • SEATPOST: Alloy, 31.6mm, Setback 0
  • SADDLE: Selle Royal Vivo 145x269mm
  • GRIPS: OC Lock On

SIZING: Orbea recommends the following sizes based on rider height:

  • SM: 5'1" - 5'7"
  • MD: 5'5" - 5'11"
  • LG: 5'9" - 6'3"
  • XL: 6'1" - 6'7"
California Prop 65 Warning:
This product may contain chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. (California law requires this warning be given to customers in the state of California.)
California CBE Fees:
Some products we sell may be subject to California’s Covered Battery-Embedded (CBE) Waste Recycling Fee (effective January 1, 2026) when a product contains a non-removable rechargeable battery. If applicable, the fee (1.5% fee with a $15 max per item) will either be added to your cart as a separate line item or be invoiced after your order is placed and before it can be fulfilled.
View full details
