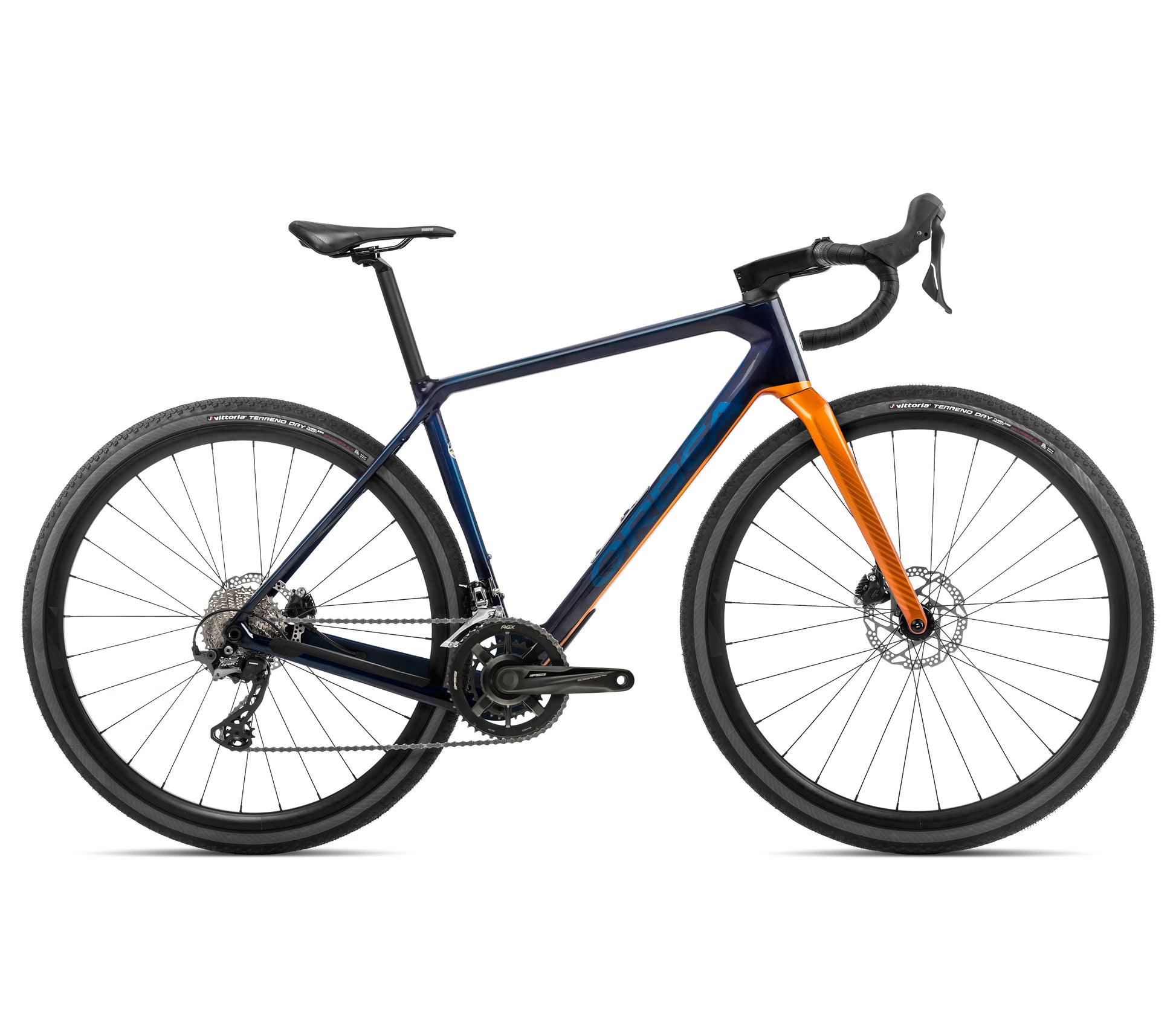

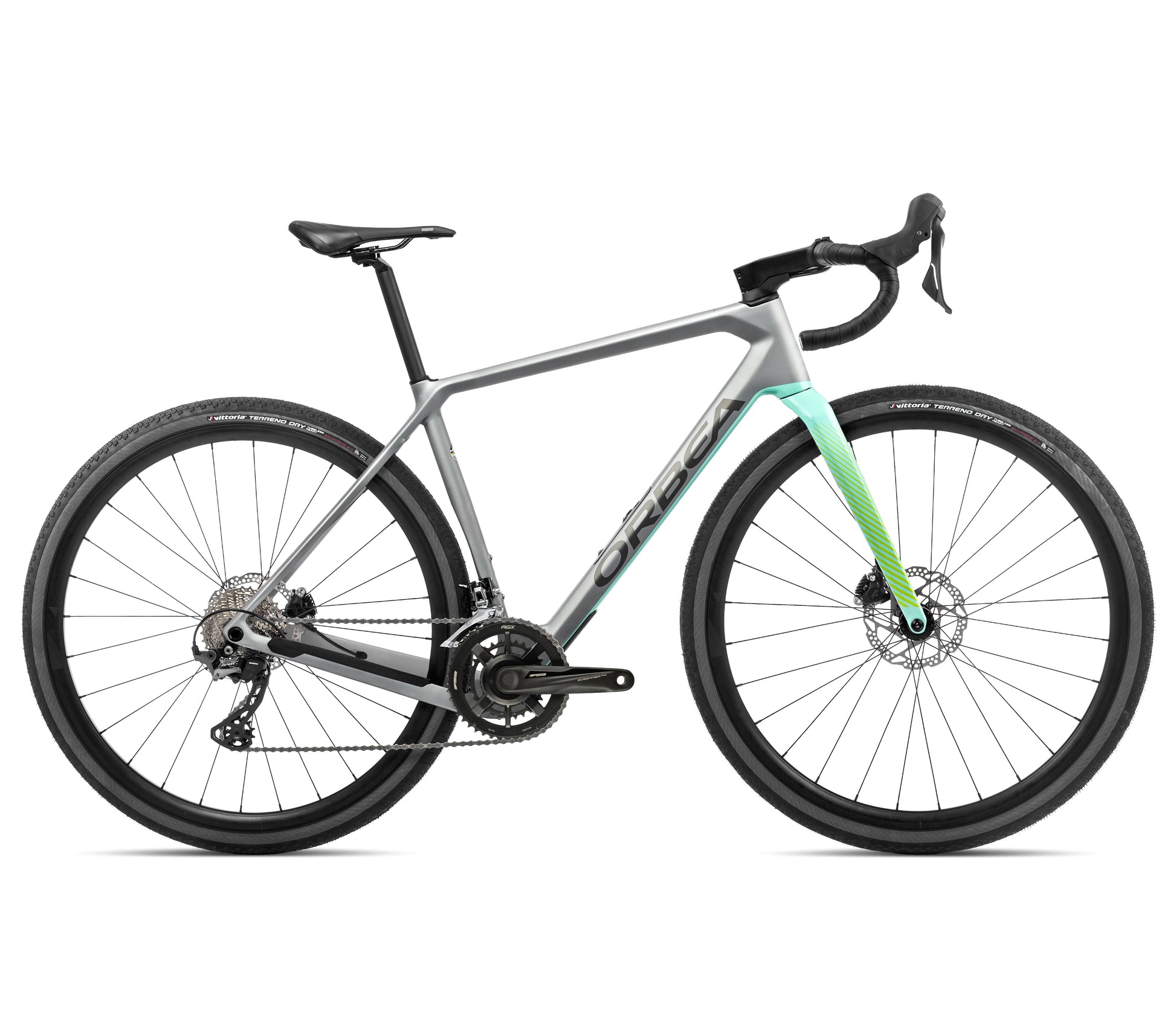

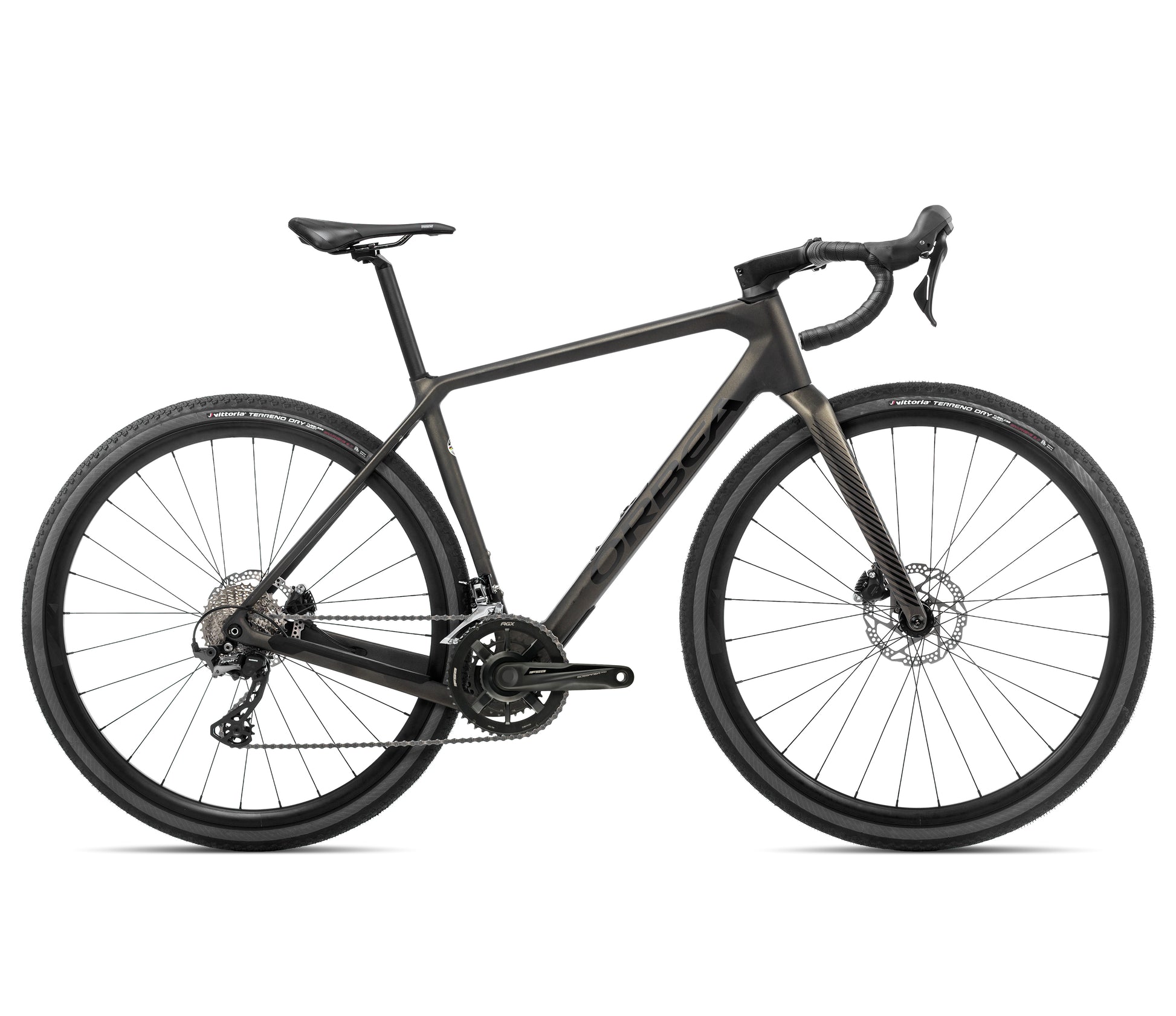

NEW 2023 Orbea Terra M30TEAM Carbon Gravel Bike - Shimano GRX RX600 2x11

BUILD KIT:

• FRAME: Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Internal Cable Routing, EC/DC compatible

• FORK: Orbea Terra OMR carbon disc fork, full carbon steerer

• HEADSET: FSA 1-1/2" Integrated Aluminium Cup

• STEM: OC1 31.8mm interface -6º

• HANDLEBAR: OC1 All Road, reach 80mm, drop 125mm, flare 12º
• BRAKES: Shimano GRX RX400 Hydraulic disc
• FRONT DERAILLEUR: Shimano GRX FD-RX810

• REAR DERAILLEUR: Shimano GRX RD-RX810

• SHIFTERS: Shimano GRX ST-RX600

• CASSETTE: Shimano 105 R7000 11-34t 11-Speed

• CHAIN: Shimano HG 601

• CRANKSET: FSA Gossamer Pro Direct Mount AGX 30x46t

• WHEEL: Orbea Ready GR with 12mm E-Thru hubset Shimano RS470 28H

• FRONT AXLE: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

• REAR AXLE: Orbea Thru Axle 12x100mm M12x2 P1 Solid

• TIRES: Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
• SEATPOST: OC2 Carbon 27.2 Offset 20

• SADDLE: Prologo Akero AGX STN size 155mm

• STORAGE: Terra Accesory Container

• BAR TAPE: Orbea Anti-Slippery/Shock Proof


SIZING: Orbea recommends the following sizes based on rider height

• XS — 5'1" - 5'5"
• SM — 5'6" - 5'8"
• MD — 5'8" - 5'10"
• LG — 5'11" - 6'1"
• XL — 6'1" - 6'3"
• XXL — 6'4" - 6'9"
