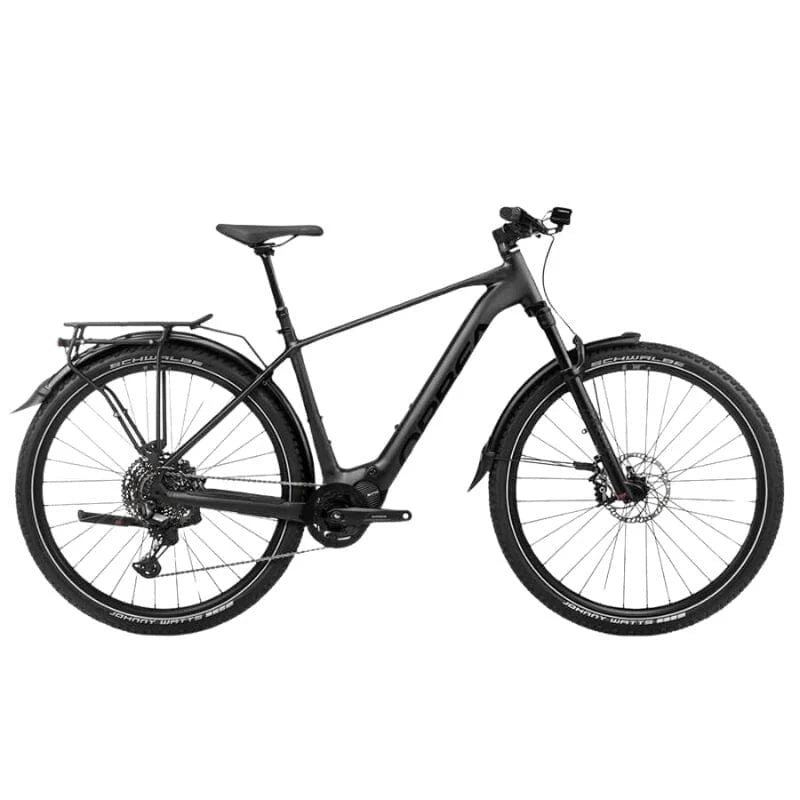

NEW 2024 Orbea Kemen SUV 10 28MPH Hybrid eBike - 540Wh - Shimano EP801

BUILD KIT:

• FRAME: Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

• FORK: Fox 34 Float AWL 100 RAIL QR15x110

• HEADSET: FSA 1-1/2" Integrated Aluminium Cup

• CRANKSET: FSA Steel Megatooth 44t w/chainguard

• CRANK: FSA CK-752 Shimano EP600/801 170mm

• SHIFTERS: Shimano XT M8130 Link Glide

• CASSETTE: Shimano CS-LG400 11-50t 11-Speed

• REAR DERAILLEUR: Shimano XT M8130 Link Glide SGS Shadow Plus

• CHAIN: KMC eGlide

• HANDLEBAR: OC Mountain Control MC31, Rise20, Width 800

• STEM: Alloy forged, 35mm interface, -6º, ICR

• BRAKES: Magura MT5 E-STOP Hydraulic Disc Easy Route Connection

• WHEELS: Alloy, Tubeless, 29", 29c, 32H

• TIRES: Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape

• PEDALS: VP-537 Black

• REAR CARRIER: Orbea Kemen Suv oversize Alloy Rear Carrier, w/Mik HD and Oertlieb QL3.1 system

• MUDGUARD: CURANA Apollo 70mm

• FRONT POSITION LIGHT: Front position light, on the head tube, COB Led, On/Off, 60 Lumen, ECE50.

• FRONT LIGHT: Lezyne Super HB STVZO 1000 with Remote, Low Beam 600 Lumens, High Beam 1000 Lumens

• REAR LIGHT: Lezyne Super Bright CARRIER STVZO Alert Technology 12 Lumen

• QUICK STAND: MASSLOAD rear adjustable

• SEATPOST: OC Mountain Control MC21, 31.6mm, Dropper

• SEATPOST LEVER: Shimano SL-MT500

• SADDLE: Selle Royal Vivo Sport Men 145 x 269mm

• GRIPS: OC Lock On

• MOTOR: Shimano EP801

• BATTERY: Orbea Internal 540Wh (Optional 250 Wh Range Extender)

• DISPLAY: N/A

• CHARGER: Orbea 2nd Generation eBike Smart Charger 42V/2-4A

• REMOTE: EN600-L

SIZING: Orbea recommends the following sizes based on rider height:

• SM: 5'1" - 5'7"
• MD: 5'5" - 5'11"
• LG: 5'9" - 6'3"
• XL: 6'1" - 6'7"
