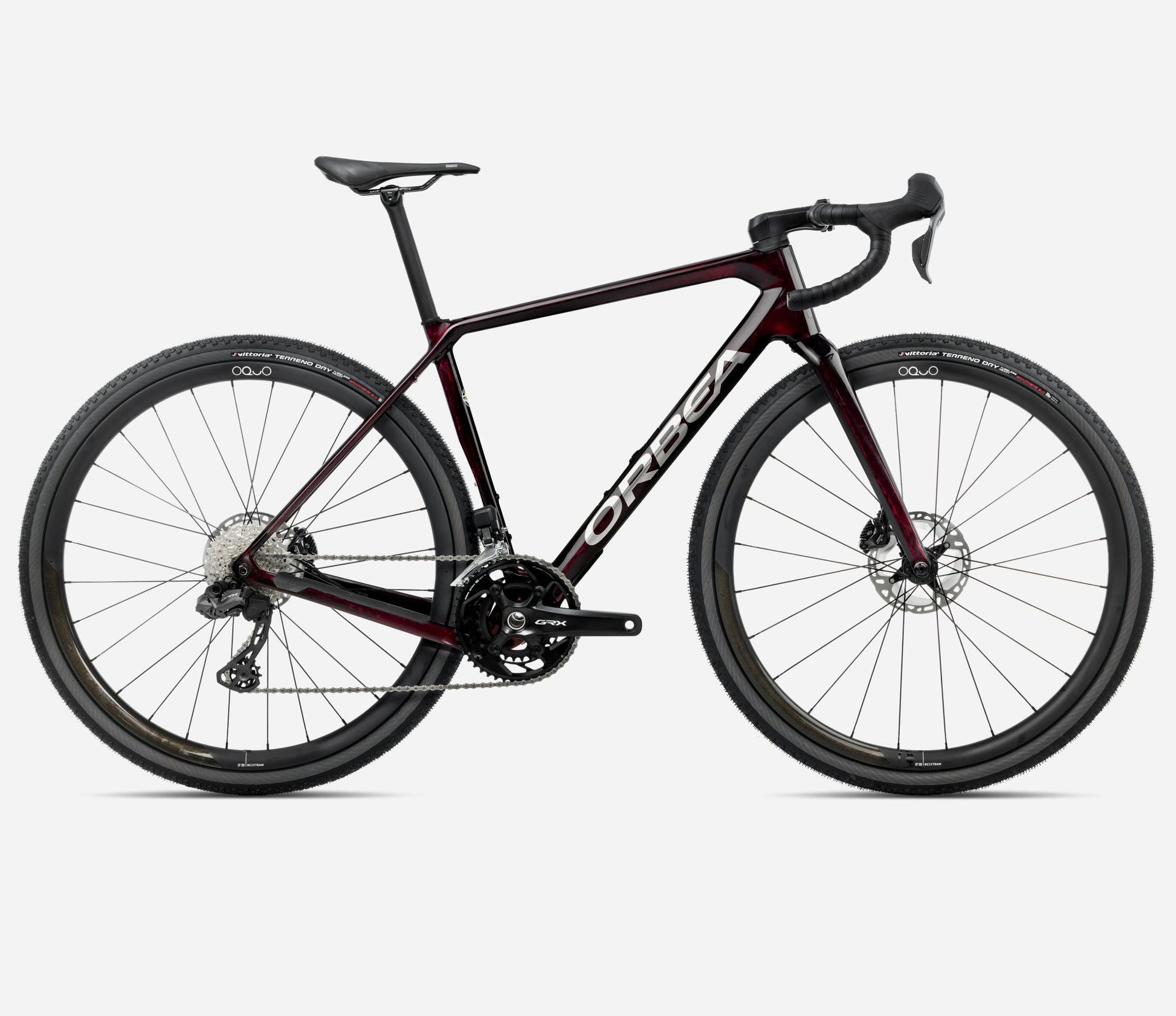

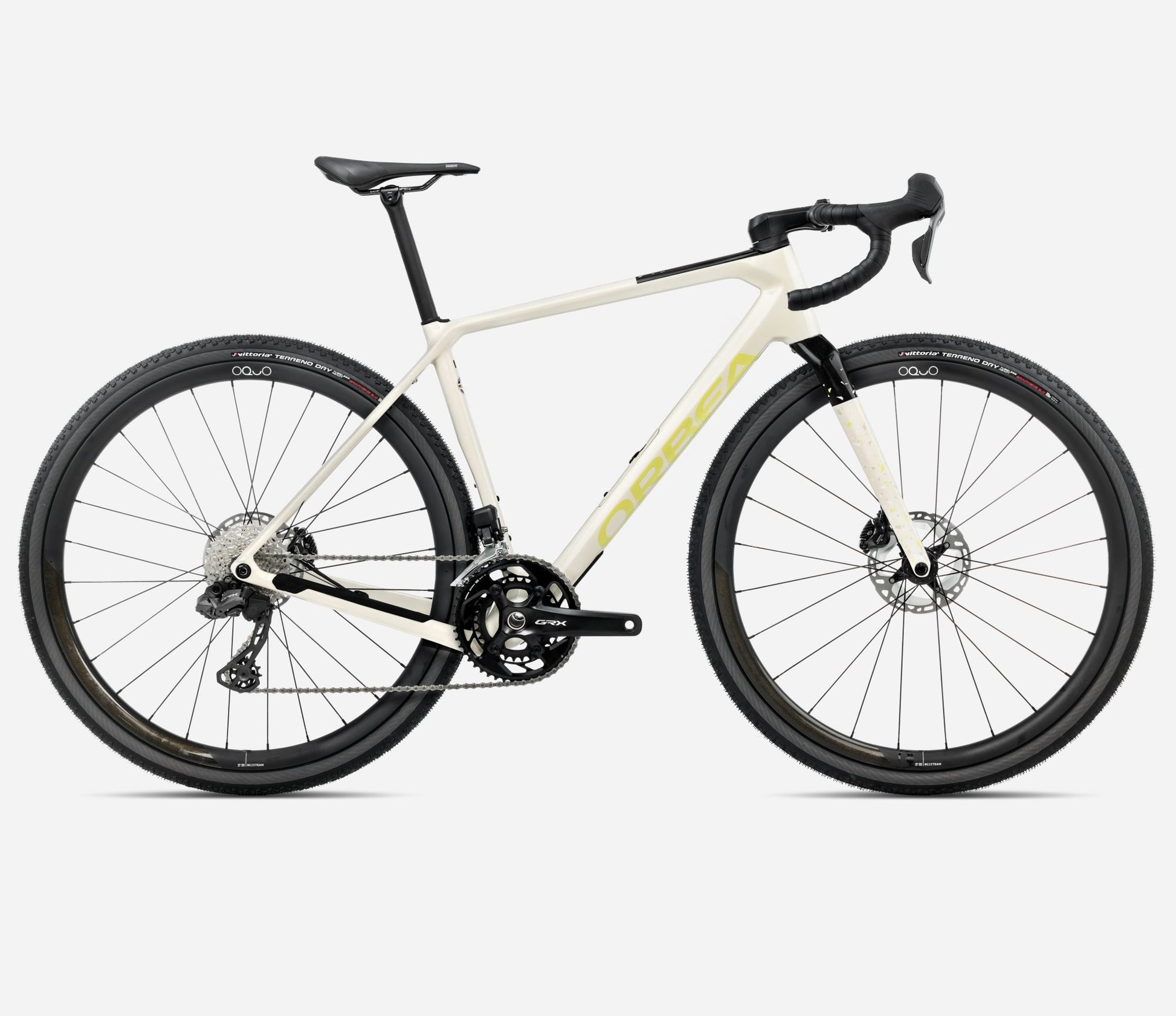

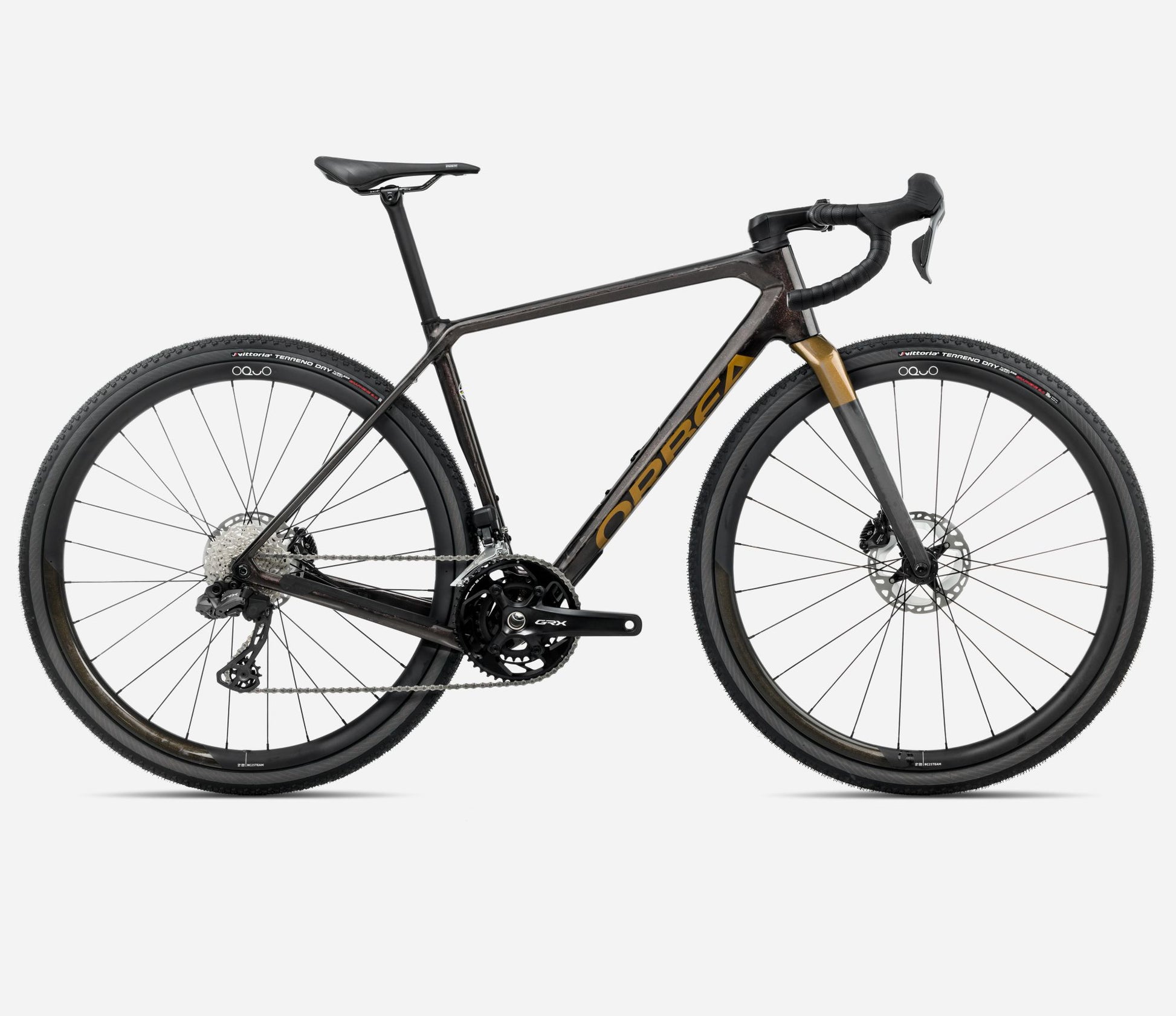

NEW 2024 Orbea Terra M20iTEAM Carbon Gravel Bike - Shimano GRX RX825 Di2 2x11, Carbon Wheels

BUILD KIT:

• Frame: Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box

• Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

• Headset: FSA 1-1/2" Integrated Aluminium Cup

• Crankset: Shimano GRX RX820 31x48t

• Shifters: Shimano GRX Di2 RX825

• Cassette: Shimano Ultegra R8100 11-34t 12-Speed

• Rear Derailleur: Shimano GRX Di2 RX825

• Front Derailleur: Shimano GRX Di2 RX825

• Chain: Shimano M7100

• Handlebar: Easton EC90 AX Carbon, flare 16º, Di2 internal routing

• Stem: OC Road Performance RP11, -8º

• Brakes: Shimano RX820 Hydraulic Disc

• Wheels: Oquo Road Control RC25TEAM

• Tires: Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
• Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid

• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

• Seatpost: OC Performance XP10 Carbon, 27.2mm, Setback 0

• Saddle: Prologo Akero AGX black rails size 155mm

• Handlebar Tape: Orbea Anti-Slippery/Shock Proof

• Storage: Accessories Containers

SIZING: Orbea recommends the following sizes based on rider height:

• XS: 5'1" - 5'5"
• SM: 5'6" - 5'8"
• MD: 5'8" - 5'10"
• LG: 5'11" - 6'1"
• XL: 6'1" - 6'3"
• XXL: 6'4" - 6'9"
