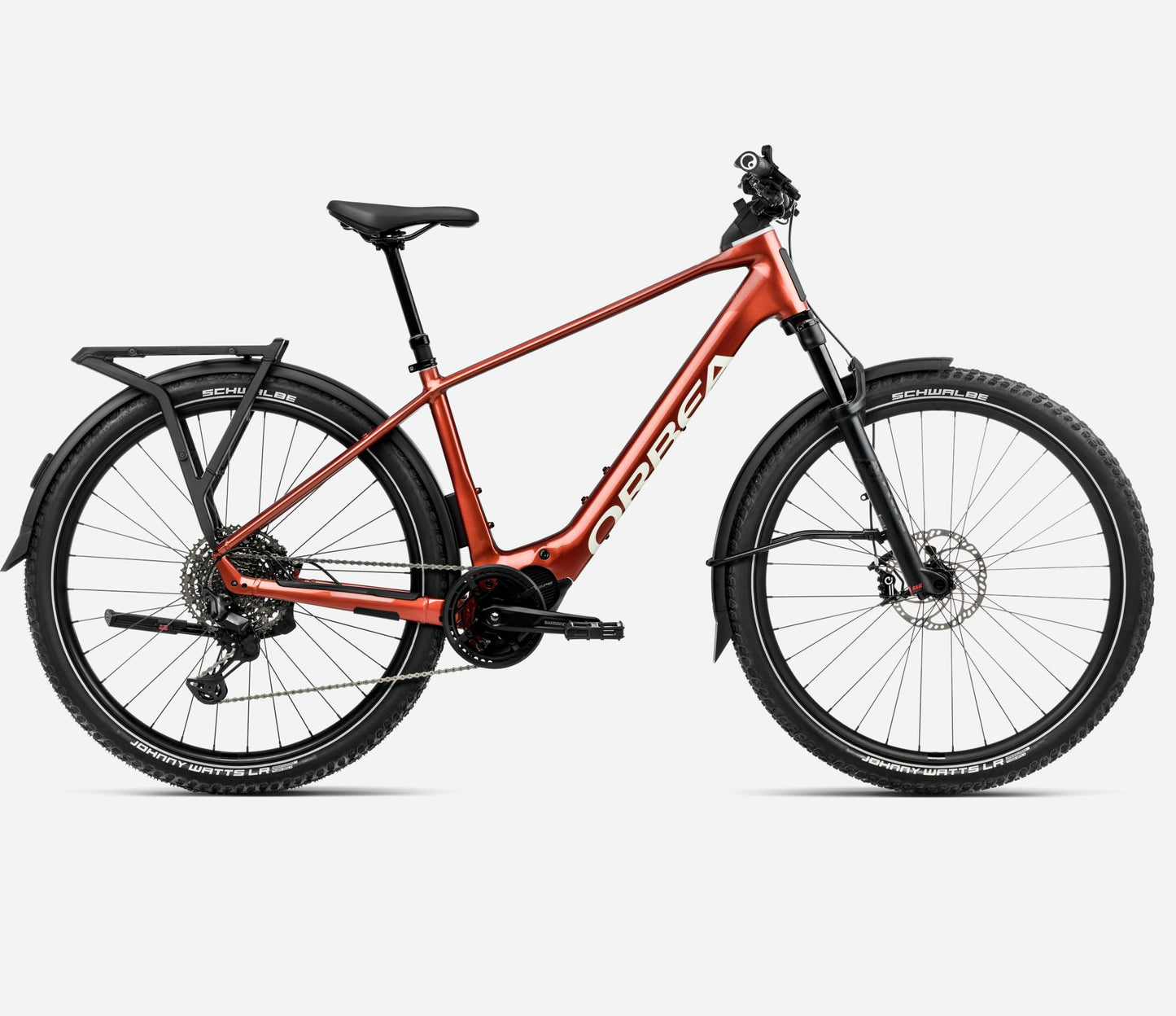

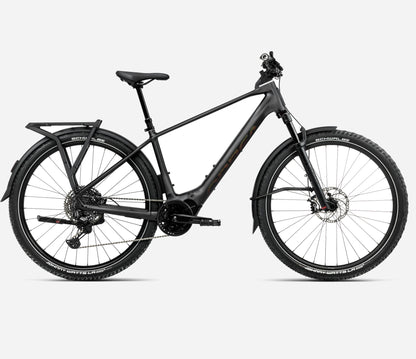

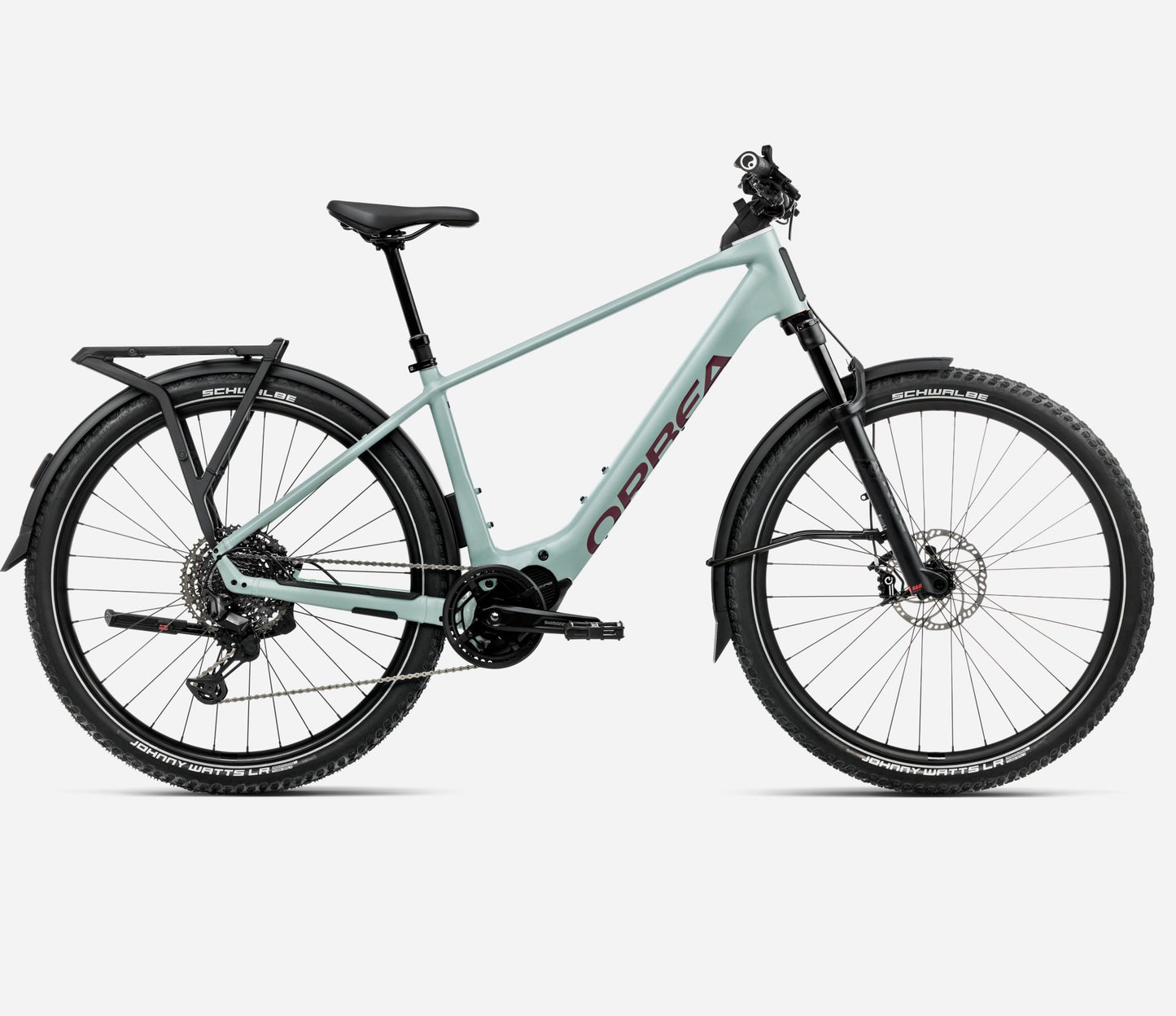

NEW 2025 Orbea Kemen ADV 10 28mph Hybrid eBike - 630Wh - Shimano EP600

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful Shimano EP motor and 630Wh battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.

BUILD KIT:

• Frame: Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series, Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
• Fork: Fox 34 Float AWL 100 RAIL QR15x110
• Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
• Battery: Orbea Internal 630Wh
• Motor: Shimano EP600
• Display: Shimano EN600
• Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
• Remote: EN600-L
• Chainring: FSA Steel Megatooth 44t w/chainguard
• Crank: FSA CK-752 Shimano EP600/801 170mm
• Shifters: Shimano XT M8130 Link Glide
• Cassette: Shimano CS-LG400 11-50t 11-Speed
• Rear Derailleur: Shimano XT M8130 Link Glide SGS Shadow Plus
• Chain: KMC eGlide
• Handlebar: Orbea Urban, Integrated Light, Rise 50, Width 760
• Brakes: Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
• Wheels: Alloy, Tubeless, 29", 29c, 32H
• Tyres: Schwalbe Johnny Watts LR, 60-622, Reflective Tape
• Pedals: VP-537 Black
• Rear Carrier: Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
• Mudguard: Curana Apollo Orbit 70mm
• Front Position Light: Orbea integrated, USB-C charging point
• Front Light: Supernova Starstream Pro, High Beam
• Rear Light: Supernova TL3 Z
• Quick Stand: Massload rear adjustable
• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
• Seatpost Lever: Shimano SL-MT500
• Saddle: Selle Royal Vivo Ergo

SIZING: Orbea recommends the following sizes based on rider height:

• SM: 5'0" - 5'8"
• MD: 5'5" - 6'0"
• LG: 5'9" - 6'5"
• XL: 6'2" - 6'9"
