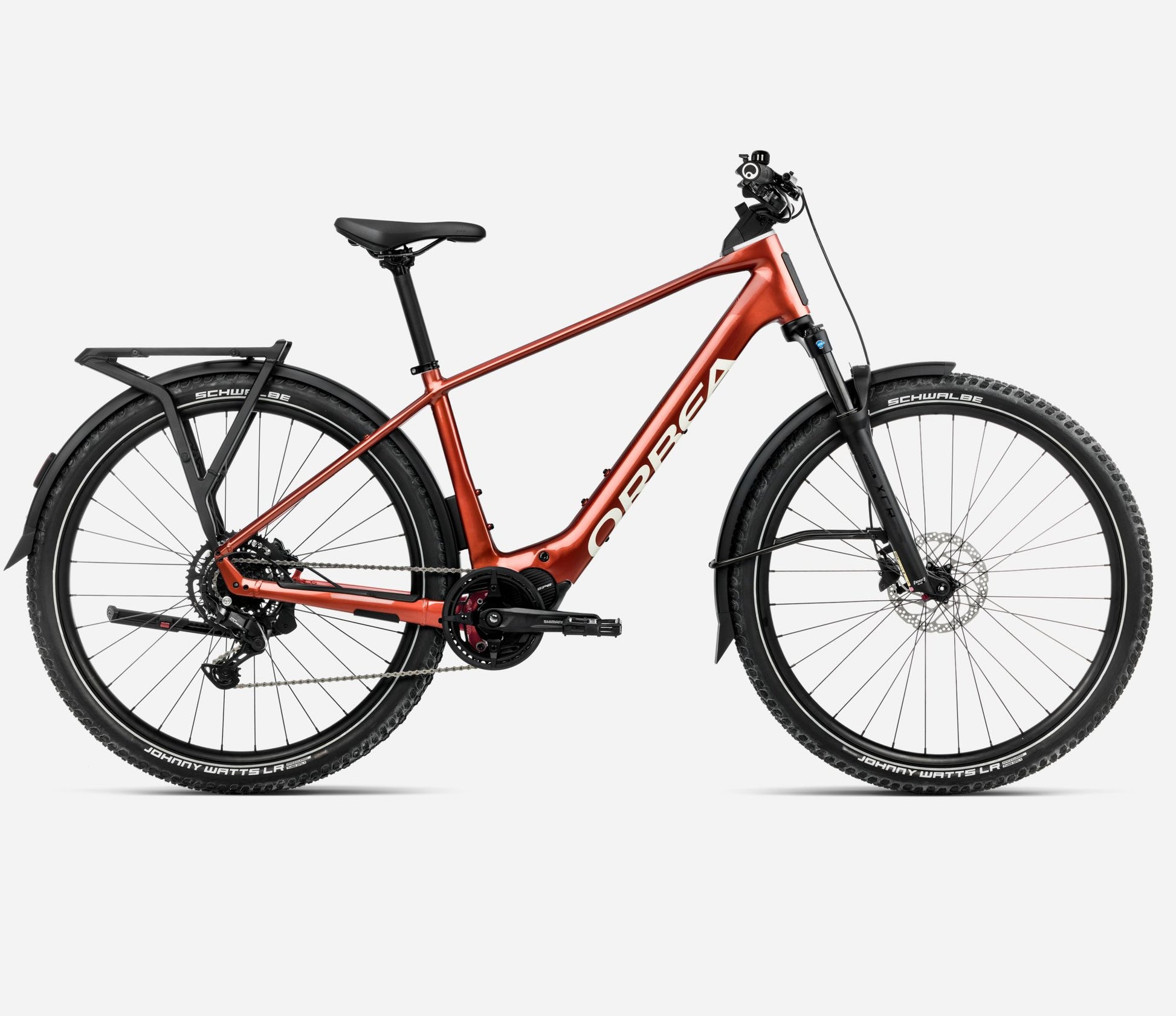

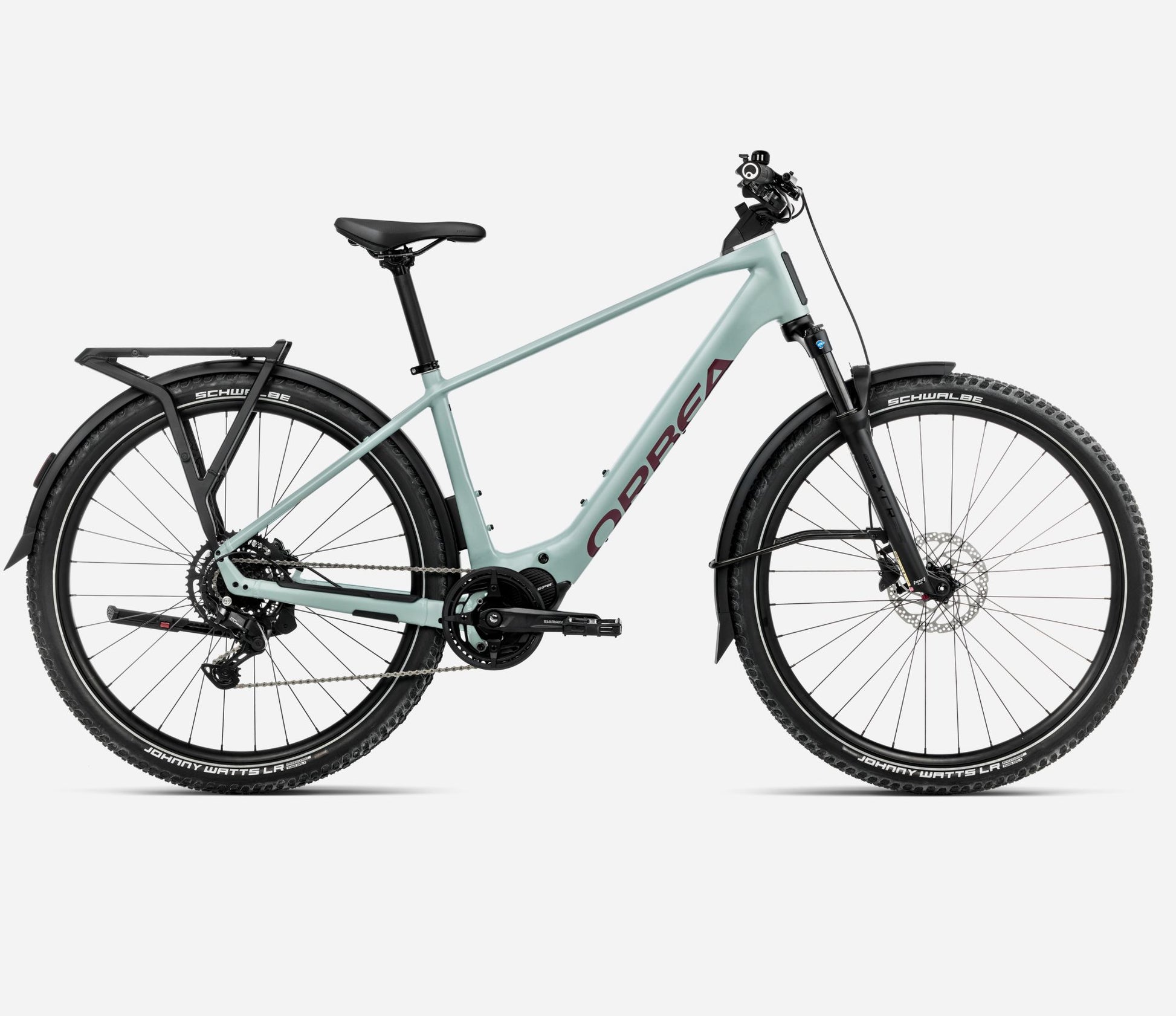

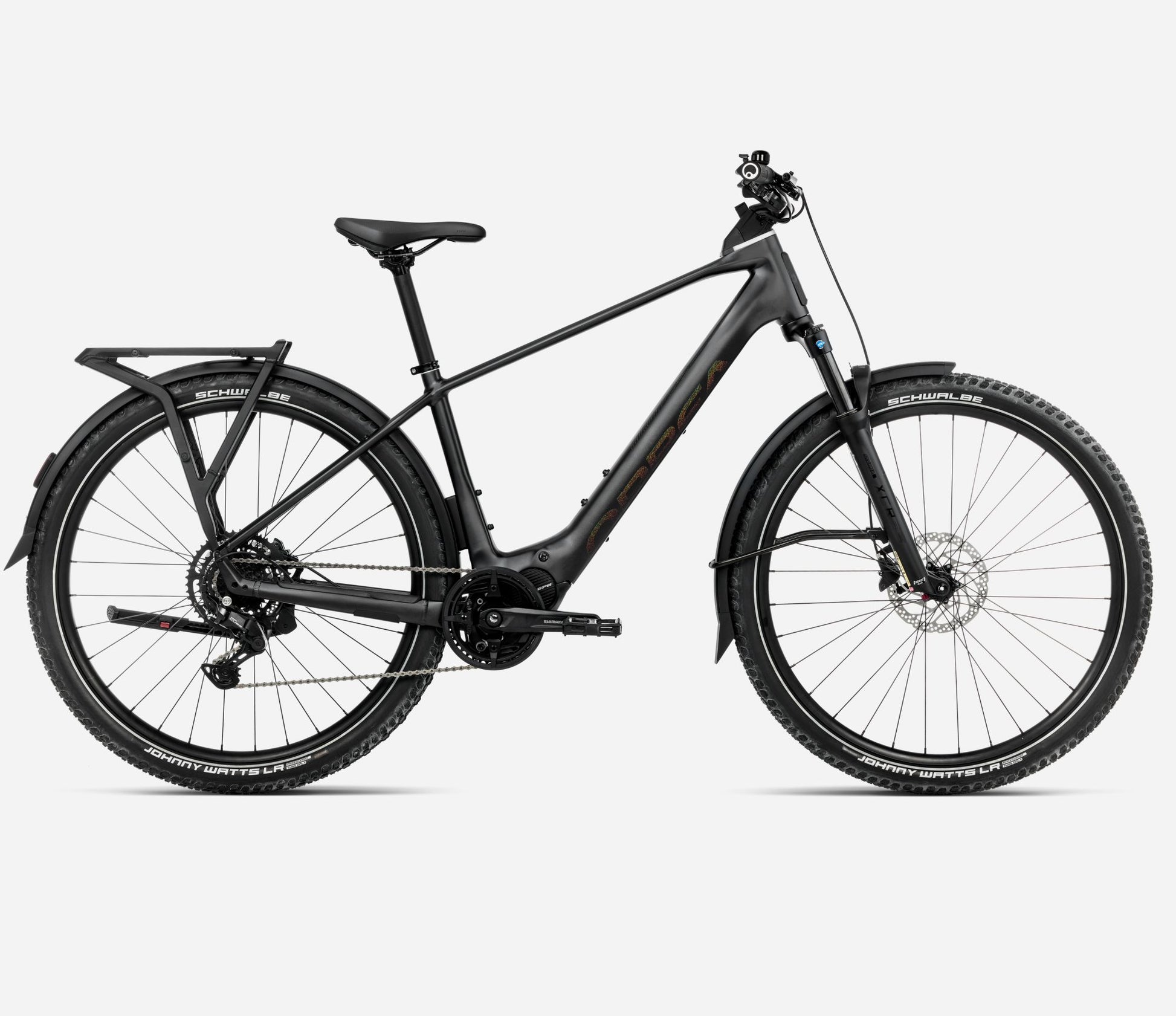

NEW 2025 Orbea Kemen ADV 30 20mph Hybrid eBike - 540Wh - Shimano EP600

NEW 2025 Orbea Kemen ADV 30 20mph Hybrid eBike - 540Wh - Shimano EP600

$ 2,924.97 USD
$ 3,899.00 USD $ 2,924.97 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
ATC SKU: 210000061104
EAN: 8434446806926
MFG. SKU: S66103VU

PRODUCT DETAILS

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful Shimano EP motor and 630Wh battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.

BUILD KIT:

  • Frame: Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series, Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
  • Fork: SR Suntour XCR34 100mm Coil Q15x110
  • Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
  • Battery: Orbea Internal 540Wh (Optional 252 Wh Range Extender)
  • Motor: Shimano EP600
  • Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Remote: EN600-L
  • Chainring: Alloy 40t w/chainguard
  • Crank: Shimano Steps EM600
  • Shifters: Shimano Cues SL-U4000
  • Cassette: Shimano CS-LG300 11-46t 9-Speed
  • Rear Derailleur: Shimano Cues U4000 GS Shadow
  • Chain: KMC eGlide
  • Handlebar: Orbea Urban, Integrated Light, Rise 50, Width 760
  • Brakes: Shimano MT200 Hydraulic Disc
  • Wheels: Alloy, Tubeless, 29", 29c, 32H
  • Tyres: Schwalbe Johnny Watts LR, 60-622, Reflective Tape
  • Pedals: VP-537 Black
  • Rear Carrier: Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
  • Mudguard: Curana Apollo Orbit 70mm
  • Front Position Light: Orbea integrated, USB-C charging point
  • Front Light: Supernova Starstream Pure, Low Beam
  • Rear Light: Supernova TL3 Z
  • Quick Stand: Massload rear adjustable
  • Seatpost: Alloy, 31.6mm, Setback 0
  • Saddle: Selle Royal Vivo Ergo

SIZING: Orbea recommends the following sizes based on rider height:

  • SM: 5'0" - 5'8"
  • MD: 5'5" - 6'0"
  • LG: 5'9" - 6'5"
  • XL: 6'2" - 6'9"
California Prop 65 Warning:
This product may contain chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. (California law requires this warning be given to customers in the state of California.)
California CBE Fees:
Some products we sell may be subject to California’s Covered Battery-Embedded (CBE) Waste Recycling Fee (effective January 1, 2026) when a product contains a non-removable rechargeable battery. If applicable, the fee (1.5% fee with a $15 max per item) will either be added to your cart as a separate line item or be invoiced after your order is placed and before it can be fulfilled.
View full details
