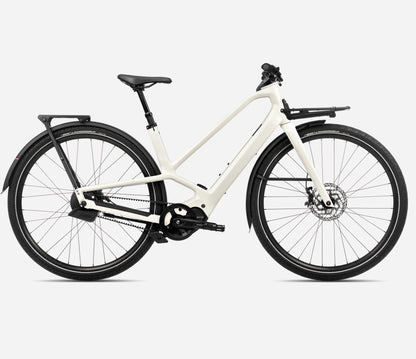

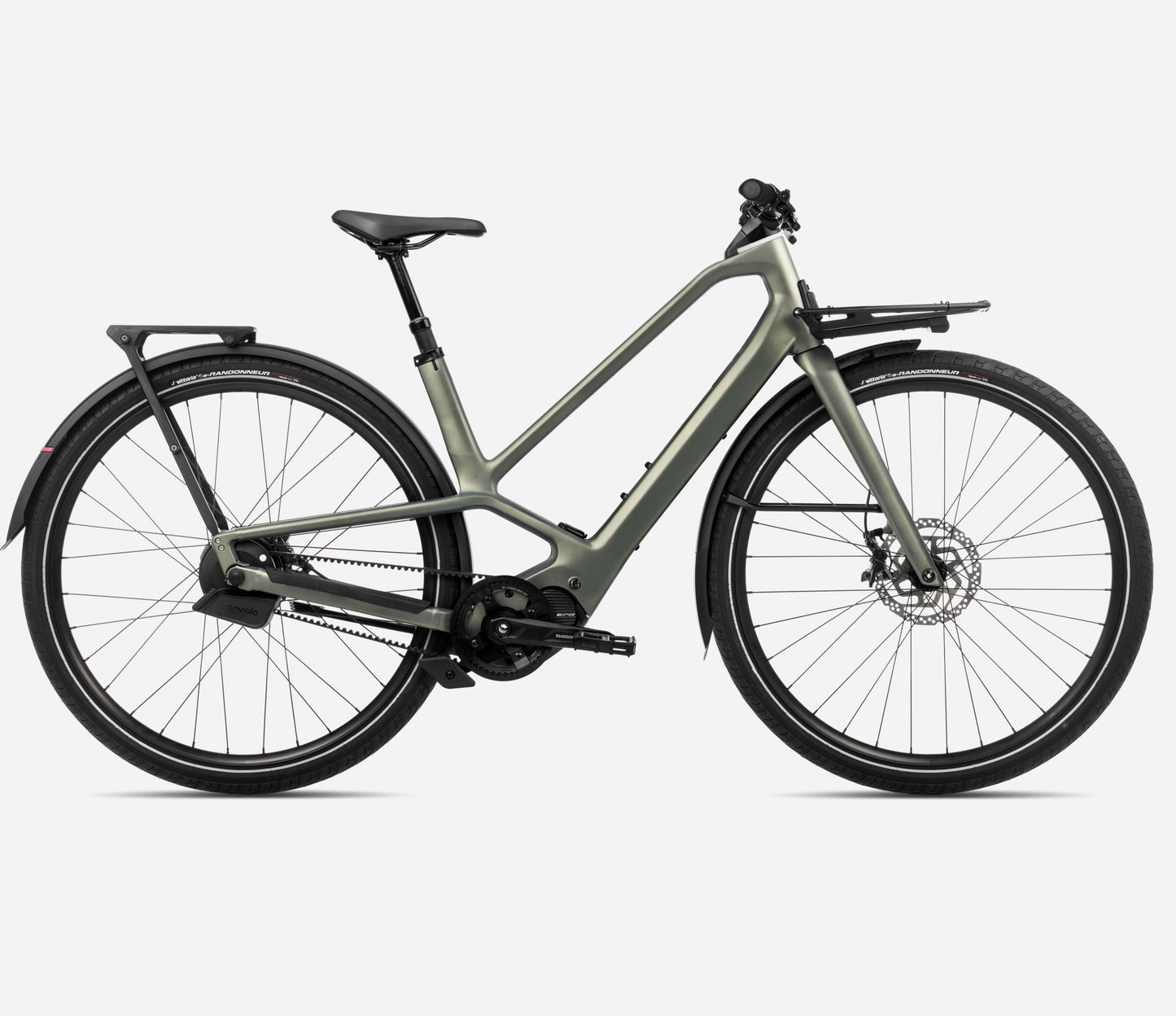

NEW 2025 Orbea Diem 10 28mph Urban Bike - 630Wh - Shimano EP801

NEW 2025 Orbea Diem 10 28mph Urban Bike - 630Wh - Shimano EP801

$ 4,274.97 USD
$ 5,699.00 USD $ 4,274.97 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
ATC SKU: 210000059885
EAN: 8434446717628
MFG. SKU: S69203WR

PRODUCT DETAILS

Diem 10, the powerful urban ebike, slots into your routine, making the A to B even easier thanks to Enviolo´s maintenance free, automatic shifting and belt drive.

BUILD KIT:

  • Frame: Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, headset routing, custom kickstand, Orbea Urban cockpit and equipment compatible
  • Fork: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, post mount disc mount, thru axle 12x100mm, thread M12x1, long mudguards compatible
  • Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
  • Battery: Orbea Internal 630Wh
  • Motor: Shimano EP801
  • Charger: Orbea 2nd Generation eBike Smart charger 42V/2-4A
  • Remote: EN600-L
  • Chainring: Gates CDX 46t with chainguard
  • Crank: Shimano Steps EM600
  • Cassette: Gates CDX 34t for Enviolo
  • Rear Derailleur: Enviolo Automatiq, BT
  • Chain: Gates CDX Belt
  • Handlebar: Orbea Urban, integrated light, rise 0, width 720
  • Brakes: Shimano Cues U8020 Hydraulic Disc
  • Wheels: Alloy, tubeless, 25c, 32H
  • Tyres: Vittoria e-Randonneur 50-622, reflective band
  • Pedals: VP-537 Black
  • Front Carrier: Orbea RF-01 Alloy, max 10kg with Aluminium Front Basket with net
  • Rear Carrier: Orbea RR-01 Alloy, with Mik & Mik Side and Ortlieb QL3.1 system, max 20kg
  • Mudguard: Curana Apollo Orbit 60mm
  • Front Position Light: Orbea integrated, USB-C charging point
  • Front Light: Supernova Starstream Pro, High Beam
  • Rear Light: Orbea Fender integrated, with alert light
  • Chainguard: Gates CDS
  • Quick Stand: Orbea Diem Integrated
  • Bell: Knog OI Classic
  • Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
  • Seatpost Lever: Shimano SL-MT500
  • Saddle: Selle Royal Vivo Ergo

SIZING: Orbea recommends the following sizes based on rider height:

  • SM: 4'11" - 5'9"
  • MD: 5'3" - 6'1"
  • LG: 5'7" - 6'5"
  • XL: 5'11" - 6'9"
