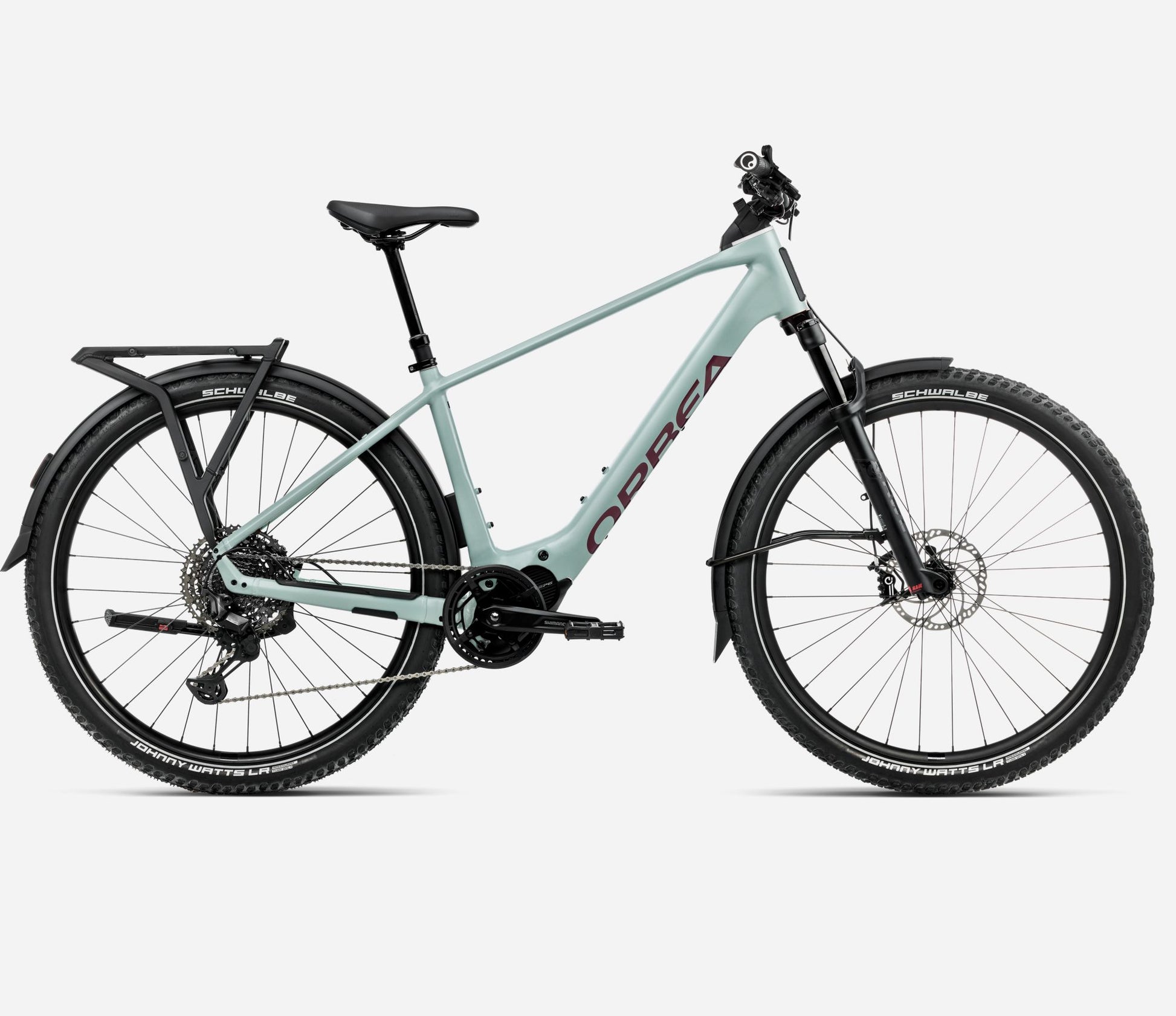

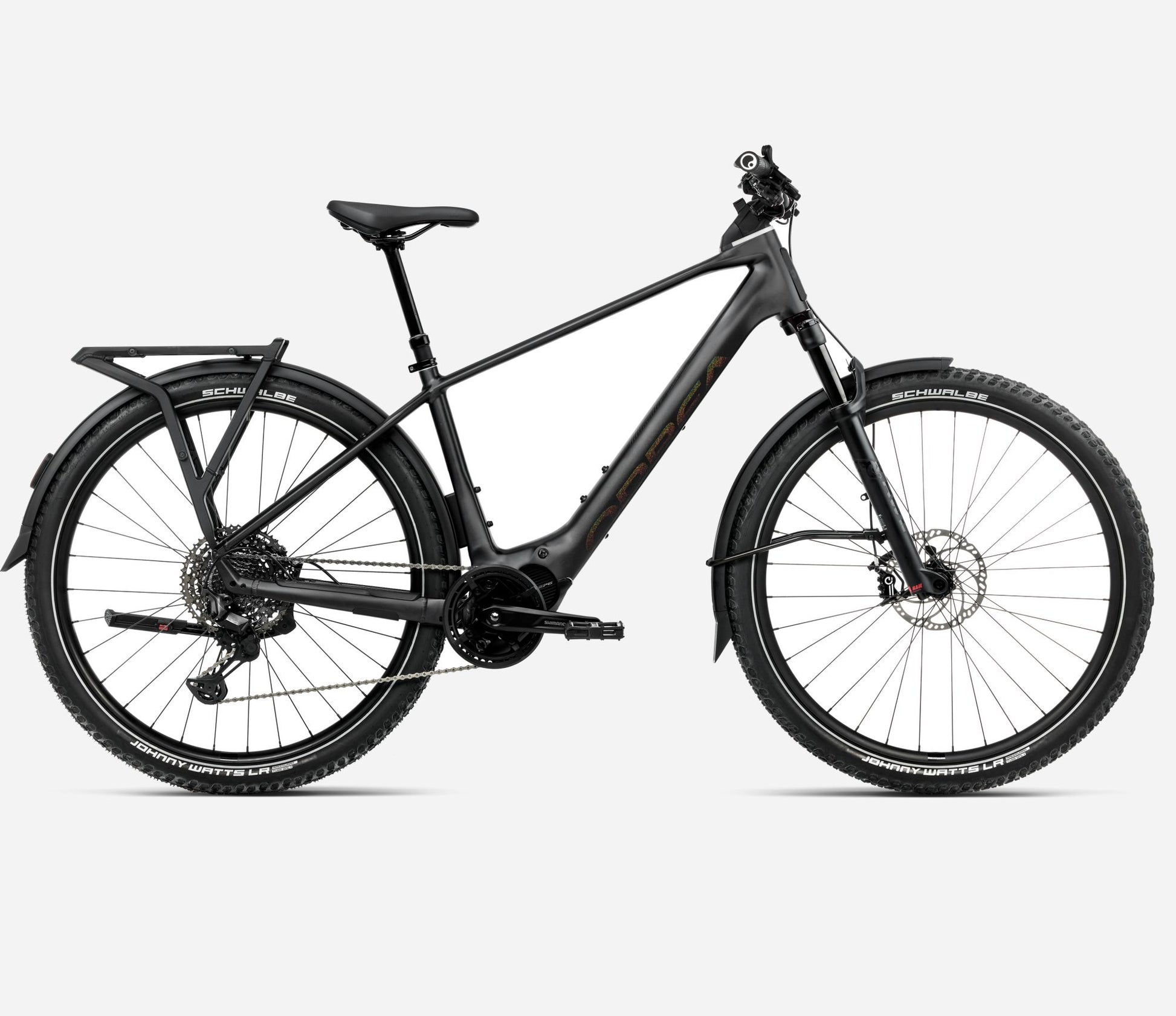

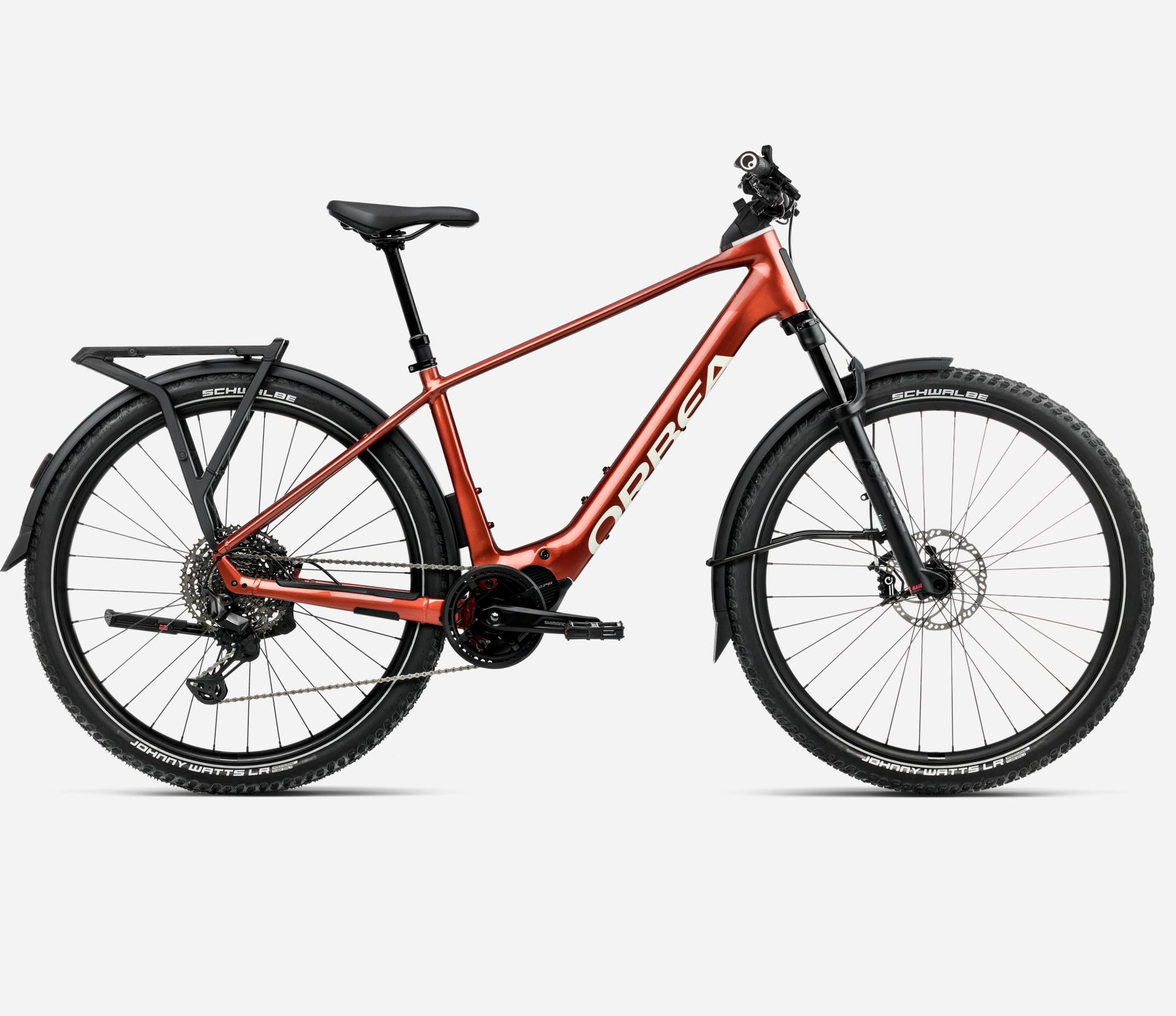

NEW 2025 Orbea Kemen ADV 10 20mph Hybrid eBike - 630Wh - Shimano EP600

NEW 2025 Orbea Kemen ADV 10 20mph Hybrid eBike - 630Wh - Shimano EP600

$ 3,674.97 USD
$ 4,899.00 USD $ 3,674.97 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
ATC SKU: 210000070701
EAN: 8434446807152
MFG. SKU: S66303VT

PRODUCT DETAILS

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful Shimano EP motor and 630Wh battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.

BUILD KIT:

  • Frame: Orbea Kemen Top Bar, hydroformed alloy 6061, integrated battery, internal cable routing, Boost 148x12, carrier and kickstand compatible
  • Fork: Fox 34 Float AWL 100, RAIL, QR15x110
  • Steerer Tube: FSA 1-1/2" integrated aluminium cup
  • Motor: Shimano EP600
  • Battery: Orbea Internal 630Wh
  • Range Extender: Not applicable
  • Display: Shimano EN600
  • Remote: Shimano EN600-L
  • Charger: Orbea 2nd Generation eBike Smart Charger, 42V / 2–4A
  • Chainring: Alloy 40T with chainguard
  • Crank: Shimano Steps EM600
  • Shifters: Shimano XT M8130 LinkGlide
  • Cassette: Shimano CS-LG400, 11-speed, 11–50T
  • Rear Derailleur: Shimano XT M8130 LinkGlide SGS Shadow Plus
  • Chain: KMC eGlide
  • Handlebar: Orbea Urban, integrated light, rise 50mm, width 760mm
  • Front Brake: Magura MT5N hydraulic disc
  • Rear Brake: Magura MT4N hydraulic disc
  • Brake Routing: Easy Route Connection
  • Wheels: Alloy, 29", tubeless-ready, 29c, 32H
  • Tyres: Schwalbe Johnny Watts LR, 60-622, reflective tape
  • Seatpost: OC Mountain Control MC22 dropper, 31.6mm
  • Seatpost Lever: Shimano SL-MT500
  • Saddle: Selle Royal Vivo Ergo
  • Pedals: VP-537 Black
  • Rear Carrier: Orbea RR-02 alloy, MIK HD and MIK Side compatible, Ortlieb QL3.1 system, max load 30kg
  • Mudguard: Curana Apollo Orbit 70mm
  • Kickstand: Massload rear adjustable
  • Front Position Light: Orbea integrated, USB-C charging point
  • Front Light: Supernova Starstream Pro, high beam
  • Rear Light: Supernova TL3 Z

SIZING: Orbea recommends the following sizes based on rider height

  • SM: 5'0" - 5'8"
  • MD: 5'5" - 6'0"
  • LG: 5'9" - 6'5"
  • XL: 6'2" - 6'9"
