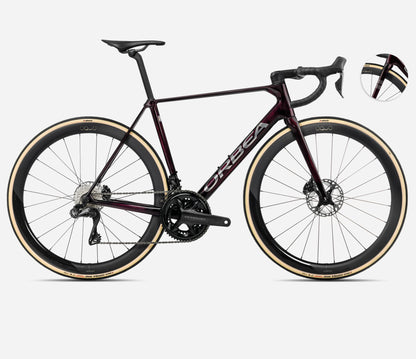

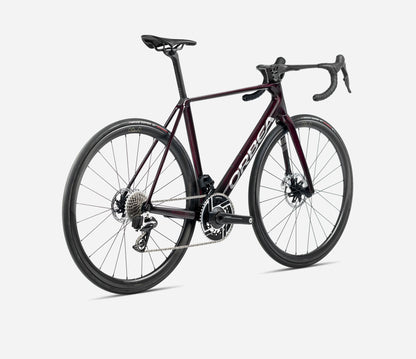

NEW 2025 Orbea Orca M20iLTD PWR Road Bike, Shimano Ultegra Di2 + Carbon Wheels

BUILD KIT:

• Frame: Orbea Orca carbon OMX 2024, monocoque construction, HS 1.5", BB 386mm, powermeter compatible, rear thru axle 12x142mm, thread M12x2 P1, internal cable routing
• Fork: Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1.5" tapered head tube compatible, thru axle 12x100mm, thread M12x2 P1
• Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
• Crankset: Shimano Ultegra R8100 36x52T with left-side 4iiii Powermeter
• Shifters: Shimano ST-8170
• Cassette: Shimano Ultegra R8100 11-30t 12-speed
• Rear Derailleur: Shimano Ultegra Di2 R8150
• Front Derailleur: Shimano Ultegra Di2 R8150
• Chain: Shimano M8100
• Handlebar: OC Road Performance RP11 Carbon, Reach 80, Drop 125, with Di2 hole
• Stem: OC Road Performance RP11, -8º
• Brakes: Shimano R8170 Hydraulic Disc
• Rotors: 160mm front / 140mm rear
• Wheels: Oquo Road Performance RP45LTD
• Tires: Vittoria Corsa Pro G2.0 TLR 700x28c
• Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite
• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite
• Seatpost: OC Performance XP10-S Carbon, 27.2mm, Setback 20
• Saddle: Fizik Vento Antares R1 Carbon Rail 140mm

SIZING: Orbea recommends the following sizes based on rider height:

• 47cm: 5'1" - 5'3"
• 49cm: 5'3" - 5'5"
• 51cm: 5'6" - 5'8"
• 53cm: 5'8" - 5'10"
• 55cm: 5'11" - 6'1"
• 57cm: 6'1" - 6'3"
• 60cm: 6'4" - 6'9"
