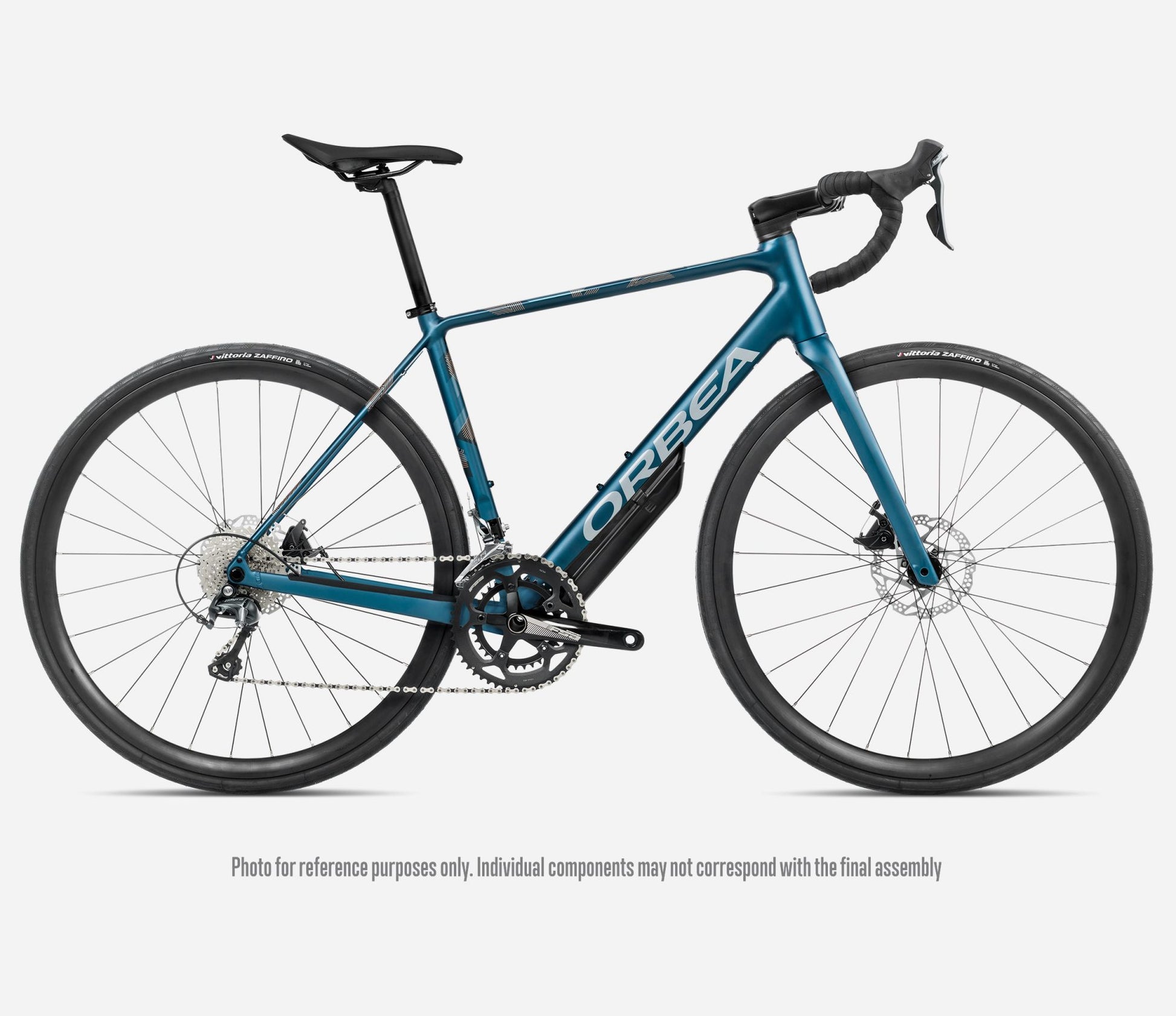

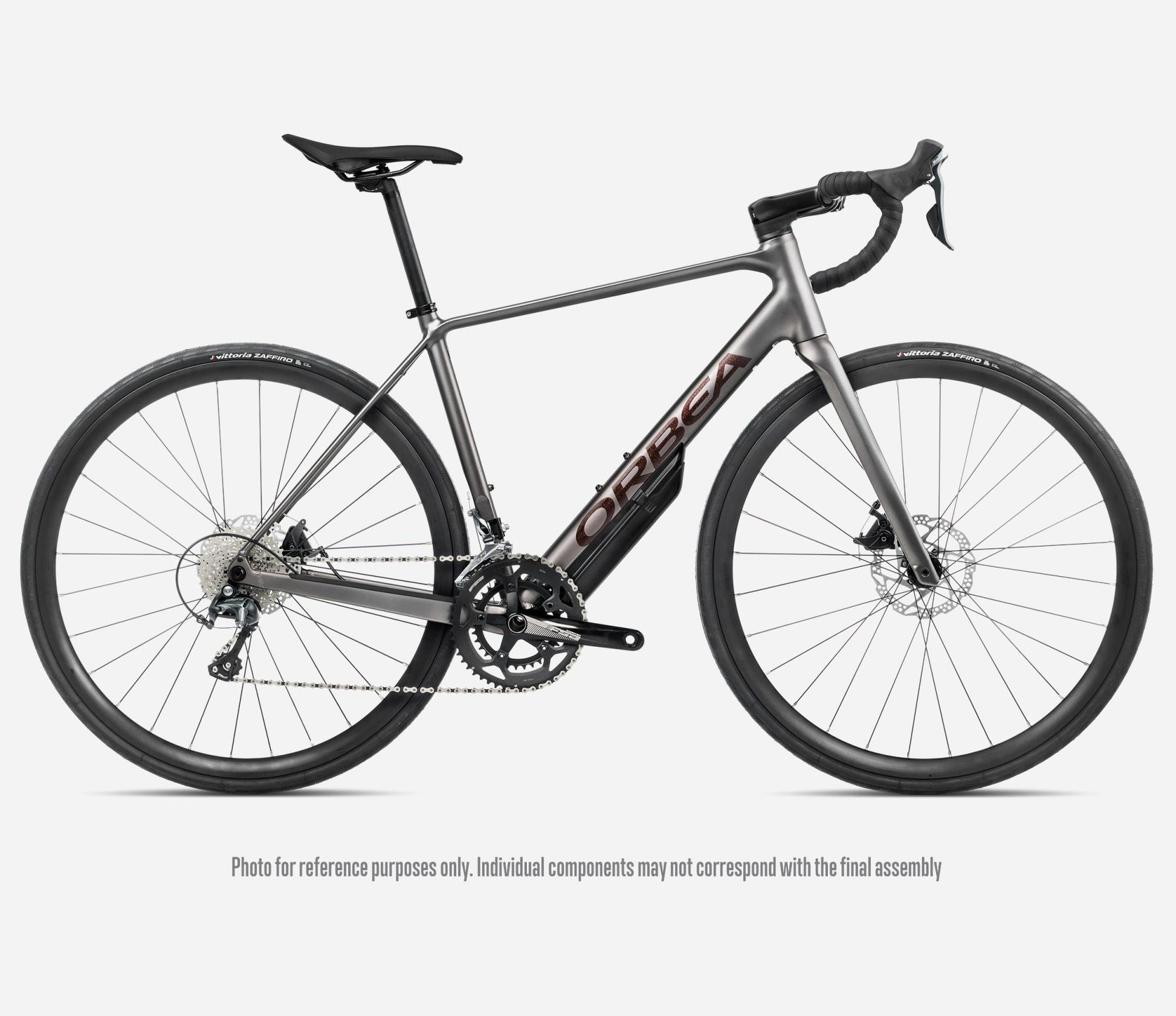

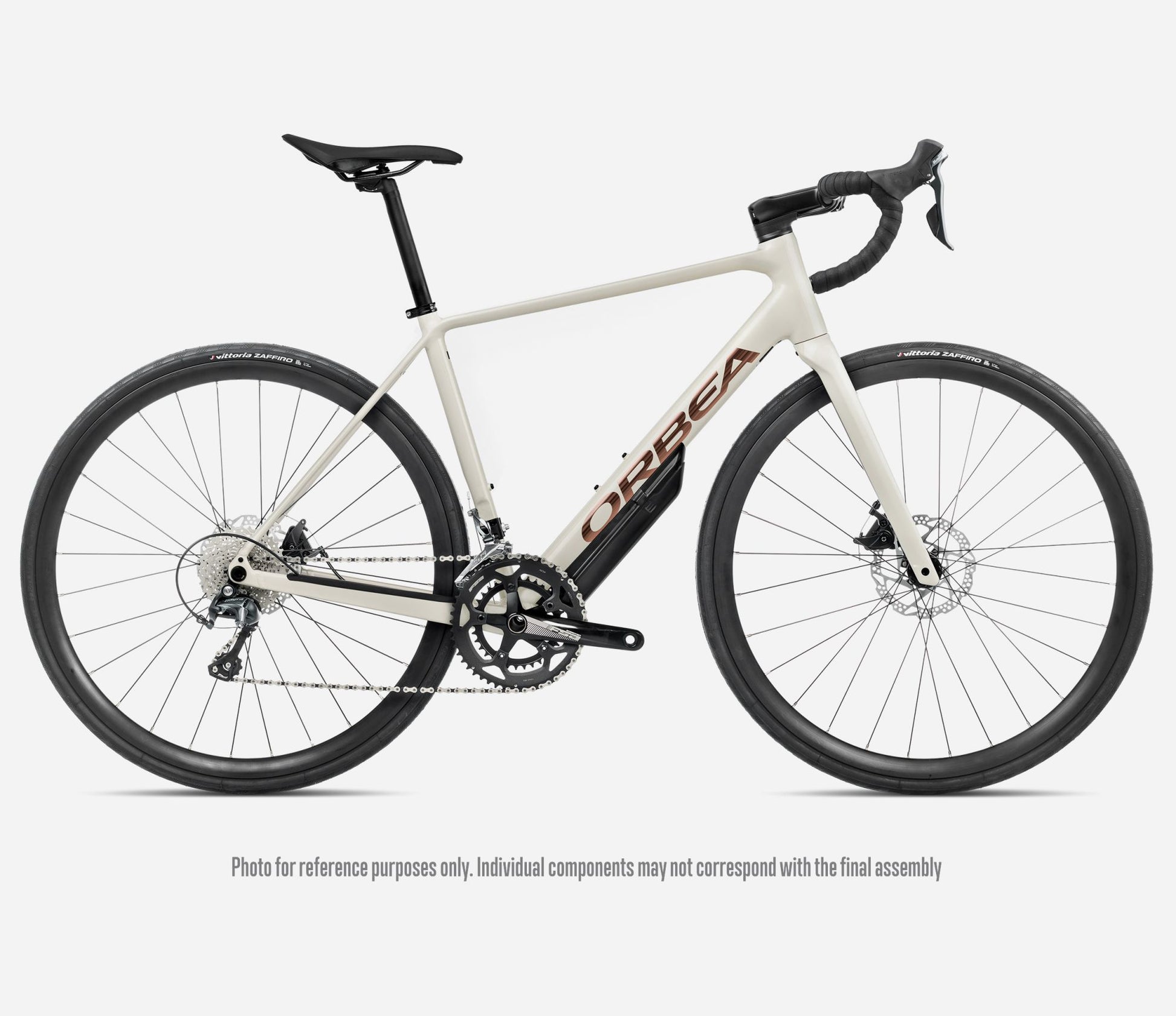

NEW 2026 Orbea AVANT H40 Endurance Road Bike

BUILD KIT:

• Frame: Orbea Avant Hydro disc, triple butted aluminium, HS 1.5" ICR, BB 68mm BSC English, Thru Axle 12x142mm, M12x2 P1, internal cable routing, SP 27.2mm, MMS system
• Fork: Orbea Avant Hydro 2025, full carbon, 1-1/8"–1.5" tapered, Thru Axle 12x100mm, M12x2 P1
• Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
• Crankset: Shimano Cues U6030 34x50t
• Shifters: Shimano U6030
• Cassette: Shimano CS-LG300 11-39t, 10-speed
• Rear Derailleur: Shimano Cues U6020 SGS Shadow
• Front Derailleur: Shimano Cues U6030
• Chain: KMC X10
• Handlebar: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
• Stem: OC Road Performance RP23, -5º
• Brakes: Shimano U6030 Hydraulic Disc
• Wheels: Alloy, Tubeless, 700c, 19c, 28H
• Tyres: Continental Grand Prix Foldable 700x30c
• Front Axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid
• Rear Axle: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
• Seatpost: SP 0.6, Alloy, 27.2mm, Setback 20
• Saddle: SD 0.1 145mm
• Handlebar Tape: Orbea Eva
• Storage: OC Toolbox TB03PP
• Mudguard: N/A

SIZING: Orbea recommends the following sizes based on rider height:

• 47cm: 5'1" - 5'3"
• 49cm: 5'3" - 5'5"
• 51cm: 5'6" - 5'8"
• 53cm: 5'8" - 5'10"
• 55cm: 5'11" - 6'1"
• 57cm: 6'1" - 6'3"
• 60cm: 6'4" - 6'9"
