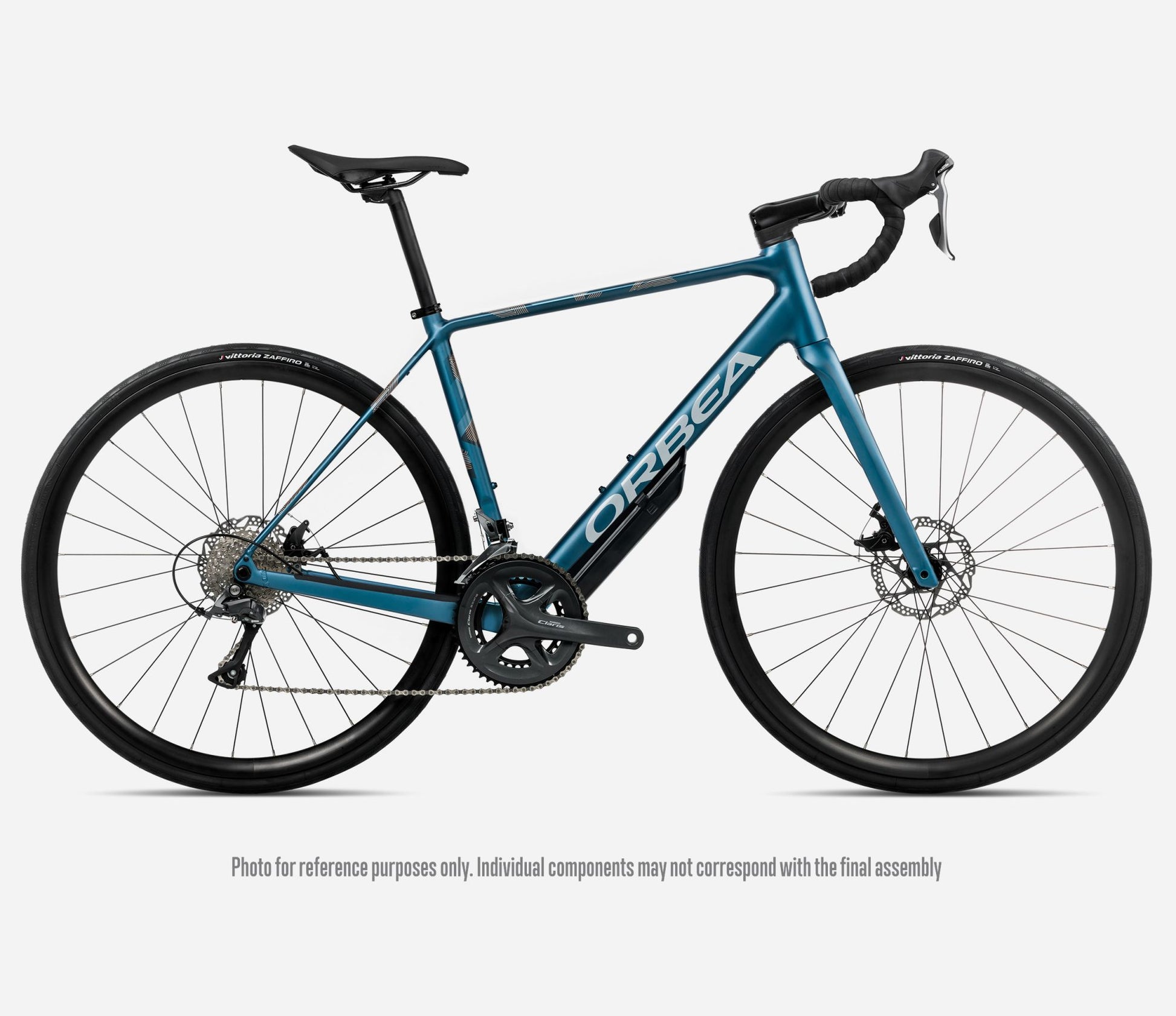

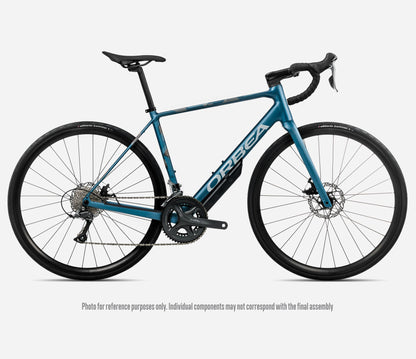

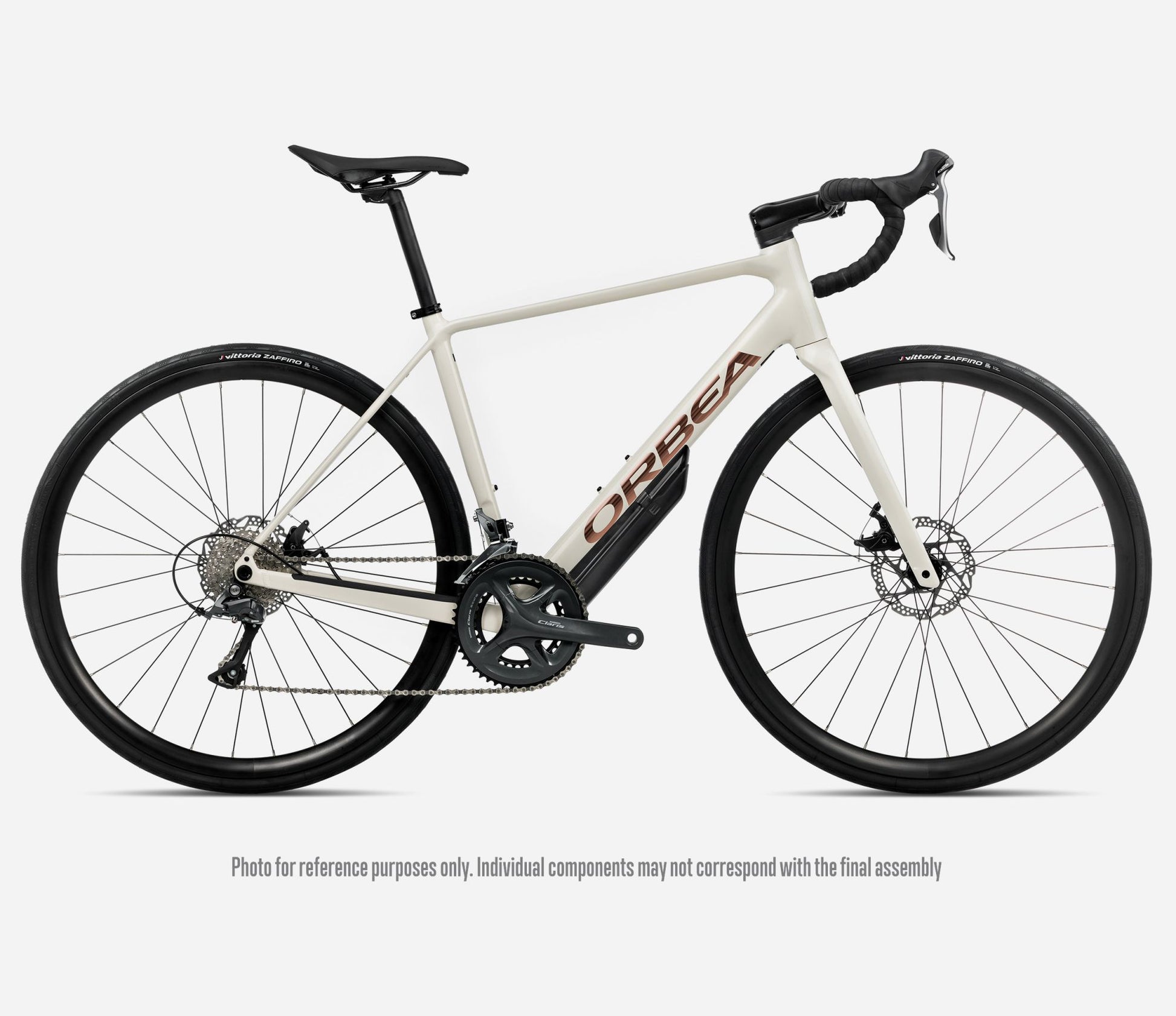

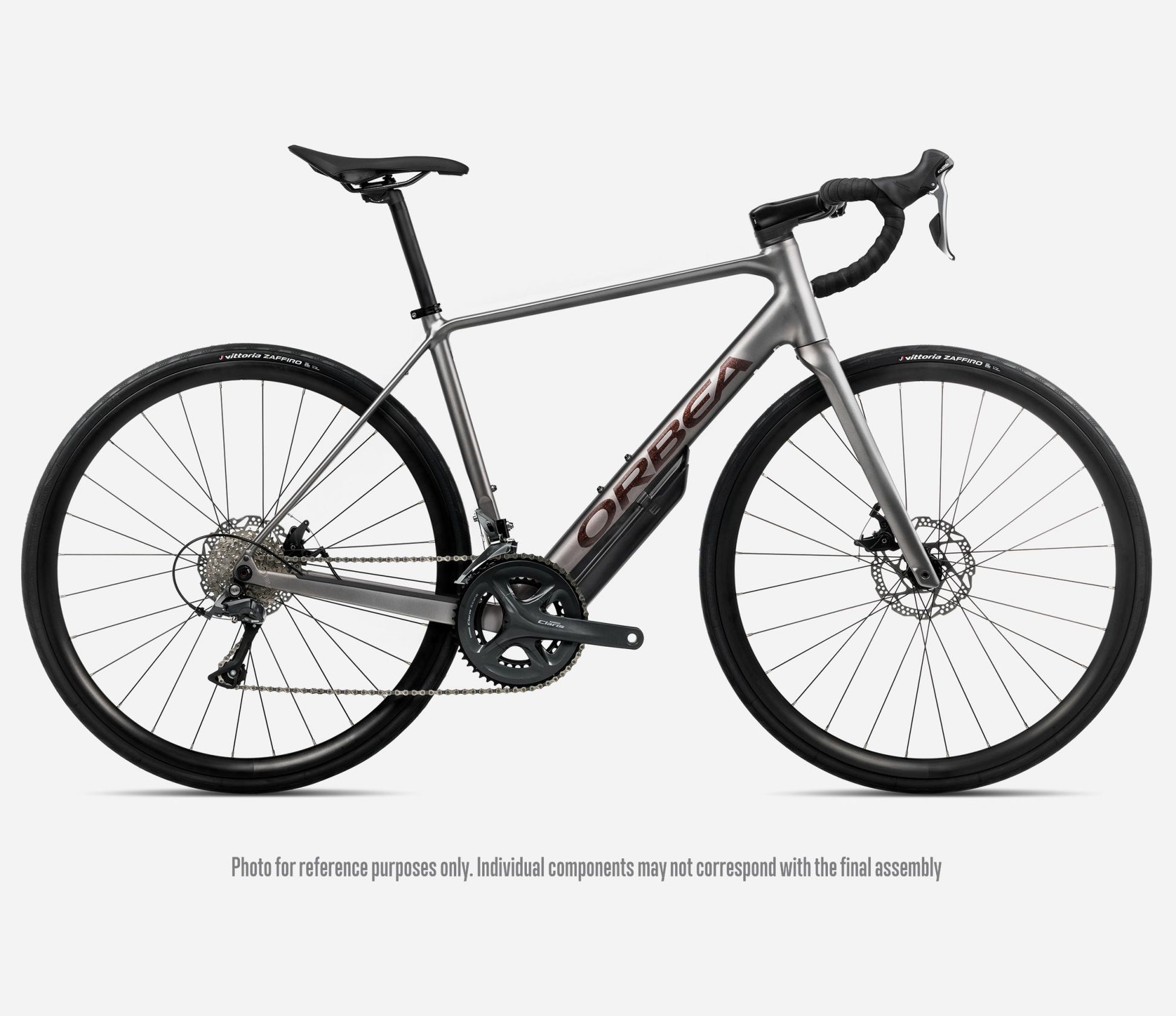

NEW 2026 Orbea AVANT H50 Endurance Road Bike

BUILD KIT:

• Frame: Orbea Avant Hydro Disc
• Material: Triple-butted hydroformed aluminum

• Features: Internal cable routing, 68mm BSC bottom bracket, 27.2mm seatpost,
• 12x142mm thru-axle

• Fork: Orbea Avant Hydro 2025

• Material: Full carbon

• Steerer: Tapered (1-1/8" to 1.5"), 12x100mm thru-axle

• Crankset: Shimano CUES U6030, 50/34T (compact)

• Shifters: Shimano CUES U3030 (10-speed)

• Cassette: Shimano CS-LG300, 11–39T

• Rear Derailleur: Shimano CUES U6020 SGS Shadow

• Front Derailleur: Shimano CUES U6030

• Chain: Shimano LG500

• Handlebar: OC Road Performance RP31-R (15mm rise, 70mm reach, 125mm drop)

• Stem: OC Road Performance RP23, -5°

• Headset: FSA 1-1/2" Integrated Aluminium Cup

• Brakes: Jagwire RideRever Mechanical Disc

• Brake Type: Mechanical disc (cable-actuated)

• Wheels: Alloy, tubeless-ready, 700c, 19c internal width, 28 spokes

• Tyres: Continental Grand Prix Foldable 700x30c

• Front Axle: 12x100mm, M12x2 P1 solid

• Rear Axle: 12x142mm, M12x2 P1 solid

• Seatpost: SP 0.6 Alloy, 27.2mm, 20mm setback

• Saddle: SD 0.1, width 145mm

• Handlebar Tape: Orbea EVA

• Storage: OC Toolbox TB03PP

• Mudguards: Not included

SIZING: Orbea recommends the following sizes based on rider height:

• 47cm: 5'1" - 5'3"
• 49cm: 5'3" - 5'5"
• 51cm: 5'6" - 5'8"
• 53cm: 5'8" - 5'10"
• 55cm: 5'11" - 6'1"
• 57cm: 6'1" - 6'3"
• 60cm: 6'4" - 6'9"
