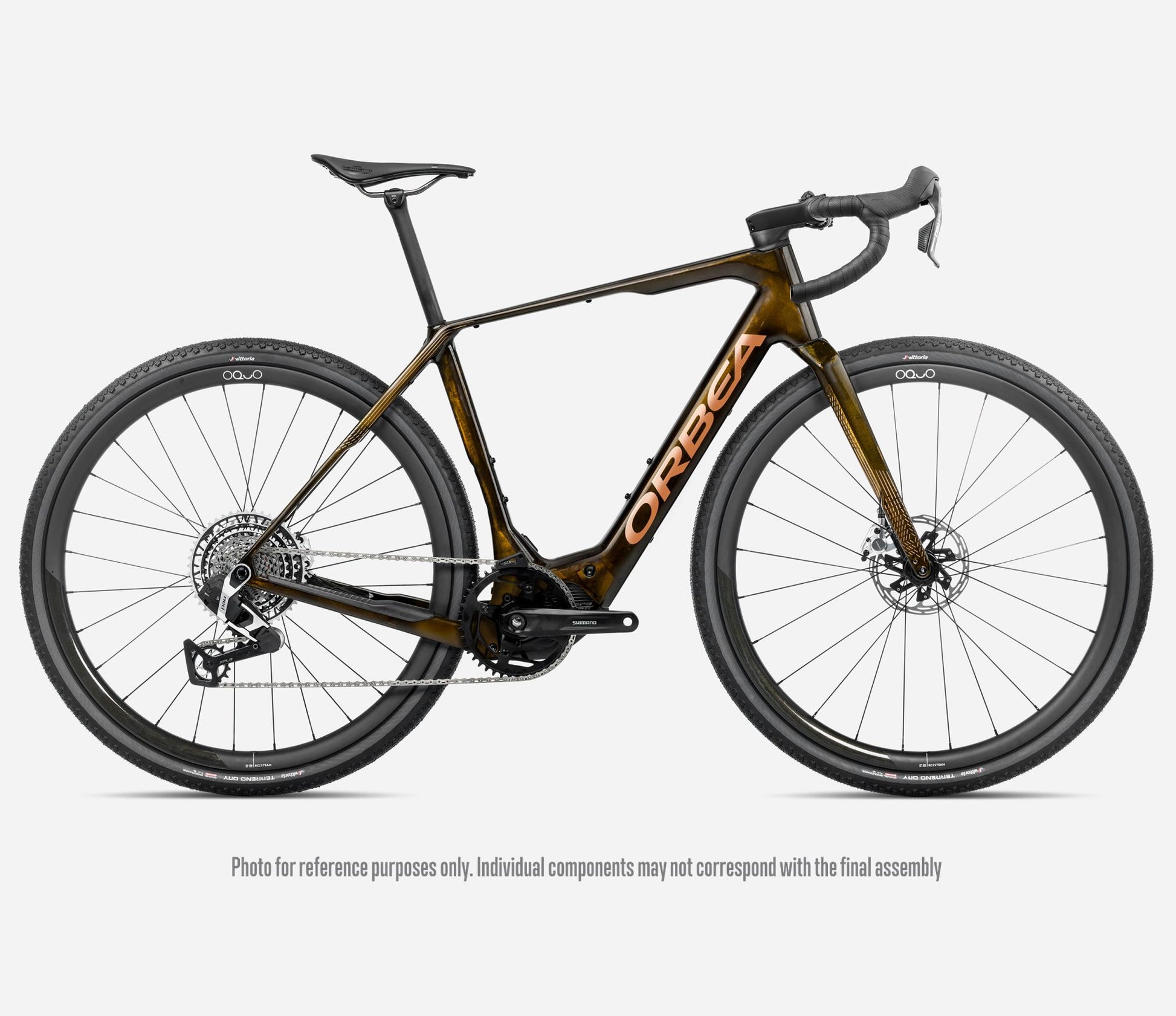

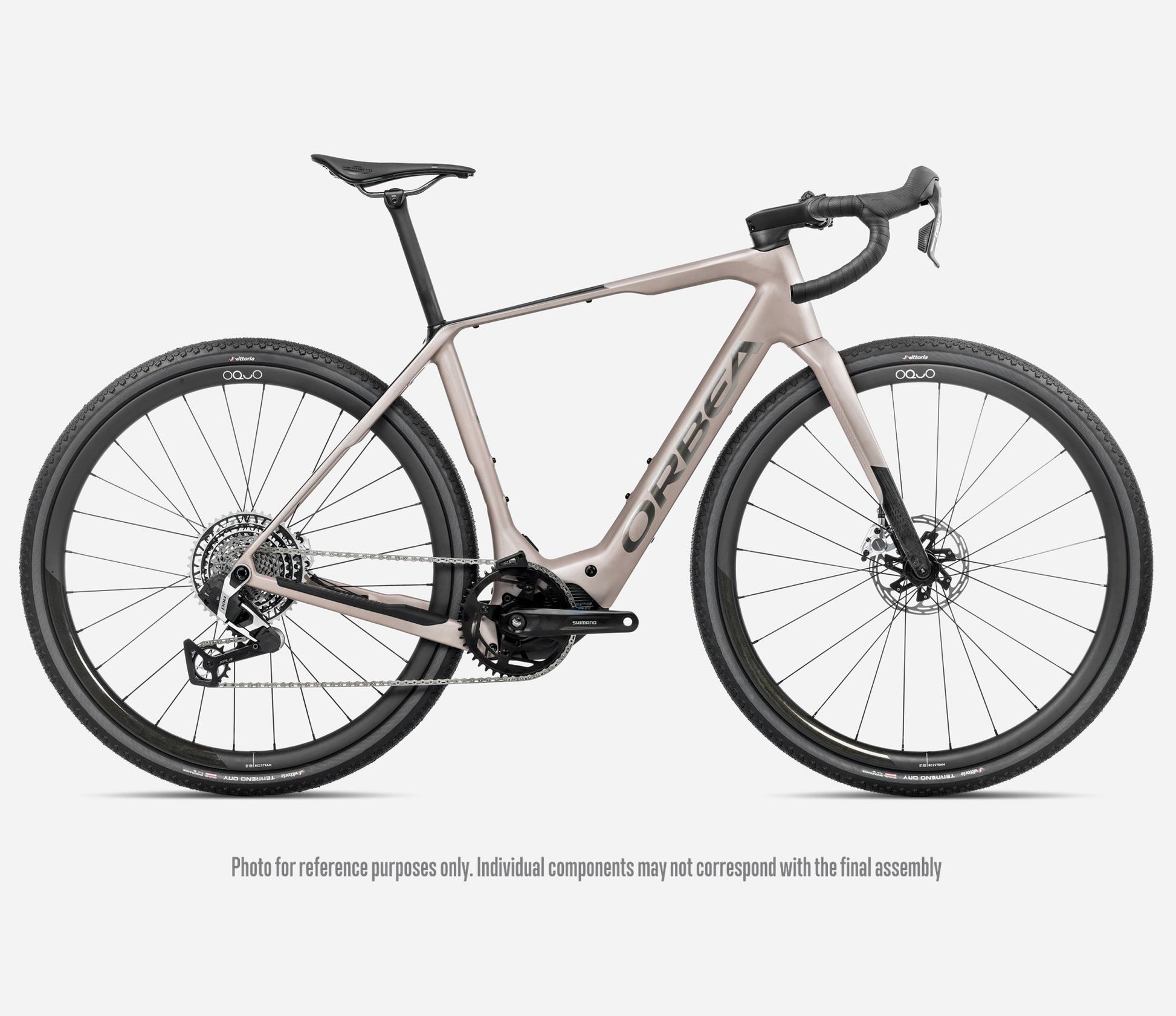

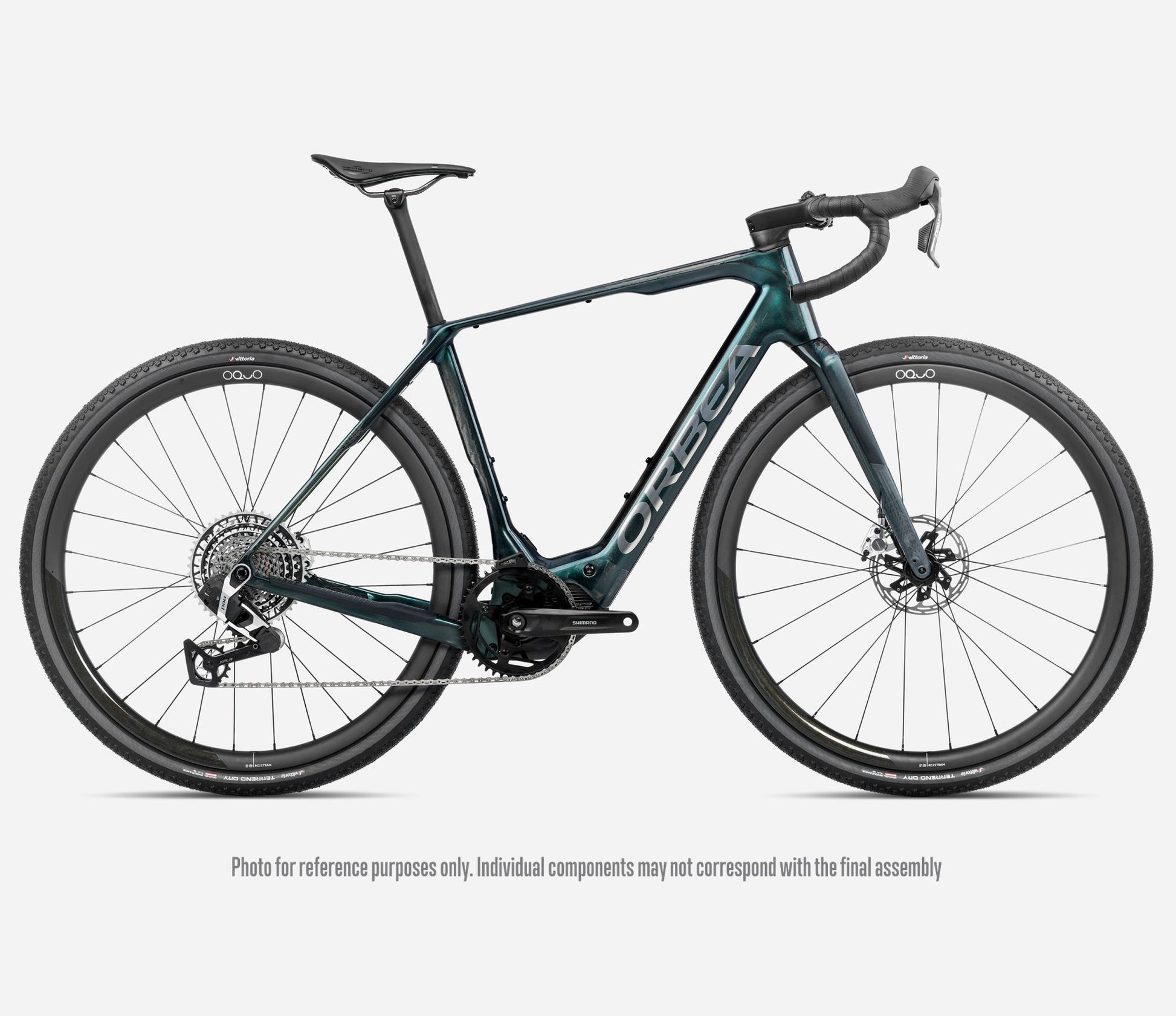

NEW 2026 Orbea DENNA M11e 28mph Electric Carbon Gravel Bike

Denna is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

BUILD KIT:

• Frame: Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing
• Fork: Orbea Denna OMR ICR, full carbon, 1-1/8" – 1.5" tapered head tube compatible, Thru Axle 12x100mm, thread M12xP1
• Steerer tube: FSA 1.5" Integrated Aluminium Cup
• Battery: Orbea Internal 420Wh
• Range Extender: N/A
• Motor: Shimano EP801
• Display: N/A
• Charger: Orbea 2nd Generation eBike Smart Charger 42V/2–4A
• Remote: EN600-L
• Chainring: Alloy EP8 42t
• Crank: Shimano Steps EM600
• Shifters: SRAM Red AXS
• Cassette: SRAM XG-1290 10-46t 13-Speed
• Rear derailleur: SRAM Red XPLR AXS 13s
• Chain: SRAM Red
• Chainguide: Orbea eBike chainguide
• Handlebar: OC Gravel GR10 Carbon, Reach 70, Drop 110
• Stem: OC Road Performance RP10, -8º
• Brakes: SRAM Red AXS
• Brakes Configuration: N/A
• Wheels: Oquo Road Control RC30TEAM
• Tyres: Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
• Front Wheel Axle: Orbea Thru Axle 12x100mm M12xP1 Hollow
• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
• Seatpost: OC Performance XP10 Carbon, 27.2mm, Setback 0
• Saddle: Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
• Mudguard: N/A
• Handlebar Tape: Orbea Anti-Slippery/Shock Proof
• Storage: N/A

SIZING: Orbea recommends the following sizes based on rider height

• XS: 5'1" – 5'5"
• SM: 5'6" – 5'8"
• MD: 5'8" – 5'10"
• LG: 5'11" – 6'1"
• XL: 6'1" – 6'3"
• XXL: 6'4" – 6'9"
