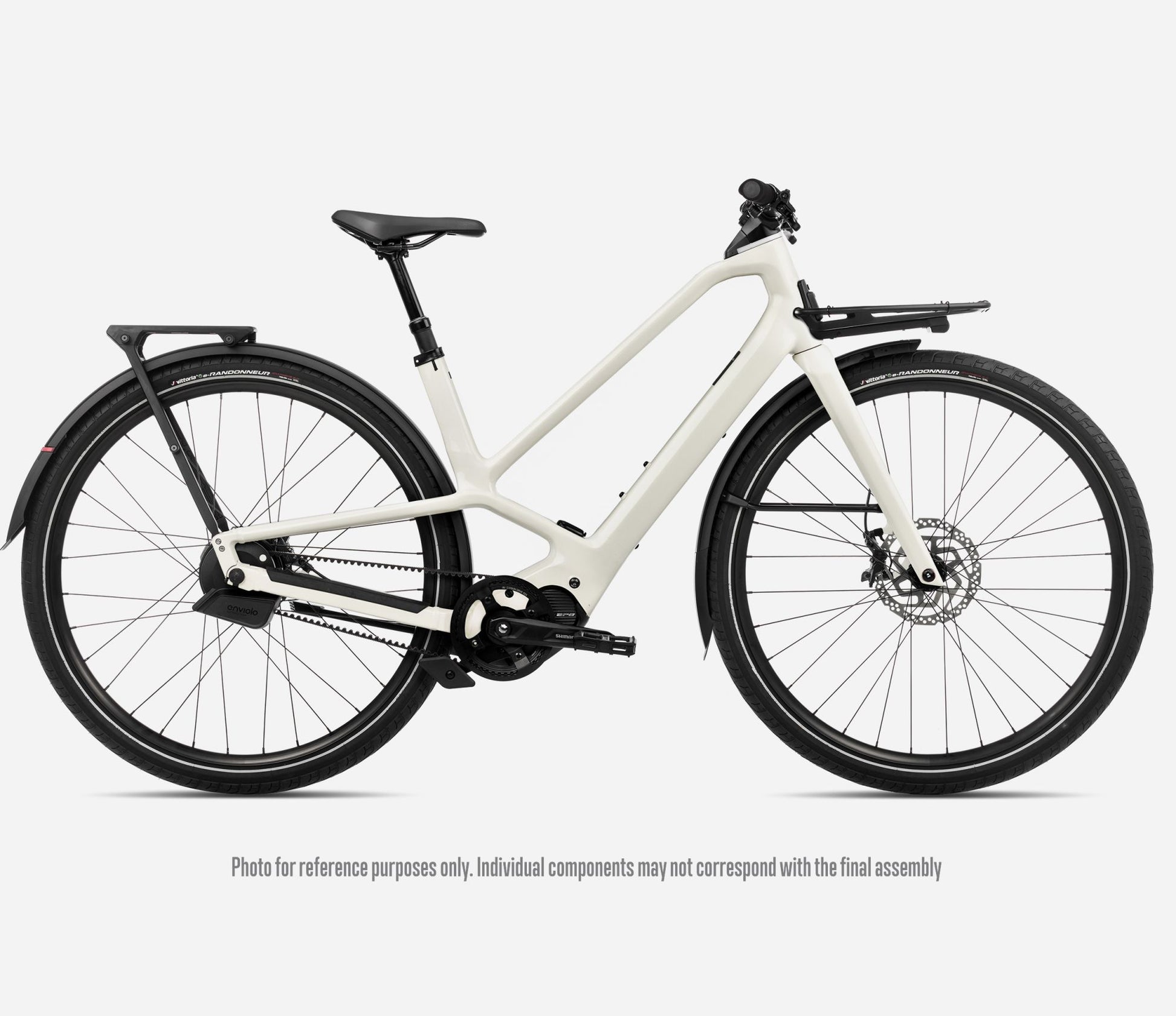

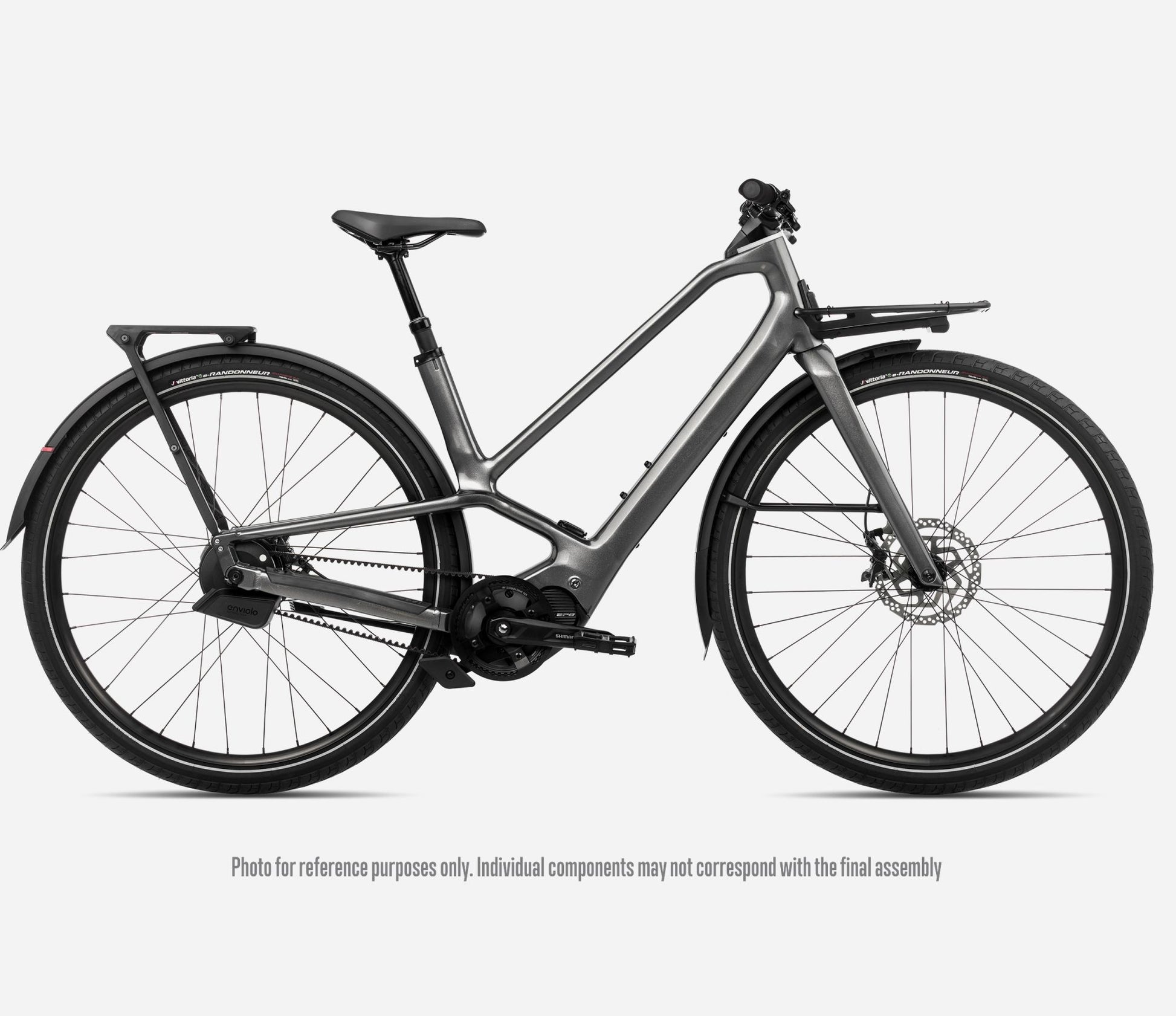

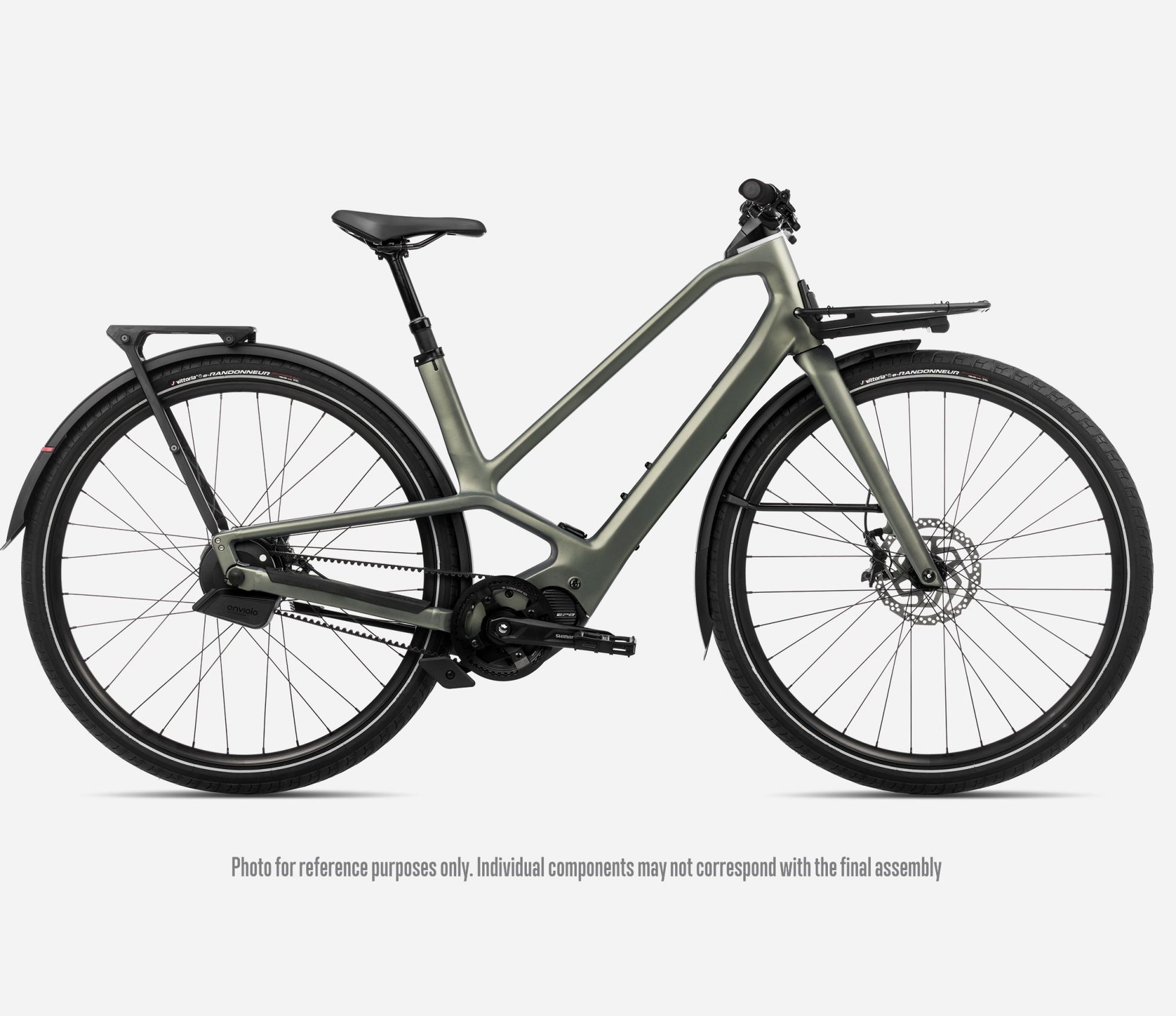

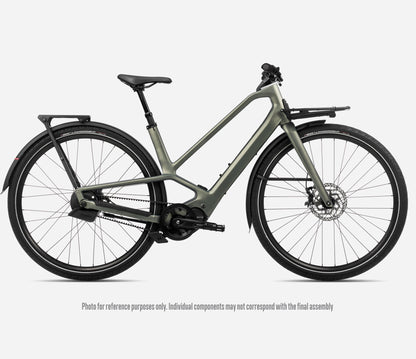

NEW 2026 Orbea DIEM 10 20mph Electric Urban & Commuter Bike

NEW 2026 Orbea DIEM 10 20mph Electric Urban & Commuter Bike

$ 5,599.00 USD
$ 5,599.00 USD $ 5,599.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Color
ATC SKU: 210000068068
UPC: 8434446974809

PRODUCT DETAILS

A to B should be a pleasure, not a chore. Diem is a powerful Urban Ebike you can count on, a trusty partner that brings a touch of class to the day-to-day. From the first moment you ride it, you know you are on something special. Grab a Diem and seize the day!

BUILD KIT:

  • Frame: Orbea Diem 2025, Diamond Glide, Hydroformed Alloy 6061, High Polished, OLD 135x9 / OLD 142x12, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Trailer compatible
  • Fork: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, post mount disc, Thru Axle 12x100mm, thread M12x1, long mudguard compatible
  • Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
  • Battery: Orbea Internal 630Wh
  • Range Extender: N/A
  • Motor: Shimano EP600
  • Display: Shimano EN600
  • Charger: Orbea 2nd Generation eBike Smart Charger 42V/2–4A
  • Remote: EN600-L
  • Chainring: Gates CDX 46t w/ chainguard
  • Crank: Shimano Steps EM600
  • Cassette: Gates CDX 34t for Enviolo
  • Rear derailleur: Enviolo Automatiq, BT
  • Chain: Gates CDX Belt
  • Handlebar: Orbea Urban, Integrated light, Backsweep 30°, Rise 50mm, Width 720mm
  • Computer Mount: N/A
  • Brakes: Shimano Cues U8020 Hydraulic Disc
  • Brakes Configuration: N/A
  • Wheels: Alloy, 25c, 32H
  • Tyres: Schwalbe Marathon, 50-622, Reflective Tape
  • Pedals: VP-836 Black with reflectors
  • Front Carrier: Orbea RF-01 Alloy, Max. 10kg with Aluminium Front Basket and net
  • Rear Carrier: Orbea RR-01 Alloy, w/ MIK & MIK Side and Ortlieb QL3.1 system, Max. 20kg
  • Mudguard: Curana Apollo Orbit 60mm
  • Front Position Light: Orbea integrated, USB-C charging point
  • Front Light: Supernova Starstream Pro, High Beam
  • Rear Light: Orbea Fender integrated with alert light
  • Chainguard: Gates CDS
  • Quick Stand: Orbea Diem Integrated
  • Bell: Knog OI Classic
  • Seatpost: Suspension Dropper DP01, 31.6mm, 30mm travel
  • Seatpost Lever: Shimano SL-MT500
  • Saddle: Selle Royal Vivo Ergo

SIZING: Orbea recommends the following sizes based on rider height

  • SM: 5'0" – 5'8"
  • MD: 5'5" – 6'0"
  • LG: 5'9" – 6'5"
  • XL: 6'2" – 6'8"
