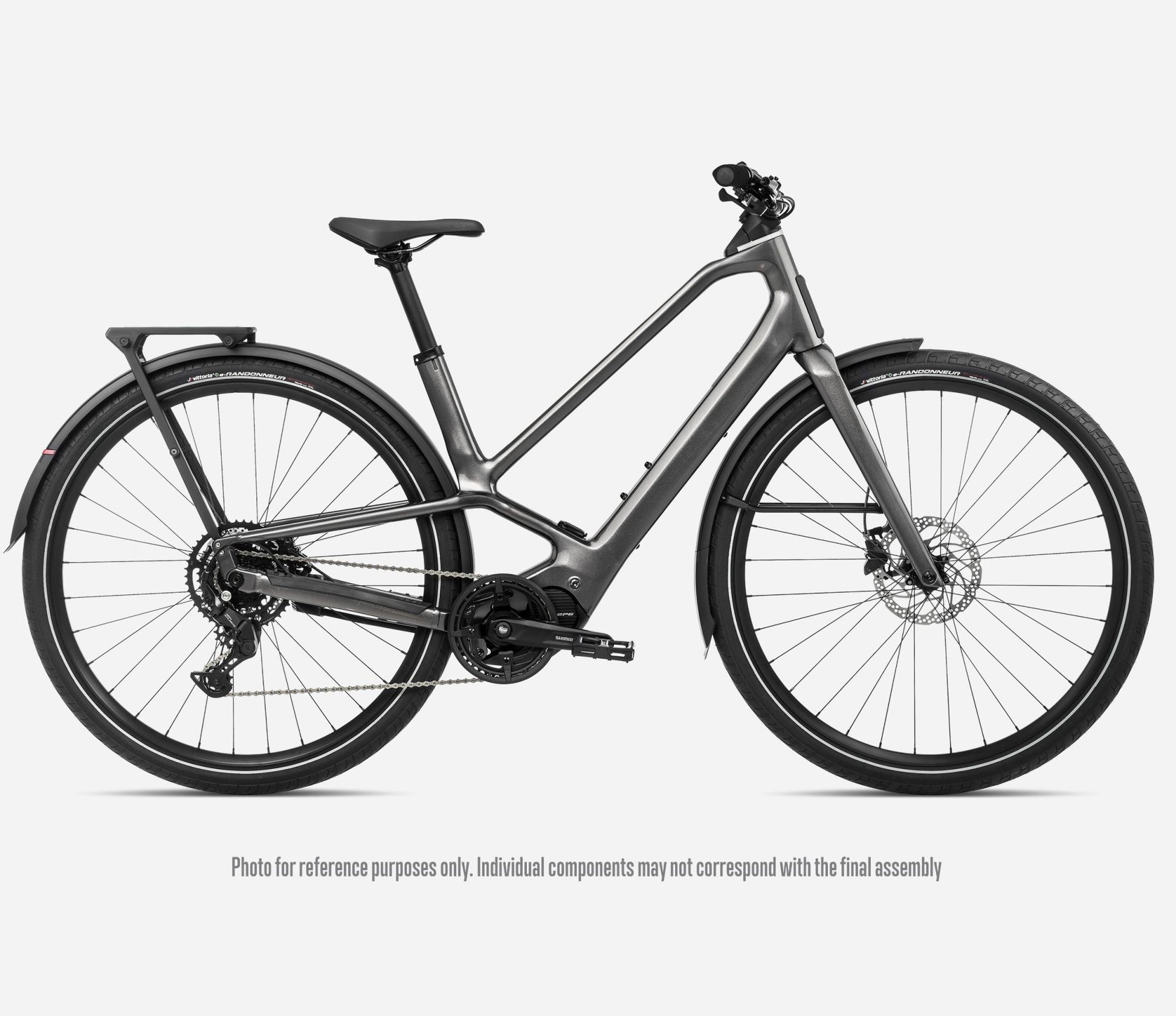

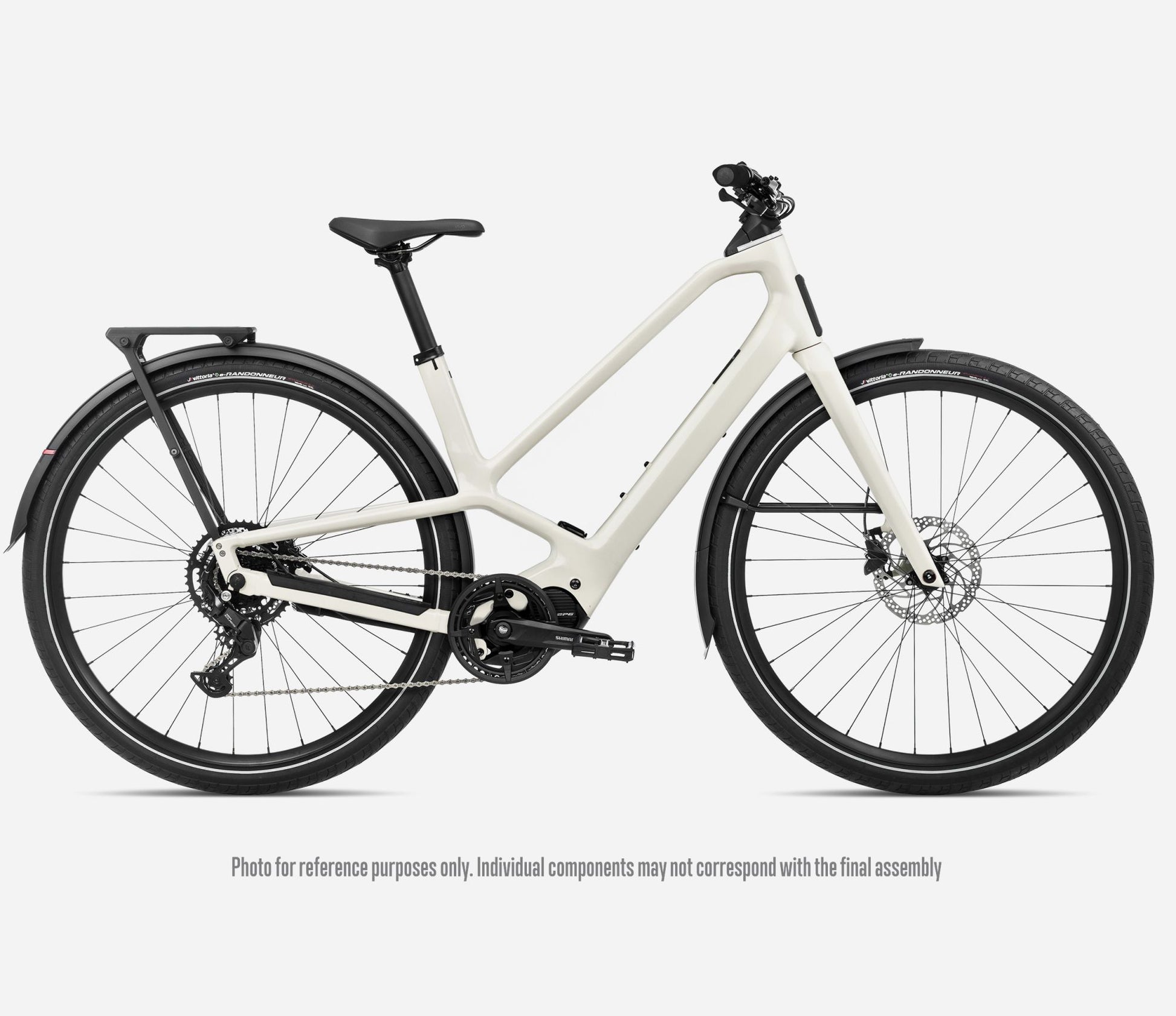

NEW 2026 Orbea DIEM 30 20mph Electric Urban & Commuter Bike

NEW 2026 Orbea DIEM 30 20mph Electric Urban & Commuter Bike

$ 3,799.00 USD
$ 3,799.00 USD $ 3,799.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Color
ATC SKU: 210000068044
UPC: 8434446973710

PRODUCT DETAILS

A to B should be a pleasure, not a chore. Diem is a powerful Urban Ebike you can count on, a trusty partner that brings a touch of class to the day-to-day. From the first moment you ride it, you know you are on something special. Grab a Diem and seize the day!

BUILD KIT:

  • Frame: Orbea Diem 2025, Diamond glide, Hydroformed Alloy 6061, High Polished, OLD 135x9 / OLD 142x12, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Trailer compatible
  • Fork: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, post mount disc mount, Thru Axle 12x100mm, thread M12x1, long mudguards compatible
  • Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
  • Battery: Orbea Internal 540Wh
  • Range Extender: N/A
  • Motor: Shimano EP600
  • Display: Shimano EN500
  • Charger: Orbea 2nd Generation eBike Smart charger 42V/2-4A
  • Chainring: Alloy 40t w/ chainguard
  • Crank: Shimano Steps EM600
  • Shifters: Shimano Cues SL-U4000
  • Cassette: Shimano CS-LG300 11-46t 9-Speed
  • Rear derailleur: Shimano Cues U4000 GS Shadow
  • Chain: KMC eGlide
  • Handlebar: Orbea Urban, Integrated light, Backsweep 30°, Rise 50, Width 720
  • Brakes: Shimano MT201 Hydraulic Disc
  • Brakes Configuration: N/A
  • Wheels: Alloy, 26c, 32H
  • Tyres: Schwalbe Marathon, 50-622, Reflective Tape
  • Pedals: VP-836 Black with reflectors
  • Front carrier: N/A
  • Rear carrier: Orbea RR-01 Alloy, w/ MIK & MIK Side and Ortlieb QL3.1 system, Max. 20Kg
  • Mudguard: Curana Apollo Orbit 60mm
  • Front Position Light: Orbea integrated, USB-C charging point
  • Front Light: Supernova Starstream Pure, Low Beam
  • Rear Light: Orbea Fender integrated, with alert light
  • Quick Stand: Orbea Diem Integrated
  • Bell: Knog OI Classic
  • Seatpost: Alloy, 31.6mm, Setback 0
  • Saddle: Selle Royal Vivo Ergo

SIZING: Orbea recommends the following sizes based on rider height

  • SM: 5'0" – 5'8"
  • MD: 5'5" – 6'0"
  • LG: 5'9" – 6'5"
  • XL: 6'2" – 6'8"
