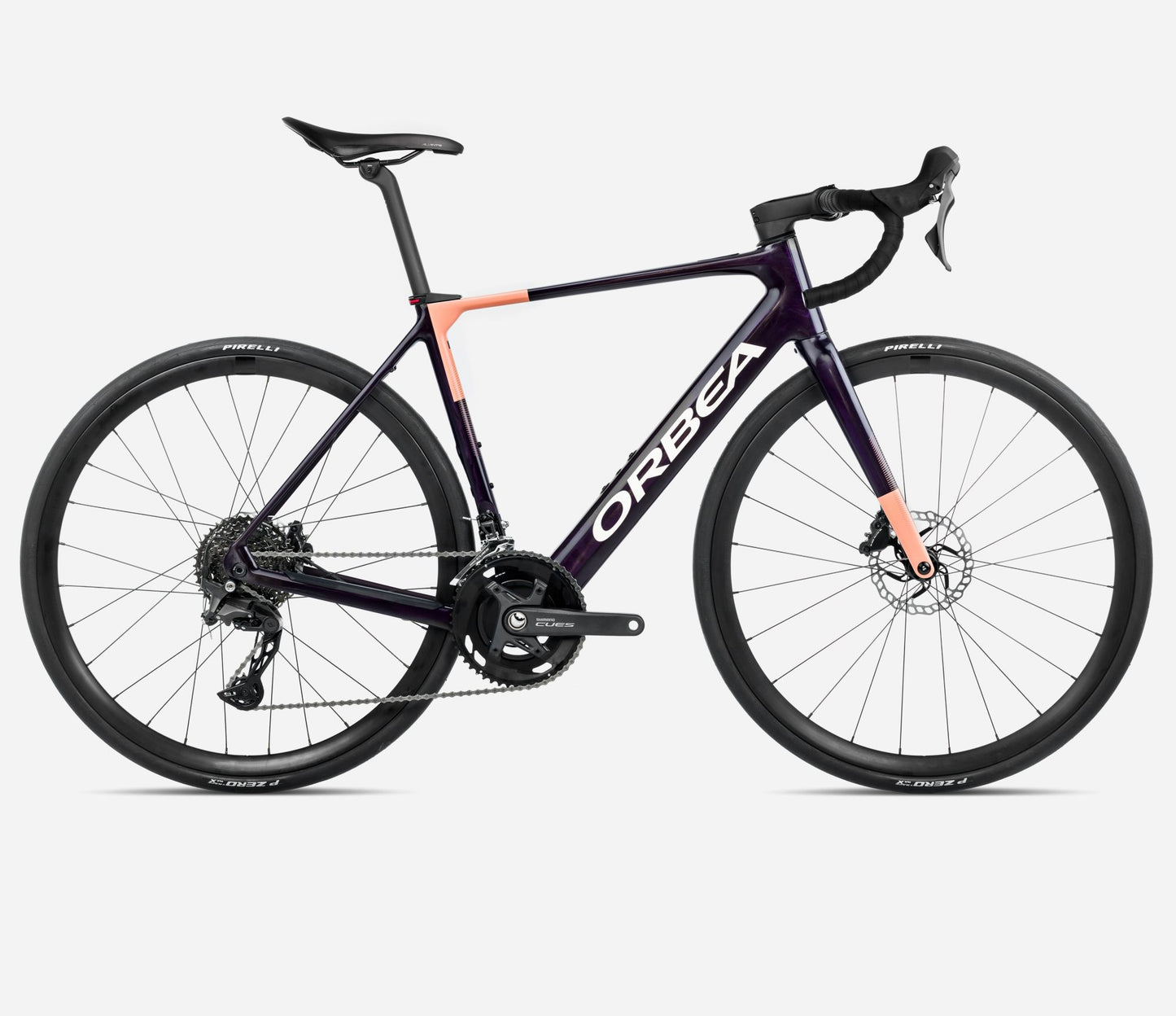

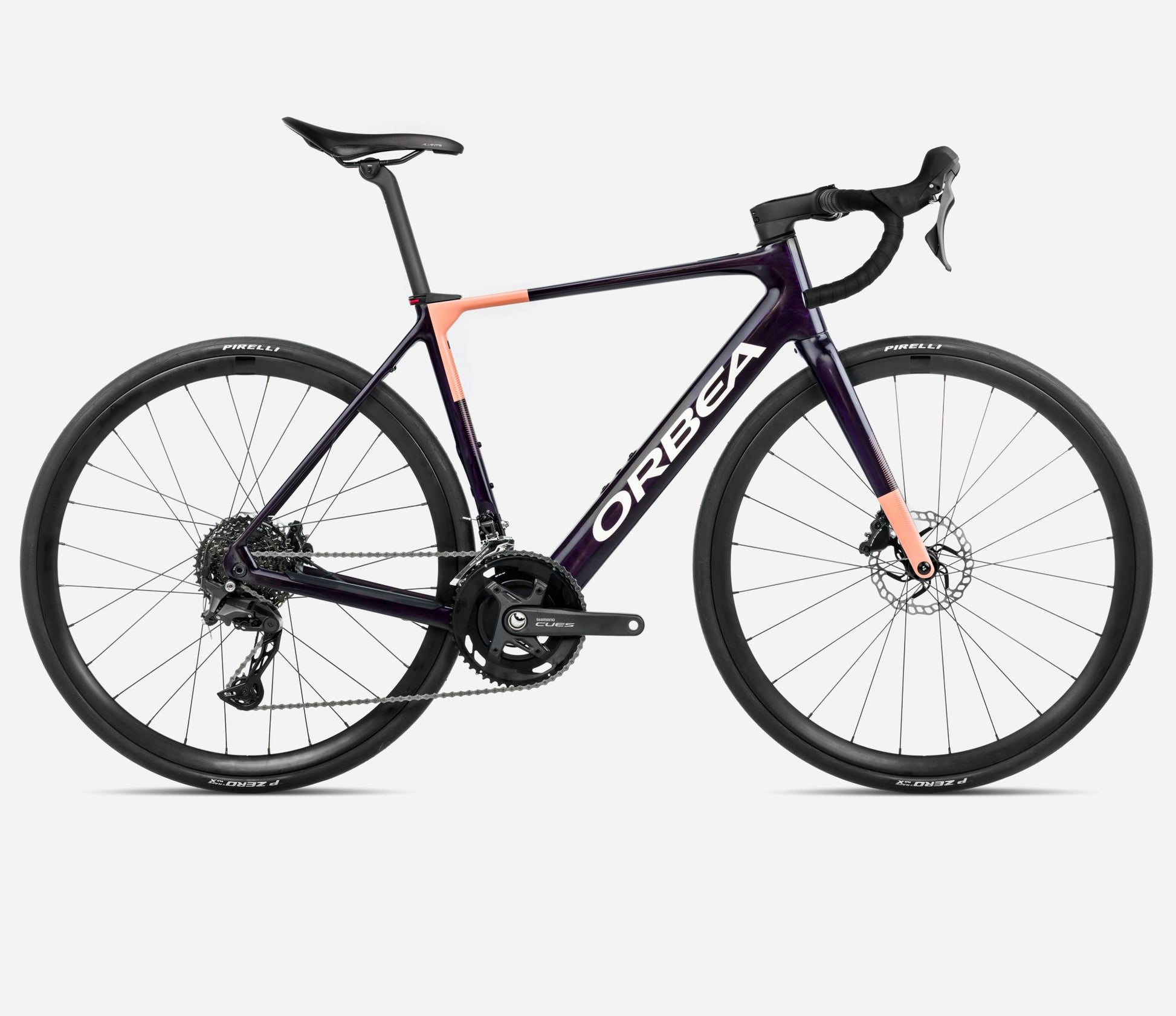

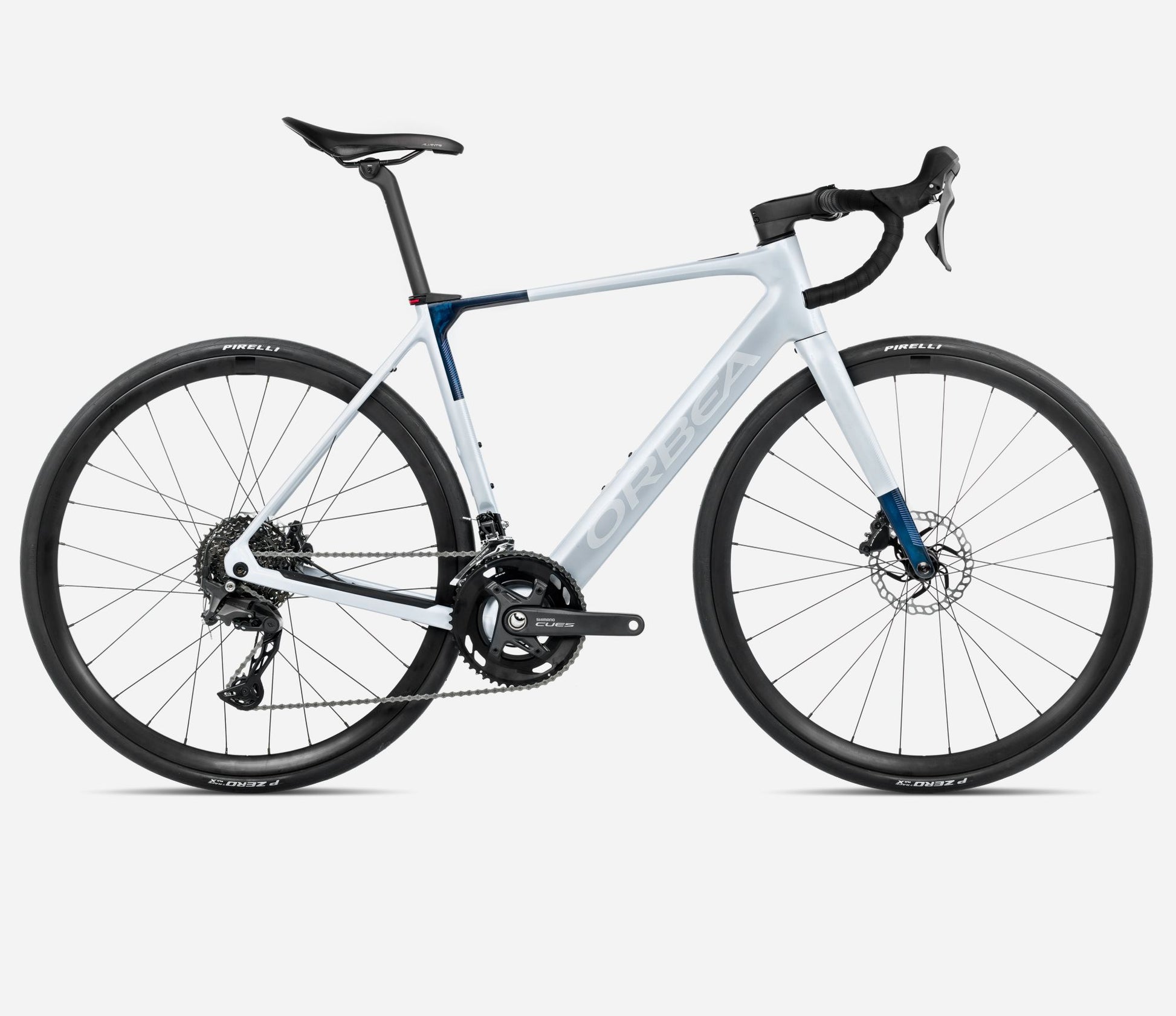

NEW 2026 Orbea GAIN M40 20mph Electric Carbon Endurance Road Bike

NEW 2026 Orbea GAIN M40 20mph Electric Carbon Endurance Road Bike

$ 5,563.95 USD
$ 5,563.95 USD $ 5,563.95 USD
Sale Sold out
Shipping calculated at checkout.
Size
Color
ATC SKU: 210000068294
UPC: 8434447003096

PRODUCT DETAILS

Rider and bike working in perfect synergy, you’re breathing hard and your heart is pumping but you are in control and having fun

BUILD KIT:

  • Frame: Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug
  • Fork: Gain OMR carbon fork, 700x35 maximum tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
  • Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
  • Battery: Mahle iX350 36V 353Wh
  • Range Extender: N/A
  • Motor: Mahle motor hub X20, ALC
  • Display: Mahle Pulsar One monochrome ANT+ LEV
  • Charger: Mahle Active Charger up to 4A
  • Remote: Mahle ONE Head Unit (BT/ANT+)
  • Crankset: Shimano Cues U6040 34x50t
  • Shifters: Shimano U6030
  • Cassette: Shimano CS-LG400 11-39t 10-Speed
  • Rear derailleur: Shimano Cues U6020 SGS Shadow
  • Front derailleur: Shimano Cues U6030
  • Chain: Shimano LG500
  • Handlebar: OC Road Performance RP21 Alu SL, Reach 80, Drop 125
  • Stem: OC Road Performance RP10, -8º
  • Brakes: Shimano U6030 Hydraulic Disc
  • Wheels: Alloy, Tubeless, 700c, 21c
  • Tyres: Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
  • Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite
  • Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite
  • Seatpost: OC Performance XP10-S Carbon, 27.2mm, Setback 20
  • Saddle: Fizik Aliante R5
  • Front light: Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50
  • Rear light: Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen, STVZO
  • Handlebar Tape: Orbea Anti-Slippery/Shock Proof

SIZING: Orbea recommends the following sizes based on rider height

  • XS: 5'1" - 5'5"
  • SM: 5'6" - 5'8"
  • MD: 5'8" - 5'10"
  • LG: 5'11" - 6'1"
  • XL: 6'1" - 6'3"
  • XXL: 6'4" - 6'9"
