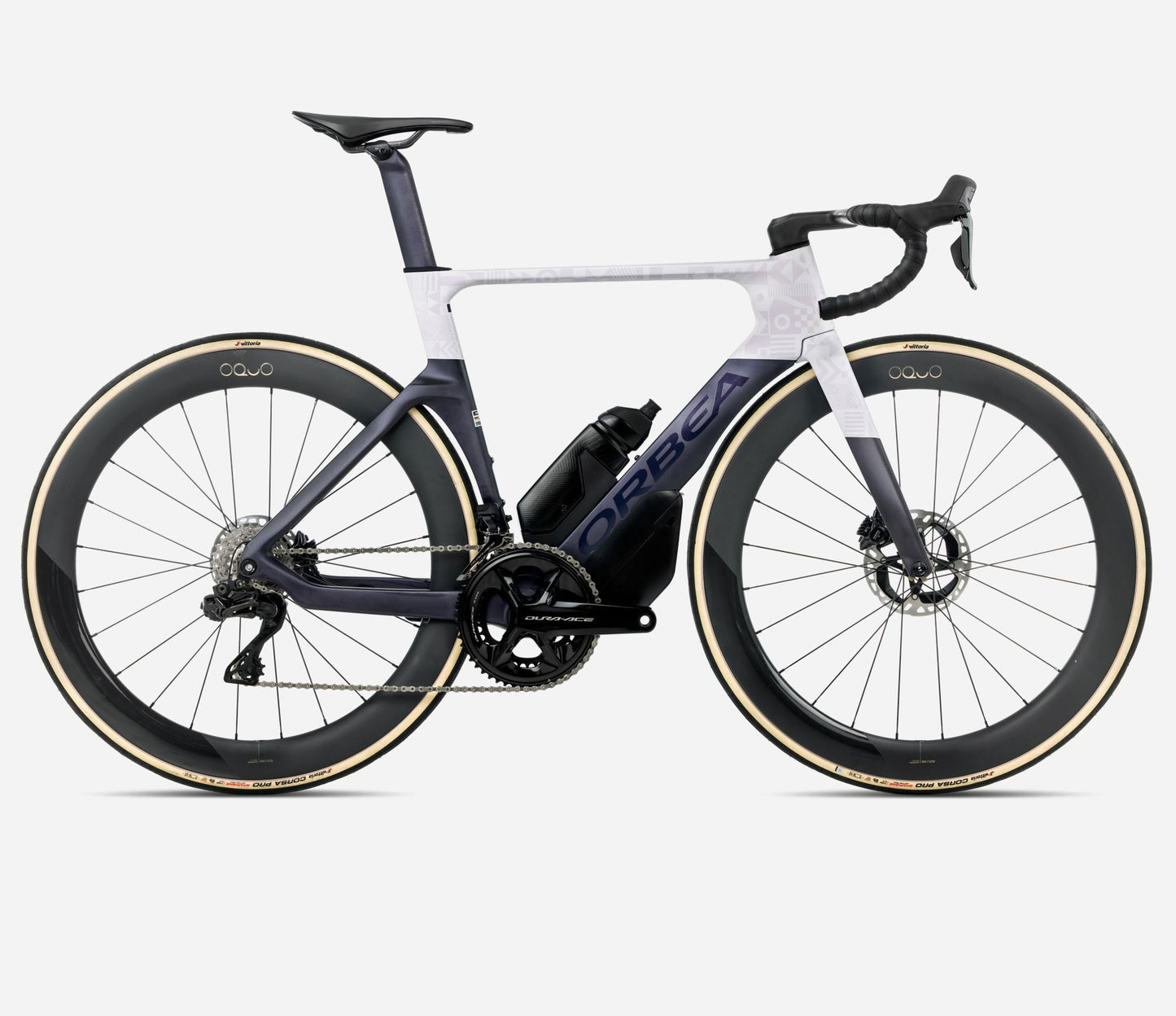

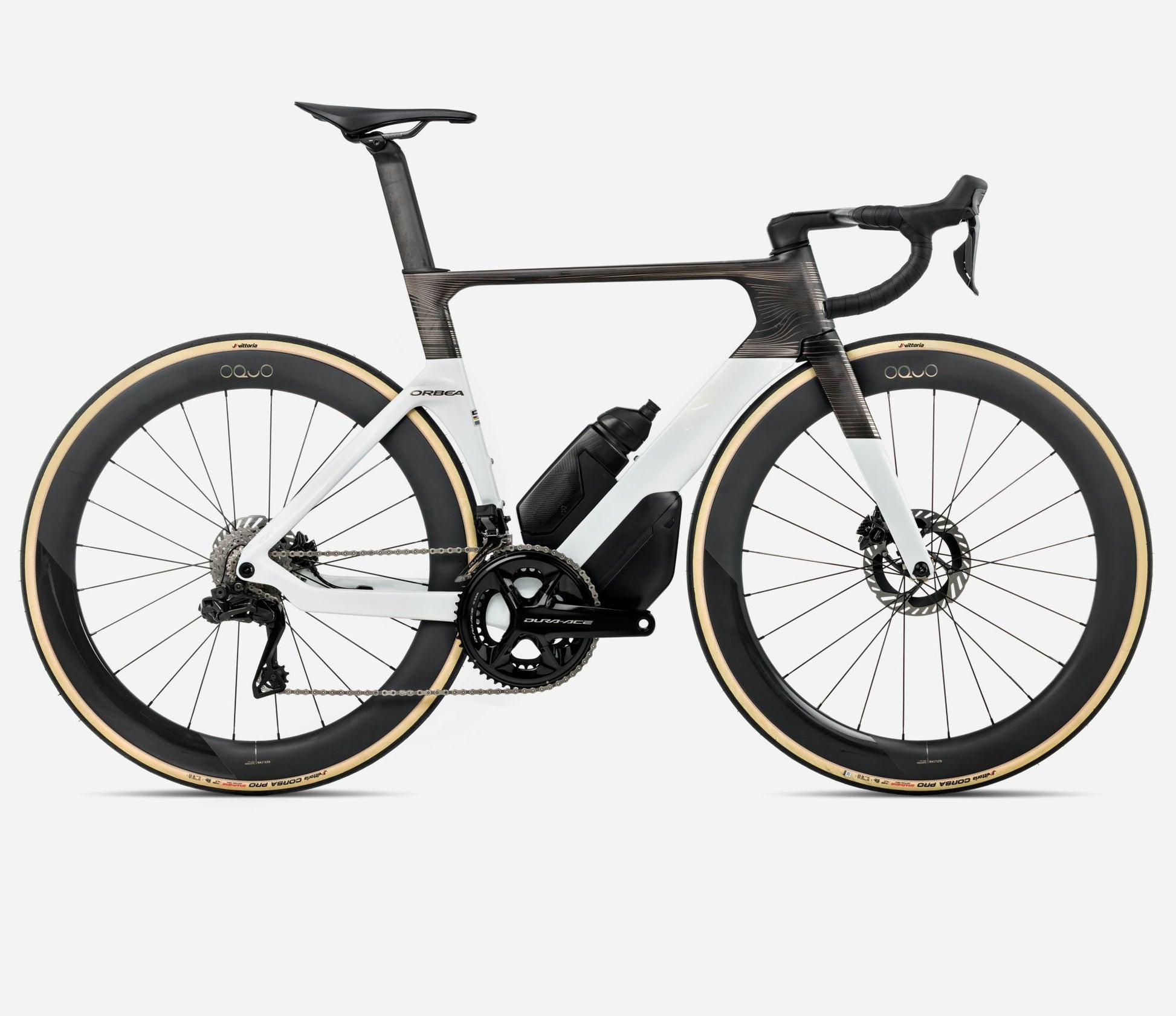

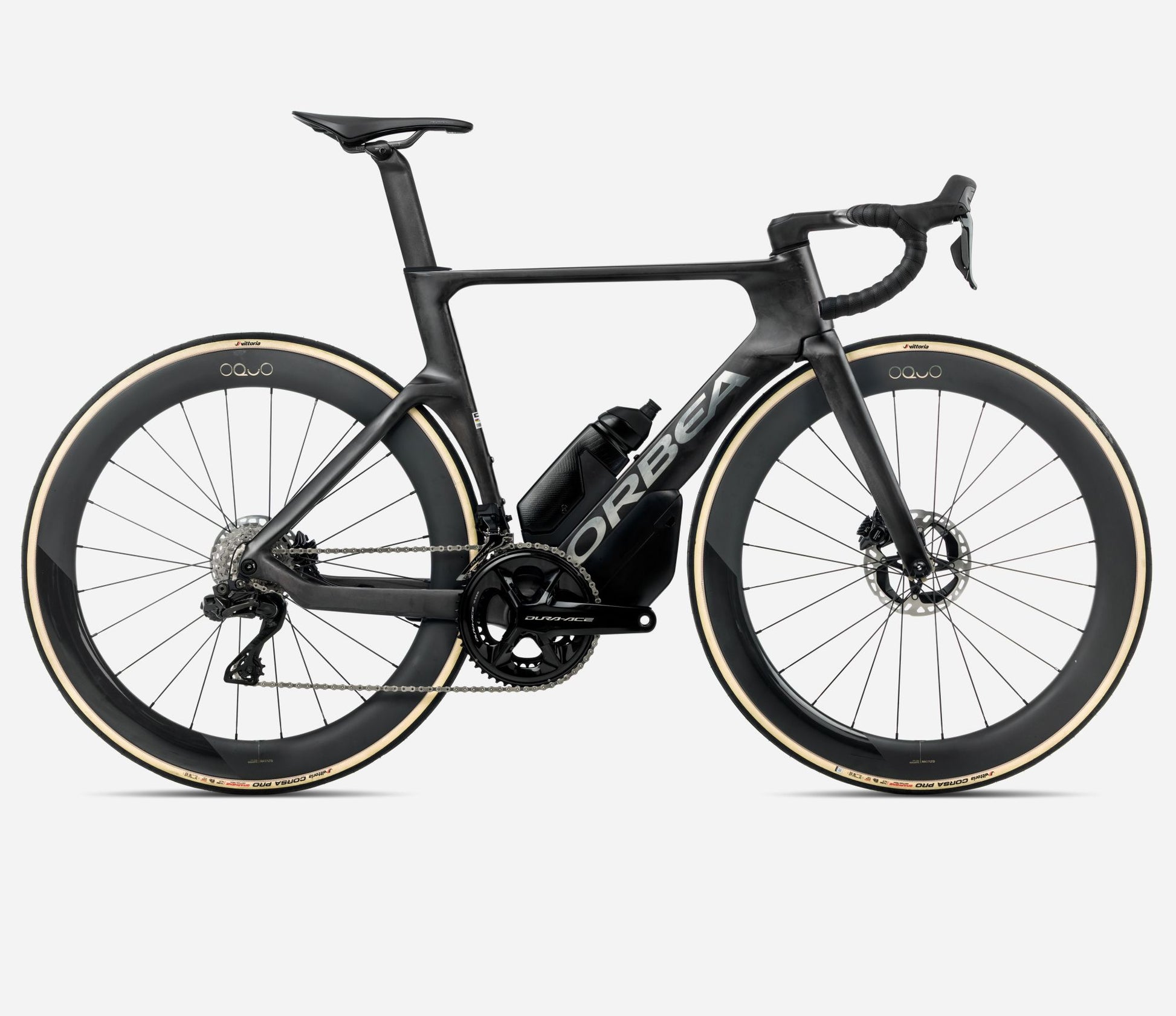

NEW 2026 Orbea ORCA AERO M10iLTD Carbon Road Bike

Orca Aero delivers pure speed with aero shaping, power transfer, and sharp handling—built for riders chasing every last watt.

BUILD KIT:

• Frame: Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
• Fork: Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout
• Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
• Crankset: Shimano Dura-Ace R9200 36x52t
• Shifters: Shimano R9270
• Cassette: Shimano Dura-Ace R9200 11-30t 12-Speed
• Rear derailleur: Shimano Dura-Ace Di2 R9250
• Front derailleur: Shimano Dura-Ace Di2 R9250
• Chain: Shimano CN-9100
• Handlebar: Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
• Brakes: Shimano R9270 Hydraulic Disc
• Rotors: 160mm Front / 140mm Rear
• Brakes configuration: N/A
• Wheels: Oquo Road Aero RA57LTD
• Tyres: Vittoria Corsa Pro Speed 29-622 TLR wide rim G2.0 OEM HP
• Front wheel axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite
• Rear wheel axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite
• Seatpost: OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment
• Saddle: Fizik Vento Antares R1 Carbon Rail 140mm
• Handlebar tape: Orbea Anti-Slippery/Shock Proof
• Hydration: OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10
• Storage: OC Aero Toolbox TB01PP
• Hub: OQUO Q10

SIZING: Orbea recommends the following sizes based on rider height

• 47cm: 5'1" – 5'3"
• 49cm: 5'3" – 5'5"
• 51cm: 5'6" – 5'8"
• 53cm: 5'8" – 5'10"
• 55cm: 5'11" – 6'1"
• 57cm: 6'1" – 6'3"
• 60cm: 6'4" – 6'9"
