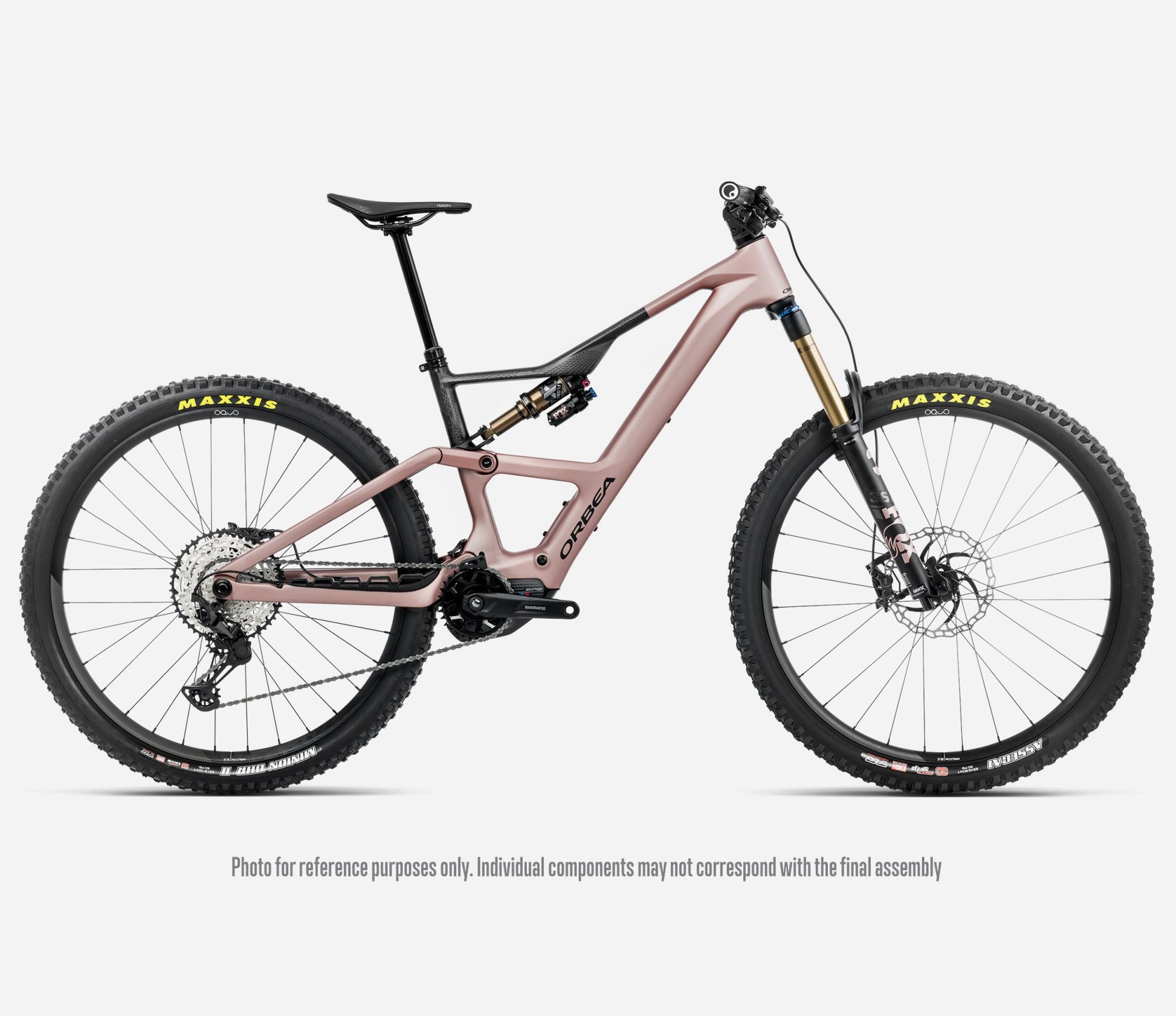

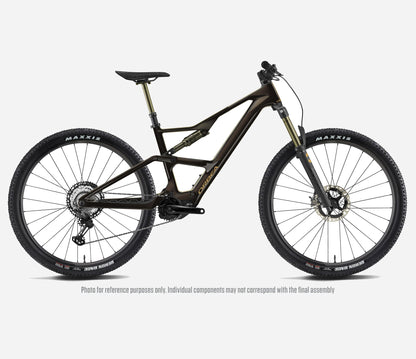

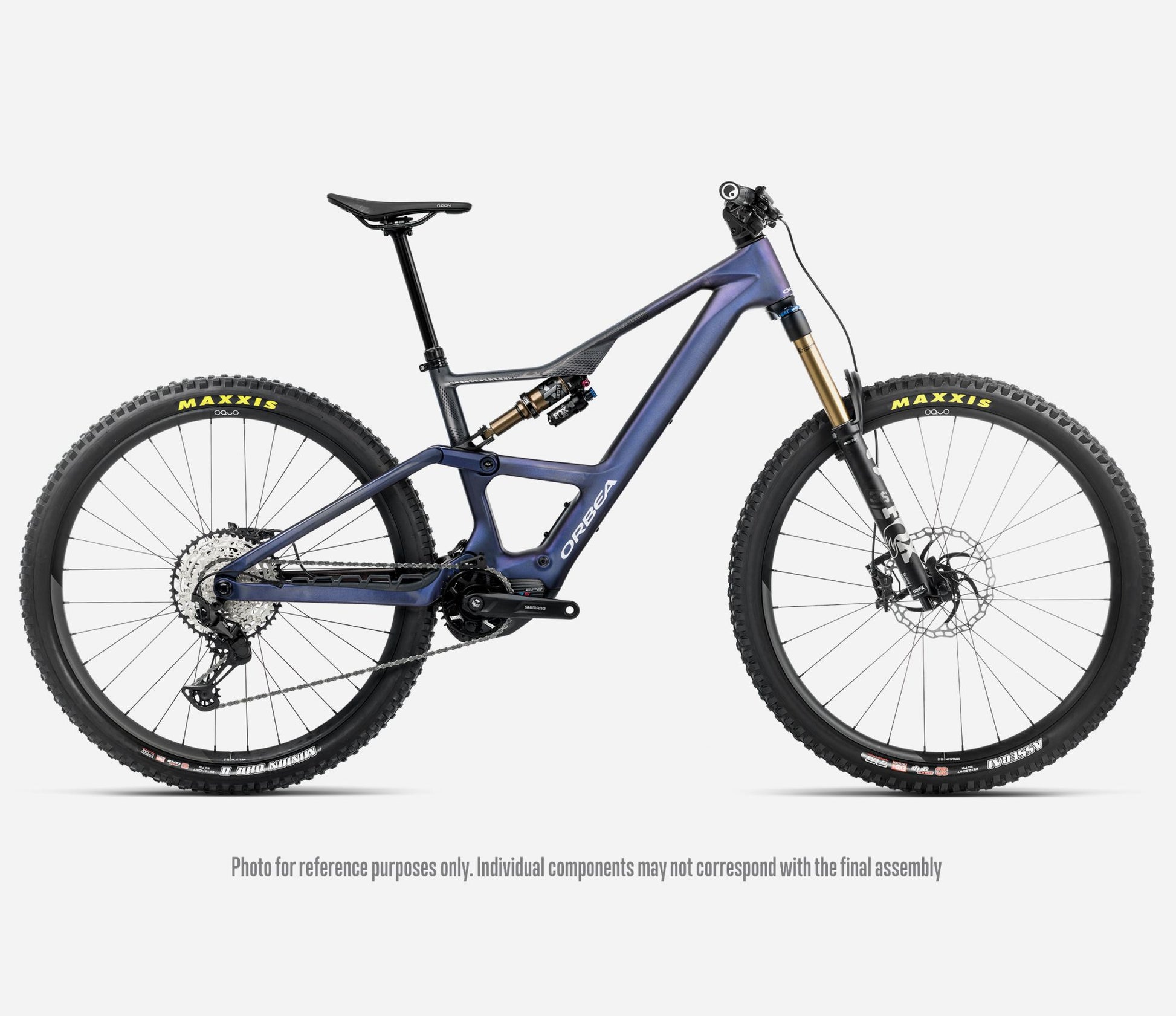

NEW 2026 Orbea RISE LT M10 630W 20mph Electric Carbon Trail Mountain Bike

The Trail Shredder's eMTB. Rise LT offers 160mm / 150mm of plush travel with a progressive trail geometry.

• Frame: Orbea Rise LT OMR 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
• Shock: Fox Float X Factory 2-Pos Adjust Evol LV Kashima custom tune 210x55mm
• Fork: Fox 36 Float Factory 160, Grip X, QR15x110, Kashima
• Steerer tube: Alloy 1-1/2", Black Oxidated Bearing
• Battery: Orbea Internal 630Wh
• Range Extender: N/A
• Motor: Shimano EP801 RS Gen2 MC
• Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
• Remote: Orbea System Controller with eDropper Remote
• Chainring: ethirteen Helix Core espec Direct Mount 32T 55mm ChainLine
• Crank: Shimano Steps EM600
• Shifters: Shimano XT M8250
• Cassette: Shimano CS-M7100 10-51t 12-Speed
• Rear derailleur: Shimano XT M8260 SGS
• Chain: Shimano M7100
• Chainguide: Orbea eBike chainguide
• Handlebar: OC Mountain Control MC10 Carbon, Rise 20, Width 800
• Stem: OC Mountain Control MC20, 0º
• Computer Mount: OC Computer Mount CM-05, Garmin/Sigma
• Brakes: Shimano XT Hydraulic Disc
• Rotors: Galfer Wave Rotors 203mm front / 180mm rear
• Brakes Configuration: N/A
• Wheels: Oquo Mountain Control MC32TEAM
• Tyres: Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
• Tyres: Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR
• Seatpost: OC Mountain Control MC10, 31.6mm, Electronic Dropper
• Saddle: Fizik Terra Ridon X5 145mm
• Lights: N/A
• Tools: OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal)

SIZING: Orbea recommends the following sizes based on rider height.

• SM: 4'11" - 5'7"
• MD: 5'3" - 5'11"
• LG: 5'7" - 6'3"
• XL: 5'11" - 6'7"
