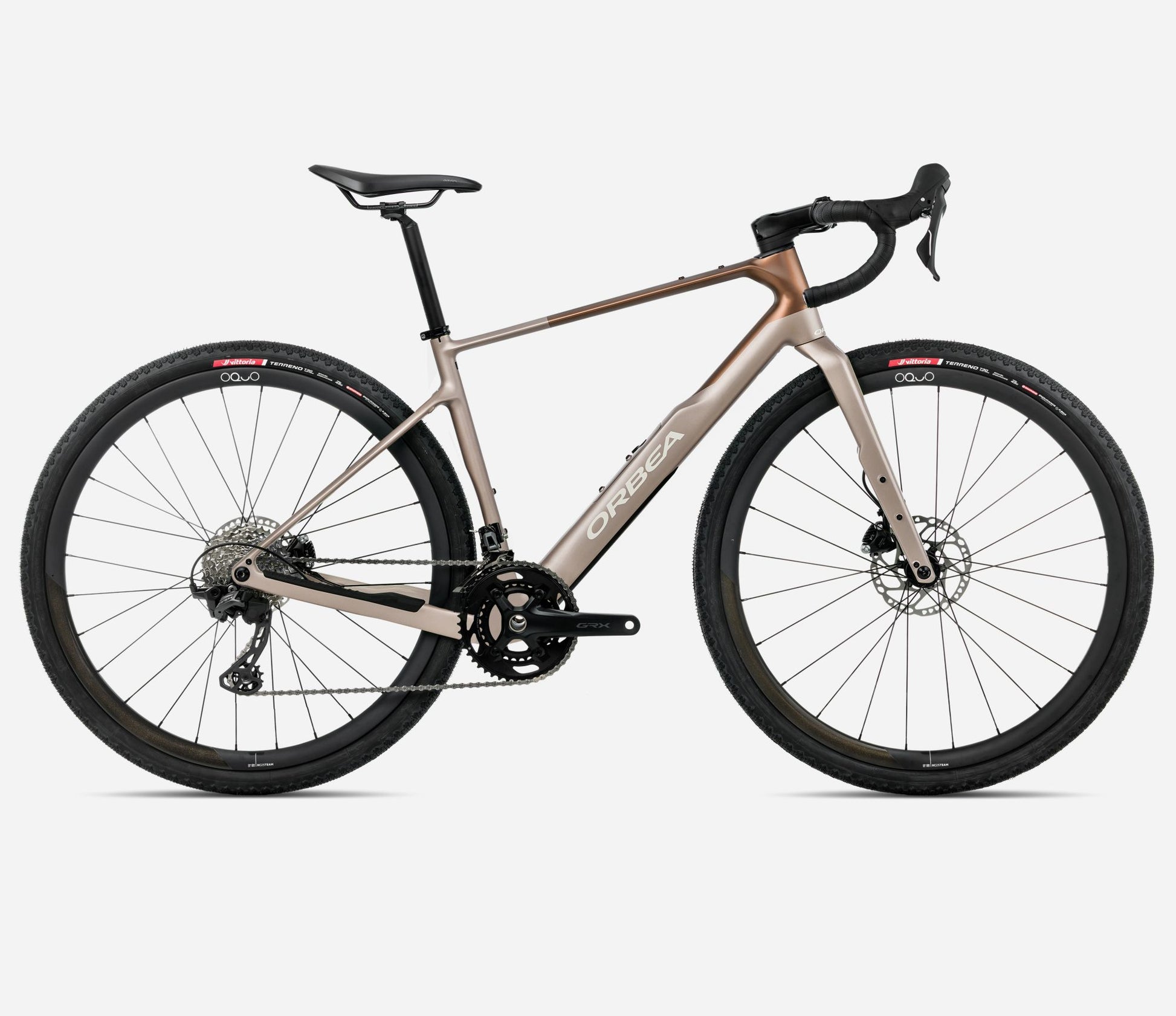

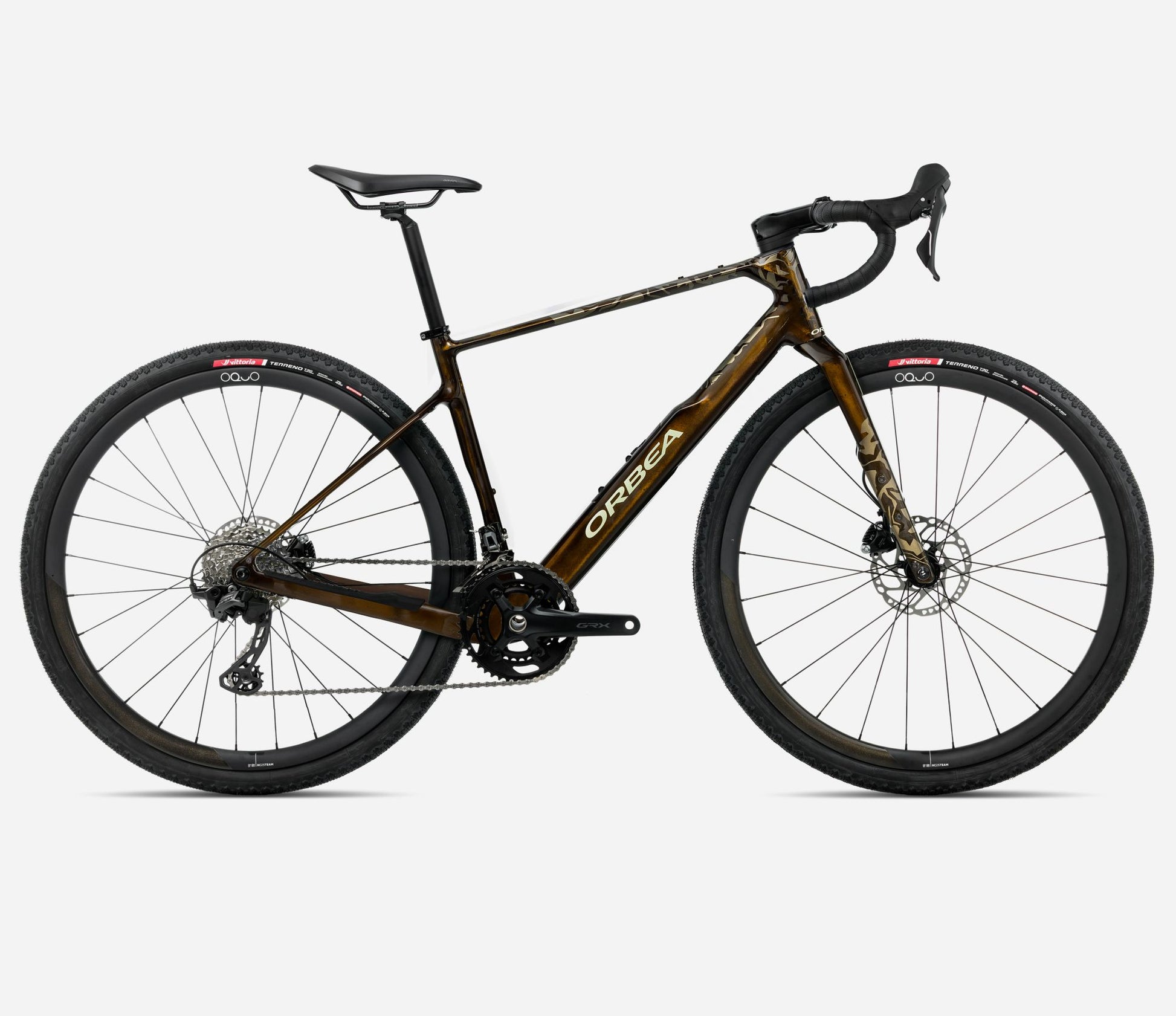

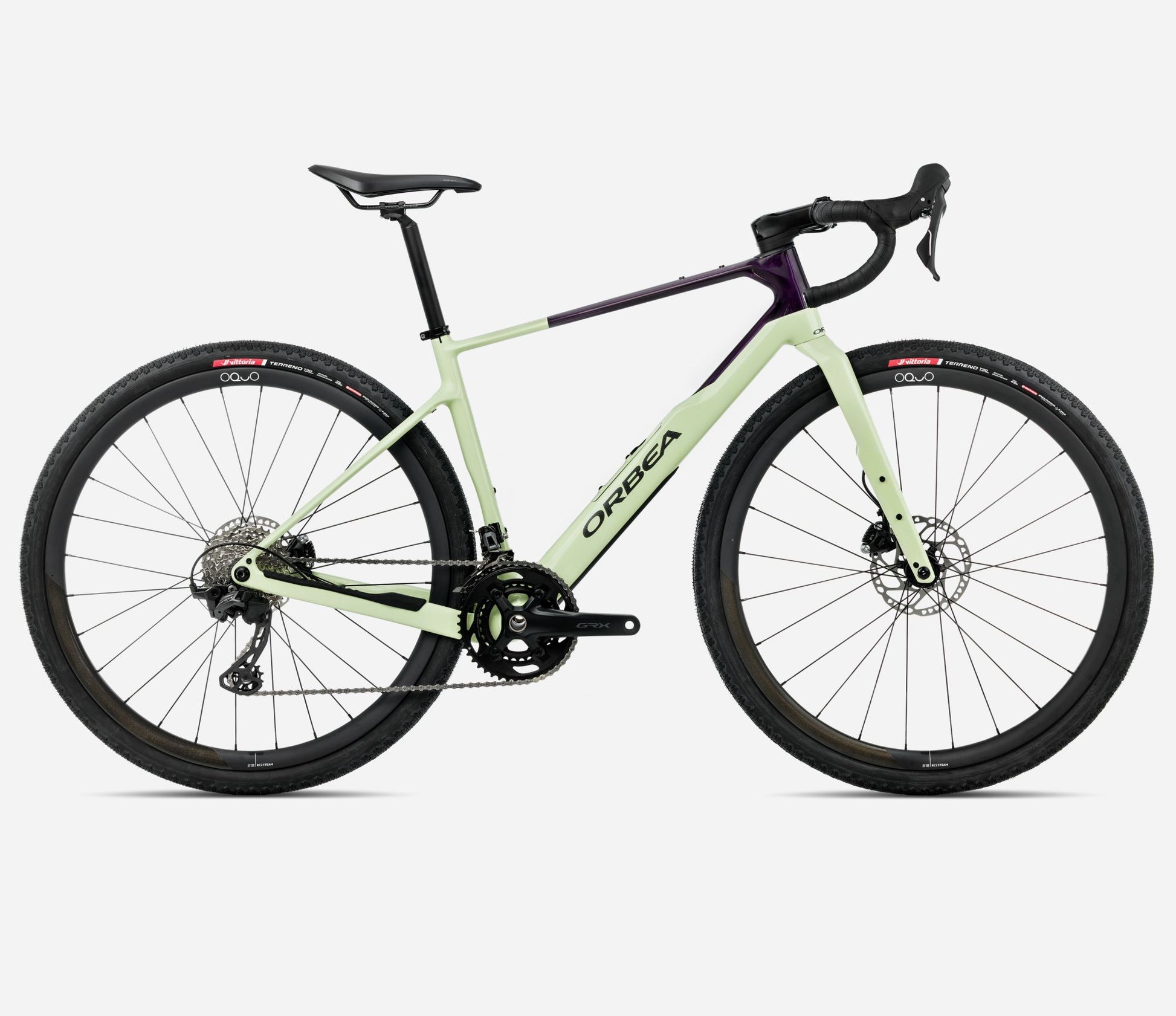

NEW 2026 Orbea TERRA M35TEAM Carbon Road Bike

Terra is your best ally: a capable gravel bike for off-road adventures, be it bikepacking or endurance races.

BUILD KIT:

• Frame: Orbea Terra Carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS multi mount system, fender ready
• Fork: Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready
• Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
• Crankset: Shimano GRX RX610 30x46t
• Shifters: Shimano GRX RX610
• Cassette: Shimano HG710 11-36t 12-Speed
• Rear derailleur: Shimano GRX RX820
• Front derailleur: Shimano GRX RX820
• Chain: Shimano M6100
• Handlebar: OC Gravel GR31, Reach 70, Drop 110
• Stem: OC Road Performance RP23, -5º
• Brakes: Shimano RX410 Hydraulic Disc
• Brakes configuration: N/A
• Wheels: Oquo Road Control RC30TEAM
• Tyres: Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
• Front wheel axle: Orbea Thru Axle 12x100mm M12xP1 Hollow
• Rear wheel axle: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
• Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
• Saddle: Fizik Terra Argo X7 Aluminium Rail 150mm
• Mudguard: N/A
• Handlebar tape: Orbea Anti-Slippery/Shock Proof
• Storage: Accessories Containers

SIZING: Orbea recommends the following sizes based on rider height

• XS: 5'1" – 5'5"
• SM: 5'6" – 5'8"
• MD: 5'8" – 5'10"
• LG: 5'11" – 6'1"
• XL: 6'1" – 6'3"
• XXL: 6'4" – 6'9"
