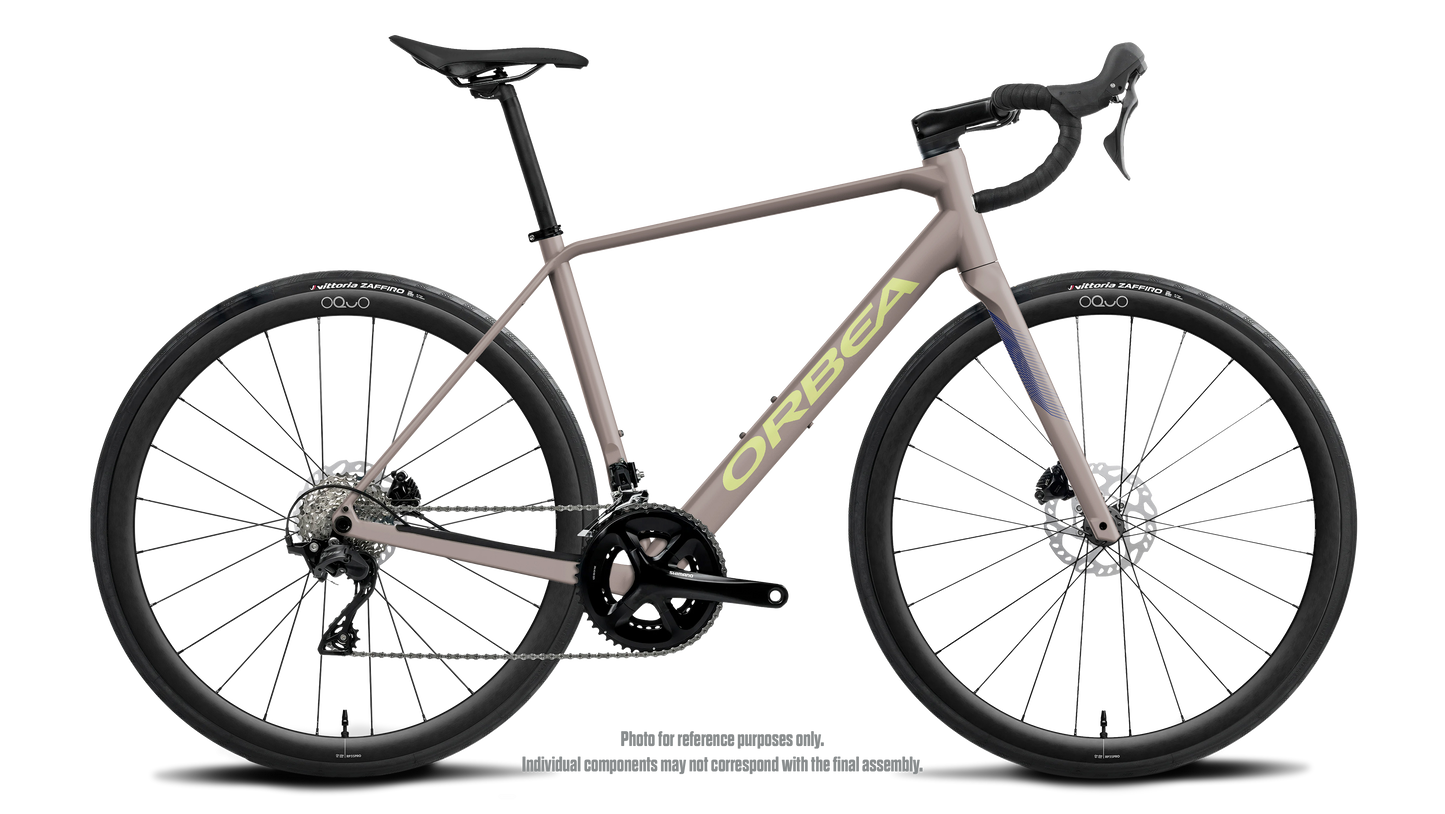

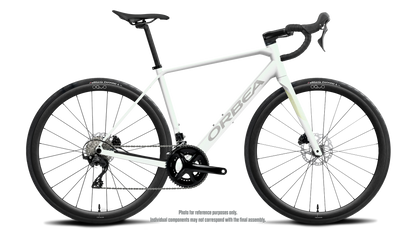

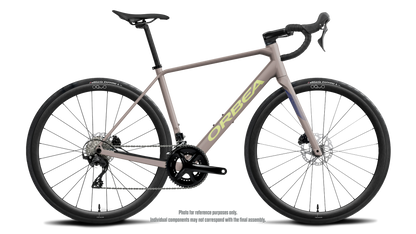

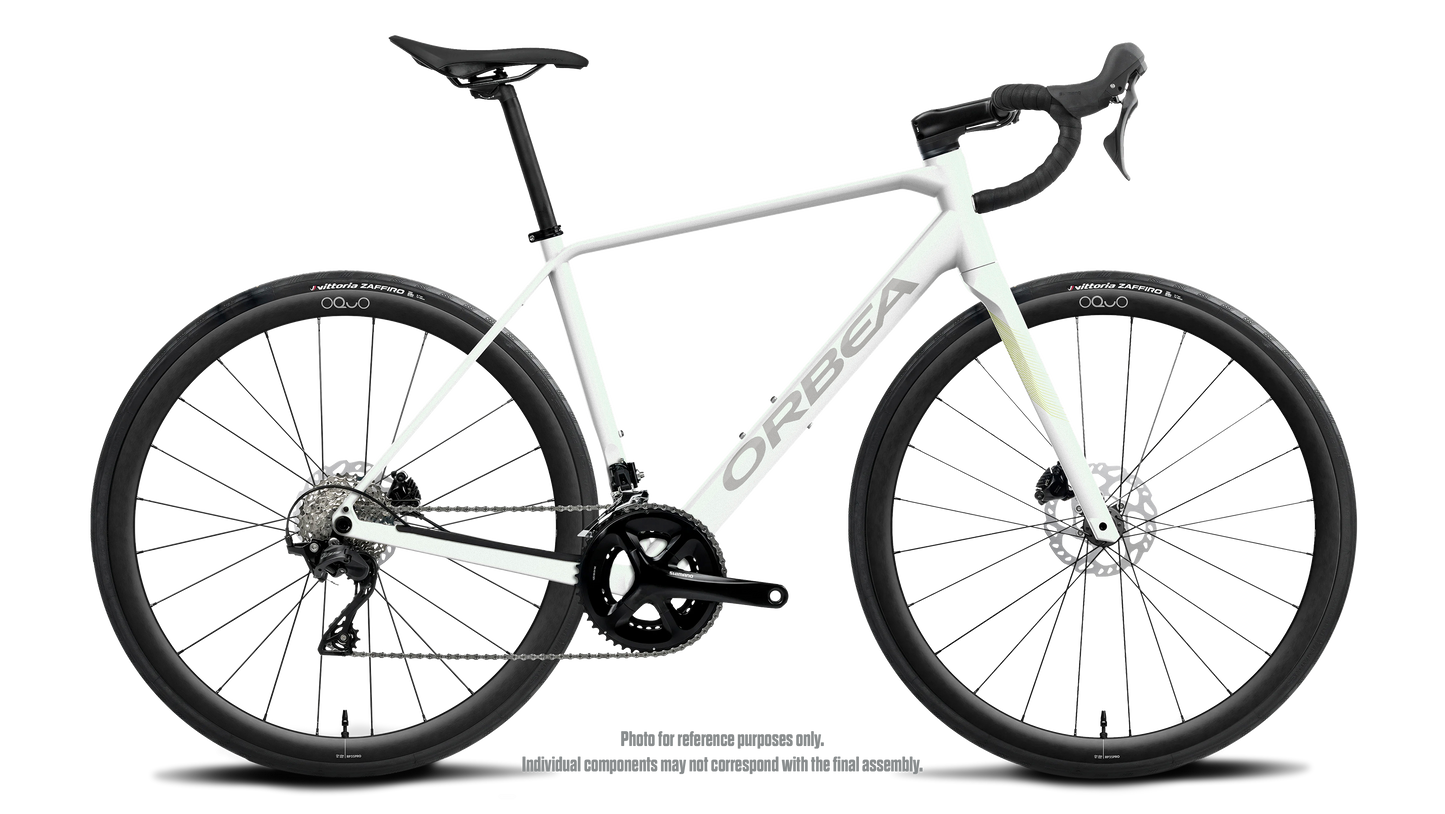

NEW 2027 Orbea AVANT H30 Road Bike - Shimano 105 R7100

The 2027 Orbea Avant H30 is the top of the alloy Avant line, built with a 12-speed Shimano 105 group for crisp, modern road shifting. On the same comfortable hydroformed triple-butted aluminum frame and full-carbon fork, it's a refined, do-it-all endurance road bike ready for long rides, fast group days, and everything in between.

Endurance Alloy Frame + Full-Carbon Fork

The Orbea Avant Hydro alloy frame uses hydroformed, triple-butted tubing with internal routing and a 12x142 thru-axle for a stable, all-day platform, while the full-carbon fork smooths the road and sharpens steering. Endurance geometry keeps you comfortable over the long haul.

Shimano 105 12-Speed Drivetrain

A Shimano 105 R7100 2x12 drivetrain delivers precise, modern road shifting across a wide 11-36t 12-speed cassette and a 50/34 compact crank - smooth gear steps and plenty of range for any terrain. Shimano 105 R7170 hydraulic disc brakes provide strong, controlled, all-weather stopping.

Tubeless-Ready Roll

Tubeless-ready 700c alloy wheels and fast Continental Grand Prix 30c tires keep the Avant H30 quick and comfortable, ready to run tubeless and ride out of the shop.

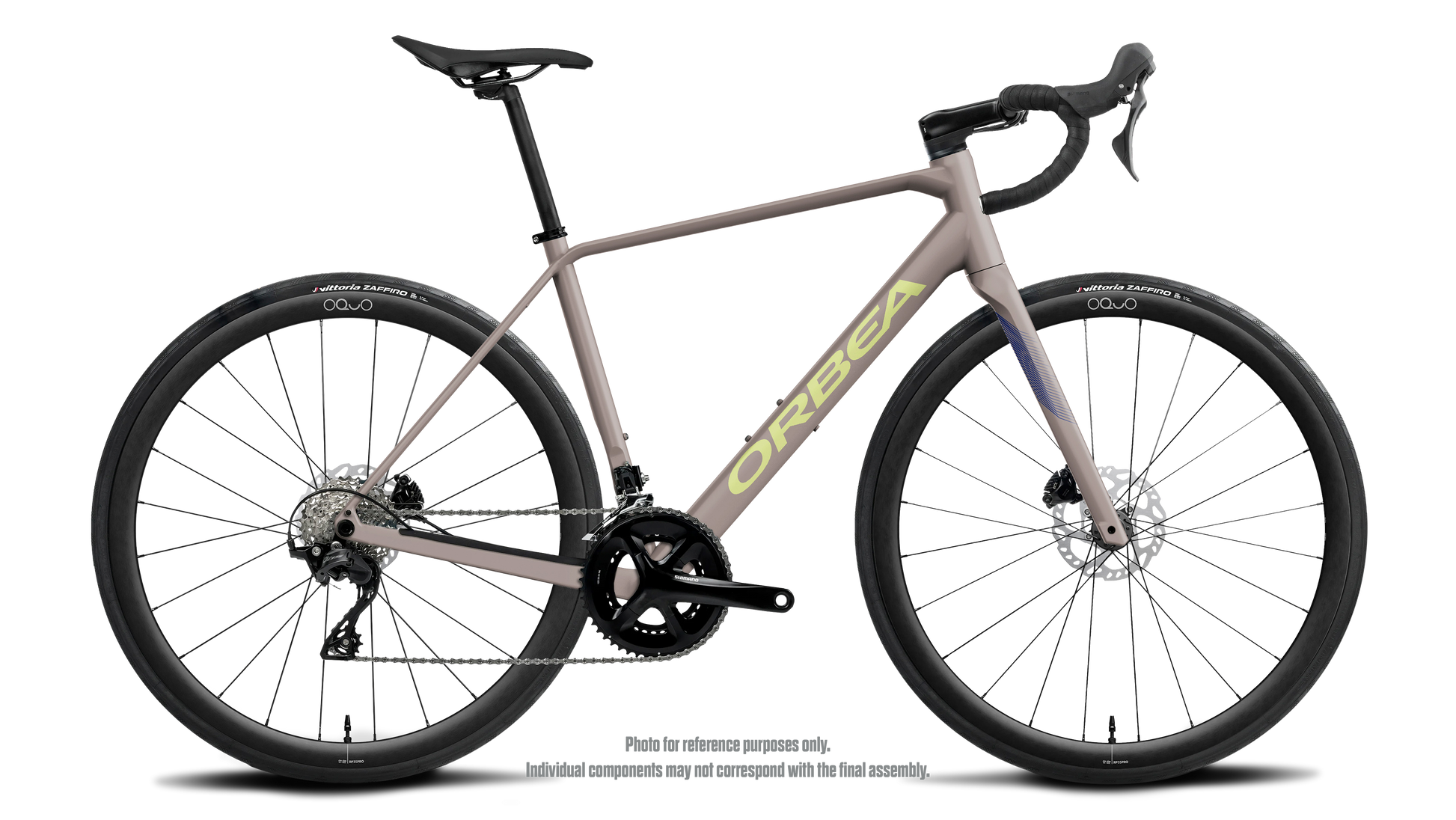

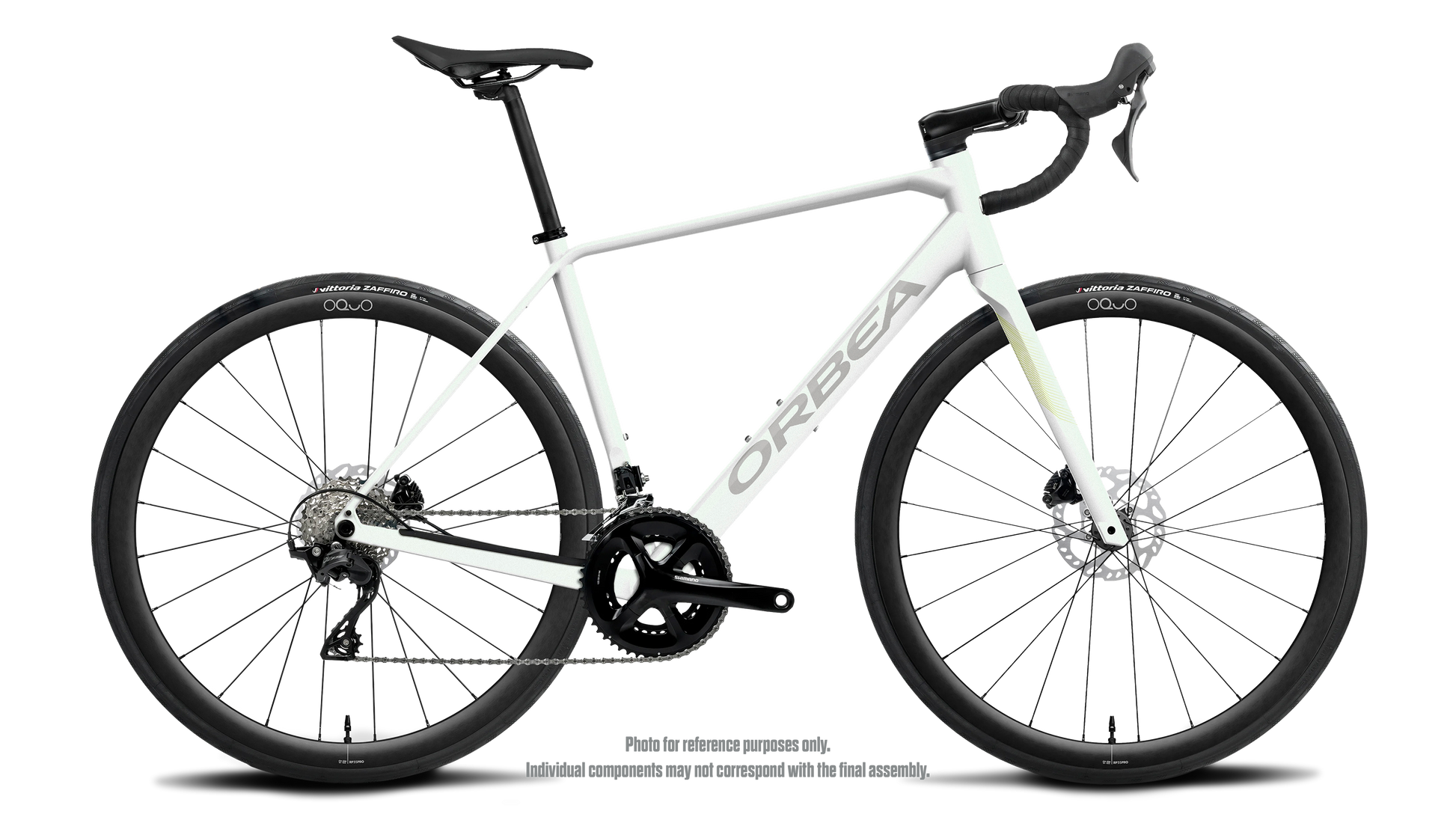

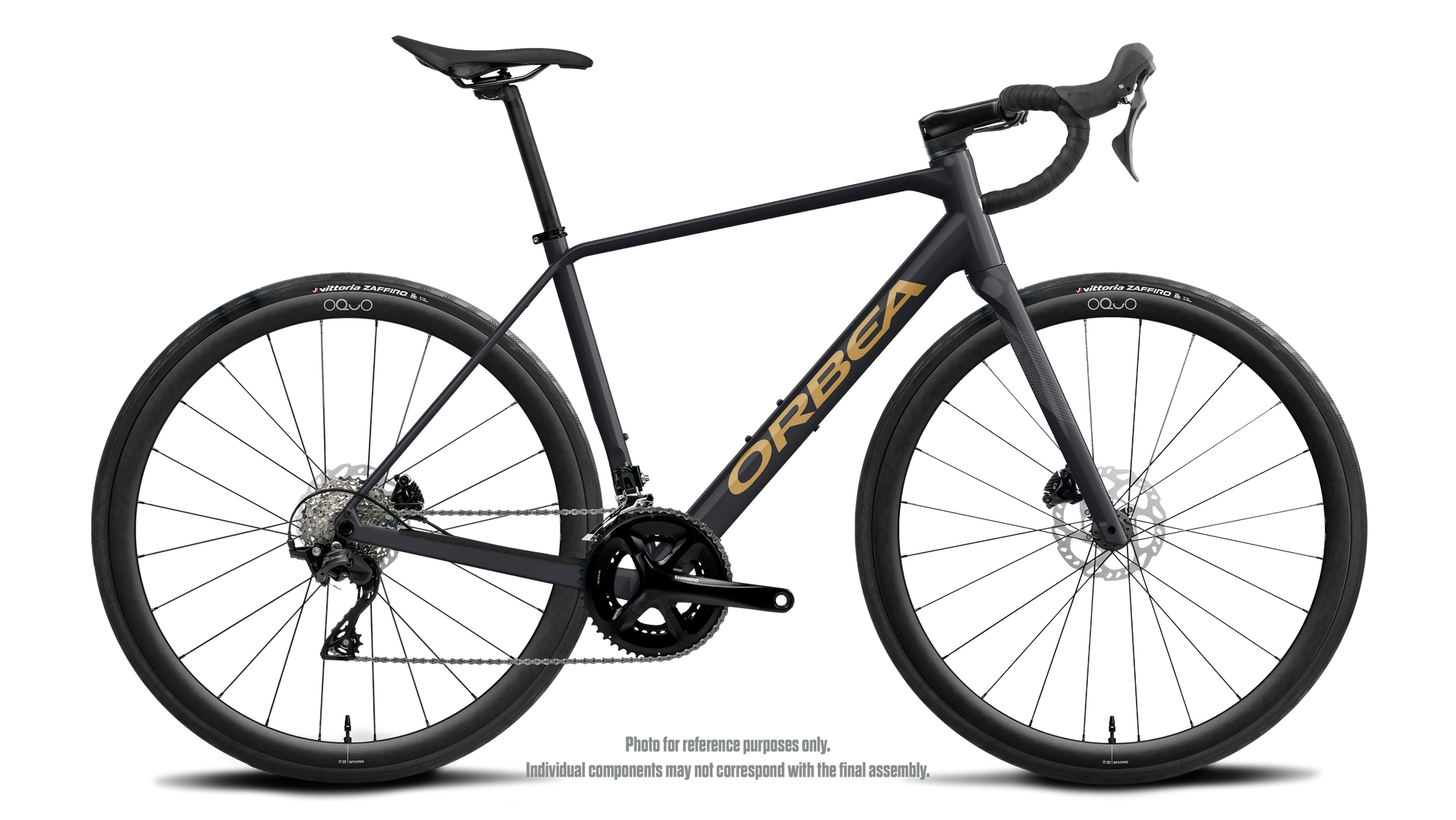

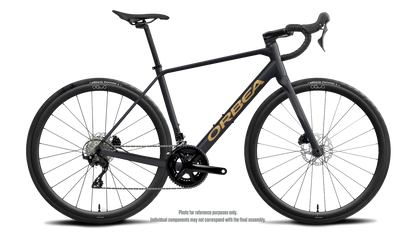

Available in three colorways - Golden White - Smooth Silver (Gloss), Nickel - Acid Gum (Matt), and Diamond Black - Titan Gold (Gloss) - in sizes 47-60.

KEY FEATURES:

• Orbea Avant Hydro triple-butted alloy endurance frame, 12x142, internal routing
• Full-carbon Avant fork, 12x100 thru-axle
• Shimano 105 R7100 2x12 drivetrain
• Shimano HG710 11-36t 12-speed cassette, 50/34 compact crank
• Shimano 105 R7170 hydraulic disc brakes
• Tubeless-ready 700c alloy wheels
• Continental Grand Prix 700x30c tires
• Endurance road geometry, sizes 47-60

BUILD KIT:

• Frame: Orbea Avant Hydro disc, hydroformed triple-butted aluminium, 12x142, internal routing, 27.2mm post
• Fork: Orbea Avant Hydro full carbon, tapered 1-1/8"-1.5", 12x100
• Headset: FSA 1-1/2" Integrated Aluminium Cup
• Stem: OC Road Performance RP23, -5deg
• Handlebar: OC Road Performance RP31-R, Reach 70, Drop 125
• Brakes: Shimano 105 R7170 Hydraulic Disc
• Rear Derailleur: Shimano 105 R7100
• Front Derailleur: Shimano 105 R7100
• Shifters: Shimano 105 R7120
• Cassette: Shimano HG710 11-36t 12-Speed
• Chain: Shimano M6100
• Crankset: Shimano RS520, 50/34t
• Wheels: Alloy, Tubeless, 700c, 19c, 28H
• Tires: Continental Grand Prix Foldable 700x30c
• Seatpost: SP 0.6 Alloy, 27.2mm, Setback 20
• Saddle: SD 0.1 145mm

SIZING: Orbea's recommended rider height by size (approximate):

• 47: 157-165 cm (5'2"-5'5")
• 49: 163-170 cm (5'4"-5'7")
• 51: 168-175 cm (5'6"-5'9")
• 53: 173-180 cm (5'8"-5'11")
• 55: 178-185 cm (5'10"-6'1")
• 57: 183-190 cm (6'0"-6'3")
• 60: 188-198 cm (6'2"-6'6")

FREQUENTLY ASKED:

• How does the Avant H30 compare to the H40? The H30 steps up to a 12-speed Shimano 105 group - 105 R7100 derailleurs, R7120 shifters, a wide-range 12-speed cassette, and 105 R7170 hydraulic brakes - versus the H40's 10-speed Tiagra. More gears, finer steps, and sharper braking.
• Is this the top alloy Avant? Yes - the H30 is the highest-spec aluminum-frame Avant, just below the carbon-frame Avant M-series.
• Is the frame aluminum or carbon? The frame is Orbea's hydroformed triple-butted alloy with a full-carbon fork.
• Can I run tubeless tires? Yes - the 700c wheels are tubeless-ready.
• What's the step up from here? The Avant M-series moves to a full carbon frame for lower weight and added compliance.
• What's new for 2027? A 12-speed Shimano 105 drivetrain and new 2027 colorways.
