NEW 2027 Orbea CARPE 20 28mph Electric Hybrid Bike - Shimano CUES U4000

The 2027 Orbea Carpe 20 is a light, fast, full-power electric commuter built for everyday city miles. Built on Orbea's hydroformed aluminum Carpe frame with a full-carbon fork and powered by a Shimano EP600 motor with an integrated 420Wh battery, it pairs effortless assistance with a proven, easy-to-service drivetrain and integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, flattening hills and keeping you fresh on every commute. The integrated 420Wh battery keeps the Carpe light and balanced, and as a Class 3 (28 mph) pedal-assist e-bike it keeps pace with city traffic.

Proven Shimano Gearing

The Carpe 20 runs a reliable Shimano CUES U4000 9-speed drivetrain with a wide-range cassette and a tough KMC eGlide chain - simple, durable, and easy to service, with the gear range to handle hills and headwinds.

Built for the Commute

A full-carbon fork takes the sting out of rough roads, while reflective Vittoria Randonneur tires and a fully integrated lighting system keep you seen day and night. An integrated kickstand, light-equipped seatpost and trailer compatibility round out a city bike that just works.

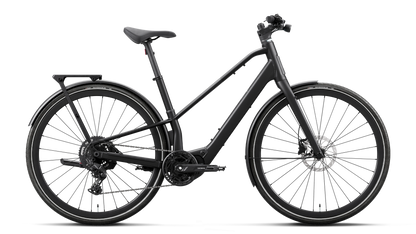

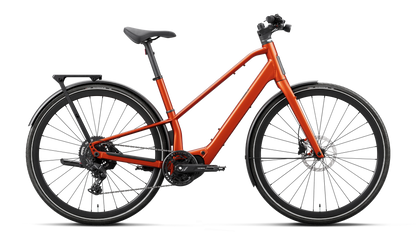

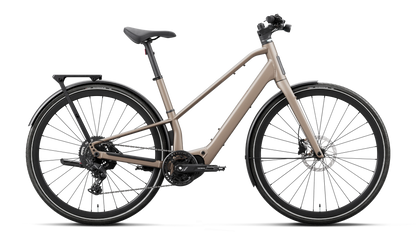

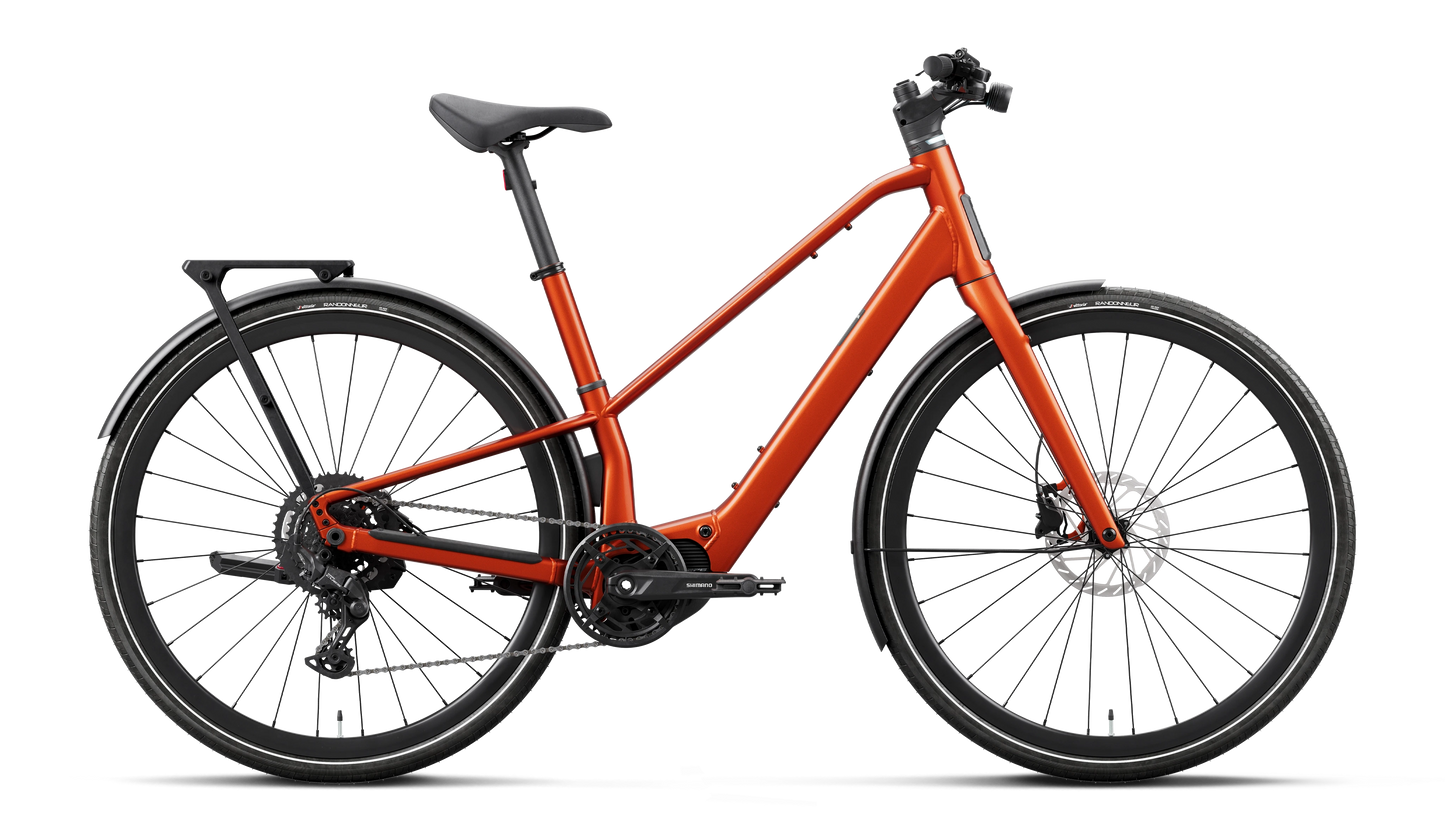

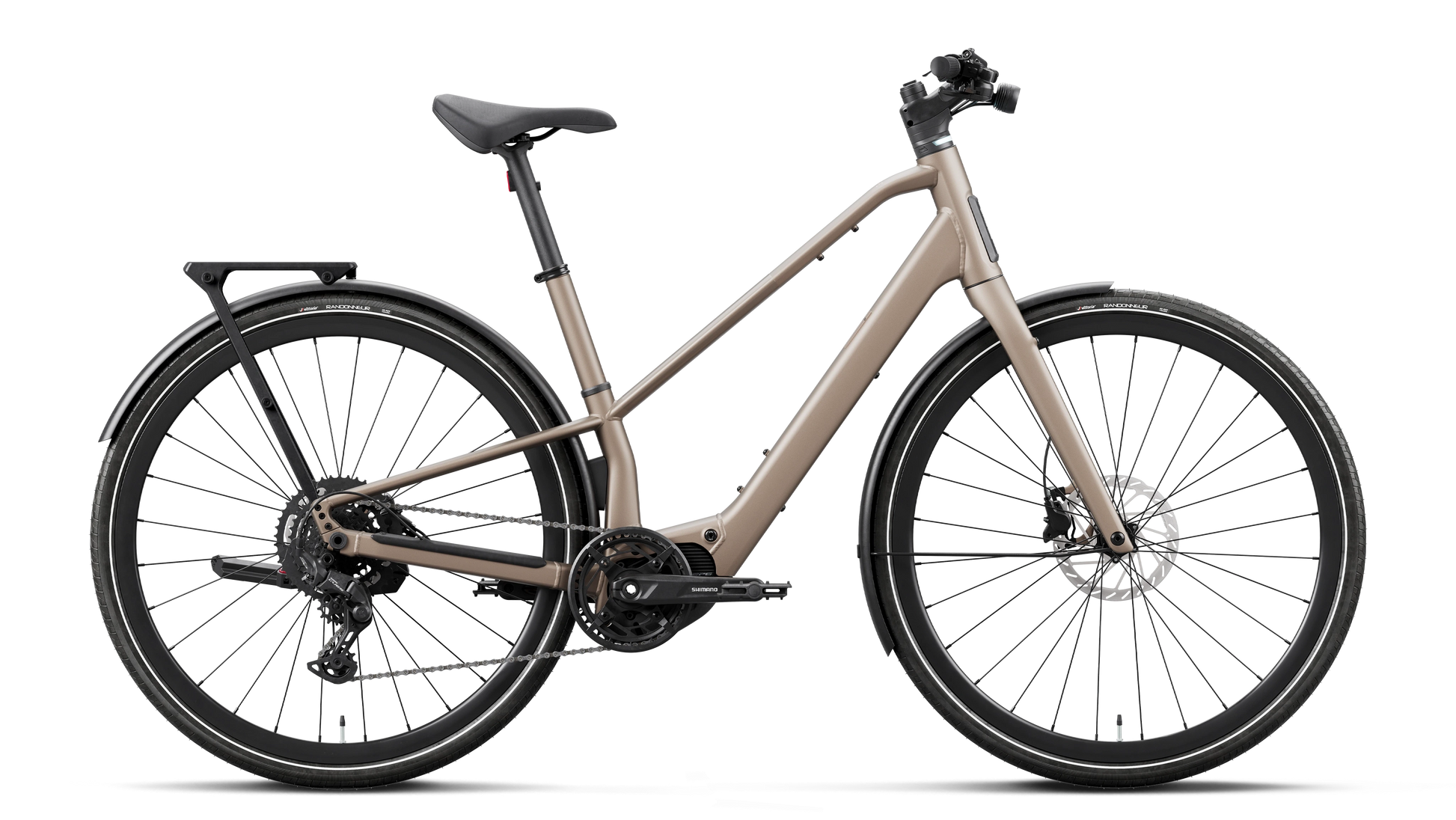

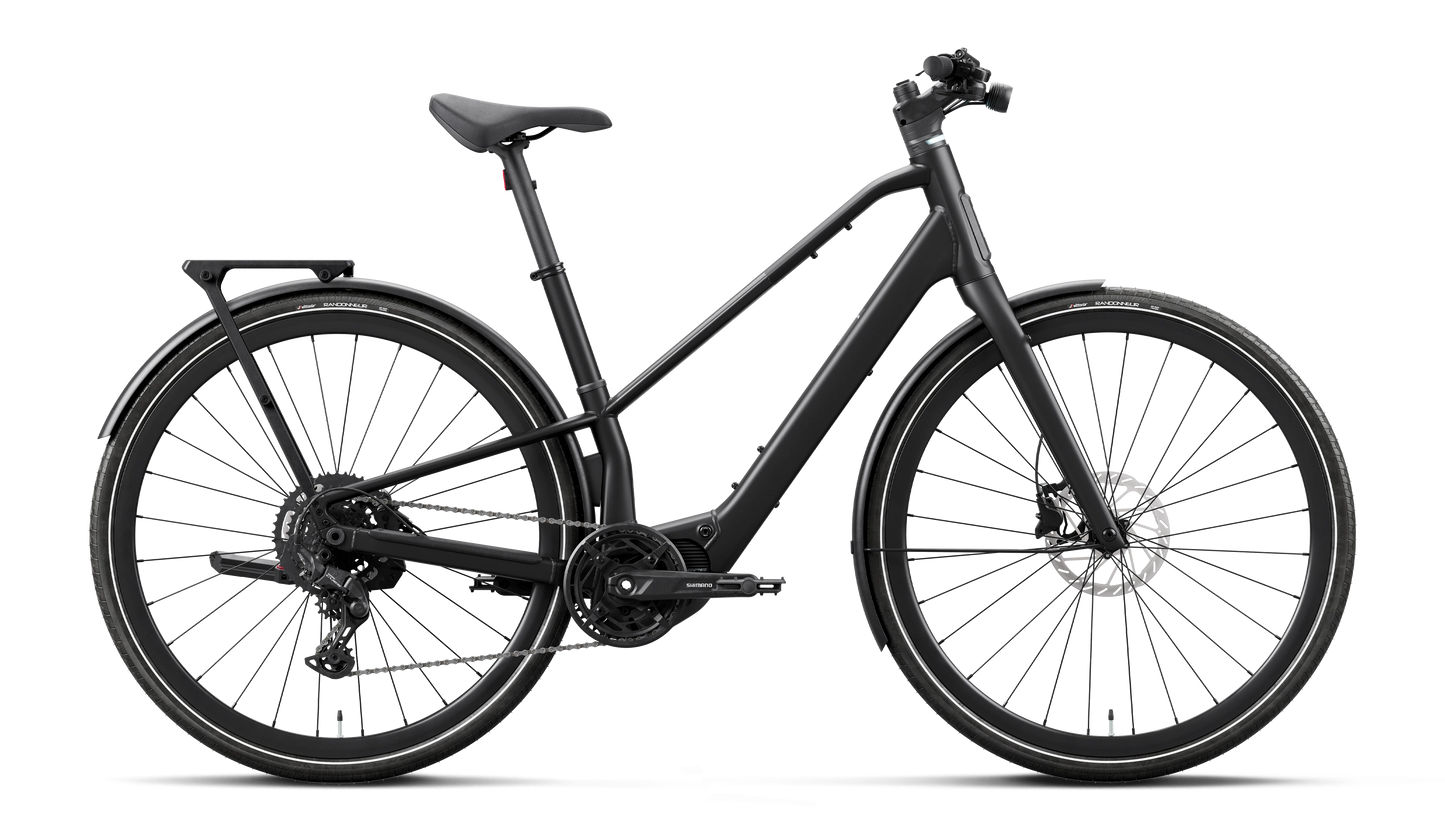

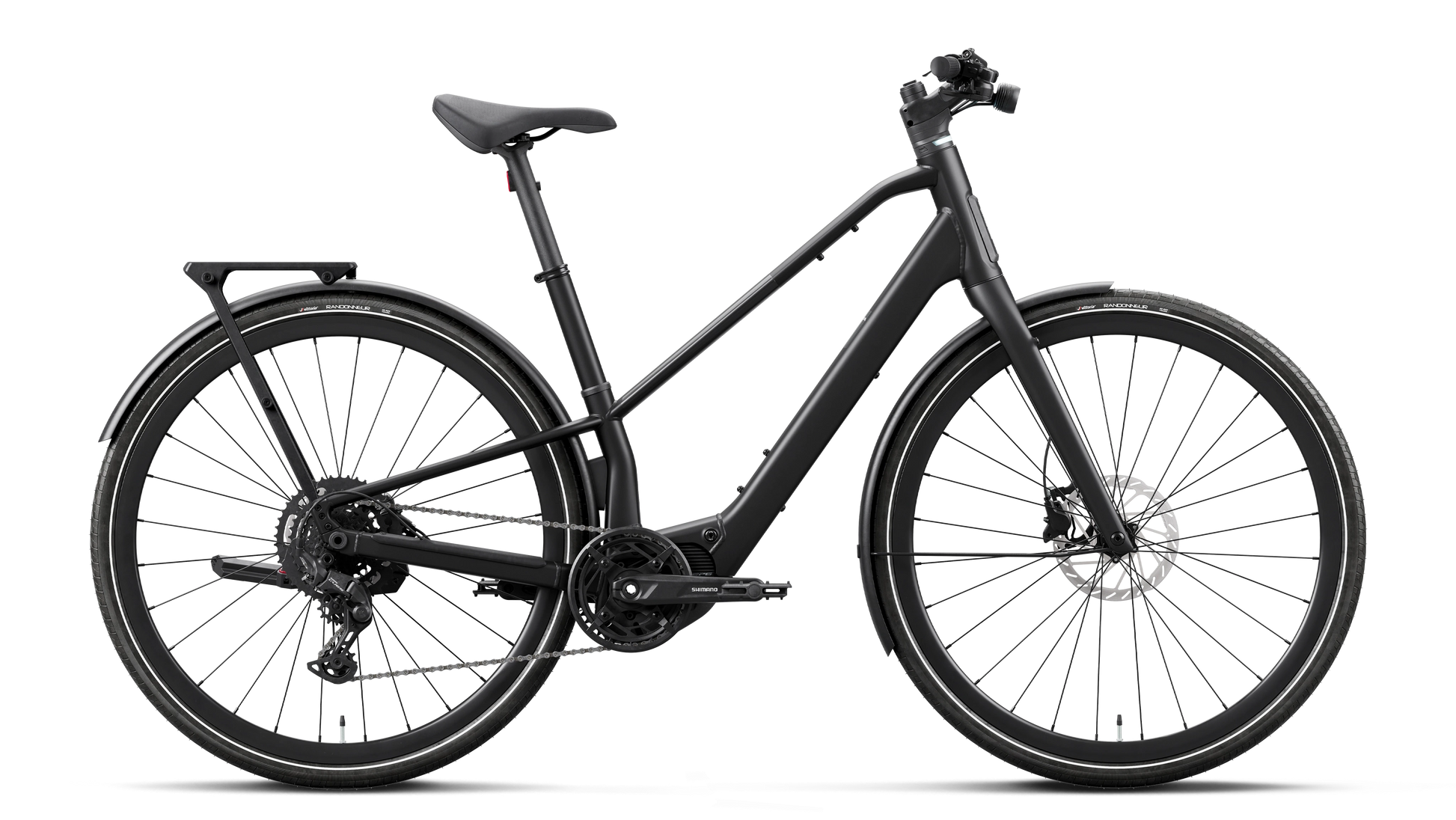

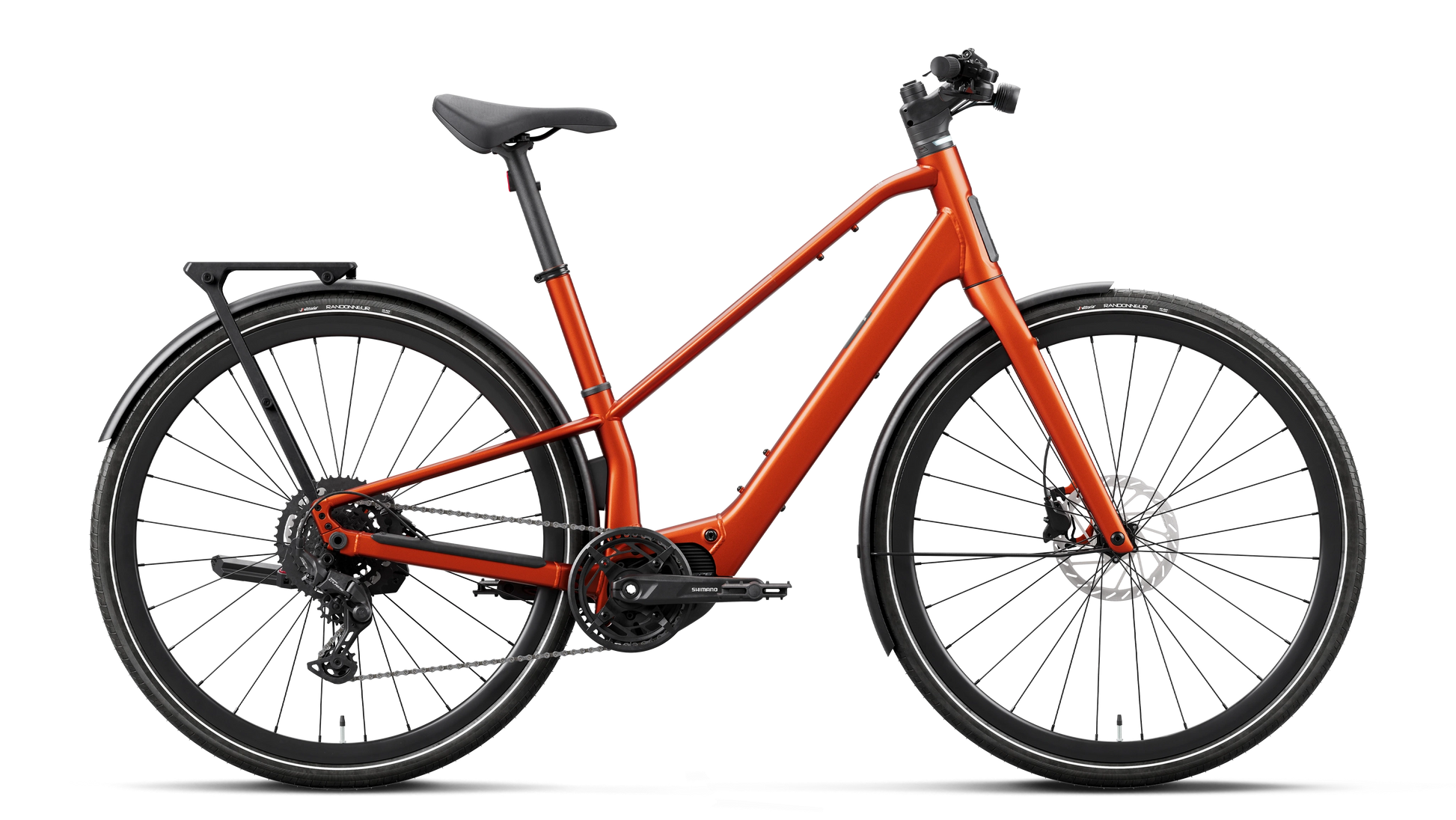

Available in three colorways - Nickel, Mars Red, and Diamond Black - in sizes S-XL.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 420Wh battery
• Class 3 / 28mph pedal-assist e-bike
• Hydroformed aluminum Orbea Carpe frame, full-carbon fork
• Shimano CUES U4000 9-speed drivetrain
• Shimano MT200 hydraulic disc brakes
• Integrated front and rear lighting, reflective tires
• Integrated kickstand, trailer compatible

BUILD KIT:

• Frame: Orbea Carpe Hydroformed Alloy 6061
• Fork: Orbea Carpe full carbon
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 420Wh
• Display: Shimano EN500
• Rear Derailleur: Shimano CUES U4000 GS Shadow
• Shifter: Shimano CUES SL-U4000
• Cassette: SunRace 11-46t, 9-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT200 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 32H
• Tires: Vittoria Randonneur 42-622, reflective
• Seatpost: SP08 alloy, 31.6mm, with integrated light
• Saddle: Selle Royal Vivo Ergo
• Lighting: Integrated front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")
• XL: 187-206 cm (6'2"-6'9")

FREQUENTLY ASKED:

• How fast is the Orbea Carpe 20? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 420Wh battery.
• Chain or belt? The Carpe 20 uses a traditional Shimano CUES 9-speed chain drive for a wide gear range and easy, low-cost servicing.
• How does the Carpe 20 compare to the Carpe 10 and 25? The 10 steps up to a clean electronic Inter-5 Di2 belt drive; the 25 shares the CUES chain drive but rolls on wider Pirelli 45c all-road tires. The 20 is the do-it-all commuter on 42c reflective tires.
• What's new for 2027? The Carpe continues Orbea's proven lightweight aluminum commuter platform, now with the full-power Shimano EP600 motor, integrated 420Wh battery, and integrated lighting.
