NEW 2027 Orbea DIEM 10 20mph Electric Hybrid Bike - Enviolo Automatiq

The 2027 Orbea Diem 10 is Orbea's flagship urban e-bike - a premium city commuter engineered to make every A-to-B a pleasure. Built on Orbea's aluminum Diamond Glide frame with a full-carbon fork and powered by a Shimano EP600 motor with an integrated 630Wh battery, it pairs effortless long range with a refined, near-silent, low-maintenance ride and fully integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, flattening hills and keeping you fresh on every commute. The 630Wh battery is built into the downtube for a clean, balanced, theft-resistant package, with an optional 252Wh range extender for even bigger days. As a Class 1 (20 mph) pedal-assist e-bike, the Diem 10 is street-legal on the widest range of paths and bike lanes.

Automatic, Maintenance-Free Drivetrain

The Diem 10 runs an Enviolo Automatiq continuously variable hub paired with a Gates CDX carbon belt drive - no chain, no shifting, no grease. The hub adjusts itself automatically to hold your chosen pedaling cadence, while the belt runs clean and silent for years with virtually no maintenance.

Designed-In Safety & Comfort

The patented Diamond Glide frame flexes vertically to absorb bumps, while wide Schwalbe Marathon tires and a suspension dropper post smooth out rough streets. Integrated StVZO wraparound lighting keeps you seen day or night, and an integrated kickstand, Spinblock steering limiter, USB-C charging and AirTag-ready mount round out a city bike that's as practical as it is polished.

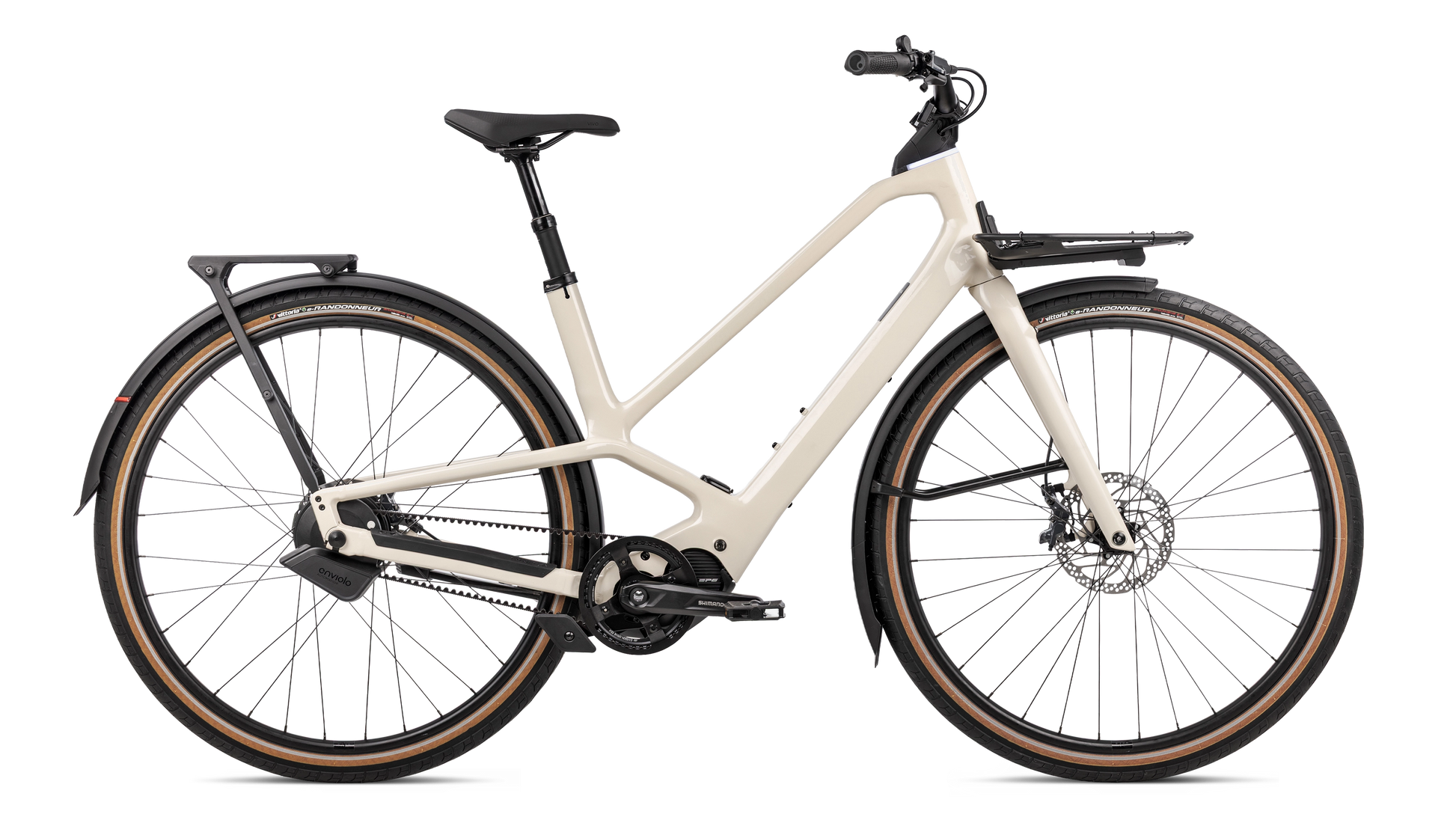

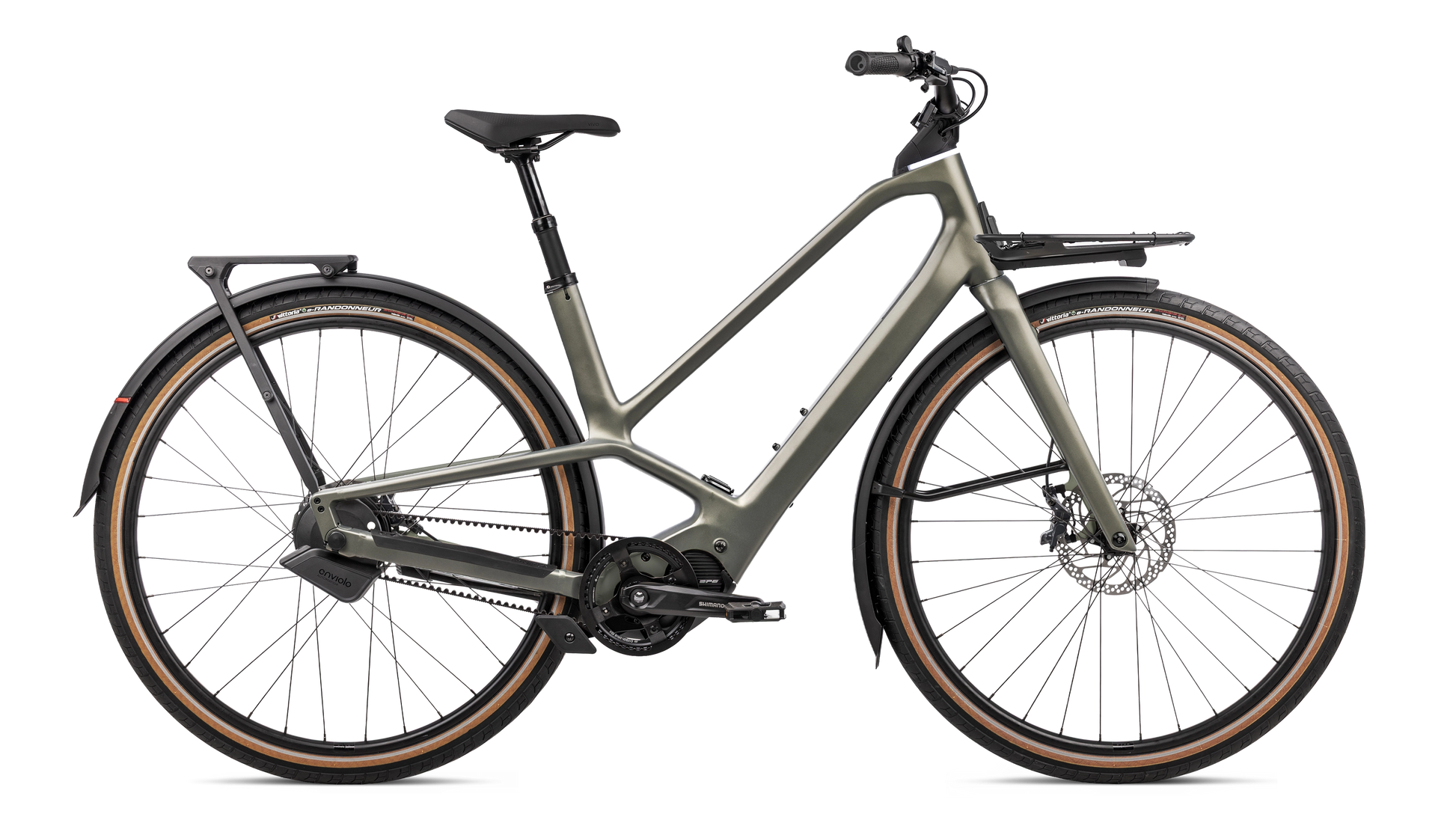

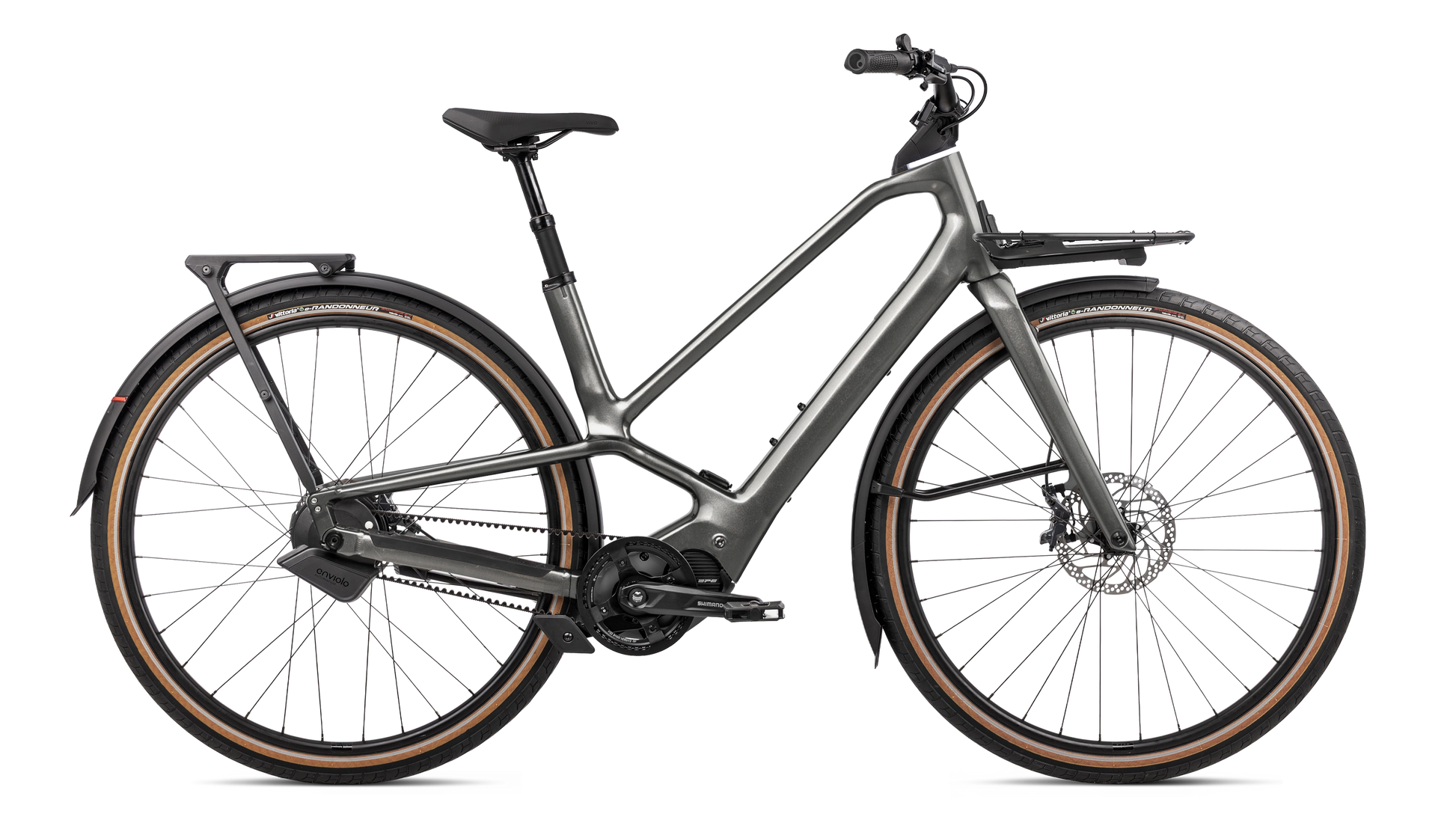

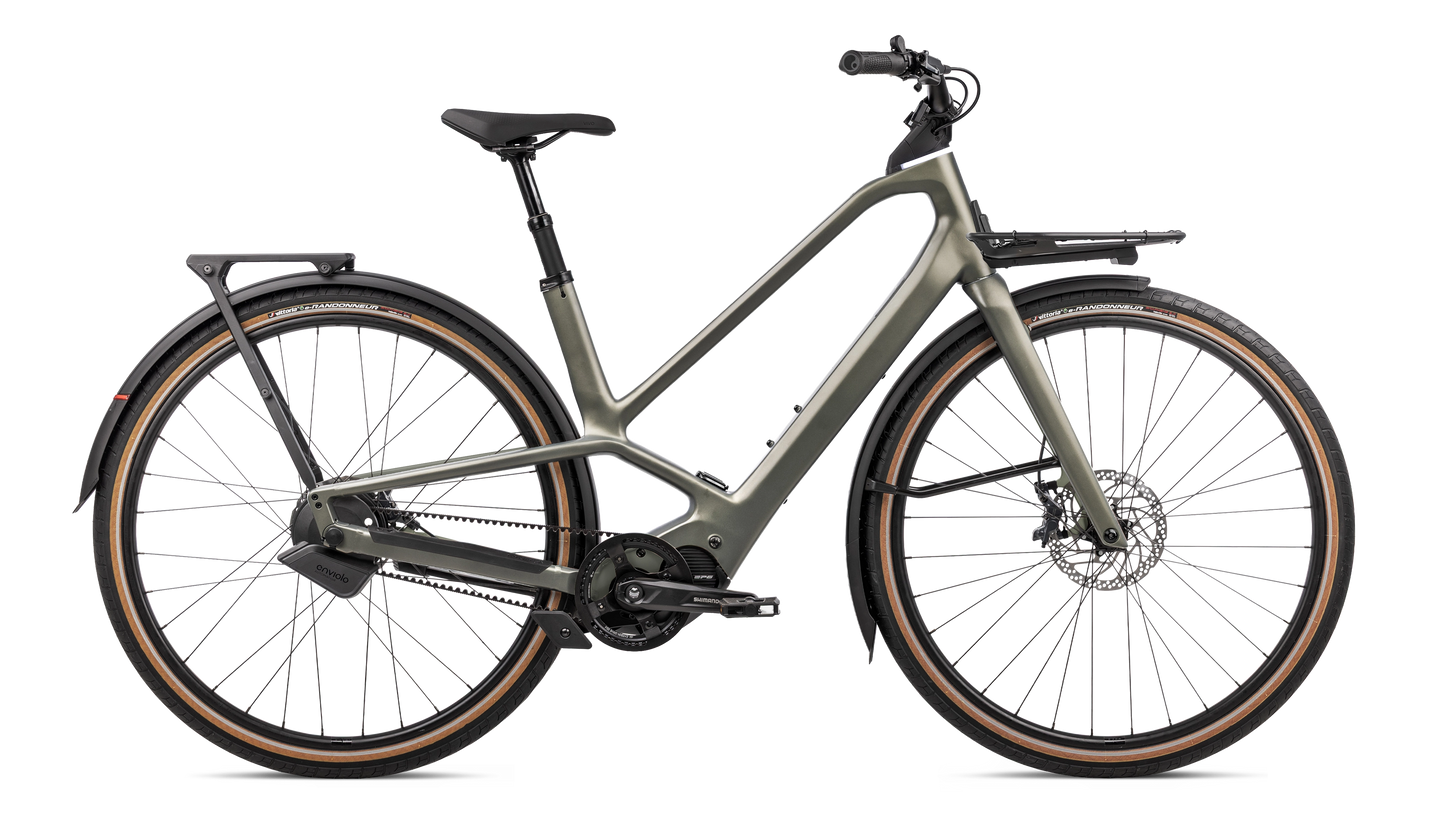

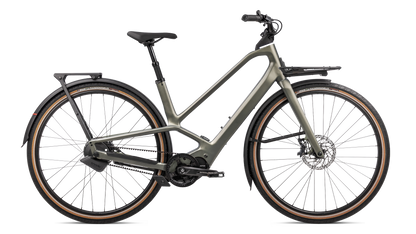

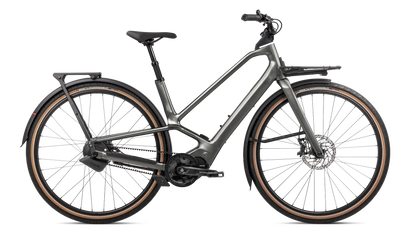

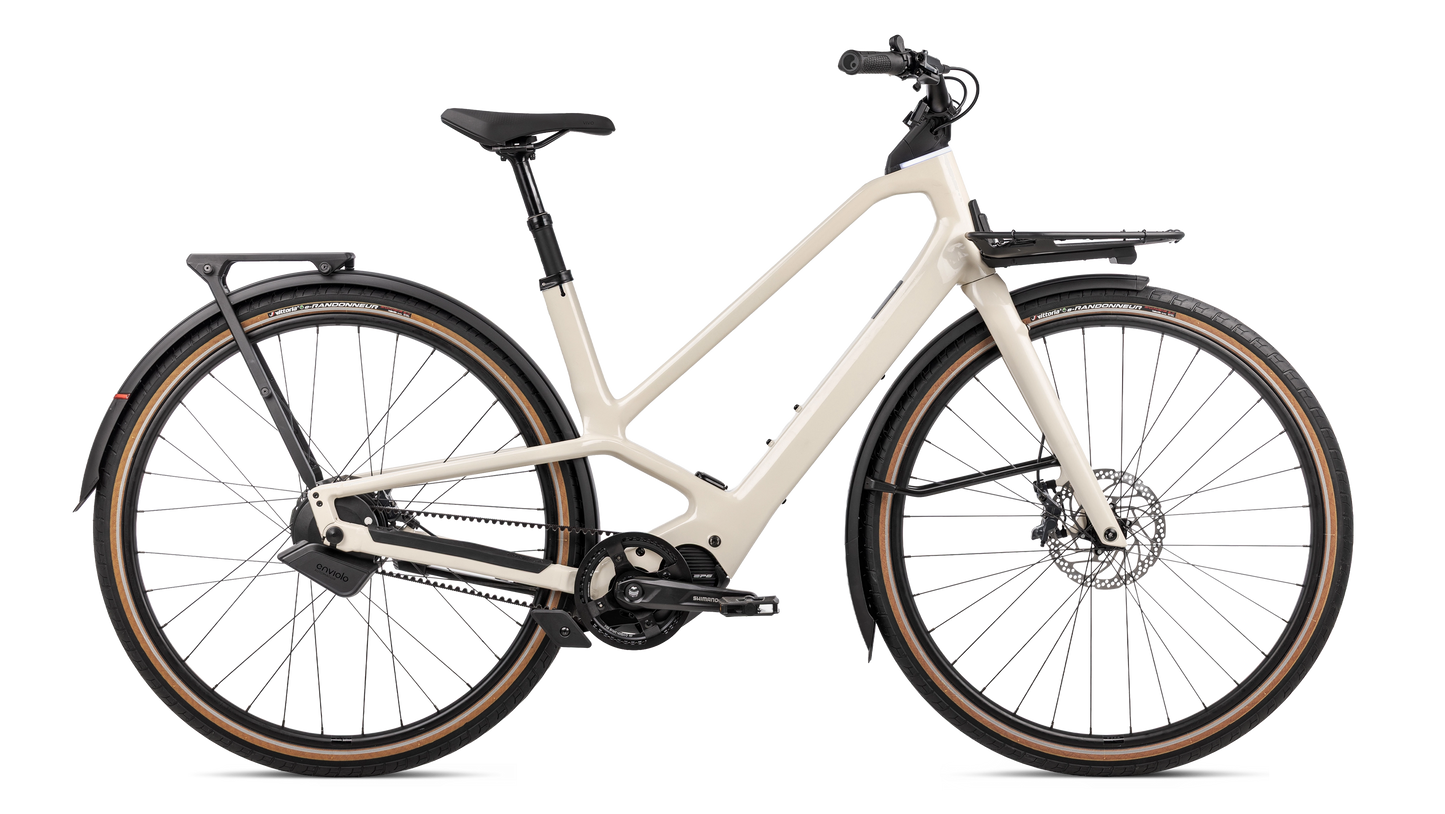

Available in three colorways - Spaceship Green, Ivory White, and Anthracite Glitter - in sizes S-XL.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 630Wh battery
• Class 1 / 20mph pedal-assist e-bike
• Aluminum Orbea Diem Diamond Glide frame, full-carbon fork
• Enviolo Automatiq automatic CVT hub with Gates CDX carbon belt drive
• Shimano MT420 hydraulic disc brakes
• Integrated StVZO wraparound lighting, front and rear
• Suspension dropper post, integrated kickstand, USB-C charging, AirTag-ready

BUILD KIT:

• Frame: Orbea Diem Aluminum 6061, Diamond Glide
• Fork: Orbea Diem full carbon
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 630Wh (optional 252Wh range extender)
• Display/Remote: Shimano EN600
• Drivetrain: Enviolo Automatiq automatic CVT hub
• Belt: Gates CDX carbon belt drive
• Brakes: Shimano MT420 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 32H
• Tires: Schwalbe Marathon 50-622, reflective
• Seatpost: Suspension Dropper DP01, 31.6mm (Shimano SL-MT500 remote)
• Handlebar: Orbea Urban, integrated light, 720mm
• Lighting: Integrated StVZO wraparound front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")
• XL: 187-204 cm (6'2"-6'8")

FREQUENTLY ASKED:

• How fast is the Orbea Diem 10? This is the Class 1 version with pedal assist up to 20 mph (a Class 3 / 28 mph version is also offered).
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 630Wh battery, plus an optional 252Wh range extender.
• Does it need much maintenance? Very little - the Enviolo Automatiq hub and Gates CDX belt are sealed, grease-free, and automatic, with no chain or derailleur to adjust.
• How does the Diem 10 compare to the Diem 20? The 10 is the flagship: it upgrades to the automatic Enviolo Automatiq CVT hub (vs. the 20's Shimano Inter-5 Di2), MT420 brakes, and a suspension dropper post.
• What's new for 2027? The Diem carries forward Orbea's award-winning Diamond Glide urban platform with integrated StVZO lighting, internal battery, and clean cockpit, now offered in Class 1 (20 mph) and Class 3 (28 mph) versions.
