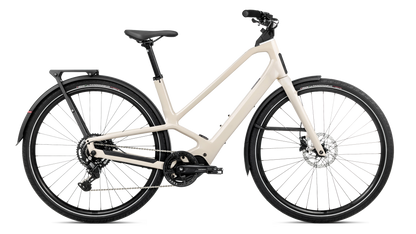

NEW 2027 Orbea DIEM 30 20mph Electric Hybrid Bike - Shimano CUES U4000

The 2027 Orbea Diem 30 is the accessible entry into Orbea's award-winning urban e-bike family - a stylish city commuter that makes every A-to-B a pleasure. Built on Orbea's aluminum Diamond Glide frame with a full-carbon fork and powered by a Shimano EP600 motor with an integrated 540Wh battery, it pairs effortless assistance with a smooth, refined ride and fully integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, flattening hills and keeping you fresh on every commute. The 540Wh battery is built into the downtube for a clean, balanced, theft-resistant package, with an optional 252Wh range extender for even bigger days. As a Class 1 (20 mph) pedal-assist e-bike, the Diem 30 is street-legal on the widest range of paths and bike lanes.

Proven Shimano Gearing

The Diem 30 runs a reliable Shimano CUES U4000 9-speed drivetrain with a wide-range cassette and a tough KMC eGlide chain - simple, durable, and easy to service, with the gear range to handle hills and headwinds.

Designed-In Safety & Comfort

The patented Diamond Glide frame flexes vertically to absorb bumps, while wide Schwalbe Marathon tires smooth out rough streets. Integrated StVZO wraparound lighting keeps you seen day or night, and an integrated kickstand, Spinblock steering limiter, USB-C charging and AirTag-ready mount round out a city bike that's as practical as it is polished.

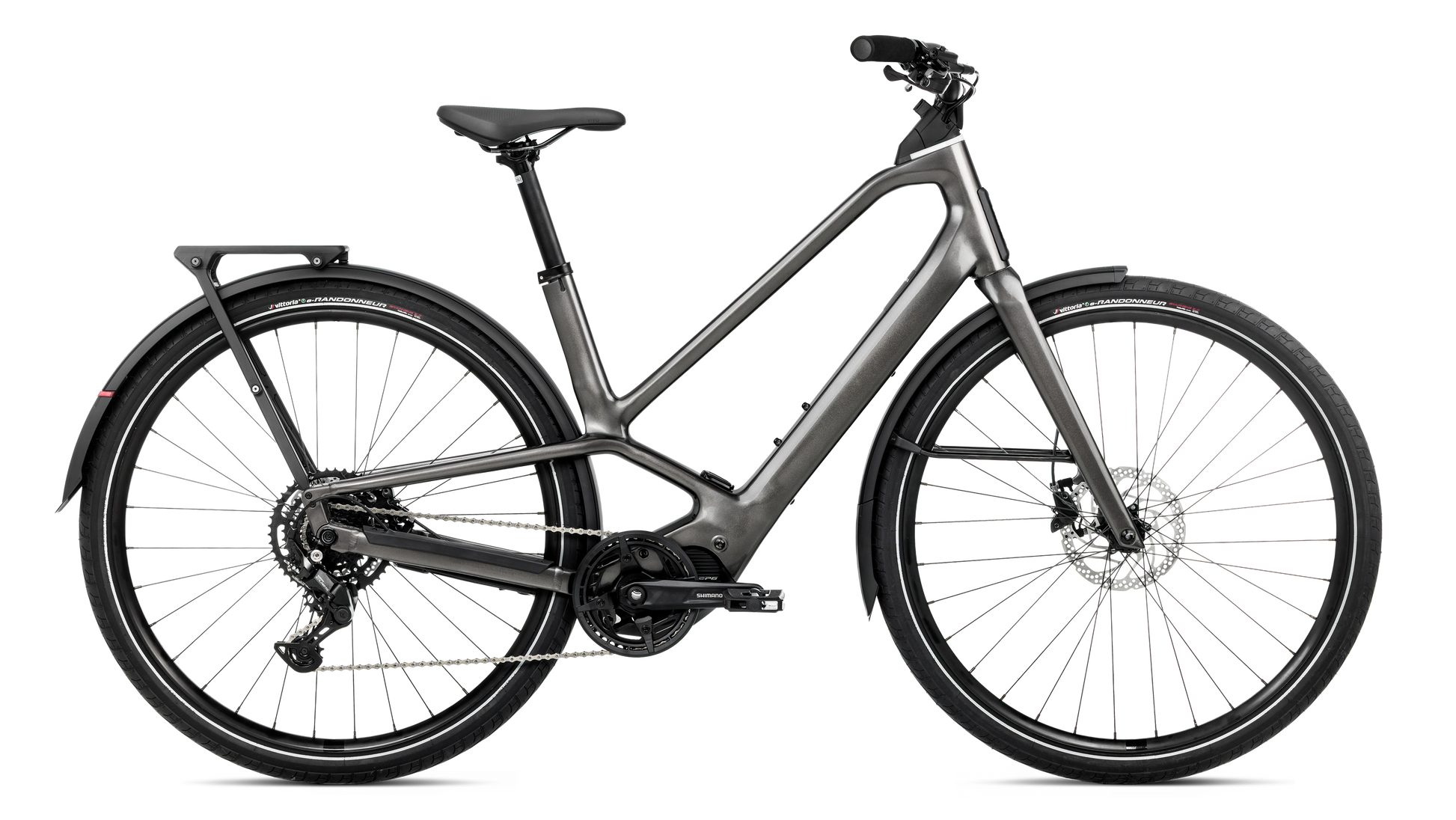

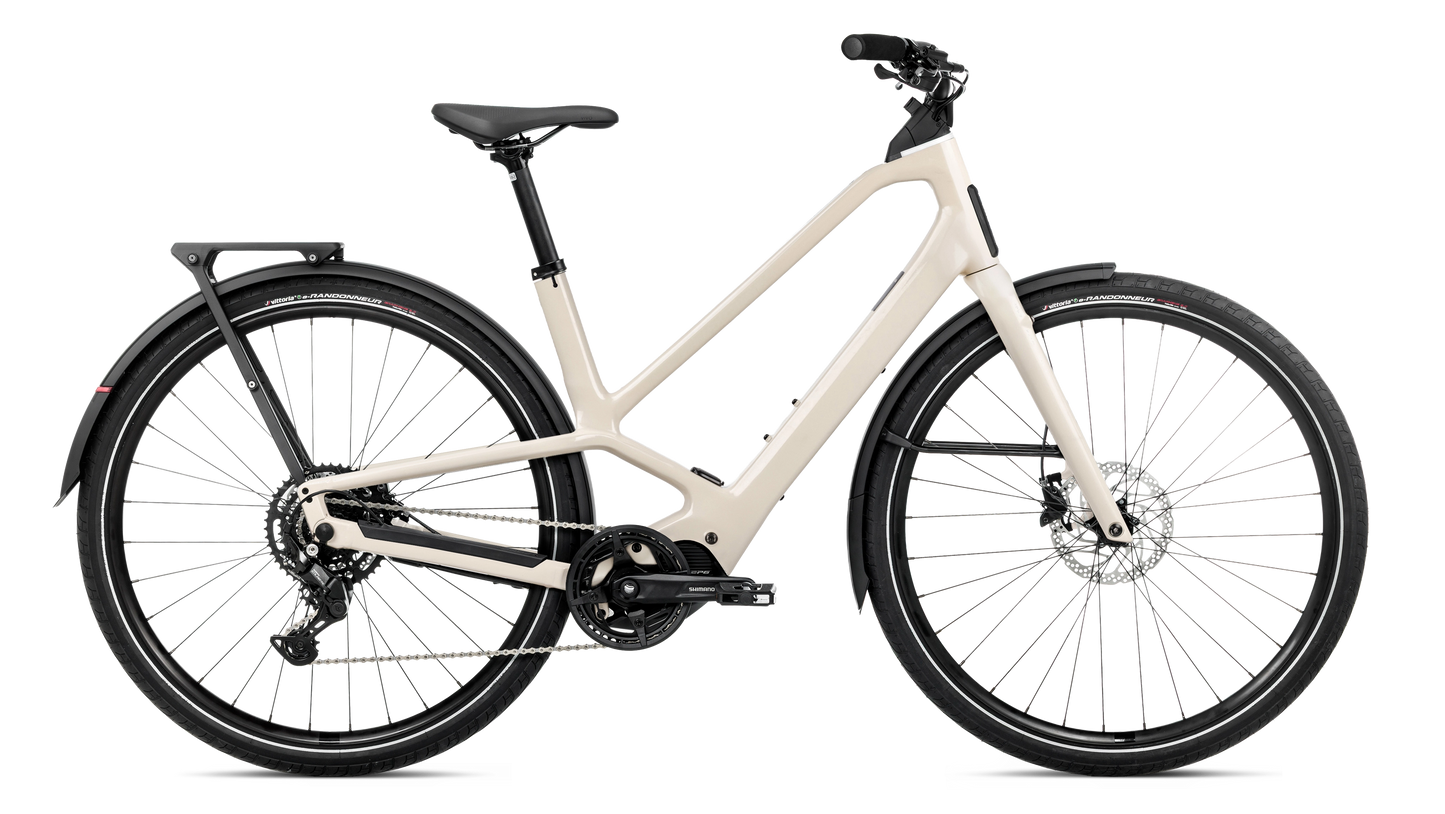

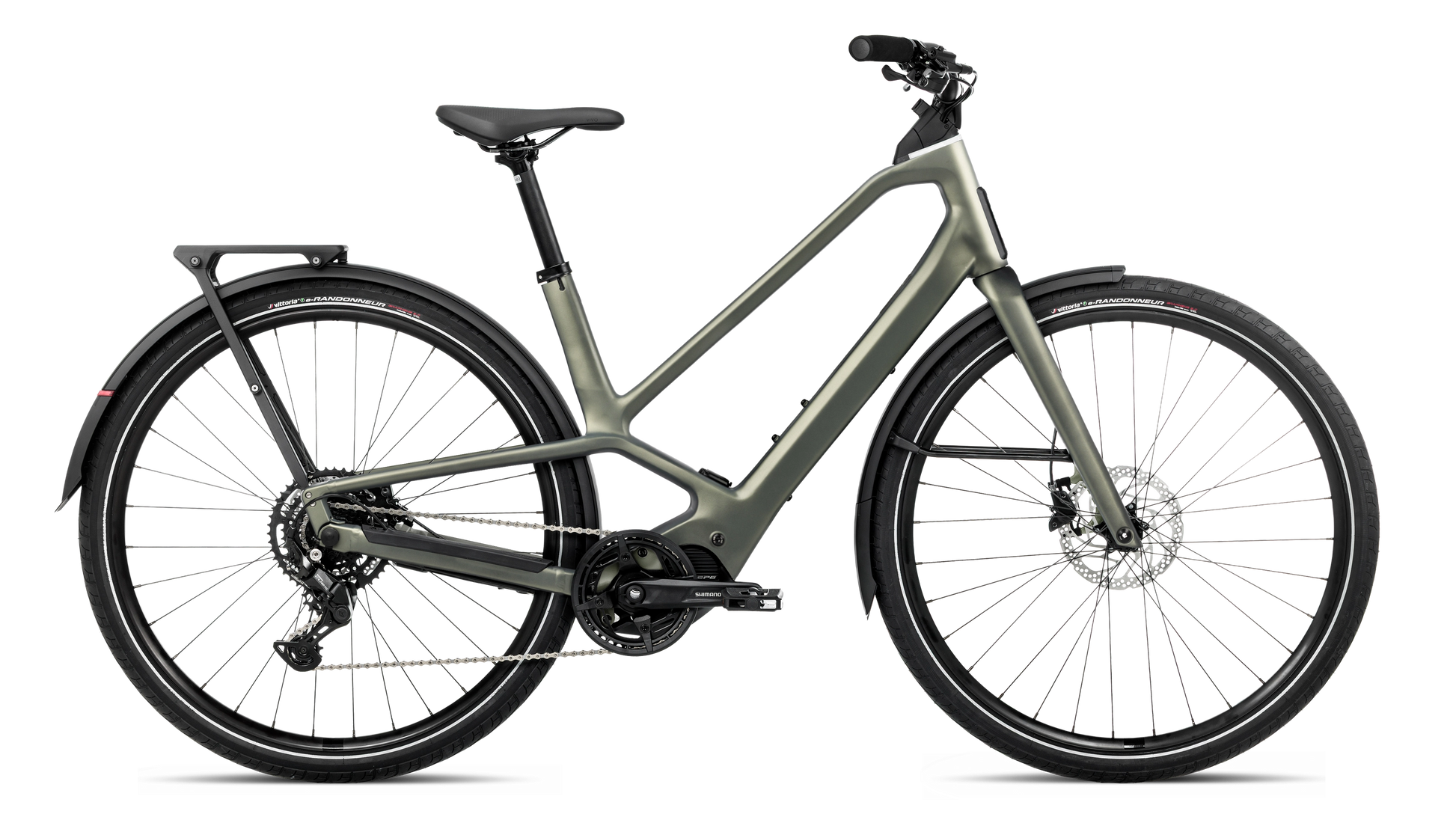

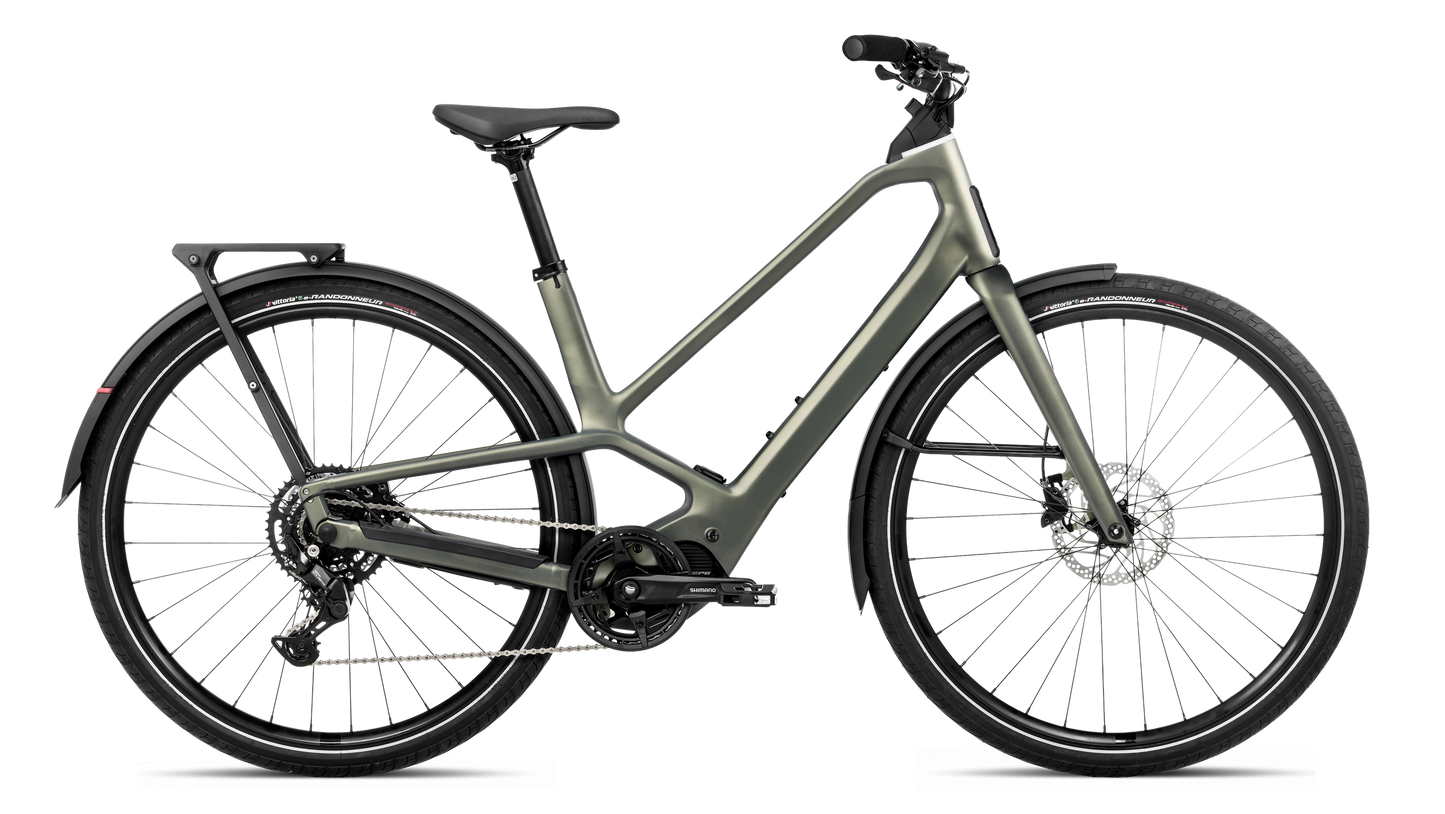

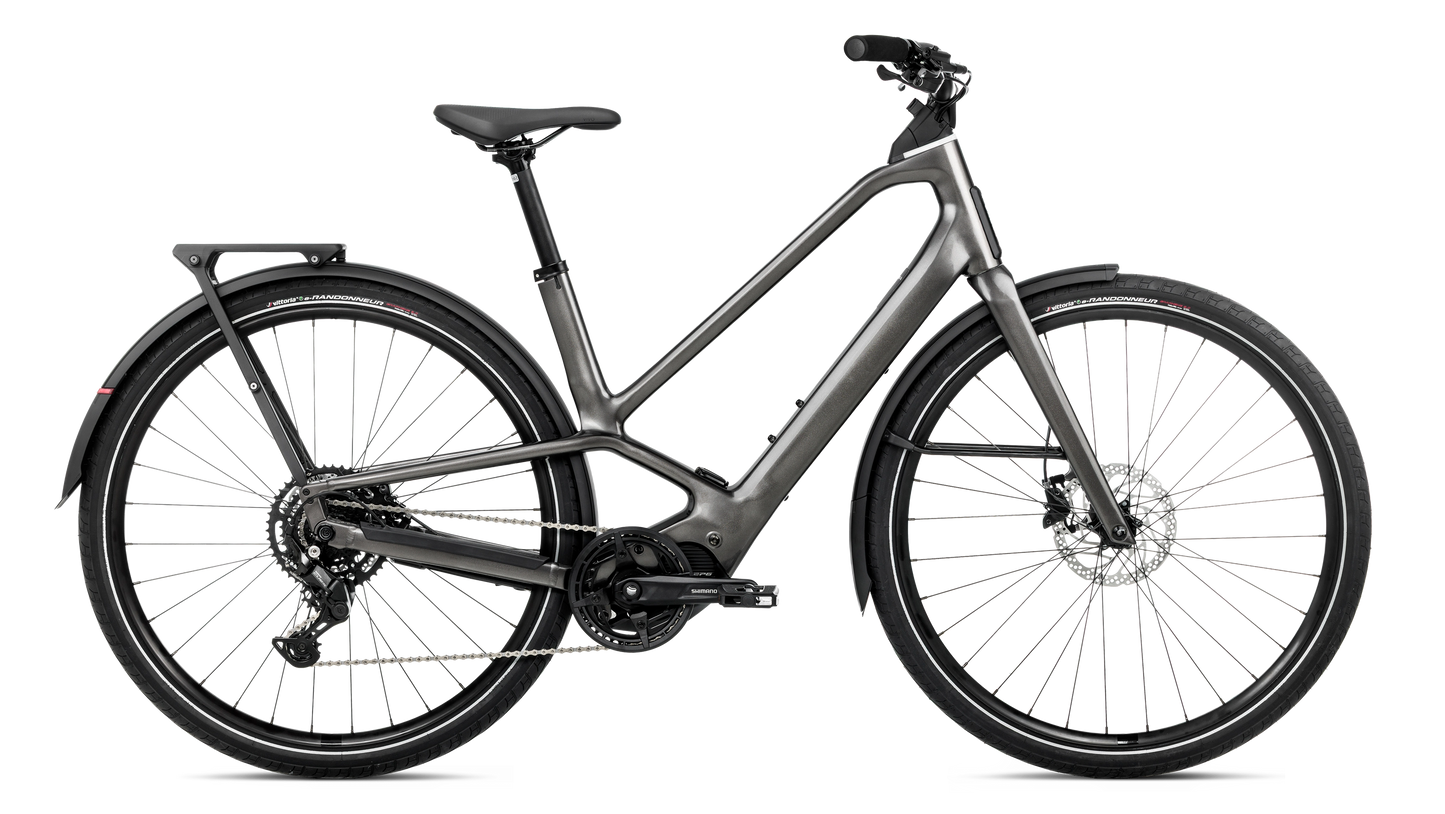

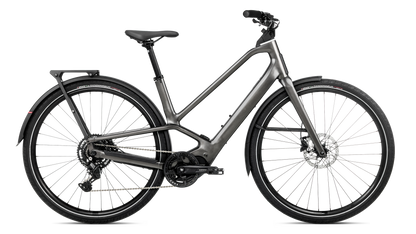

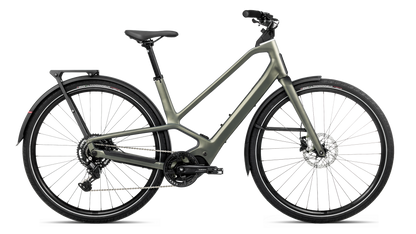

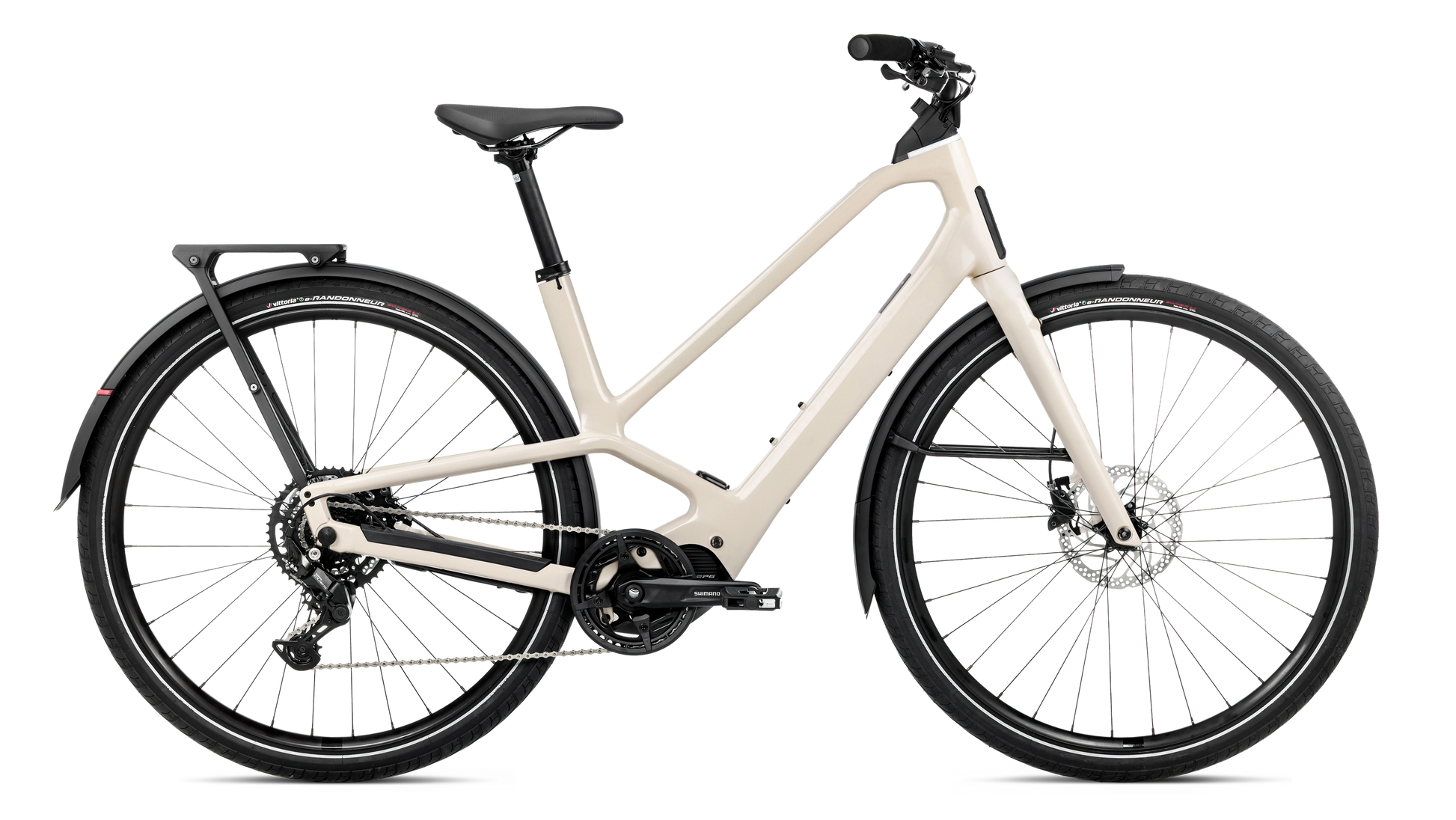

Available in three colorways - Spaceship Green, Ivory White, and Anthracite Glitter - in sizes S-XL.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 540Wh battery
• Class 1 / 20mph pedal-assist e-bike
• Aluminum Orbea Diem Diamond Glide frame, full-carbon fork
• Shimano CUES U4000 9-speed drivetrain
• Shimano MT200 hydraulic disc brakes
• Integrated StVZO wraparound lighting, front and rear
• Integrated kickstand, USB-C charging, AirTag-ready

BUILD KIT:

• Frame: Orbea Diem Aluminum 6061, Diamond Glide
• Fork: Orbea Diem full carbon
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 540Wh (optional 252Wh range extender)
• Display: Shimano EN500
• Rear Derailleur: Shimano CUES U4000 GS Shadow
• Shifter: Shimano CUES SL-U4000
• Cassette: Shimano CS-LG300 11-46t, 9-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT200 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 32H
• Tires: Schwalbe Marathon 50-622, reflective
• Seatpost: Alloy, 31.6mm
• Handlebar: Orbea Urban, integrated light, 720mm
• Lighting: Integrated StVZO wraparound front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")
• XL: 187-204 cm (6'2"-6'8")

FREQUENTLY ASKED:

• How fast is the Orbea Diem 30? This is the Class 1 version with pedal assist up to 20 mph (a Class 3 / 28 mph version is also offered).
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 540Wh battery, plus an optional 252Wh range extender.
• Chain or belt? The Diem 30 uses a traditional Shimano CUES 9-speed chain drive for a wide gear range and easy, low-cost servicing.
• How does the Diem 30 compare to the Diem 20? The 20 steps up to a clean, low-maintenance electronic Shimano Inter-5 Di2 belt drive and a larger 630Wh battery; the 30 is the value-focused chain-drive model with a 540Wh battery.
• What's new for 2027? The Diem carries forward Orbea's award-winning Diamond Glide urban platform with integrated StVZO lighting, internal battery, and clean cockpit, now offered in Class 1 (20 mph) and Class 3 (28 mph) versions.
