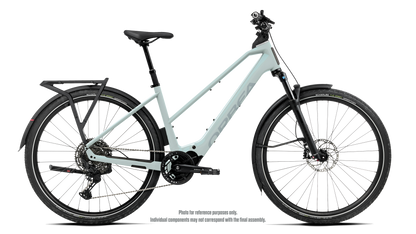

NEW 2027 Orbea KEMEN ADV 10 MID 28mph Electric Hybrid Bike - Shimano CUES Di2 U8050

The 2027 Orbea Kemen ADV 10 MID is a full-power all-terrain electric SUV bike with a low step-through frame for easy, confident on-and-off - comfortable on the daily commute and capable when the pavement ends. Built on Orbea's aluminum Kemen Mid frame with a 100mm Fox suspension fork and powered by a Shimano EP600 motor with an integrated 630Wh battery, it pairs effortless assistance with adventure-ready capability and fully integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or haul a loaded bike with ease. The integrated 630Wh battery uses the latest cell technology to pack big range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen ADV 10 MID keeps pace anywhere.

Trail-Ready Capability

This is the top-tier ADV build: a 100mm Fox 34 Float air fork smooths out rough trails, grippy 29-inch Schwalbe Johnny Watts tires roll fast and hook up off-road, and a dropper seatpost lets you drop the saddle for steep or technical sections. An electronic Shimano CUES Di2 U8050 11-speed drivetrain shifts crisply with a wide 11-50t range.

Step-Through Convenience, Built to Carry

The low Mid-bar frame makes mounting, dismounting and stop-and-go riding effortless. Orbea's patented four-position cockpit dials in the perfect fit, while a fully integrated StVZO lighting system, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen ADV ready for cargo, kids, and everyday duty.

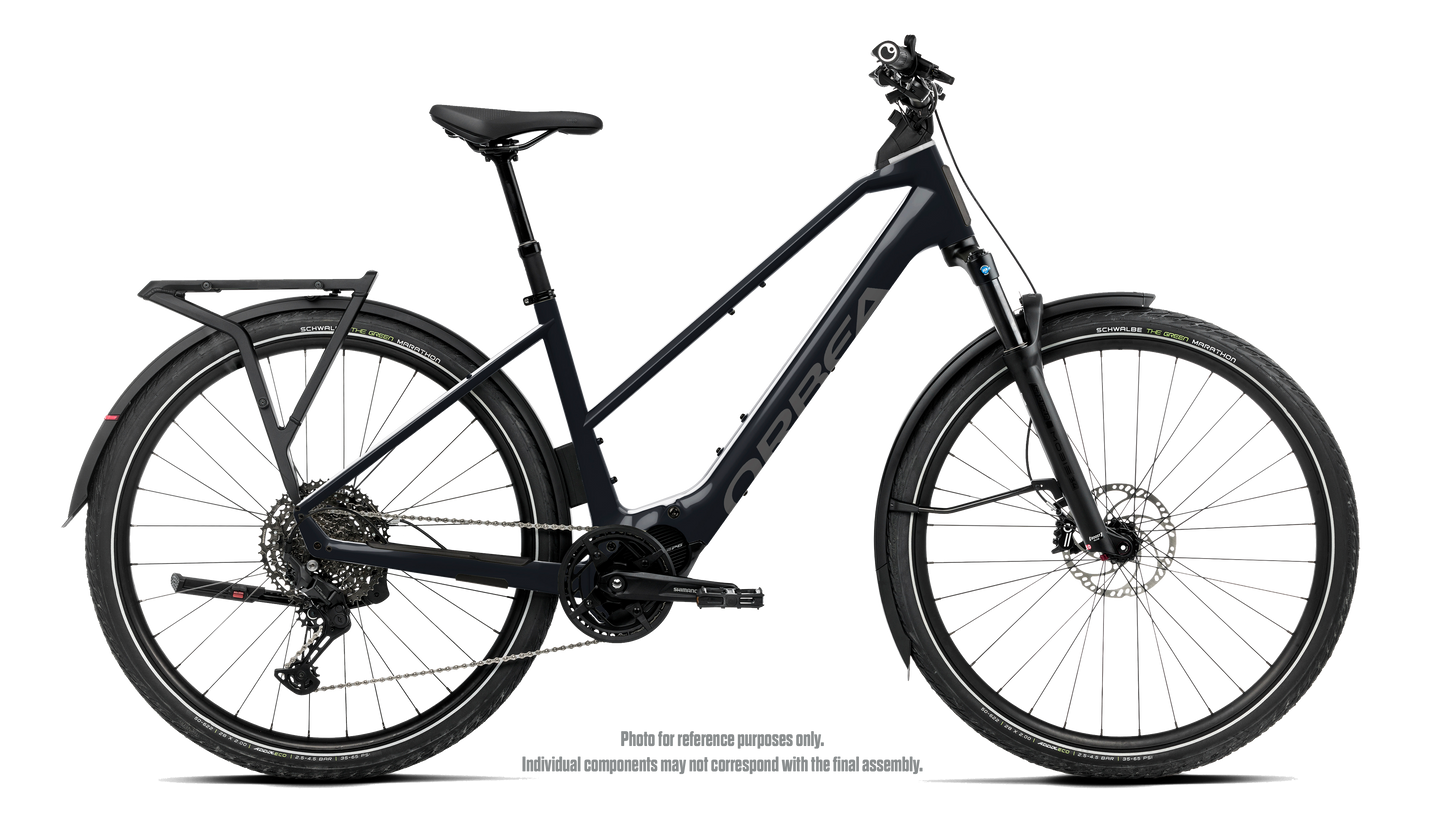

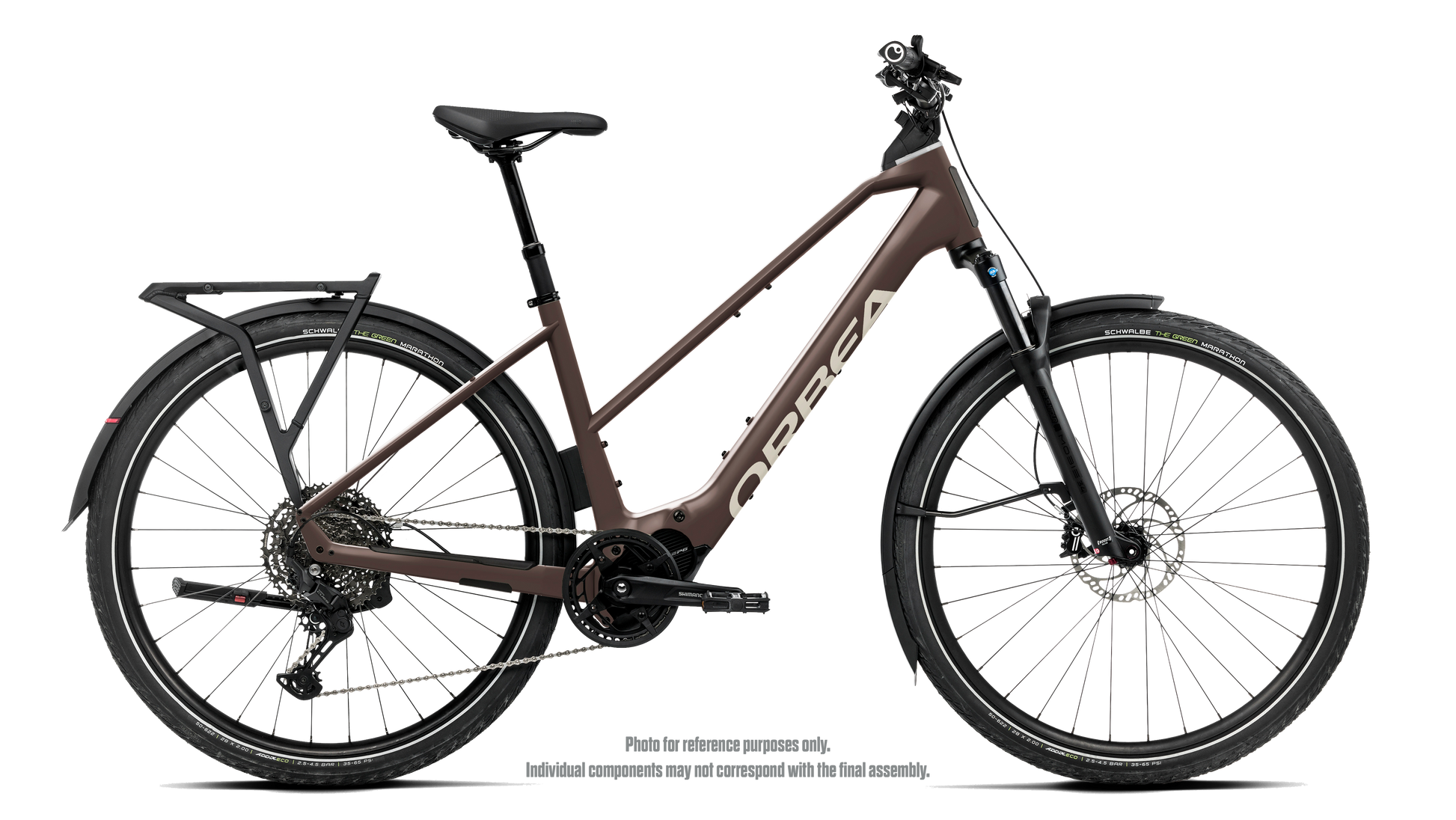

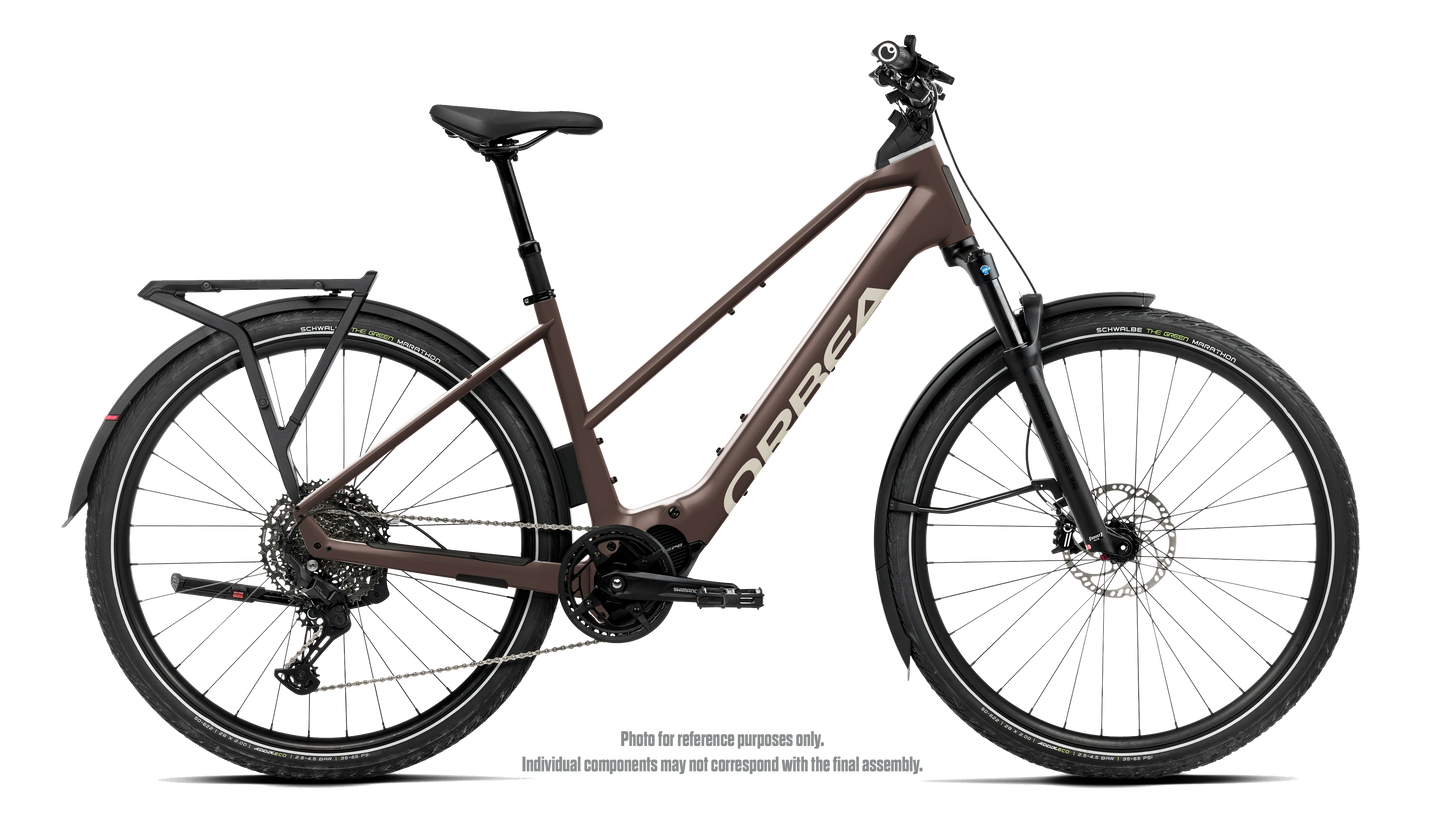

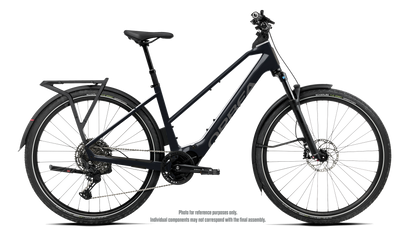

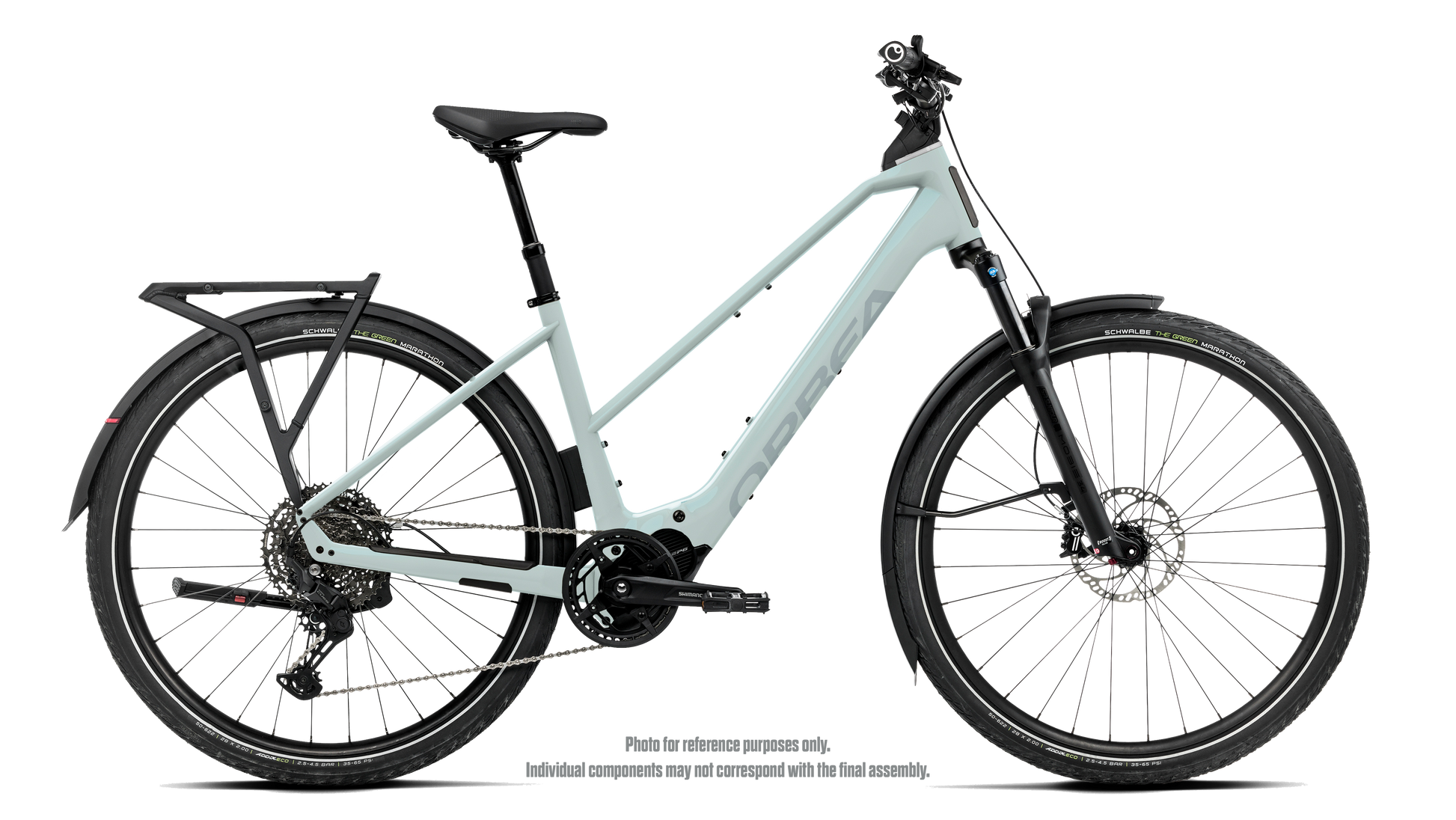

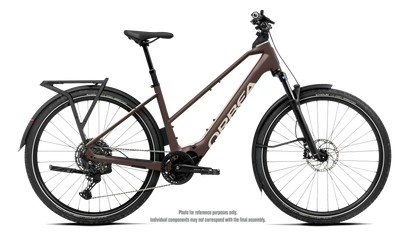

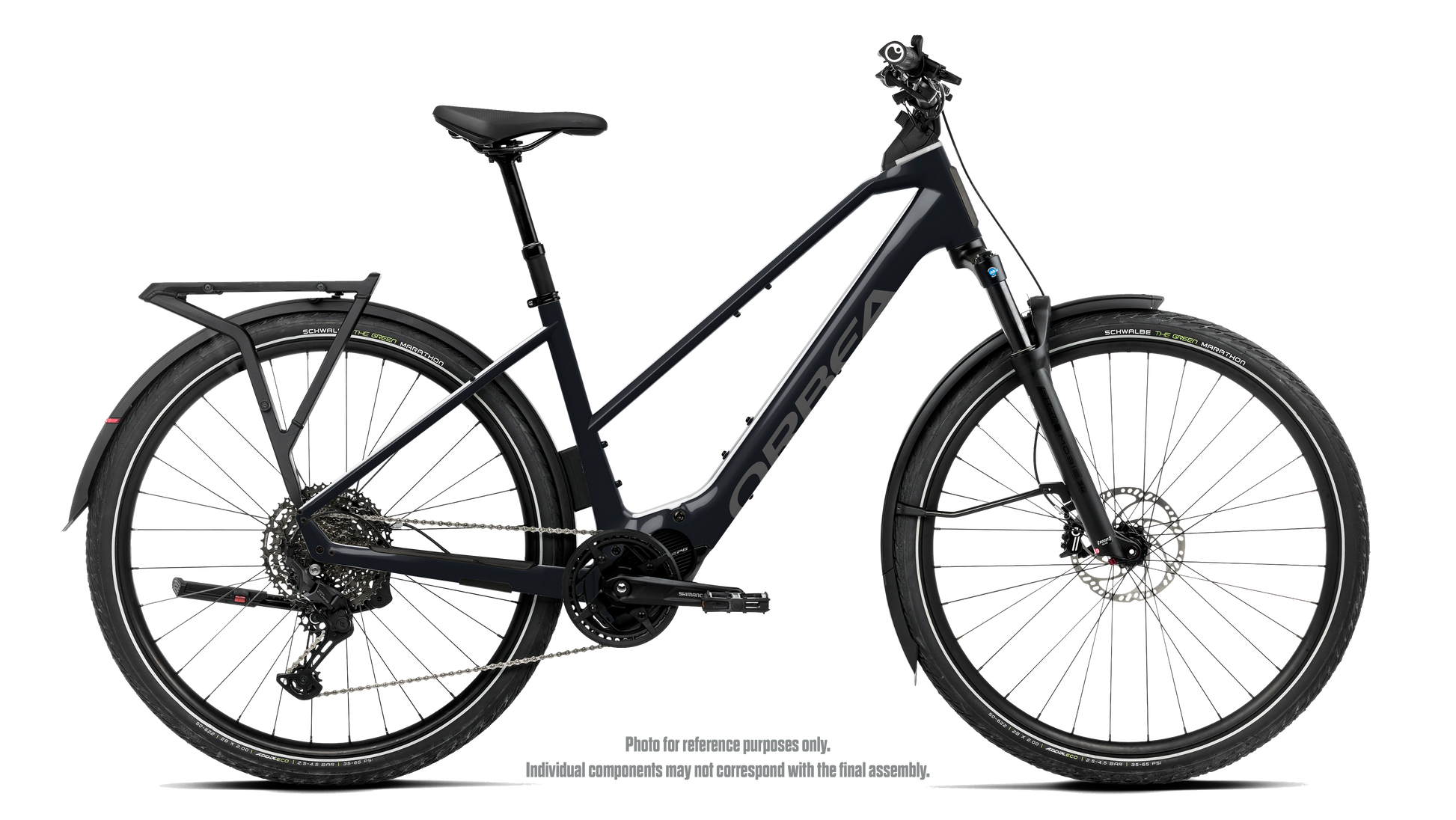

Available in three colorways - Frozen Concrete / Blue Stone, Metallic Rust / Ivory White, and Fuel Black / Titan Grey - in sizes S-L.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 630Wh battery (+ optional 252Wh range extender)
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Kemen Mid (step-through) frame, 29-inch wheels, belt-drive compatible
• Fox 34 Float AWL 100mm suspension fork
• Shimano CUES Di2 U8050 electronic 11-speed drivetrain (11-50t)
• Shimano MT520 hydraulic disc brakes, dropper seatpost
• Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible

BUILD KIT:

• Frame: Orbea Kemen Mid Bar (step-through), Hydroformed Alloy 6061
• Fork: Fox 34 Float AWL 100mm
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 630Wh (optional 252Wh range extender)
• Display: Shimano EN600
• Rear Derailleur: Shimano CUES Di2 U8050 11-Speed SGS
• Shifter: Shimano CUES Di2
• Cassette: Shimano CS-LG400 11-50t, 11-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT520 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 29-inch, 32H
• Tires: Schwalbe Johnny Watts LR 60-622, reflective
• Seatpost: Dropper (Shimano SL-MT500 remote)
• Saddle: Selle Royal Vivo Ergo
• Lighting: Integrated StVZO front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

FREQUENTLY ASKED:

• How fast is the Orbea Kemen ADV 10 MID? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What is the MID frame? A low step-through version of the Kemen frame for easy on-and-off and confident stop-and-go riding, with the same components as the standard ADV 10.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 630Wh battery, plus an optional 252Wh range extender.
• How does the ADV 10 MID compare to the ADV 20 MID? The 10 upgrades to a Fox 34 air fork, an electronic CUES Di2 drivetrain, and MT520 brakes over the 20's SR Suntour fork and mechanical CUES U6000.
• What's new for 2027? The Kemen ADV is Orbea's all-terrain urban platform with the full-power Shimano EP600 motor, 630Wh battery, patented four-position cockpit, and integrated lighting.
