NEW 2027 Orbea KEMEN ADV 20 MID 28mph Electric Hybrid Bike - Shimano CUES U6000

The 2027 Orbea Kemen ADV 20 MID is a full-power all-terrain electric SUV bike with a low step-through frame for easy, confident on-and-off - comfortable on the daily commute and capable when the pavement ends. Built on Orbea's aluminum Kemen Mid frame with a 100mm SR Suntour air suspension fork and powered by a Shimano EP600 motor with an integrated 630Wh battery, it pairs effortless assistance with adventure-ready capability and fully integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or haul a loaded bike with ease. The integrated 630Wh battery uses the latest cell technology to pack big range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen ADV 20 MID keeps pace anywhere.

Trail-Ready Capability

A 100mm SR Suntour XCR34 air fork smooths out rough trails, while grippy 29-inch Schwalbe Johnny Watts tires roll fast and hook up off-road. A reliable Shimano CUES U6000 11-speed drivetrain delivers a wide 11-50t range to handle steep climbs and long miles alike.

Step-Through Convenience, Built to Carry

The low Mid-bar frame makes mounting, dismounting and stop-and-go riding effortless. Orbea's patented four-position cockpit dials in the perfect fit, while a fully integrated StVZO lighting system, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen ADV ready for cargo, kids, and everyday duty.

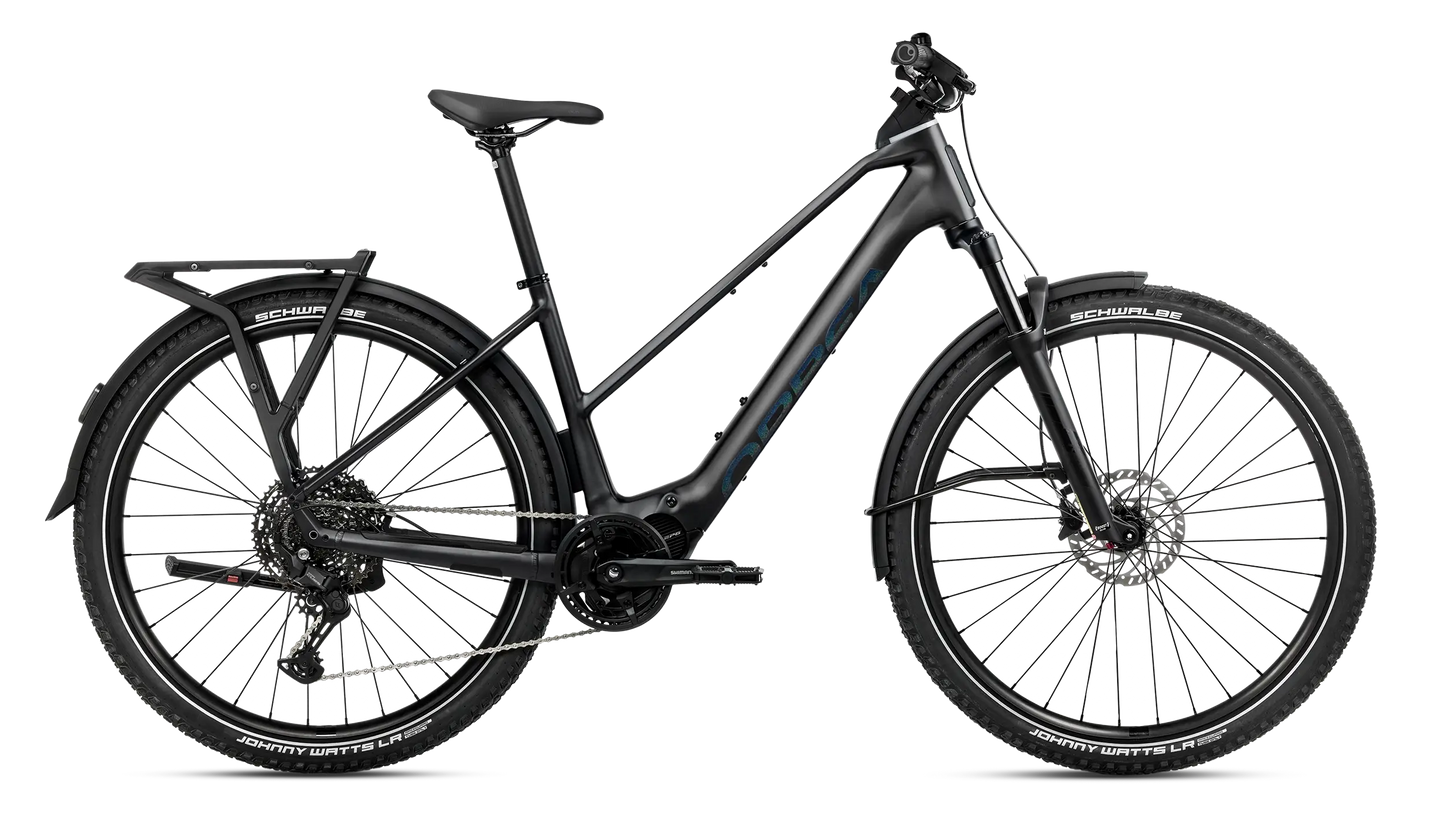

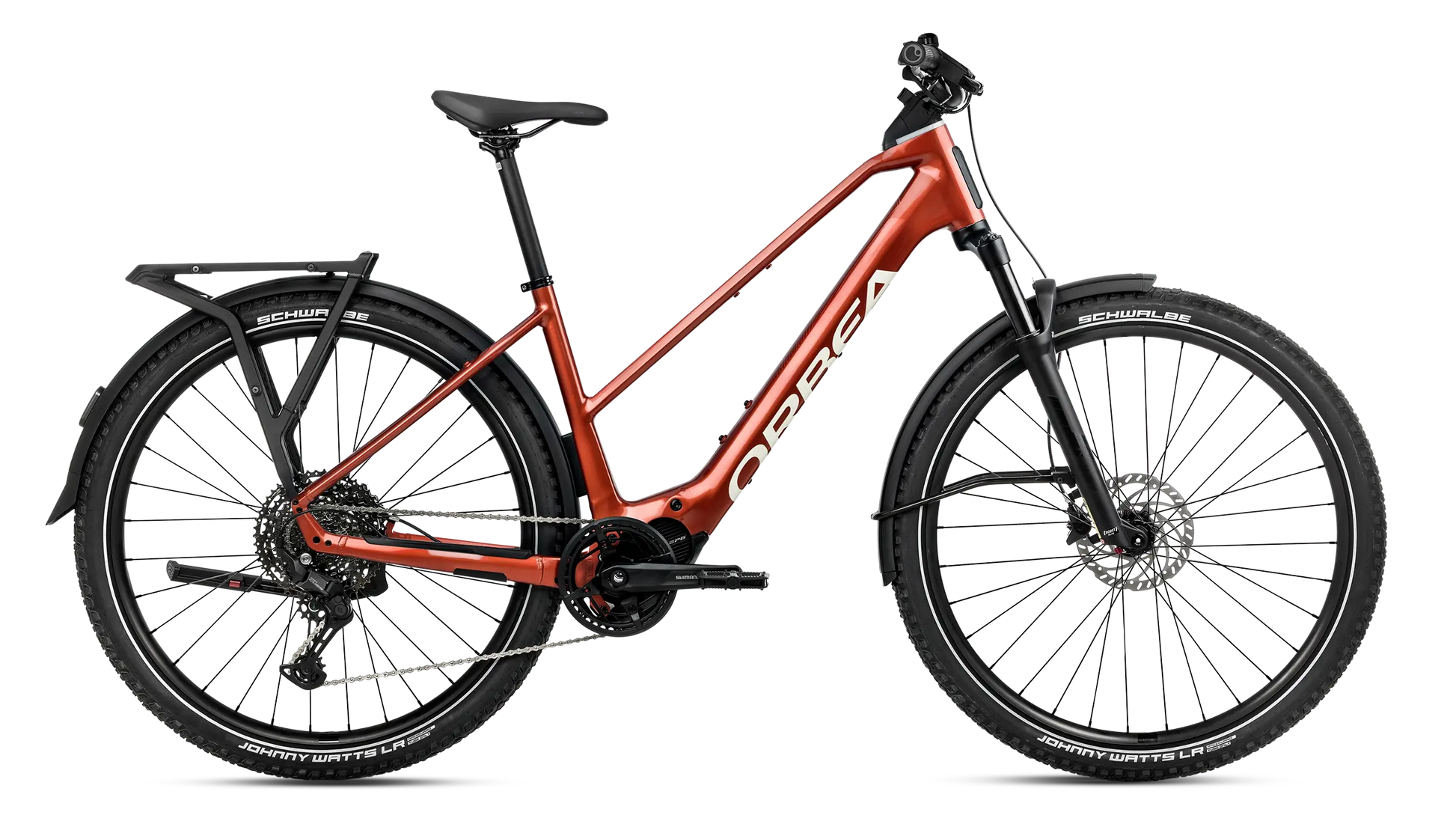

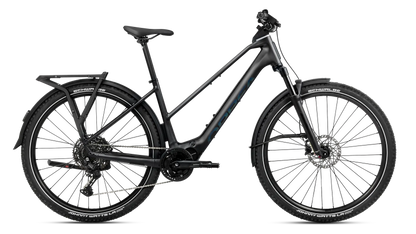

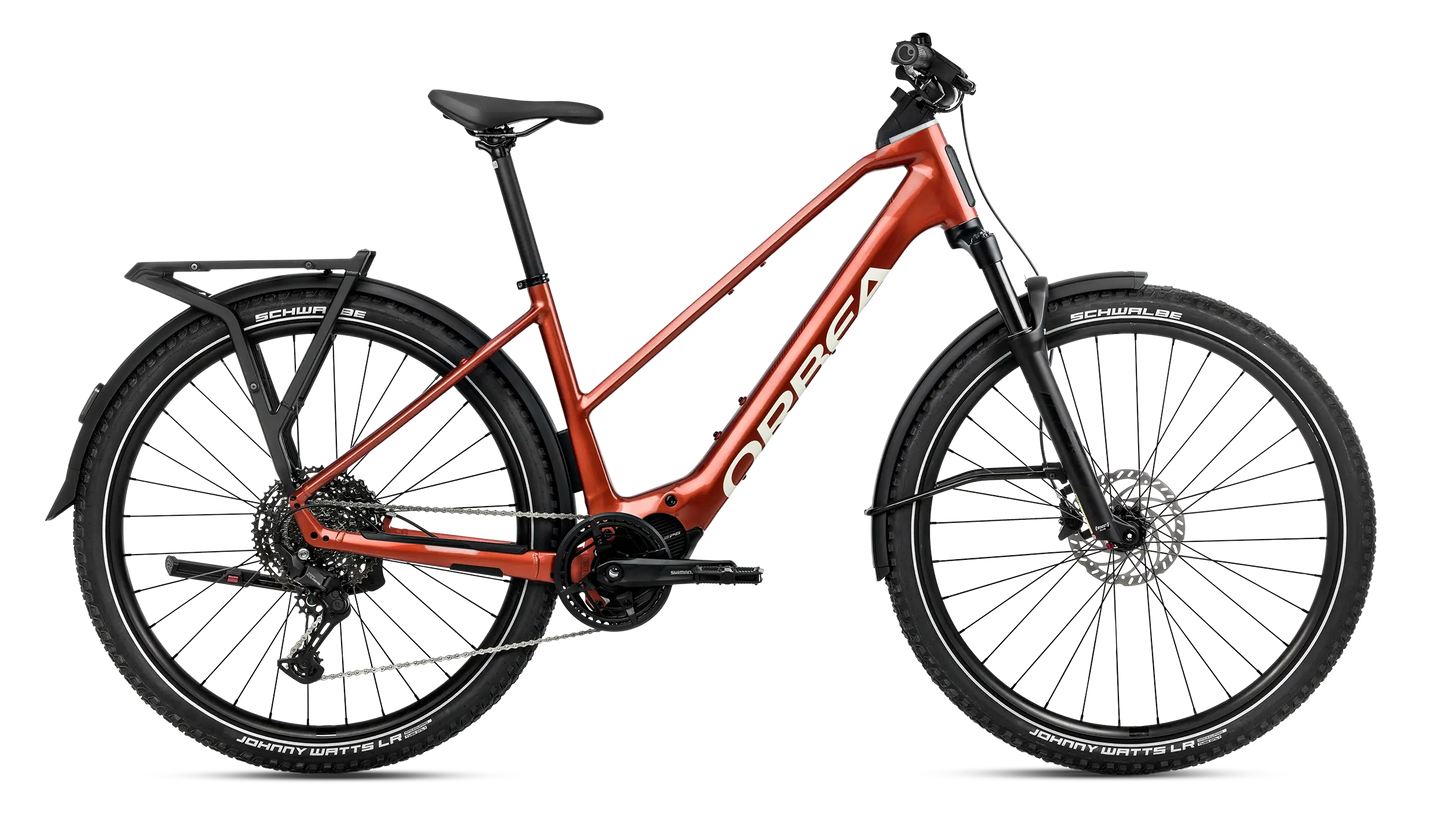

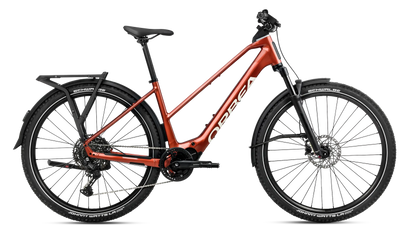

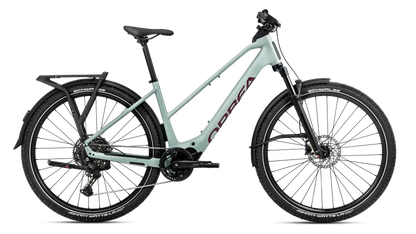

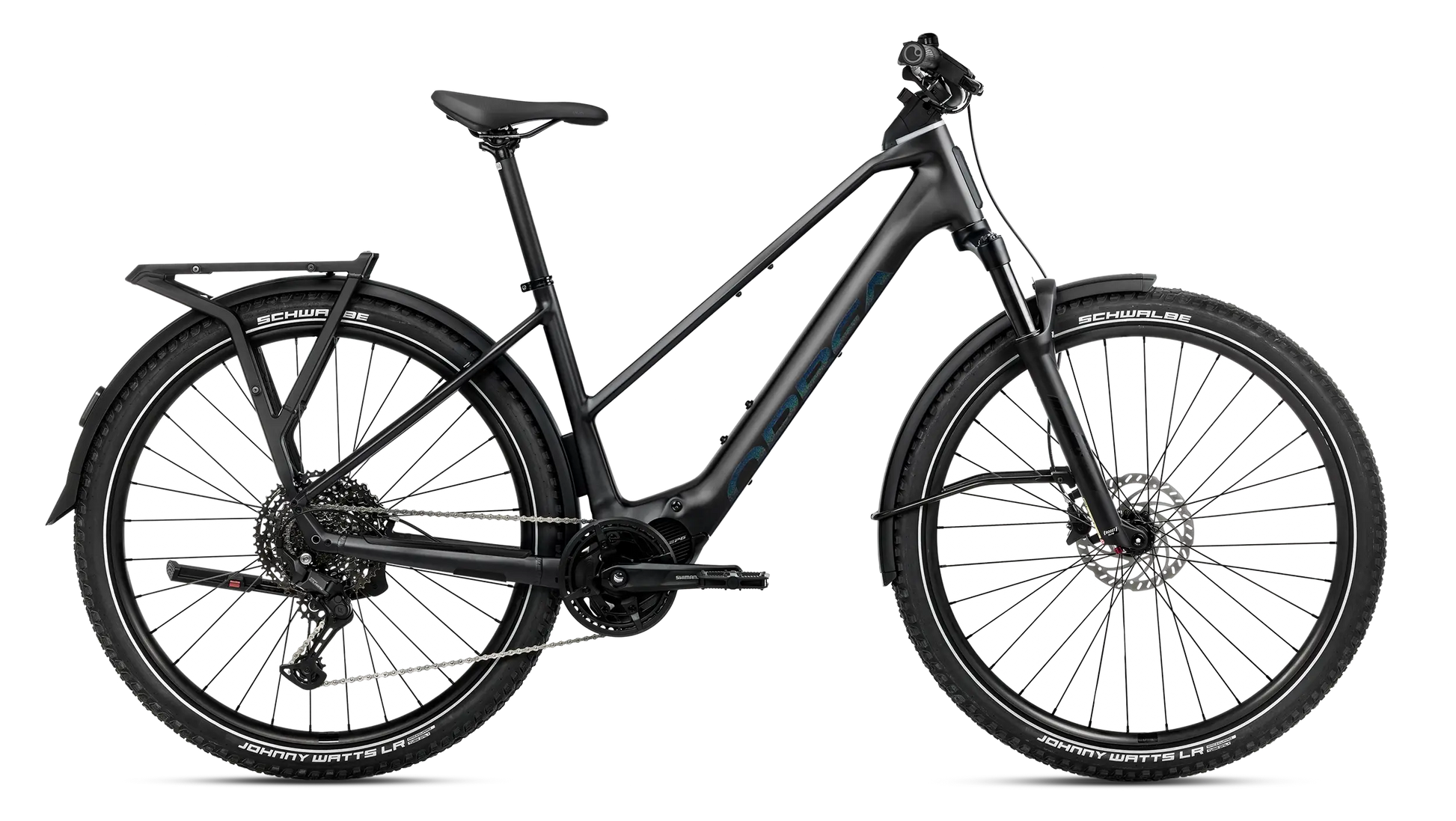

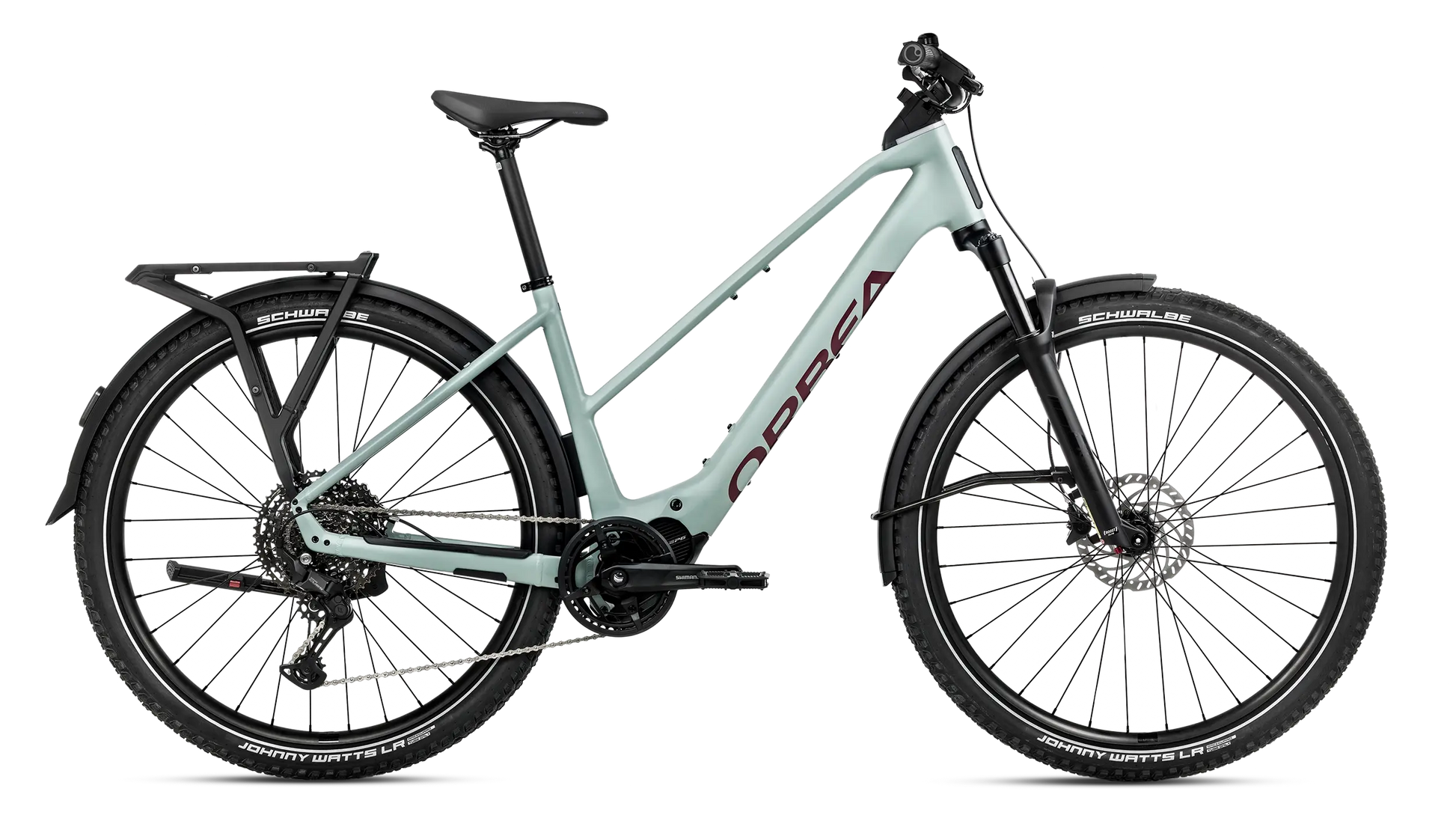

Available in three colorways - Frozen Concrete / Blue Stone, Metallic Rust / Ivory White, and Fuel Black / Titan Grey - in sizes S-L.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 630Wh battery (+ optional 252Wh range extender)
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Kemen Mid (step-through) frame, 29-inch wheels, belt-drive compatible
• SR Suntour XCR34 100mm air suspension fork
• Shimano CUES U6000 11-speed drivetrain (11-50t)
• Shimano MT420 hydraulic disc brakes
• Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible

BUILD KIT:

• Frame: Orbea Kemen Mid Bar (step-through), Hydroformed Alloy 6061
• Fork: SR Suntour XCR34 100mm Air
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 630Wh (optional 252Wh range extender)
• Display: Shimano EN500
• Rear Derailleur: Shimano CUES U6000 GS Shadow
• Shifter: Shimano CUES SL-U6000
• Cassette: Shimano CS-LG400 11-50t, 11-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT420 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 29-inch, 32H
• Tires: Schwalbe Johnny Watts LR 60-622, reflective
• Seatpost: SP03 alloy, 31.6mm
• Saddle: Selle Royal Vivo Ergo
• Lighting: Integrated StVZO front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

FREQUENTLY ASKED:

• How fast is the Orbea Kemen ADV 20 MID? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What is the MID frame? A low step-through version of the Kemen frame for easy on-and-off and confident stop-and-go riding, with the same components as the standard ADV 20.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 630Wh battery, plus an optional 252Wh range extender.
• How does the ADV 20 MID compare to the ADV 10 MID and 30 MID? The 10 steps up to a Fox air fork, electronic CUES Di2 and a dropper; the 30 uses a coil fork, 9-speed CUES and a 540Wh battery. The 20 sits in the middle with an air fork, 11-speed CUES and 630Wh.
• What's new for 2027? The Kemen ADV is Orbea's all-terrain urban platform with the full-power Shimano EP600 motor, 630Wh battery, patented four-position cockpit, and integrated lighting.
