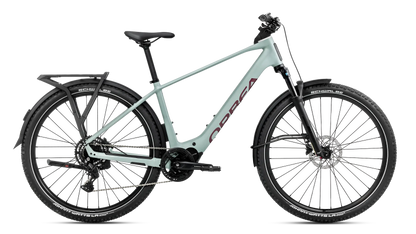

NEW 2027 Orbea KEMEN ADV 30 28mph Electric Hybrid Bike - Shimano CUES U4000

The 2027 Orbea Kemen ADV 30 is the accessible entry into Orbea's full-power all-terrain electric SUV family - comfortable on the daily commute and capable when the pavement ends. Built on Orbea's aluminum Kemen frame with a 100mm SR Suntour suspension fork and powered by a Shimano EP600 motor with an integrated 540Wh battery, it pairs effortless assistance with adventure-ready capability and fully integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or haul a loaded bike with ease. The integrated 540Wh battery uses the latest cell technology to pack range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen ADV 30 keeps pace anywhere.

Trail-Ready Capability

A 100mm SR Suntour XCR34 coil fork smooths out rough trails, while grippy 29-inch Schwalbe Johnny Watts tires roll fast and hook up off-road. A reliable Shimano CUES U4000 9-speed drivetrain delivers a wide 11-46t range that's simple, durable and easy to service.

Built to Carry & Commute

Orbea's patented four-position cockpit dials in the perfect fit, while a fully integrated StVZO lighting system, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen ADV ready for cargo, kids, and everyday duty.

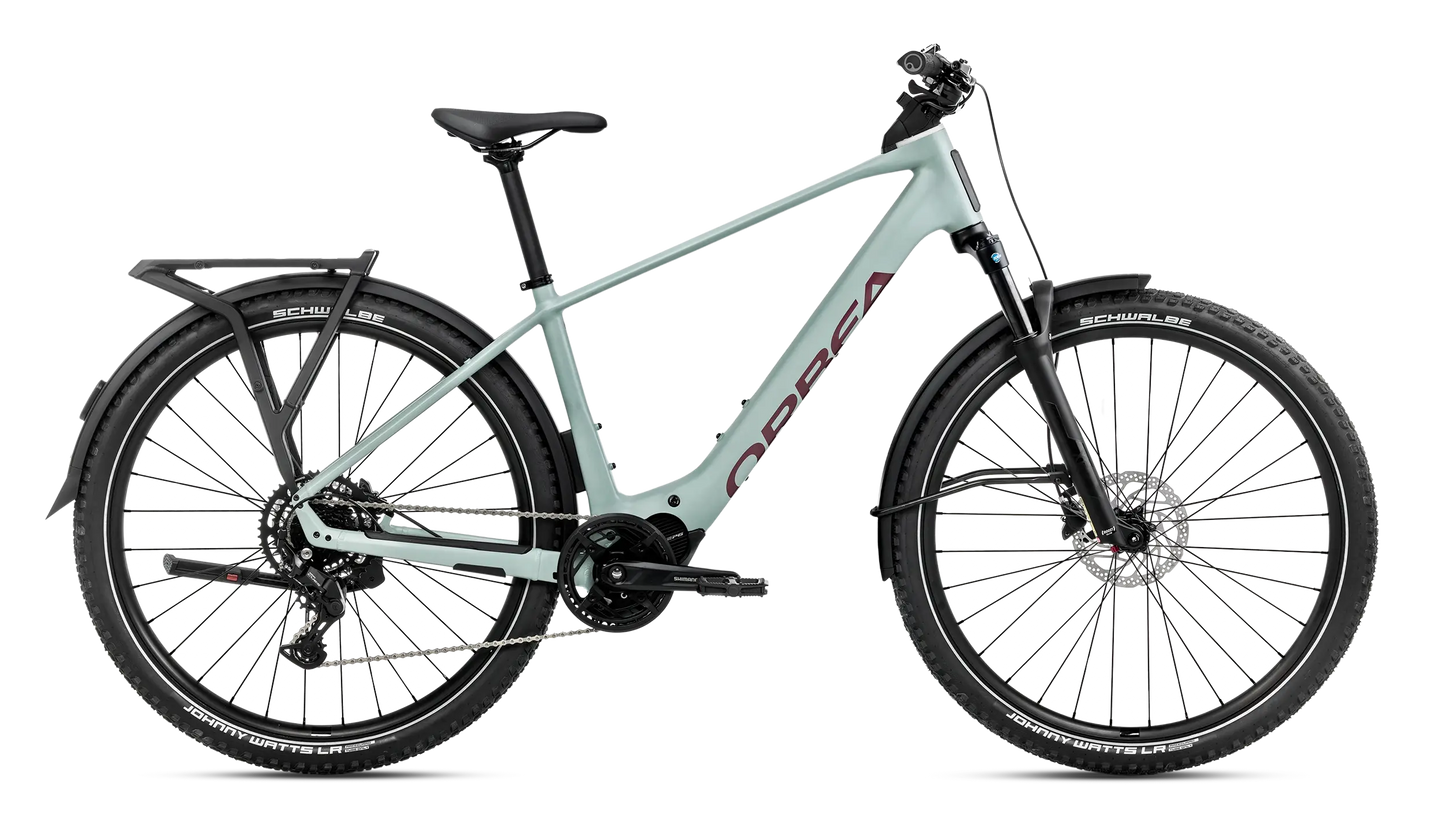

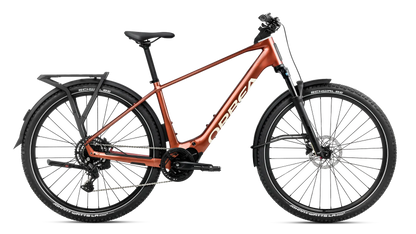

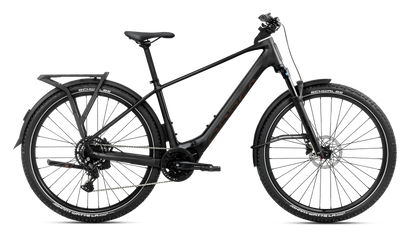

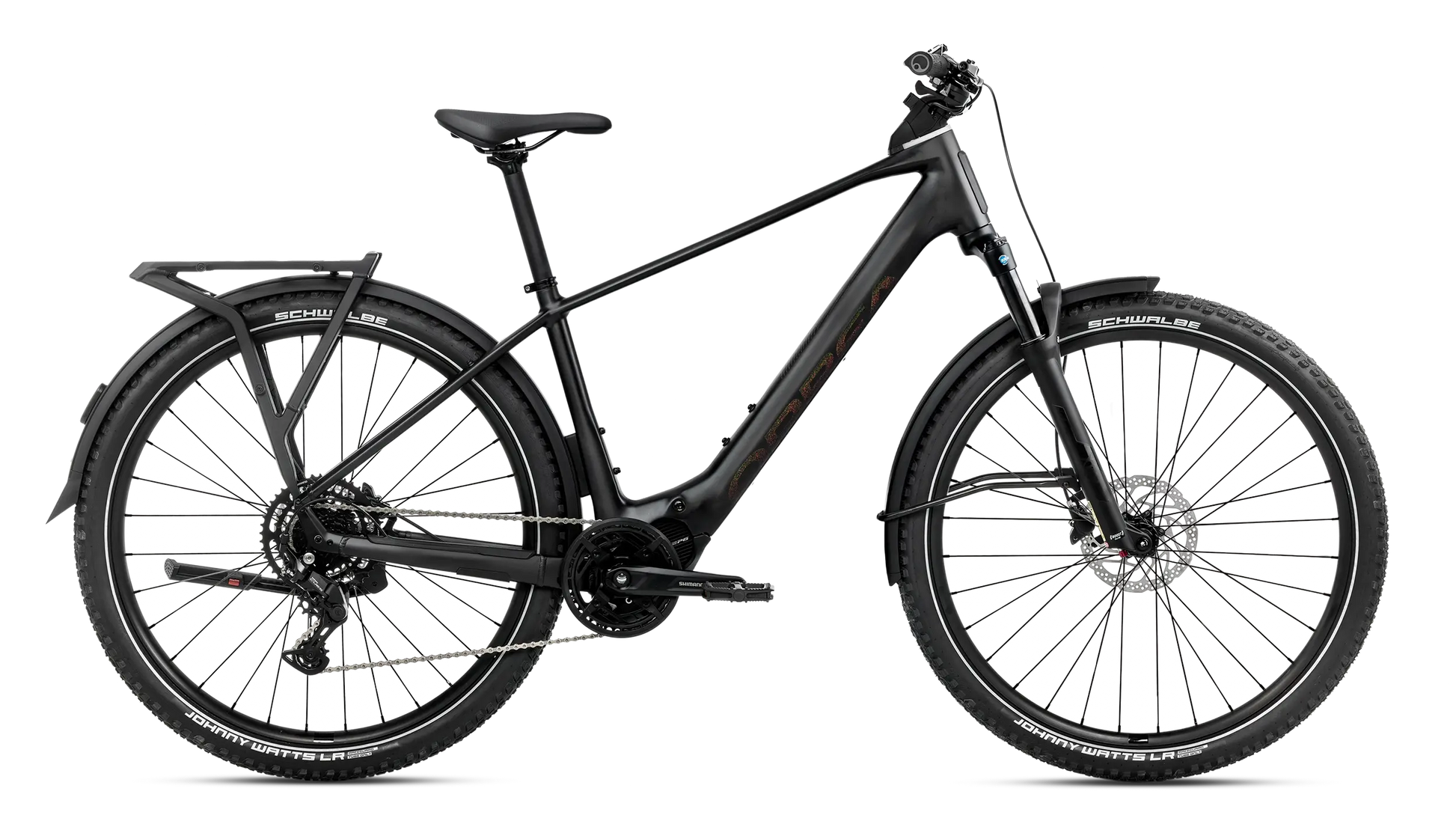

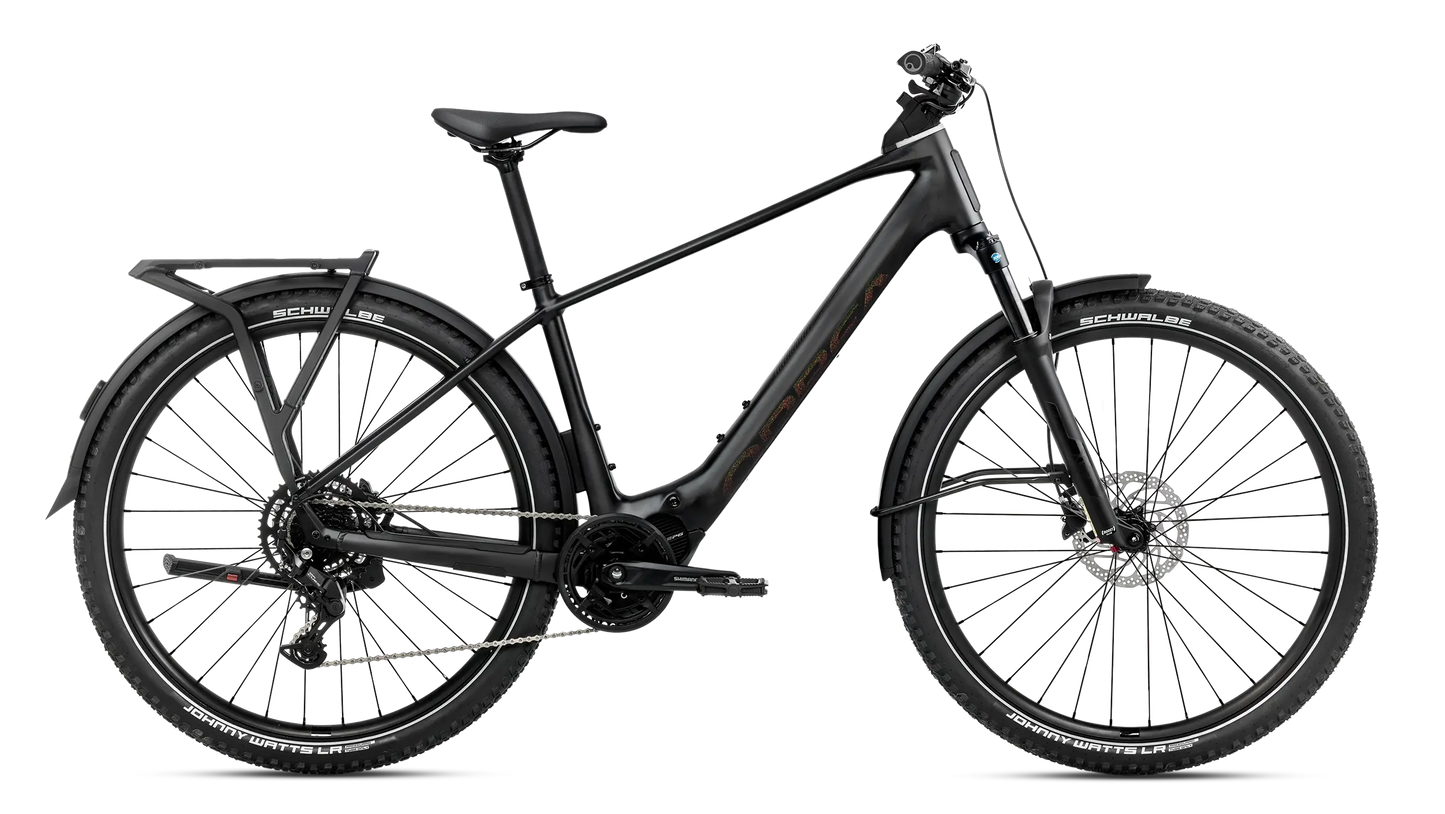

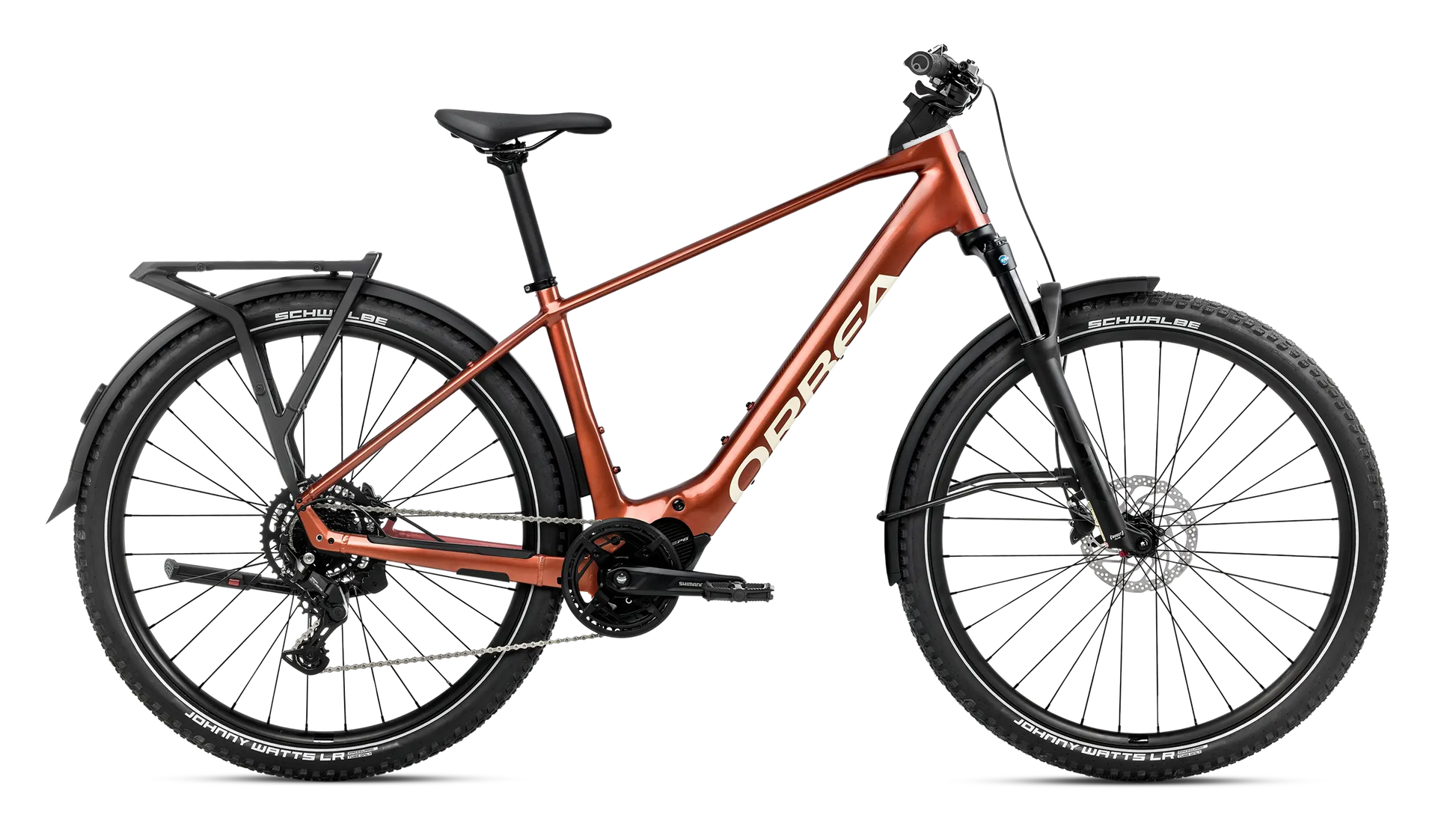

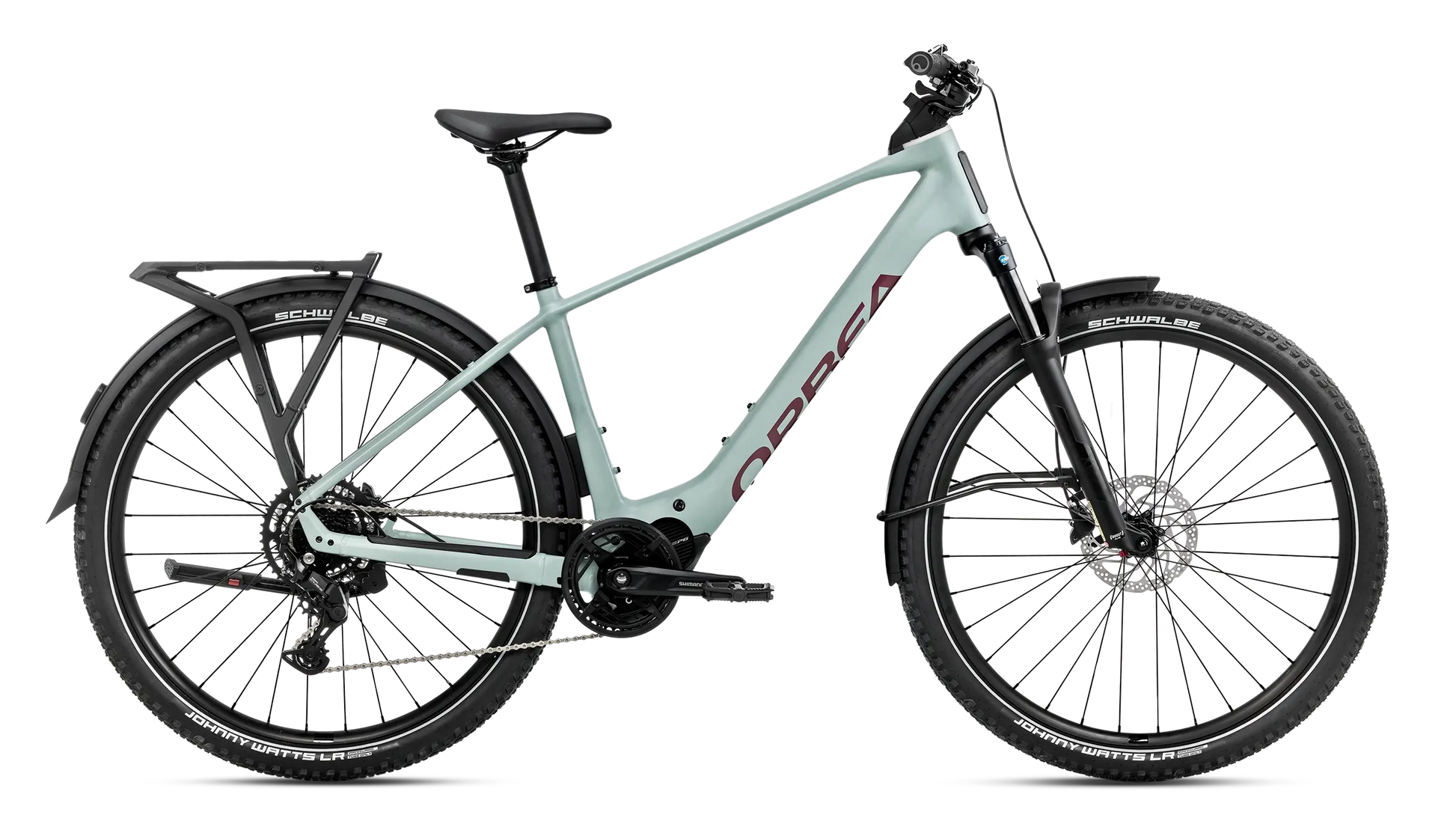

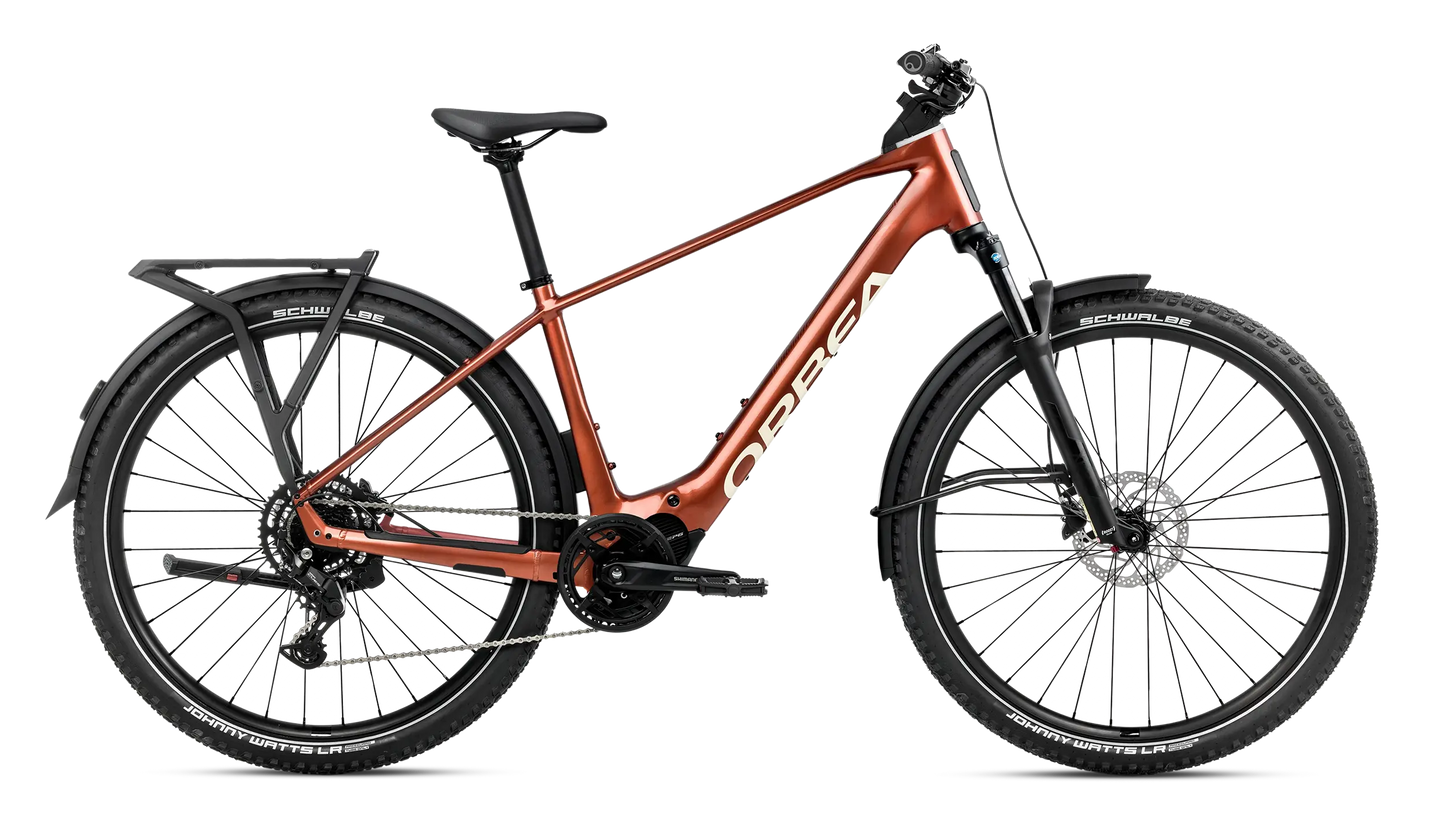

Available in three colorways - Frozen Concrete / Blue Stone, Metallic Rust / Ivory White, and Fuel Black / Titan Grey - in sizes S-XL.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 540Wh battery (+ optional 252Wh range extender)
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Kemen frame, 29-inch wheels, belt-drive compatible
• SR Suntour XCR34 100mm coil suspension fork
• Shimano CUES U4000 9-speed drivetrain (11-46t)
• Shimano MT200 hydraulic disc brakes
• Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible

BUILD KIT:

• Frame: Orbea Kemen Top Bar, Hydroformed Alloy 6061
• Fork: SR Suntour XCR34 100mm Coil
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 540Wh (optional 252Wh range extender)
• Display: Shimano EN500
• Rear Derailleur: Shimano CUES U4000 GS Shadow
• Shifter: Shimano CUES SL-U4000
• Cassette: Shimano CS-LG300 11-46t, 9-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT200 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 29-inch, 32H
• Tires: Schwalbe Johnny Watts LR 60-622, reflective
• Seatpost: SP03 alloy, 31.6mm
• Saddle: Selle Royal Vivo Ergo
• Lighting: Integrated StVZO front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")
• XL: 187-206 cm (6'2"-6'9")

FREQUENTLY ASKED:

• How fast is the Orbea Kemen ADV 30? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 540Wh battery, plus an optional 252Wh range extender.
• What is the Kemen ADV built for? All-terrain "SUV" riding - paved commutes plus light trails and gravel - with a suspension fork, wide tires, lights, mudguards and rack mounts.
• How does the ADV 30 compare to the ADV 20 and 10? The 30 is the value model with a coil fork, 9-speed CUES and a 540Wh battery; the 20 steps up to an air fork, 11-speed CUES and 630Wh, and the 10 adds a Fox air fork, electronic CUES Di2 and a dropper post.
• What's new for 2027? The Kemen ADV is Orbea's all-terrain urban platform with the full-power Shimano EP600 motor, patented four-position cockpit, and integrated lighting.
