NEW 2027 Orbea KEMEN TOUR 20 MID 28mph Electric Hybrid Bike - Shimano CUES U6000

The 2027 Orbea Kemen TOUR 20 MID is a full-power electric trekking bike with a low step-through frame for easy, confident on-and-off - smooth on the commute and ready for loaded touring. Built on Orbea's aluminum Kemen Mid frame with an 80mm SR Suntour suspension fork and powered by a Shimano EP600 motor with an integrated 630Wh battery, it pairs effortless assistance with proven, easy-to-service gearing and fully integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or carry a fully loaded bike with ease. The integrated 630Wh battery packs big range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen TOUR 20 MID keeps pace anywhere.

Proven Shimano Gearing

The TOUR 20 runs a reliable Shimano CUES U6000 10-speed drivetrain with a wide 11-48t range - simple, durable and easy to service - plus a suspension seatpost that takes the edge off long days in the saddle.

Step-Through Convenience, Built for Touring

The low Mid-bar frame makes mounting, dismounting and stop-and-go riding effortless. An 80mm SR Suntour NVX fork and reflective Schwalbe Marathon tires smooth out the miles, while Orbea's patented four-position cockpit, fully integrated StVZO lighting, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen TOUR ready for cargo, kids, and everyday duty.

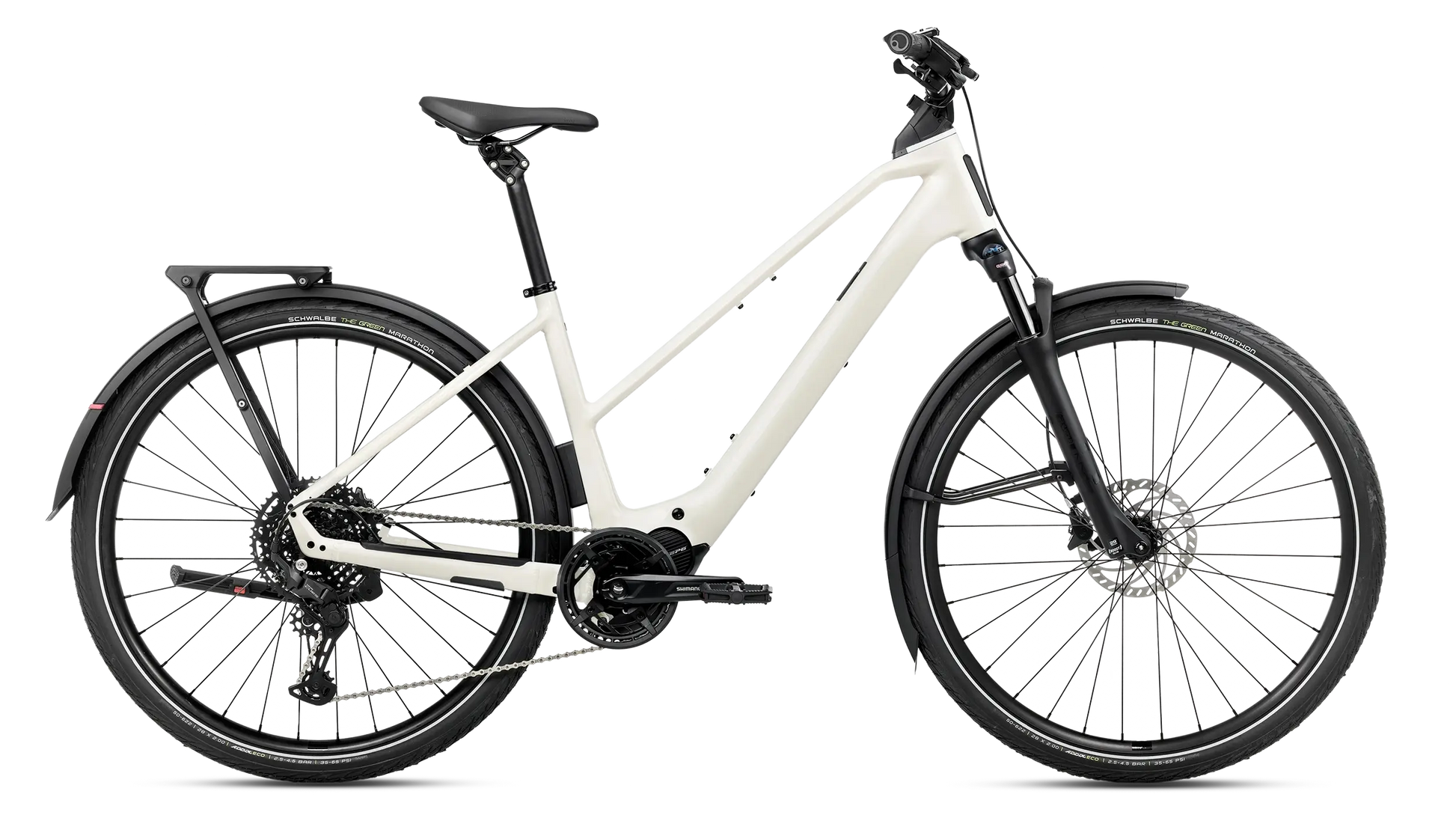

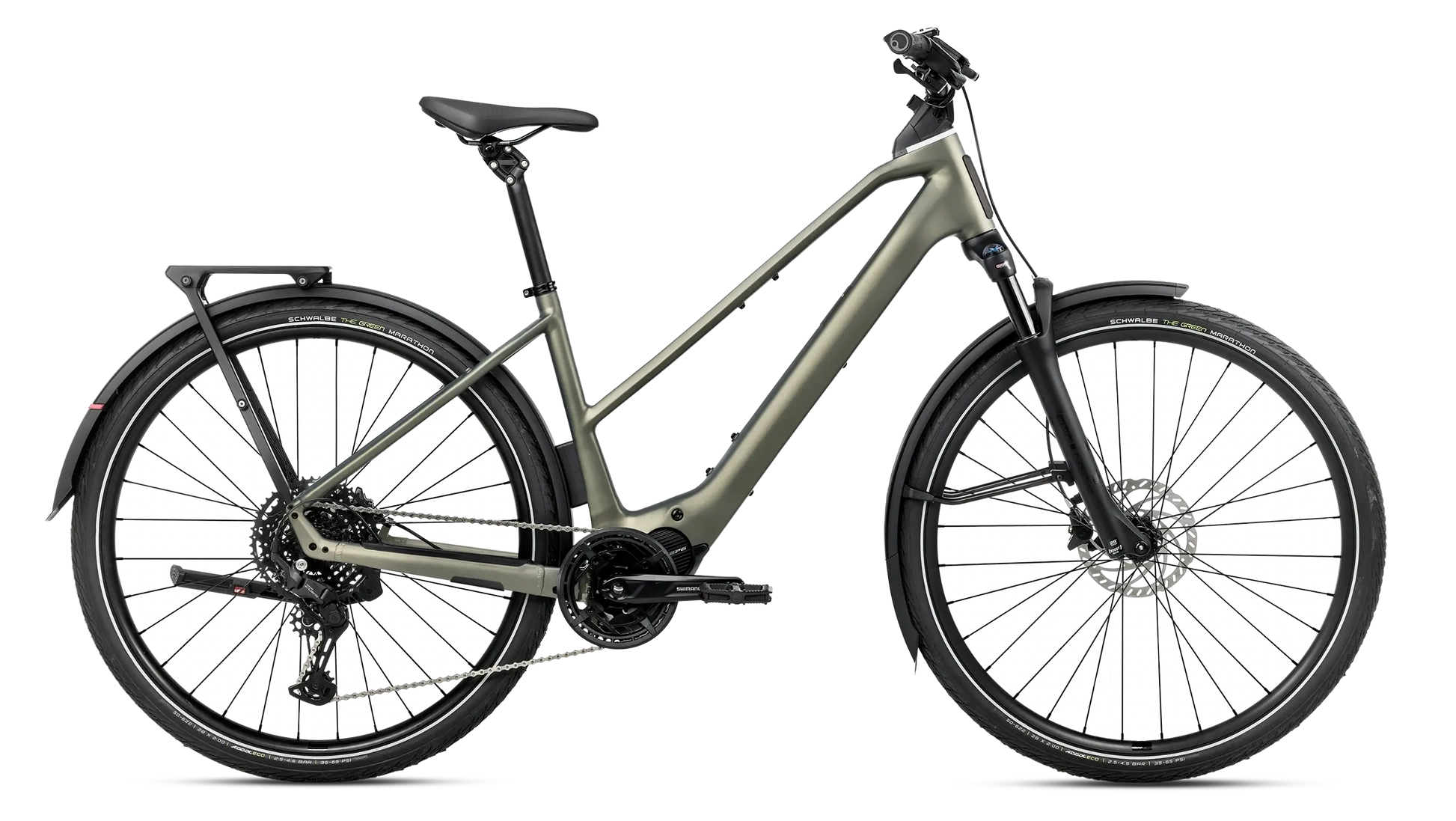

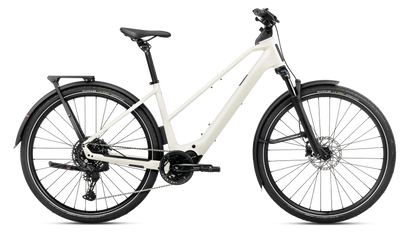

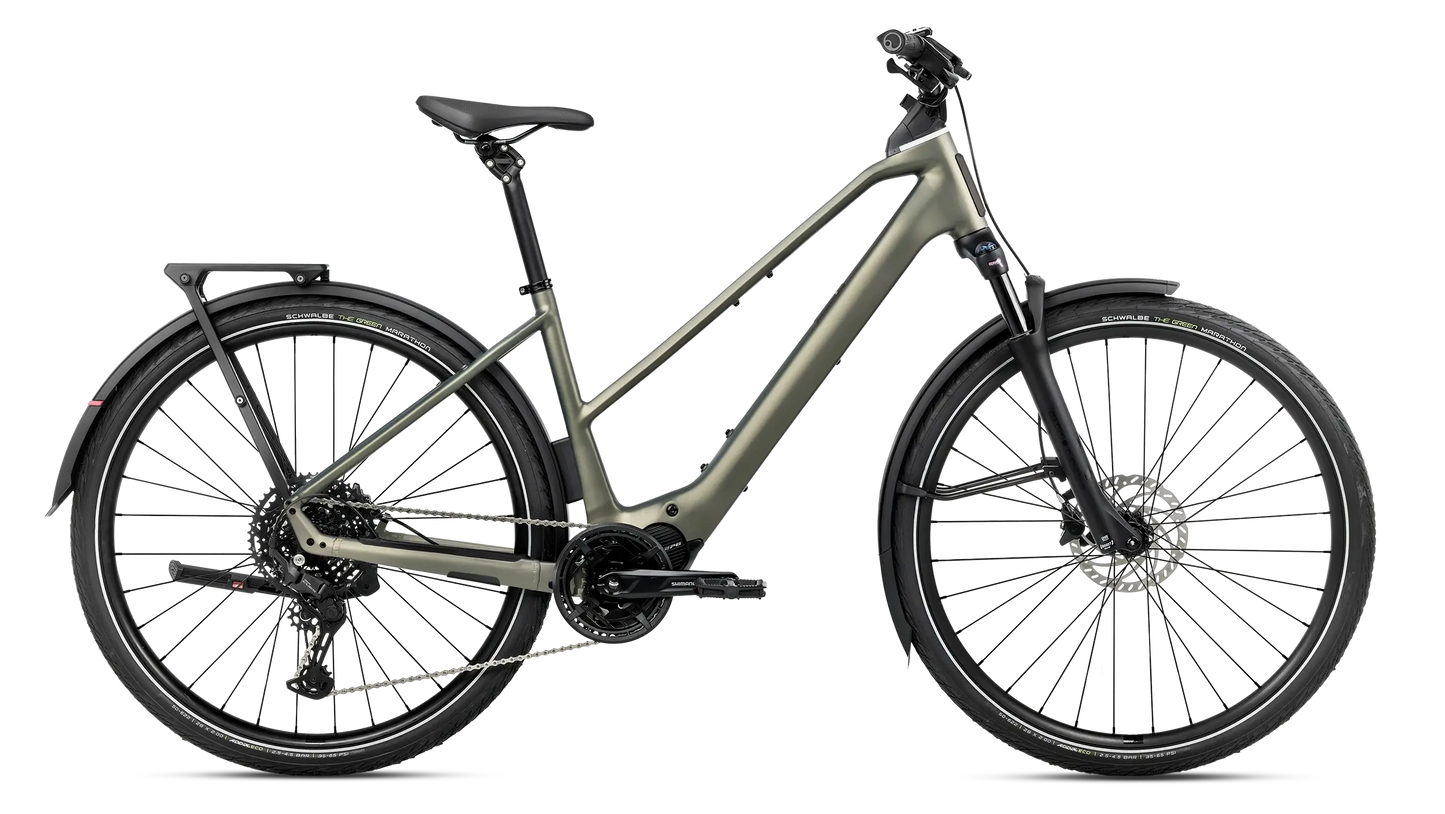

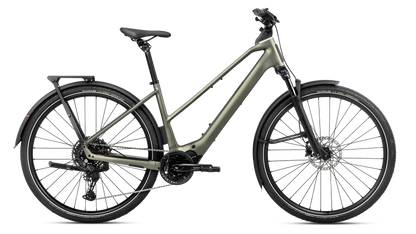

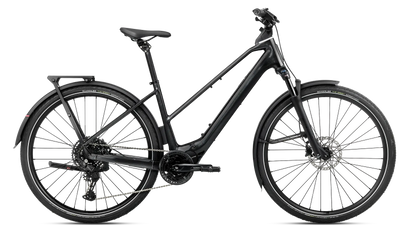

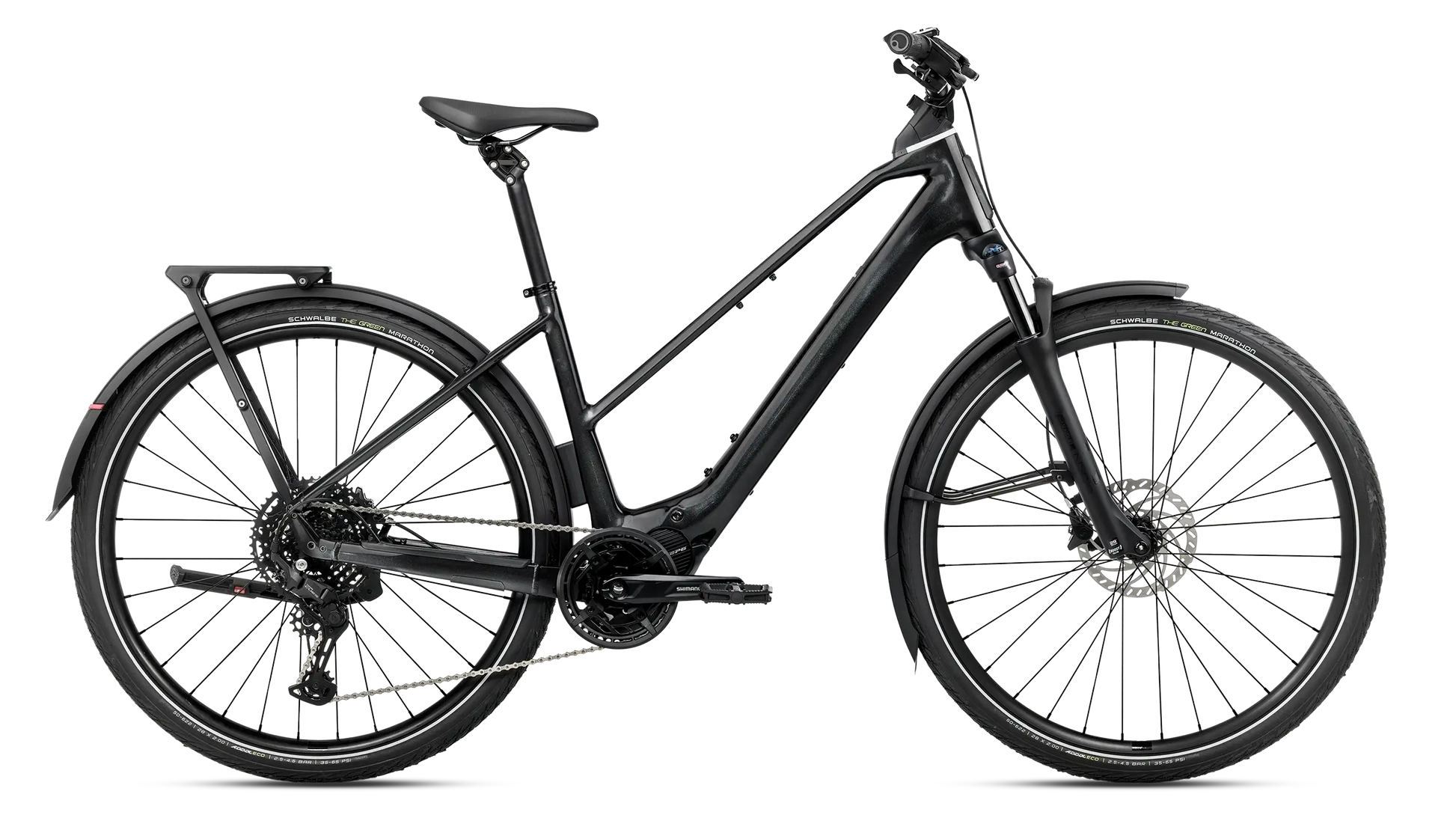

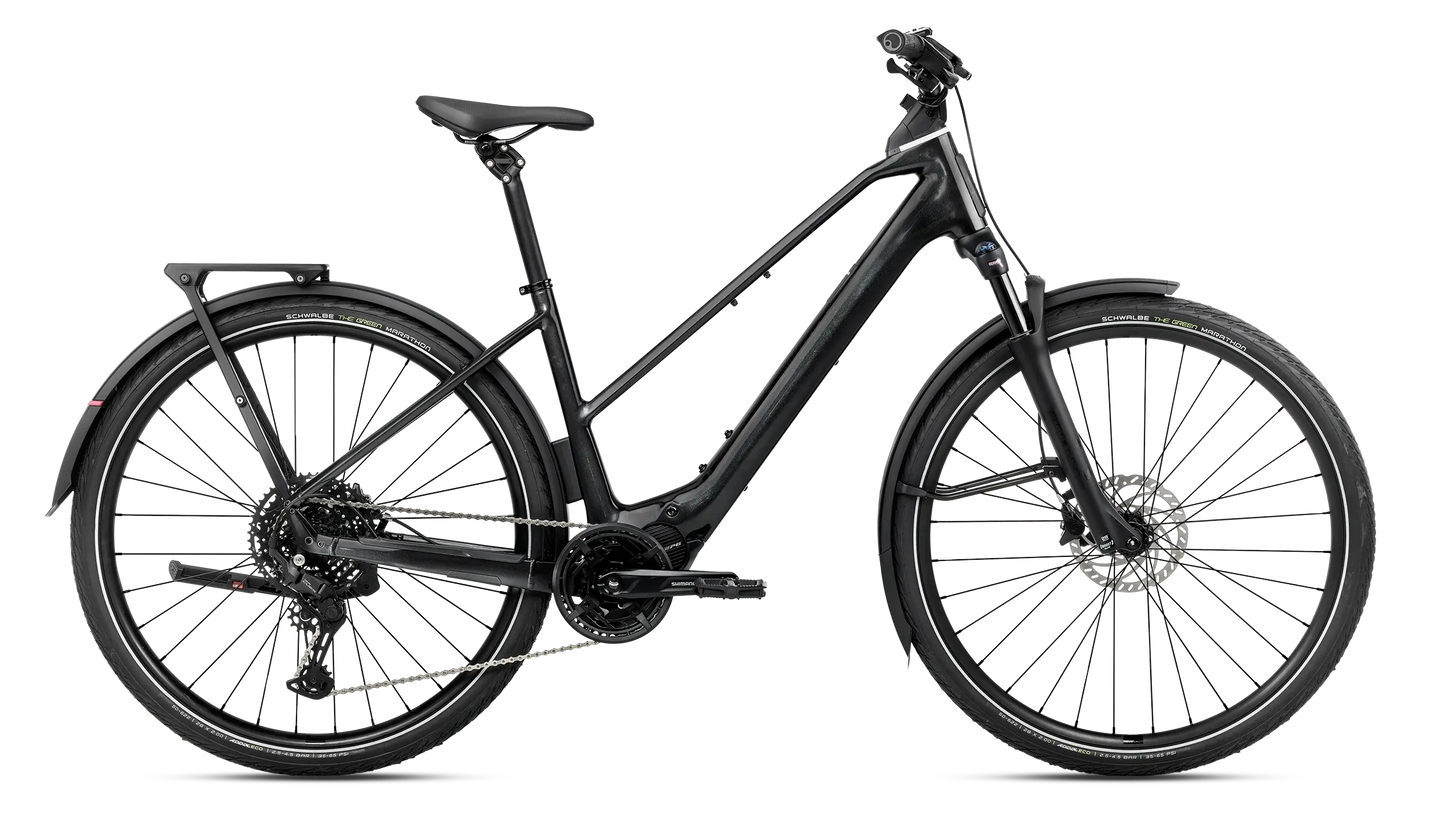

Available in three colorways - White Chic, Nickel, and Racing Green - in sizes S-L.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 630Wh battery (+ optional 252Wh range extender)
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Kemen Mid (step-through) frame, 29-inch wheels, belt-drive compatible
• SR Suntour NVX 80mm suspension fork
• Shimano CUES U6000 10-speed drivetrain (11-48t)
• Shimano MT200 hydraulic disc brakes, suspension seatpost
• Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible

BUILD KIT:

• Frame: Orbea Kemen Mid Bar (step-through), Hydroformed Alloy 6061
• Fork: SR Suntour NVX 80mm Air
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 630Wh (optional 252Wh range extender)
• Display: Shimano EN500
• Rear Derailleur: Shimano CUES U6000 GS Shadow
• Shifter: Shimano CUES SL-U6000
• Cassette: Shimano CS-LG300 11-48t, 10-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT200 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 29-inch, 32H
• Tires: Schwalbe Marathon 50-622, reflective
• Seatpost: SP05 alloy, 31.6mm, suspension
• Saddle: Selle Royal Vivo Ergo
• Lighting: Integrated StVZO front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")

FREQUENTLY ASKED:

• How fast is the Orbea Kemen TOUR 20 MID? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What is the MID frame? A low step-through version of the Kemen frame for easy on-and-off, with the same components as the standard TOUR 20.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 630Wh battery, plus an optional 252Wh range extender.
• Chain or belt? The TOUR 20 uses a traditional Shimano CUES 10-speed chain drive for a wide gear range and easy, low-cost servicing.
• How does the TOUR 20 MID compare to the TOUR 10 MID and 30 MID? The 10 upgrades to an automatic Enviolo belt drive and a dropper post; the 30 uses a 9-speed CUES with a 540Wh battery. The 20 sits in the middle with 10-speed CUES, a suspension seatpost and 630Wh.
