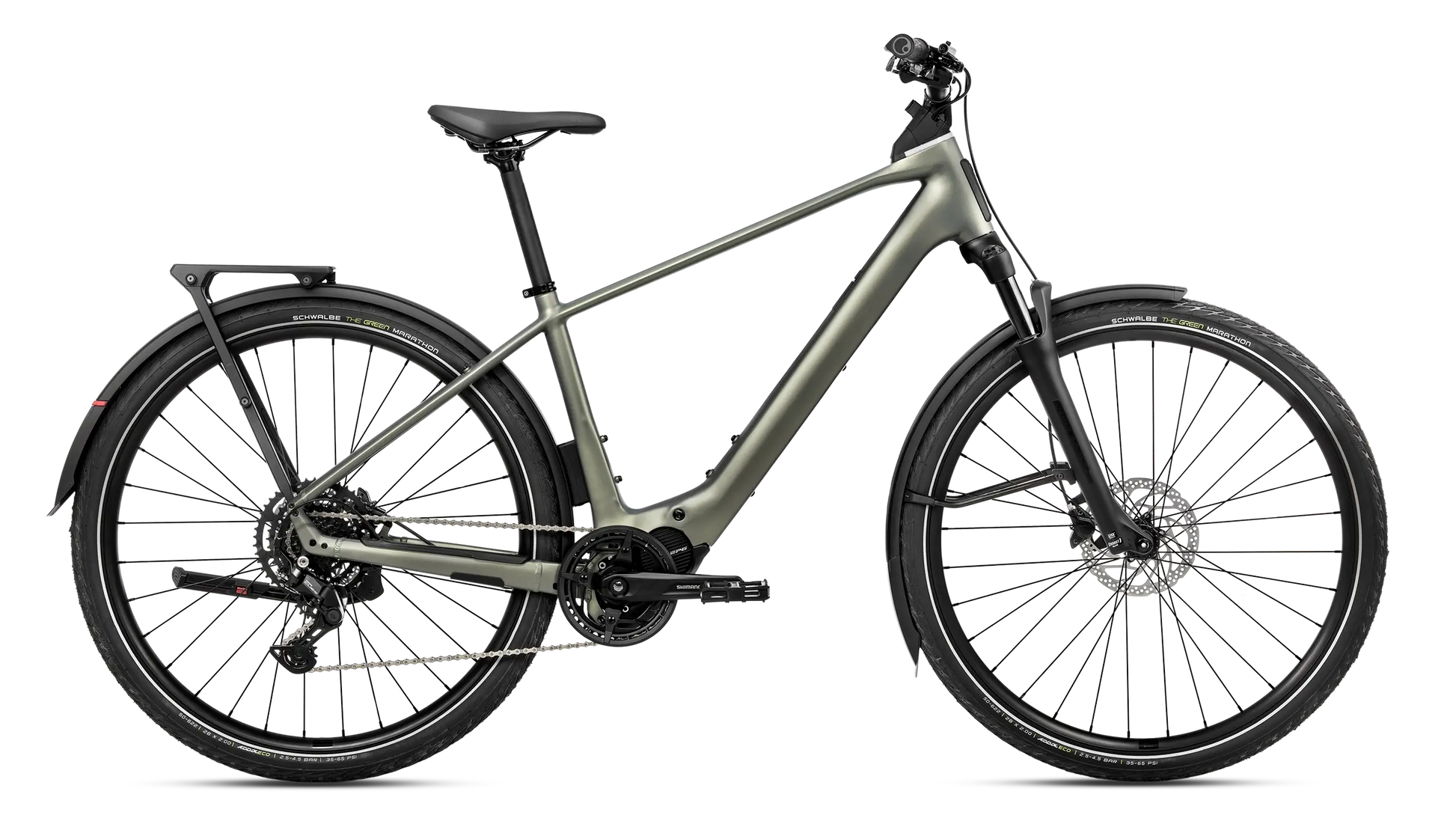

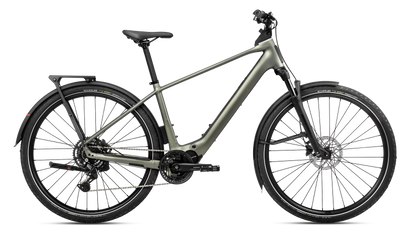

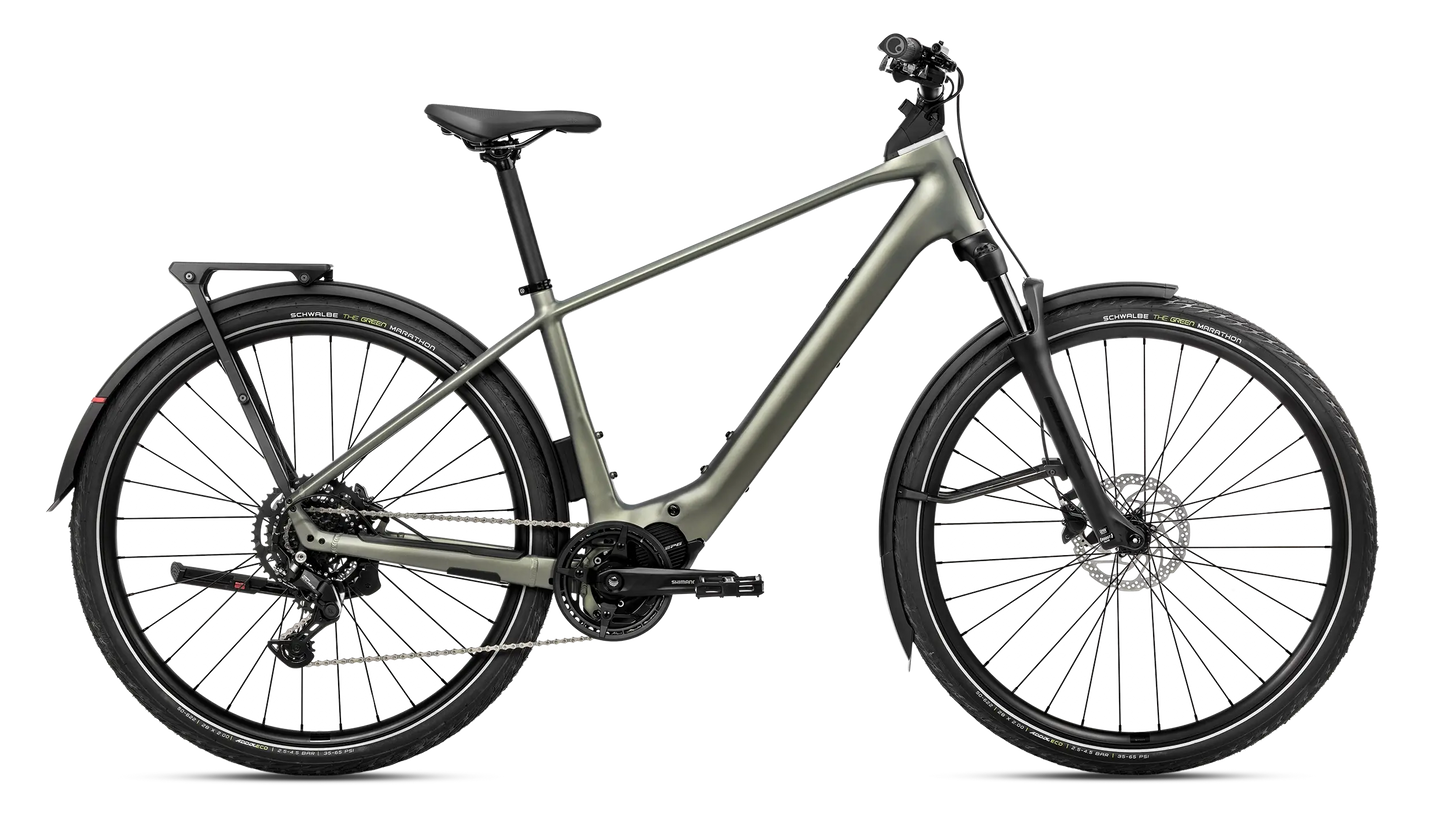

NEW 2027 Orbea KEMEN TOUR 30 28mph Electric Hybrid Bike - Shimano CUES U4000

The 2027 Orbea Kemen TOUR 30 is the accessible entry into Orbea's full-power electric trekking family - smooth on the commute and ready for everyday touring. Built on Orbea's aluminum Kemen frame with an 80mm SR Suntour suspension fork and powered by a Shimano EP600 motor with an integrated 540Wh battery, it pairs effortless assistance with proven, easy-to-service gearing and fully integrated lighting.

Shimano Full-Power Assist

The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance - enough to flatten the steepest climbs or carry a loaded bike with ease. The integrated 540Wh battery packs range into a slim downtube, and an optional 252Wh range extender slots into the bottle cage for even longer days. As a Class 3 (28 mph) pedal-assist e-bike, the Kemen TOUR 30 keeps pace anywhere.

Proven Shimano Gearing

The TOUR 30 runs a reliable Shimano CUES U4000 9-speed drivetrain with a wide 11-46t range - simple, durable and easy to service, with the gears to handle hills and headwinds.

Built for Touring & Commuting

An 80mm SR Suntour NVX fork and reflective Schwalbe Marathon tires smooth out the miles, while Orbea's patented four-position cockpit, fully integrated StVZO lighting, robust mudguards, and a 30kg-rated rear rack with the MIK HD mounting system make the Kemen TOUR ready for cargo, kids, and everyday duty.

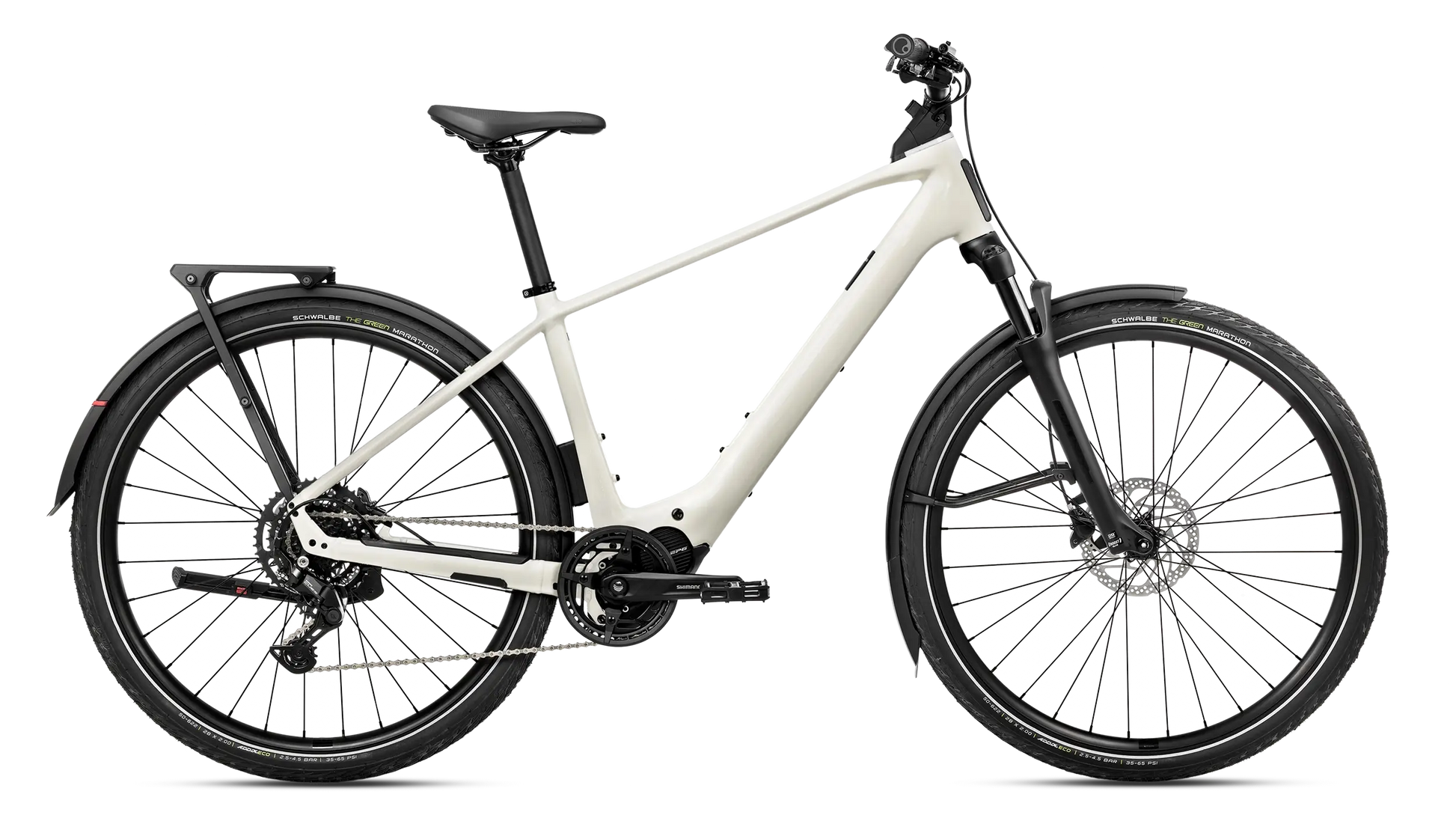

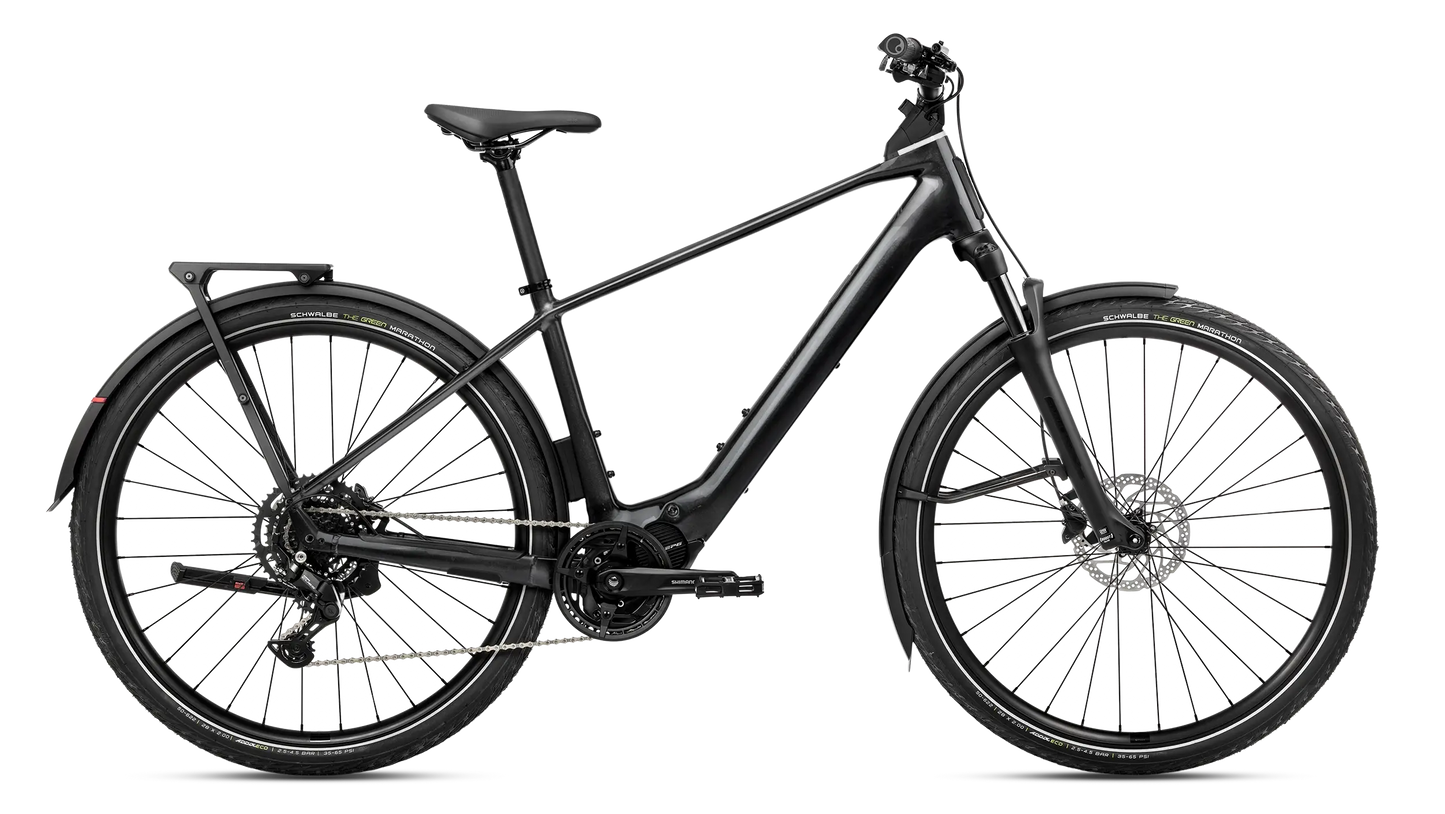

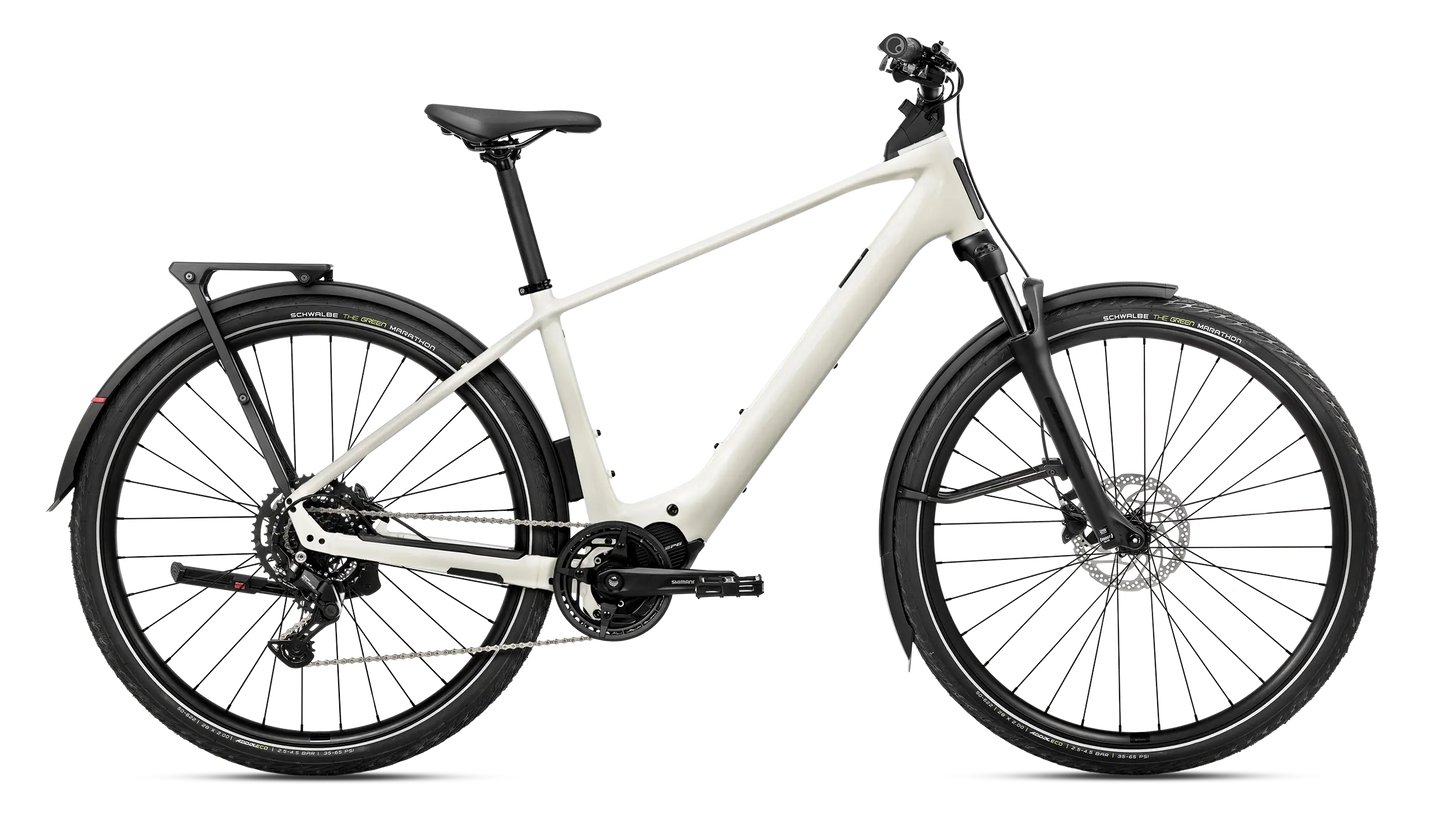

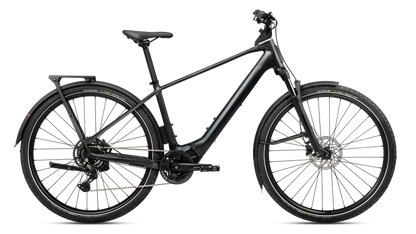

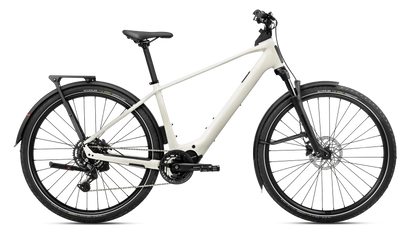

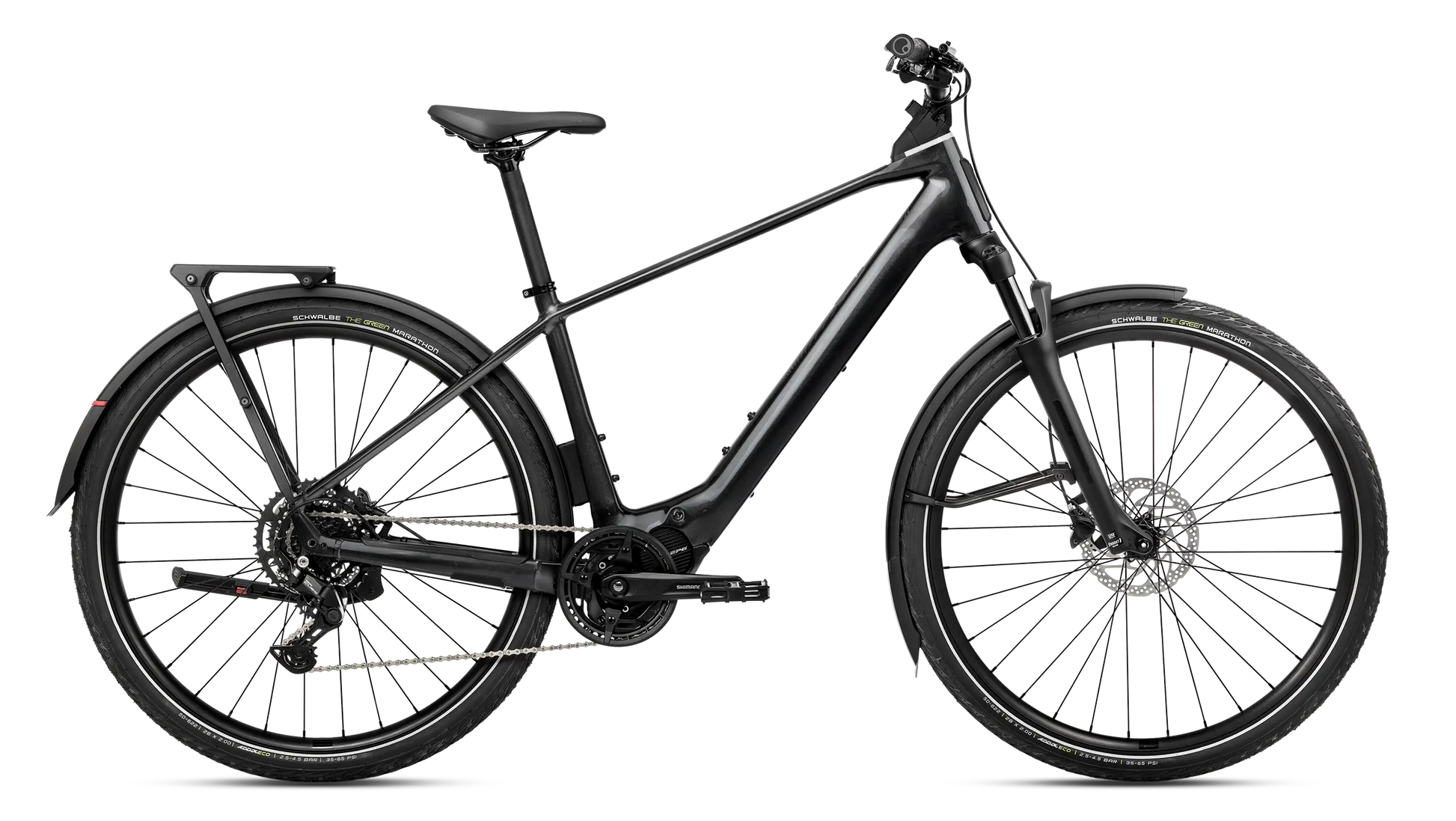

Available in three colorways - White Chic, Nickel, and Racing Green - in sizes S-XL.

KEY FEATURES:

• Shimano EP600 full-power motor (up to 85Nm) with integrated 540Wh battery (+ optional 252Wh range extender)
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Kemen frame, 29-inch wheels, belt-drive compatible
• SR Suntour NVX 80mm suspension fork
• Shimano CUES U4000 9-speed drivetrain (11-46t)
• Shimano MT200 hydraulic disc brakes
• Integrated StVZO lighting, mudguards, 30kg MIK HD rack compatible

BUILD KIT:

• Frame: Orbea Kemen Top Bar, Hydroformed Alloy 6061
• Fork: SR Suntour NVX 80mm
• Motor: Shimano EP600 (up to 85Nm)
• Battery: Orbea Internal 540Wh (optional 252Wh range extender)
• Display: Shimano EN500
• Rear Derailleur: Shimano CUES U4000 GS Shadow
• Shifter: Shimano CUES SL-U4000
• Cassette: Shimano CS-LG300 11-46t, 9-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT200 Hydraulic Disc
• Crank: Shimano Steps
• Wheels: Alloy, 29-inch, 32H
• Tires: Schwalbe Marathon 50-622, reflective
• Seatpost: SP03 alloy, 31.6mm
• Saddle: Selle Royal Vivo Ergo
• Lighting: Integrated StVZO front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")
• XL: 187-206 cm (6'2"-6'9")

FREQUENTLY ASKED:

• How fast is the Orbea Kemen TOUR 30? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Shimano EP600 (up to 85Nm) with an integrated 540Wh battery, plus an optional 252Wh range extender.
• Chain or belt? The TOUR 30 uses a traditional Shimano CUES 9-speed chain drive for a wide gear range and easy, low-cost servicing.
• How does the TOUR 30 compare to the TOUR 20 and 10? The 30 is the value model with 9-speed CUES and a 540Wh battery; the 20 steps up to 10-speed CUES, a suspension seatpost and 630Wh; the 10 adds an automatic Enviolo belt drive and a dropper post.
• What is the Kemen TOUR vs. the Kemen ADV? TOUR is the touring/trekking build on faster Schwalbe Marathon tires; ADV is the all-terrain build with a longer-travel fork and knobby tires.
