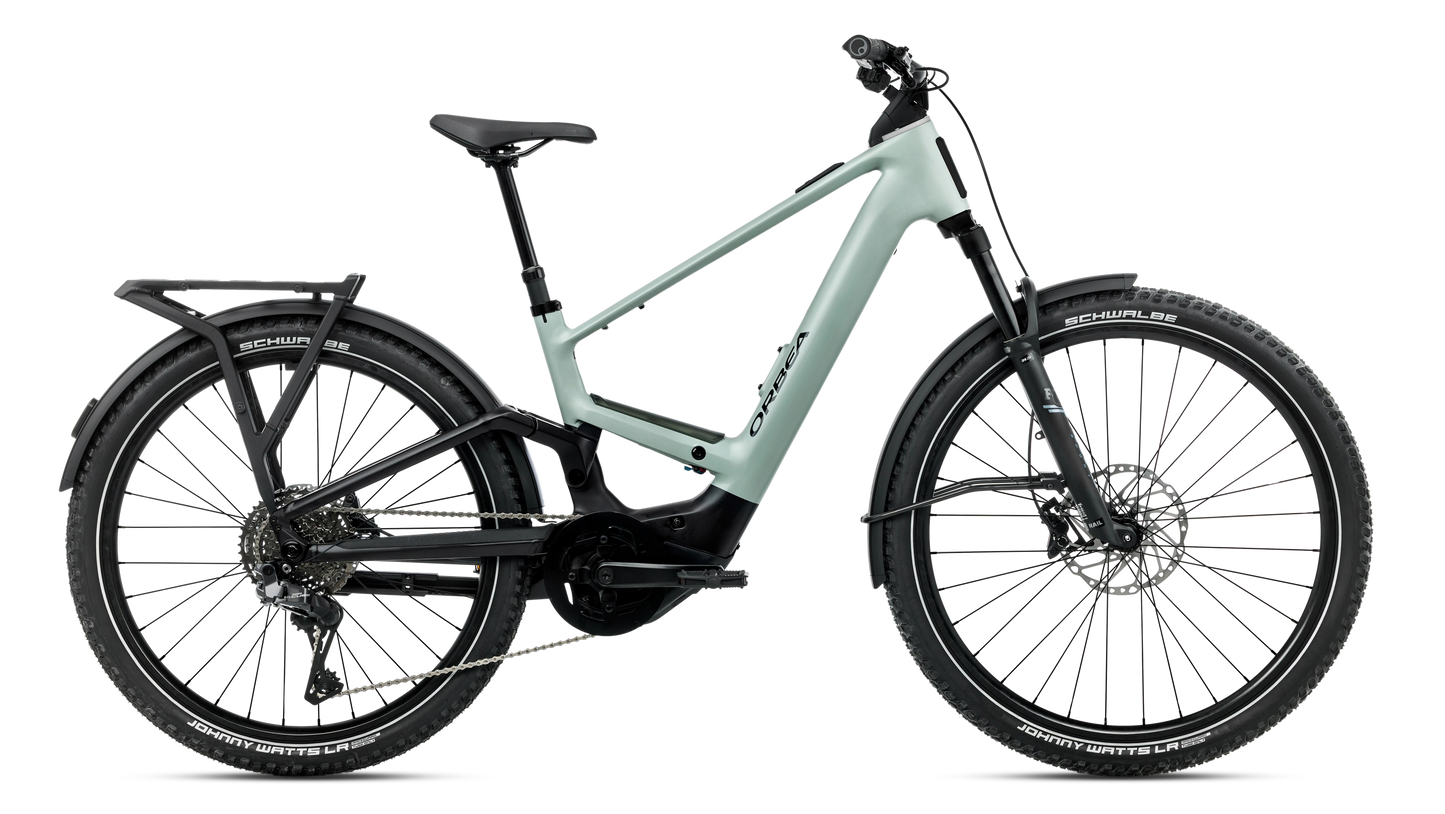

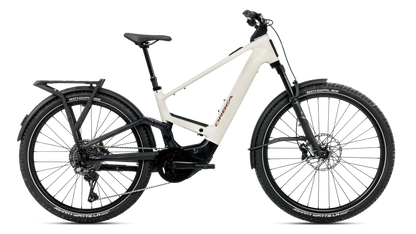

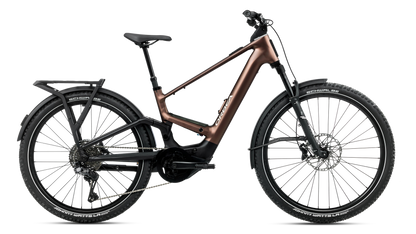

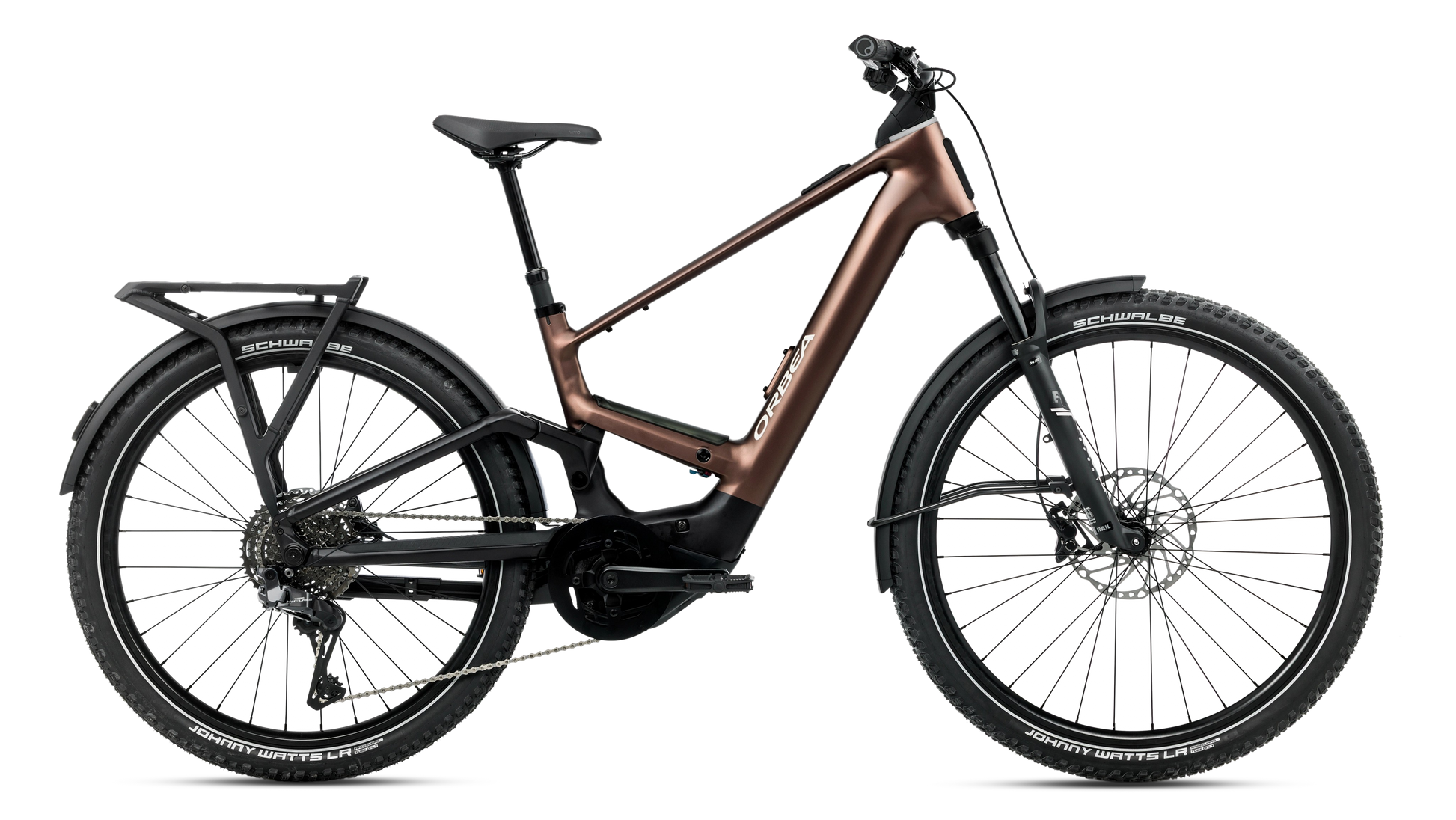

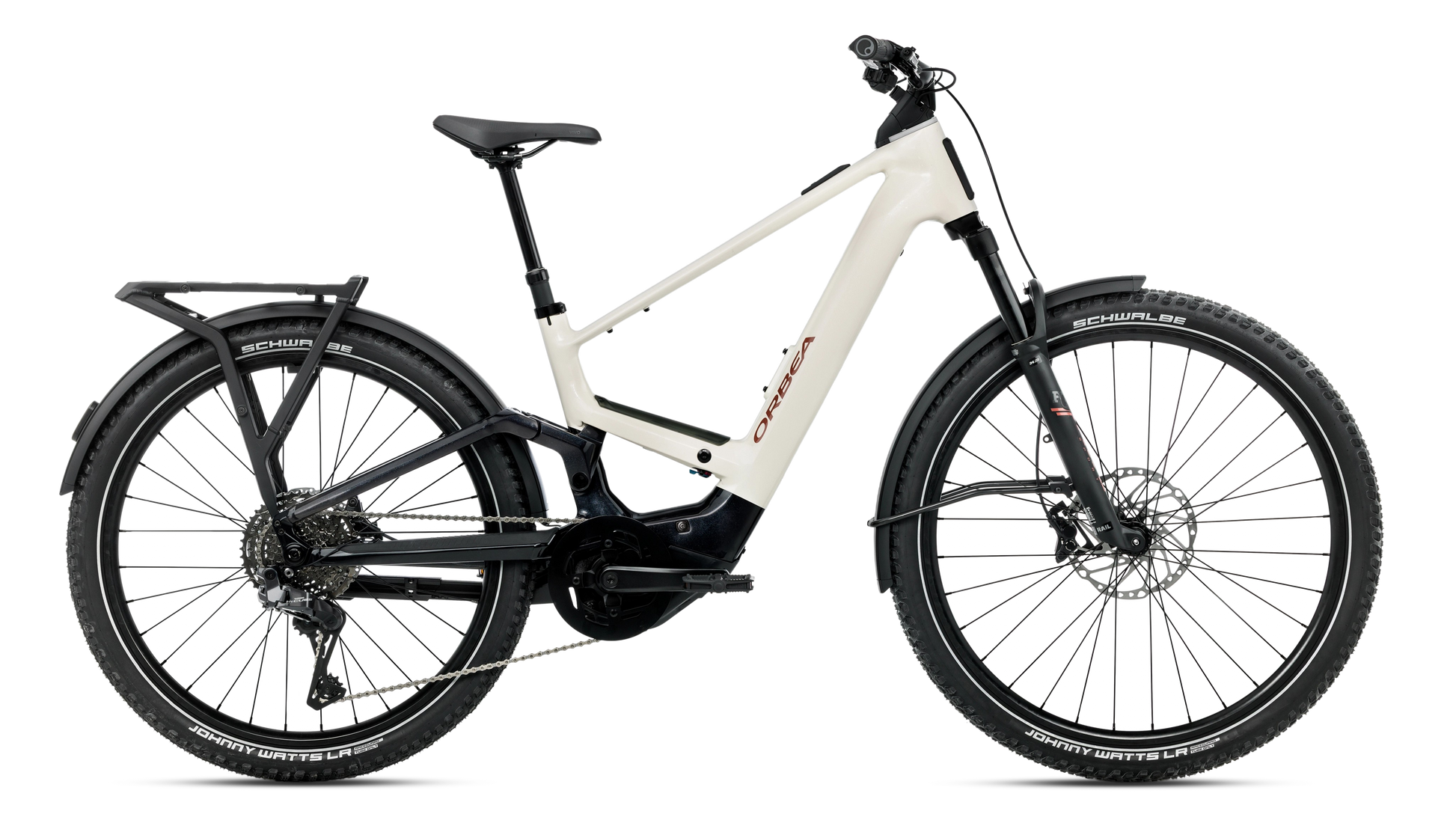

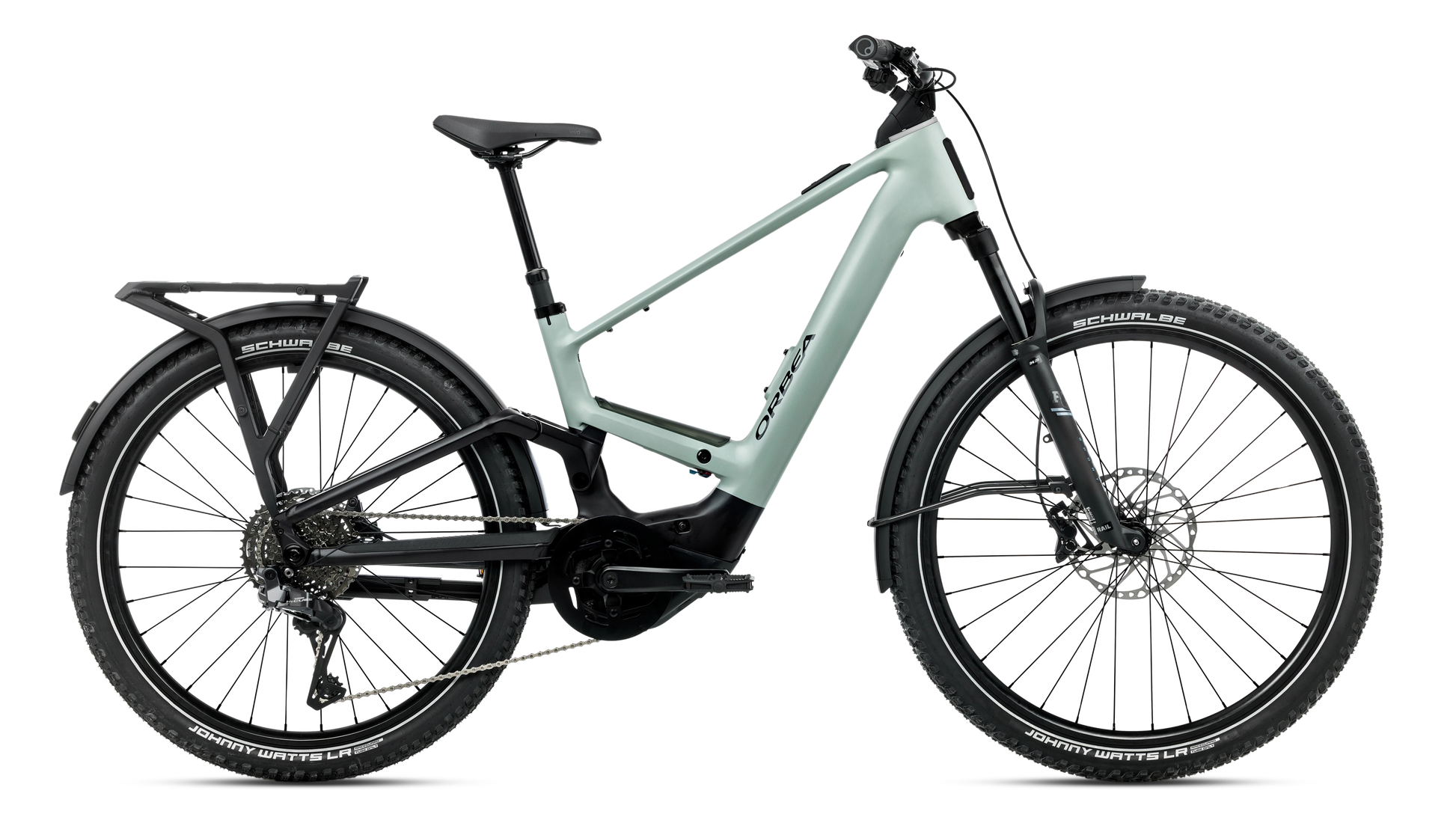

NEW 2027 Orbea MUGA 20 28mph Electric Hybrid Bike - Shimano CUES Di2 U8050

The 2027 Orbea Muga 20 is a premium full-power all-terrain electric SUV bike built to go anywhere - fast on the commute and capable on the trail. Built on Orbea's aluminum Muga frame with a 120mm Fox suspension fork and powered by a Bosch Performance Line Speed CX motor with a massive 750Wh battery, it pairs effortless, high-torque assistance with serious off-road capability and fully integrated lighting.

Bosch Speed Full-Power Assist

The Bosch Performance Line Speed CX drive unit delivers up to 85Nm of torque and Class 3 (28 mph) assistance with Bosch's renowned smooth, powerful, natural feel. The integrated 750Wh Bosch PowerTube battery delivers exceptional range, managed by the Bosch System Controller and Bosch's proven, reliable ecosystem. There's plenty of power to flatten climbs or haul a fully loaded bike.

Trail-Ready Capability

A 120mm Fox 34 Float air fork and grippy 29-inch Schwalbe Johnny Watts Hybrid Radial tires deliver real off-road composure, while a dropper seatpost lets you drop the saddle for steep or technical sections. An electronic Shimano CUES Di2 U8050 11-speed drivetrain shifts crisply across a wide 11-45t range.

Built to Carry & Commute

Orbea's patented four-position cockpit dials in the perfect fit, while a fully integrated StVZO lighting system, robust mudguards, and a rear carrier make the Muga ready for cargo, adventure, and everyday duty.

Available in three colorways - Metallic Rust / Diamond Black, Ivory White / Black, and Blue Stone / Diamond Black - in sizes S-XL.

KEY FEATURES:

• Bosch Performance Line Speed CX motor (up to 85Nm) with integrated 750Wh PowerTube battery
• Class 3 / 28mph pedal-assist e-bike
• Aluminum Orbea Muga frame, 29-inch wheels, belt-drive compatible
• Fox 34 Float AWL Sport 120mm suspension fork
• Shimano CUES Di2 U8050 electronic 11-speed drivetrain (11-45t)
• Shimano MT420 hydraulic disc brakes, dropper seatpost
• Integrated StVZO lighting, mudguards, rear carrier compatible

BUILD KIT:

• Frame: Orbea Muga, Hydroformed Alloy 6061
• Fork: Fox 34 Float AWL Sport 120mm
• Motor: Bosch Performance Line Speed CX (up to 85Nm)
• Battery: Bosch PowerTube 750Wh
• Display: Bosch System Controller
• Rear Derailleur: Shimano CUES Di2 U8050 11-Speed SGS
• Shifter: Shimano CUES Di2
• Cassette: Shimano CS-LG400 11-45t, 11-Speed
• Chain: KMC eGlide
• Brakes: Shimano MT420 Hydraulic Disc
• Crank: Prowheel EB03 alloy
• Wheels: Alloy, 29-inch, 32H
• Tires: Schwalbe Johnny Watts Hybrid Radial TLR 60-622, reflective
• Seatpost: Dropper (OC remote)
• Saddle: Selle Royal Vivo Ergo
• Lighting: Integrated StVZO front and rear

SIZING: Orbea recommended rider height by size (approximate):

• S: 153-172 cm (5'0"-5'8")
• M: 164-183 cm (5'5"-6'0")
• L: 176-195 cm (5'9"-6'5")
• XL: 187-206 cm (6'2"-6'9")

FREQUENTLY ASKED:

• How fast is the Orbea Muga 20? It's a Class 3 e-bike with pedal assist up to 28 mph.
• What motor and battery does it use? Bosch Performance Line Speed CX (up to 85Nm) with an integrated 750Wh Bosch PowerTube battery.
• What is the Muga built for? Premium all-terrain "SUV" riding - fast paved commutes plus real trails - with a 120mm fork, dropper post, wide tires, lights, mudguards and rack mounts, powered by Bosch's Speed system.
• How does the Muga 20 compare to the Muga 30? The 20 upgrades to a Fox air fork, an electronic CUES Di2 drivetrain, and the larger 750Wh battery; the 30 uses an SR Suntour fork, mechanical CUES U6000, and a 600Wh battery.
• What's new for 2027? The Muga is Orbea's premium Bosch-powered all-terrain urban platform with the Speed CX motor, big PowerTube battery, patented four-position cockpit, and integrated lighting.
