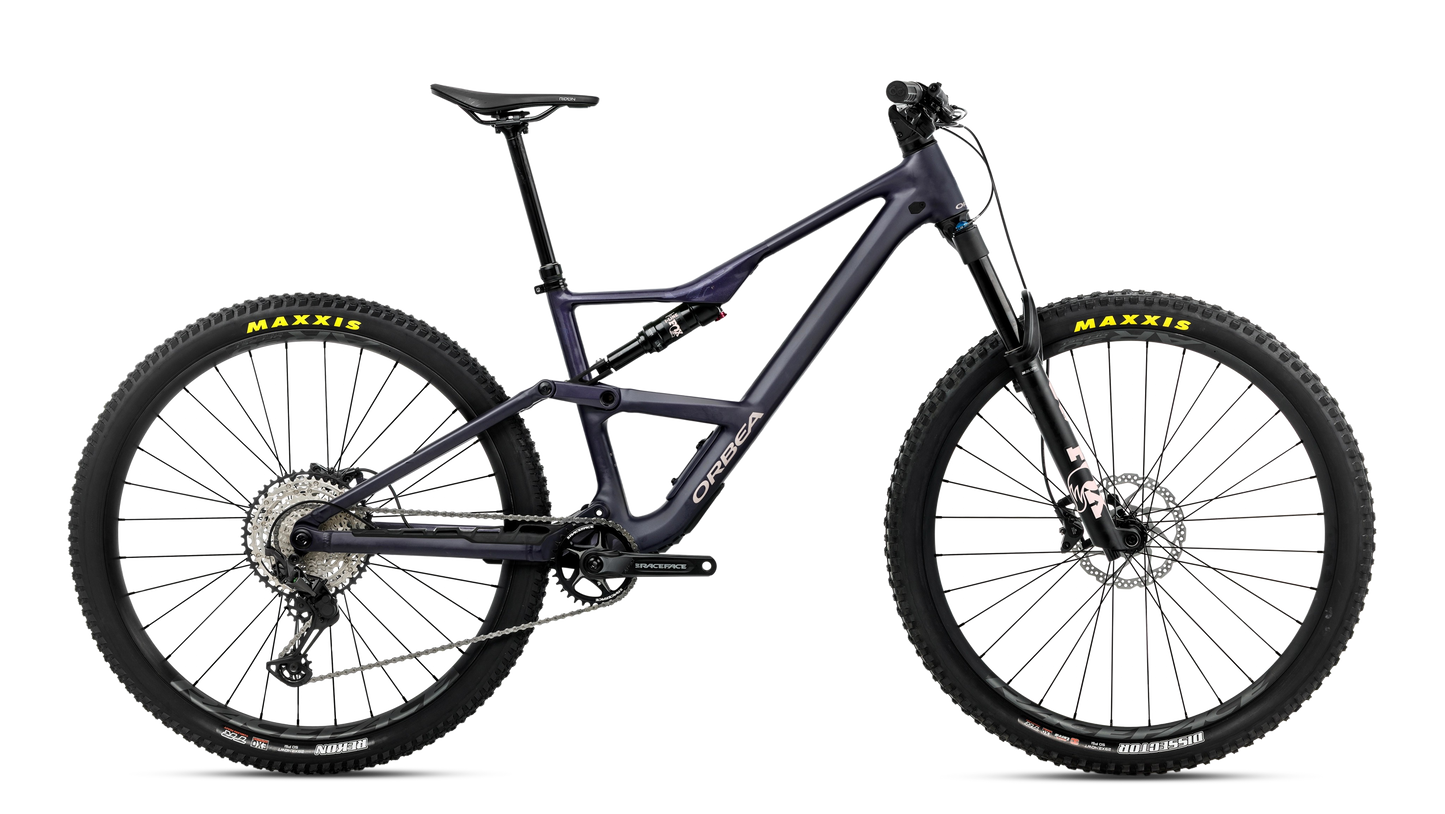

NEW 2027 Orbea Occam SL H10 Mountain Bike - Shimano XT M8200

The 2027 Orbea Occam SL H10 is a short-travel trail full-suspension bike that adds a premium Fox 36 fork and a Shimano XT drivetrain to the capable alloy Occam platform. With Orbea's Concentric suspension, Pure Trail geometry, a dropper post, and 140mm of front travel, the Occam SL H10 climbs eagerly and descends with composure - a do-it-all trail bike for riders who want a sharper build without stepping up to carbon.

Concentric Trail Full-Suspension Frame

Orbea's Occam Hydro alloy frame uses the Concentric rear suspension layout and Pure Trail geometry for a balanced, efficient ride that pedals well on climbs and stays composed on the way down. Boost 12x148 spacing, 29" wheels, and a clean asymmetric design round out a capable modern trail platform.

Fox 36 Fork + Squidlock Remote

A 140mm Fox 36 Float SL fork brings big-bike steering precision to the front end, while Orbea's OC Squidlock remote firms up both the fork and rear shock - and drops the seatpost - from a single lever. It's an intuitive way to switch from efficient climbing to full-open descending.

Shimano XT 12-Speed Drivetrain

A Shimano XT M8200 rear derailleur and shifter deliver crisp, precise mechanical shifting across a wide 10-51t range, and Shimano MT600 hydraulic disc brakes add extra stopping power. Race Face AR wheels and a Race Face Aeffect crank sharpen the whole package.

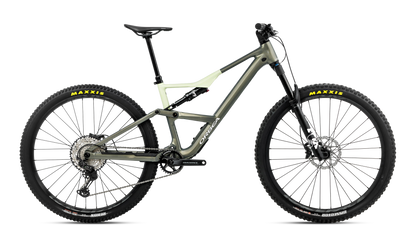

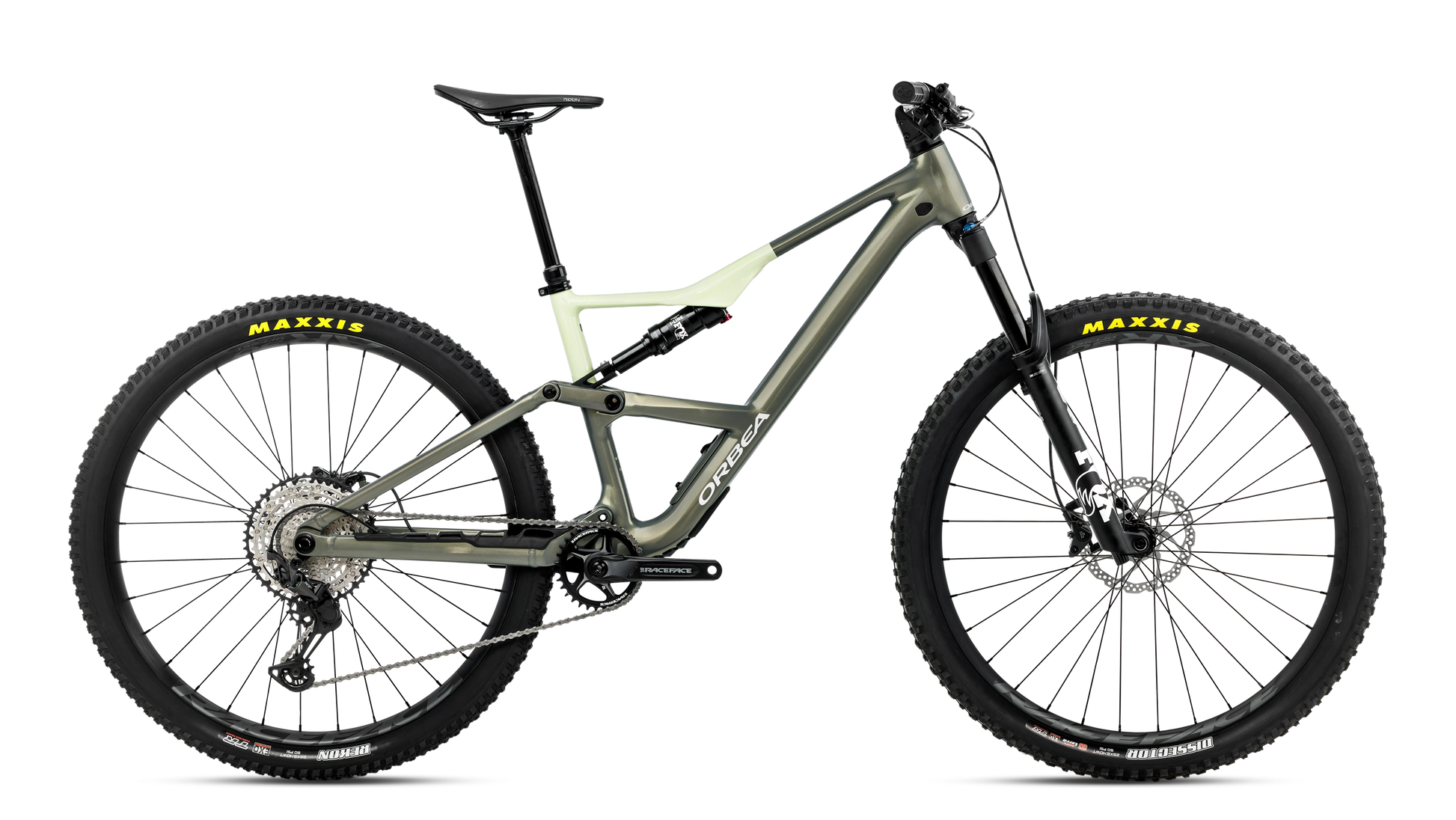

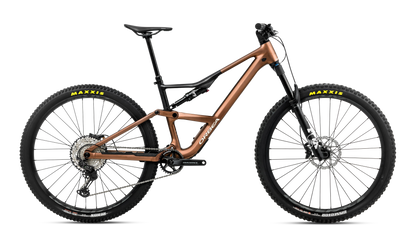

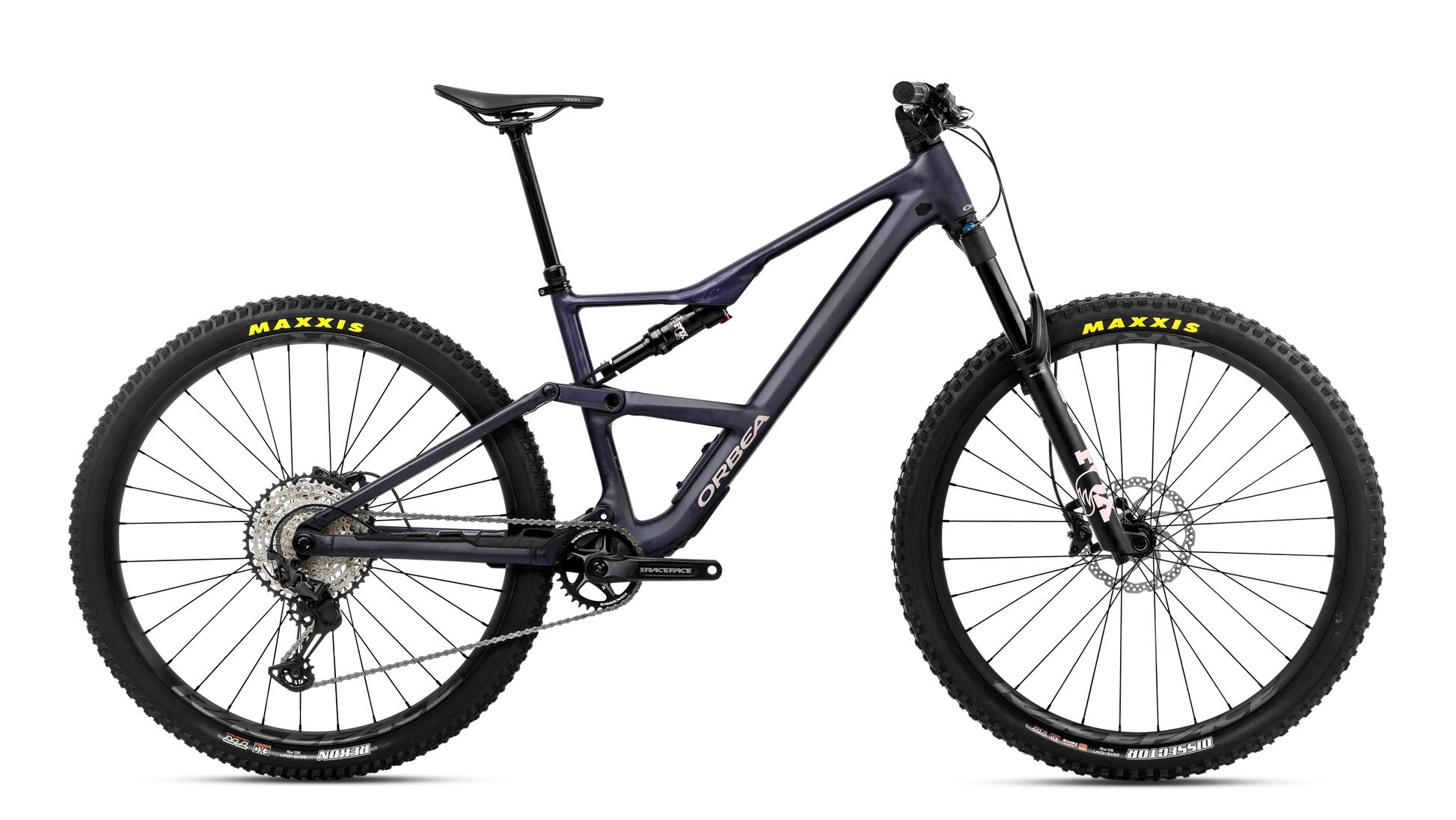

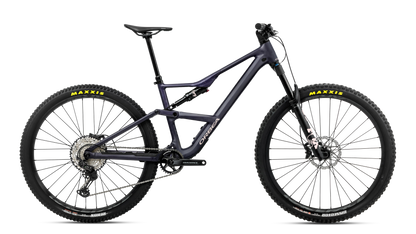

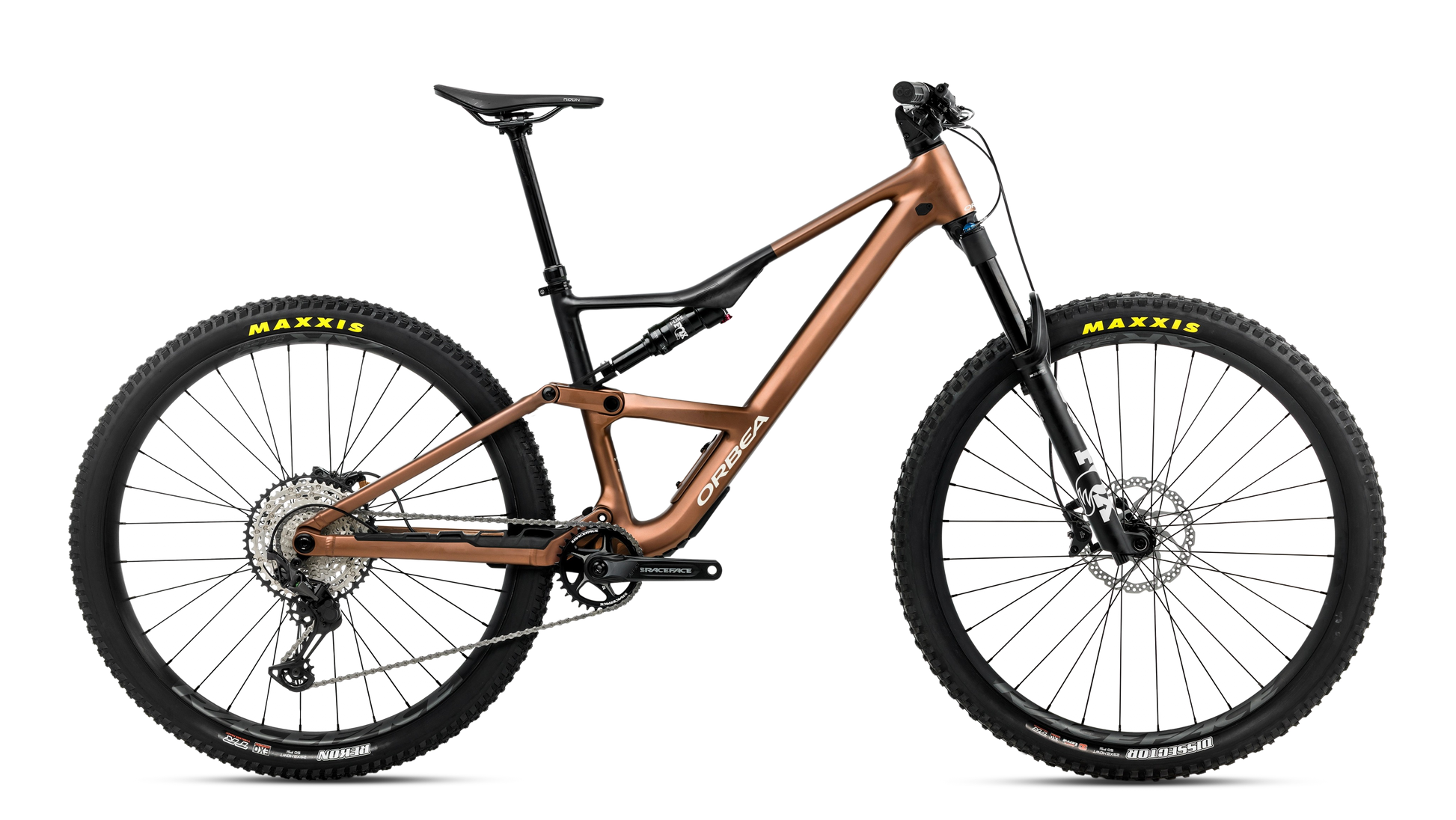

Available in three colorways - Cinnamon - Black, Green - Gum, and Tanzanite - in sizes S-XL.

KEY FEATURES:

• Orbea Occam Hydro alloy frame, Concentric suspension, Pure Trail geometry
• 140mm Fox 36 Float SL fork + Fox Float shock
• OC Squidlock remote (suspension lockout + dropper)
• Dropper seatpost
• Shimano XT M8200 12-speed drivetrain
• Shimano MT600 hydraulic disc brakes
• Race Face AR tubeless-ready 29" wheels
• Maxxis Dissector 2.40" tires, sizes S-XL

BUILD KIT:

• Frame: Orbea Occam Hydro alloy, Concentric, Boost 12x148, Pure Trail geometry, 29"
• Fork: Fox 36 Float SL Performance 140mm, Grip, Remote Push-lock, QR15x110
• Shock: Fox Float Performance, Remote Push-lock, Evol, 210x50mm
• Remote: OC Squidlock MP11 (suspension + dropper)
• Headset: FSA 1-1/2" Integrated Aluminium Cup
• Stem: OC Mountain Control MC21, 0deg
• Handlebar: OC Mountain Control MC30, Rise 20, 800mm
• Brakes: Shimano MT600 Hydraulic Disc
• Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
• Shifter: Shimano XT M8200 I-Spec EV
• Cassette: Shimano CS-M6200 10-51t 12-Speed
• Chain: Shimano M6100
• Crankset: Race Face Aeffect, 32t
• Wheels: Race Face AR 30c, Tubeless Ready
• Tires: Maxxis Dissector 2.40" 60TPI Fold Exo TR
• Seatpost: Dropper post (OC Squidlock controlled)
• Saddle: Fizik Terra Ridon X5 145mm

SIZING: Orbea's recommended rider height by size (approximate):

• S: 150-165 cm (4'11"-5'5")
• M: 165-177 cm (5'5"-5'10")
• L: 177-188 cm (5'10"-6'2")
• XL: 186-198 cm (6'1"-6'6")

FREQUENTLY ASKED:

• Is the Occam SL a trail bike? Yes - it's a short-travel full-suspension trail bike with Orbea's Concentric suspension and Pure Trail geometry, built to climb efficiently and descend confidently.
• How much travel does it have? A 140mm fork paired with Orbea's Concentric rear suspension - an efficient short-travel trail setup. For longer travel and more aggressive terrain, step up to the Occam LT.
• Does it come with a dropper post? Yes - and the OC Squidlock remote controls both the dropper and the fork/shock lockout from one lever.
• Is the frame aluminum or carbon? The H10 uses Orbea's Occam Hydro alloy frame; the M-series steps up to OMR carbon.
• How does the H10 step up from the H30? The H10 upgrades to a Fox 36 fork, a Shimano XT M8200 drivetrain, Shimano MT600 brakes, Race Face AR wheels and Aeffect crank, and a Fizik saddle.
• What's new for 2027? Refreshed Shimano XT 12-speed spec and new 2027 colorways.
