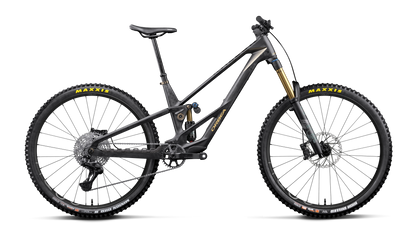

NEW 2027 Orbea Rallon RS-TEAM 20mph Carbon Electric Enduro Mountain Bike - Shimano XT M8260 Di2

The 2027 Orbea Rallon RS-TEAM is a lightweight electric enduro mountain bike that rides like an analog bike with a quiet helping hand. Built on Orbea's Rallon RS OMR carbon frame with 180mm of front travel and 170mm out back, and powered by the ultra-compact TQ HPR40 motor and an integrated 290Wh battery, it keeps eMTB weight remarkably low while delivering near-silent, natural assistance on the climbs and full downhill capability on the way down.

TQ HPR40 Lightweight Assist

The compact, near-silent TQ HPR40 Harmonic Pin Ring drive delivers up to 40Nm of torque and 200W of peak assistance that never overpowers your own input - so the Rallon RS climbs with a smooth, natural feel while keeping system weight to a minimum. The integrated 290Wh battery and clean cockpit keep the bike light and balanced, and as a Class 1, 20mph pedal-assist eMTB it's trail-legal wherever Class 1 ebikes are allowed.

Downhill-Focused Enduro Geometry, 170mm Travel

With 180mm up front from a Fox 38 Float Factory fork and 170mm out back via a Fox Float X2 Factory shock, the Rallon RS OMR carbon frame is built to dominate descents. Downhill-inspired geometry, a low center of gravity, and Mullet-or-29" wheel compatibility let you set the bike up to charge the steepest, roughest enduro terrain.

Shimano XT Di2 Team Build

The RS-TEAM runs Shimano's wireless XT M8260 Di2 12-speed drivetrain, powerful Shimano XT 4-piston hydraulic disc brakes, an integrated OC electronic dropper post, grippy Maxxis High Roller III MaxxGrip tires, and Oquo Mountain Control alloy wheels - a hard-charging enduro build ready to ride out of the shop.

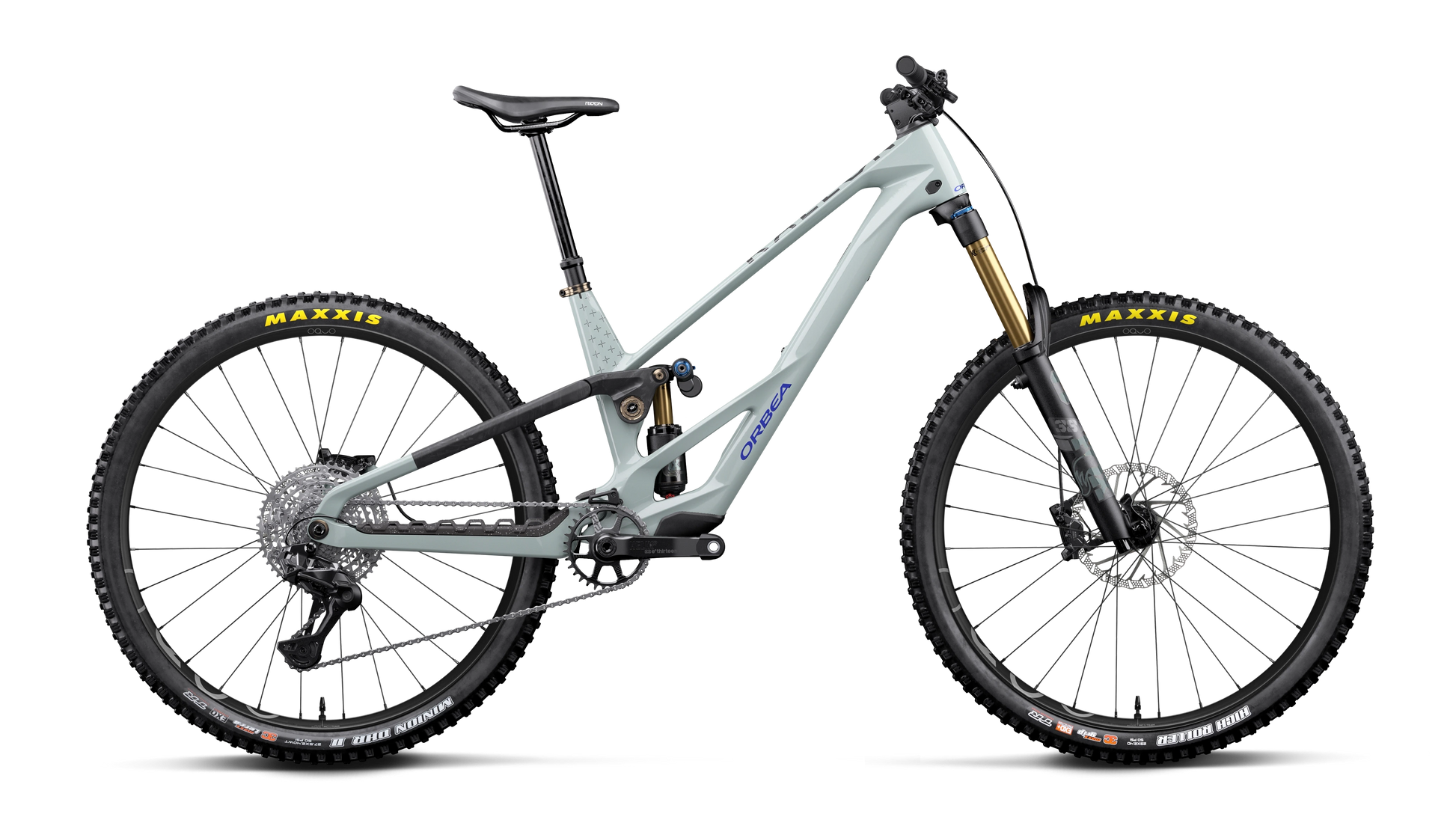

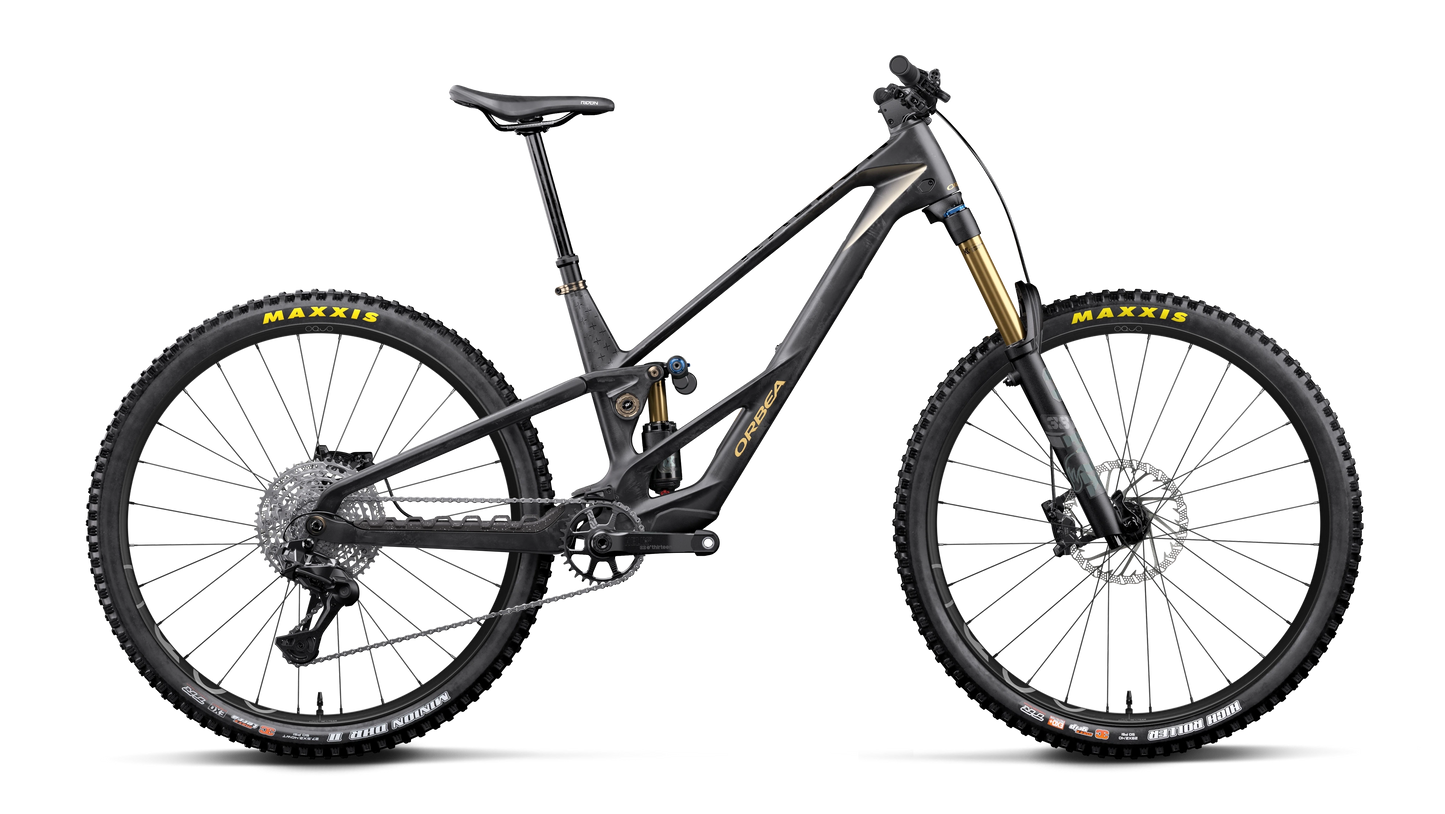

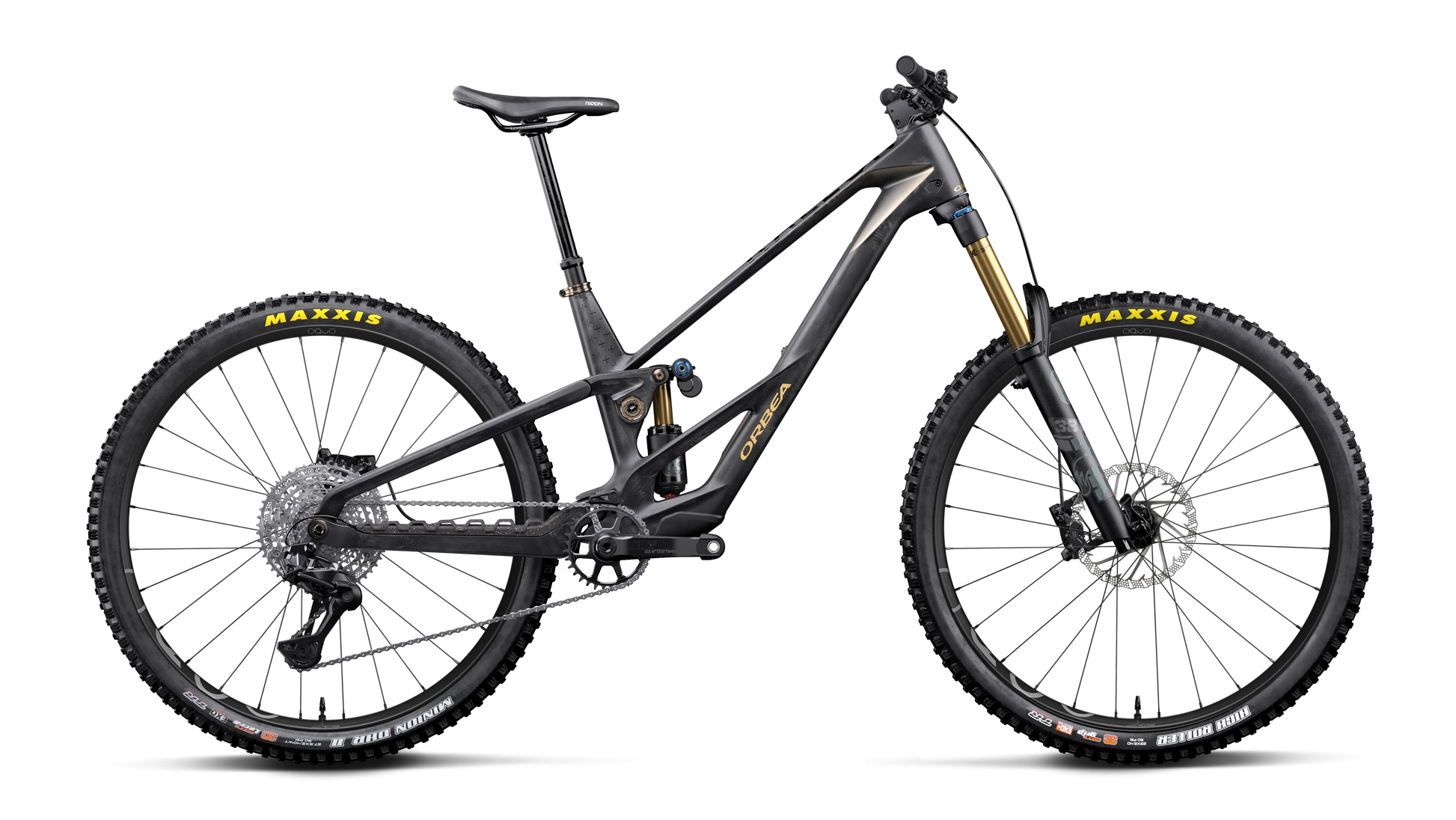

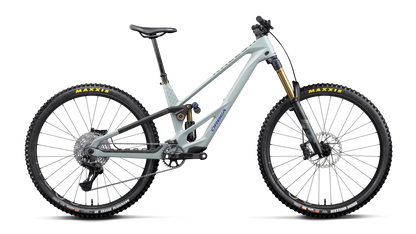

Available in three colorways - Fuel Carbon View / Magic Gold (Matt), Frozen Concrete (Gloss) / Diamond Carbon View (Matt), and MyO custom paint - in sizes S-XL.

KEY FEATURES:

• TQ HPR40 motor (up to 40Nm, 200W peak) with integrated 290Wh battery
• Class 1 / 20mph pedal-assist eMTB
• 180mm front / 170mm rear travel
• Fox 38 Float Factory fork + Fox Float X2 Factory shock
• Orbea Rallon RS OMR carbon frame (Mullet & 29" compatible)
• Shimano XT M8260 Di2 wireless 12-speed drivetrain
• Shimano XT 4-piston hydraulic disc brakes
• Maxxis High Roller III 2.40" MaxxGrip tires
• Oquo Mountain Control MC32TEAM wheels
• Integrated OC electronic dropper post

BUILD KIT:

• Frame: Orbea Rallon RS OMR Carbon, Mullet & 29" compatible, Concentric Boost 12x148
• Fork: Fox 38 Float Factory, GRIP X2, 180mm, QR15x110, Kashima
• Rear Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust, Kashima custom tune, 205x62.5mm
• Headset: Alloy 1-1/2", Black Oxidated Bearing
• Motor: TQ HPR40
• Battery: TQ HPR 290Wh
• Charger: TQ Charger 4A
• Crank: e*thirteen Helix Race alloy 32T
• Chainguide: Orbea eBike chainguide
• Shifter: Shimano XT M8250 (Di2 wireless)
• Rear Derailleur: Shimano XT M8260 SGS (Di2)
• Cassette: Shimano CS-M8200 10-51t 12-Speed
• Chain: Shimano M7100
• Brakes: Shimano XT 8220 4-Piston Hydraulic Disc
• Stem: OC Mountain Control MC11 Alu SL, 0º
• Handlebar: OC Mountain Control MC10 Carbon, Rise 20, Width 800
• Wheels: Oquo Mountain Control MC32TEAM
• Tires: Maxxis High Roller III 2.40" 60 TPI 3CG/EXO+/TR MaxxGrip
• Saddle: Fizik Terra Ridon X5 145mm
• Seatpost: OC Mountain Control MC10, 31.6mm, Electronic Dropper
• Computer Mount: OC Computer Mount CM-05 (Garmin)

SIZING: Orbea's recommended rider height by size (approximate):

• S: 150-170 cm (4'11"-5'7")
• M: 160-180 cm (5'3"-5'11")
• L: 170-190 cm (5'7"-6'3")
• XL: 180-200 cm (5'11"-6'7")

FREQUENTLY ASKED:

• How fast is the Orbea Rallon RS-TEAM? It's a Class 1 eMTB with pedal assist up to 20 mph.
• What motor and battery does it use? The lightweight TQ HPR40 motor (up to 40Nm, 200W peak) with an integrated 290Wh battery.
• What's the travel and wheel setup? 180mm front / 170mm rear travel; the frame is compatible with full 29" or mixed "mullet" (29" front / 27.5" rear) wheels - this TEAM model ships in the full 29" configuration.
• Does it come with a dropper post? Yes - an integrated OC electronic dropper post is included.
• Is it a full-power eMTB? No - it's a lightweight eMTB. The TQ HPR40 delivers natural, near-silent assistance that supplements (never overpowers) your input for a ride feel close to an analog bike.
• How does the RS-TEAM compare to the higher RS-LTD? The RS-LTD steps up to a Fox Float X2 Live Valve Neo electronic shock, Shimano XTR M9260 Di2 shifting and XTR 4-piston brakes, Oquo MC32LTD wheels, and a Fizik Terra Ridon X1 saddle. The RS-TEAM delivers the same frame, motor, travel and geometry at a more accessible price.
• What's new for 2027? The Rallon RS is Orbea's all-new lightweight enduro eMTB - it brings the Rallon's downhill-focused 170mm enduro platform to the ultra-compact TQ HPR40 drive and a 290Wh battery, keeping weight remarkably low (~17.5kg) while preserving the Rallon's analog-like handling.
