NEW 2027 Orbea TERRA H40 Gravel Bike - Shimano Cues U6040

The 2027 Orbea Terra H40 is a do-it-all aluminium gravel bike that steps up to an 11-speed Shimano Cues drivetrain for finer gearing and added range. Built on the hydroformed triple-butted Terra Hydro alloy frame with a full-carbon Terra Race fork, it's ready for gravel, all-road, and bikepacking adventures.

Terra Alloy Frame + Carbon Fork

The hydroformed triple-butted aluminium Terra frame brings smart gravel geometry, internal cable routing, a 12x142 thru-axle, fender mounts, and MMS accessory mounts for racks, bags, and bottles. The full-carbon Terra Race ICR fork trims weight and smooths rough surfaces.

Shimano Cues 11-Speed Drivetrain

A Shimano Cues 2x11 drivetrain with U6030 shifters and an 11-36t cassette delivers smooth, closely-spaced shifts for varied terrain. Shimano RS405 hydraulic disc brakes provide strong, controlled all-weather stopping.

Gravel-Ready Roll

Tubeless-ready 700c alloy wheels and grippy Vittoria Terreno T50 700x40c tires keep the Terra H40 confident on dirt, gravel, and pavement - a versatile partner for any route.

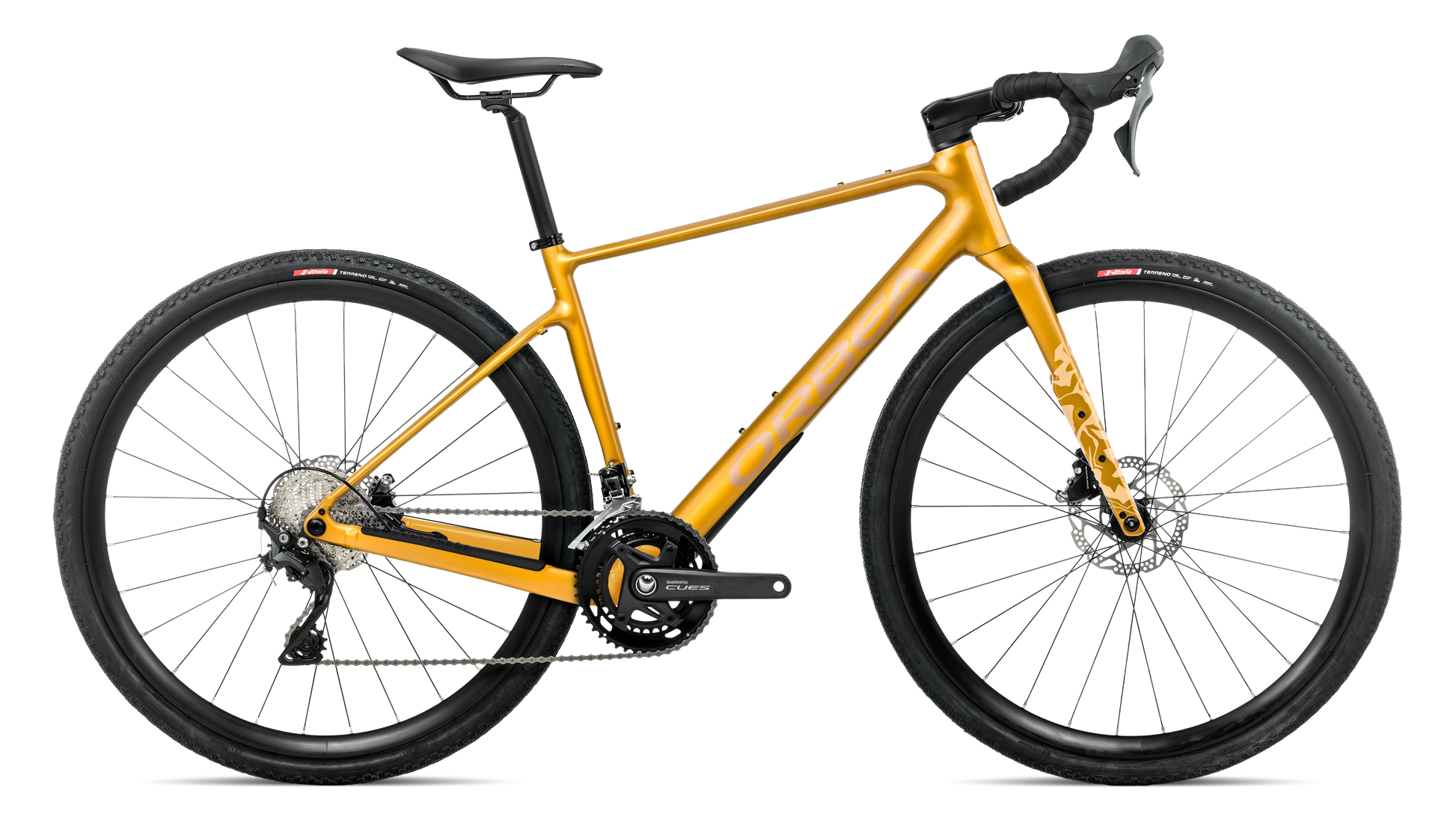

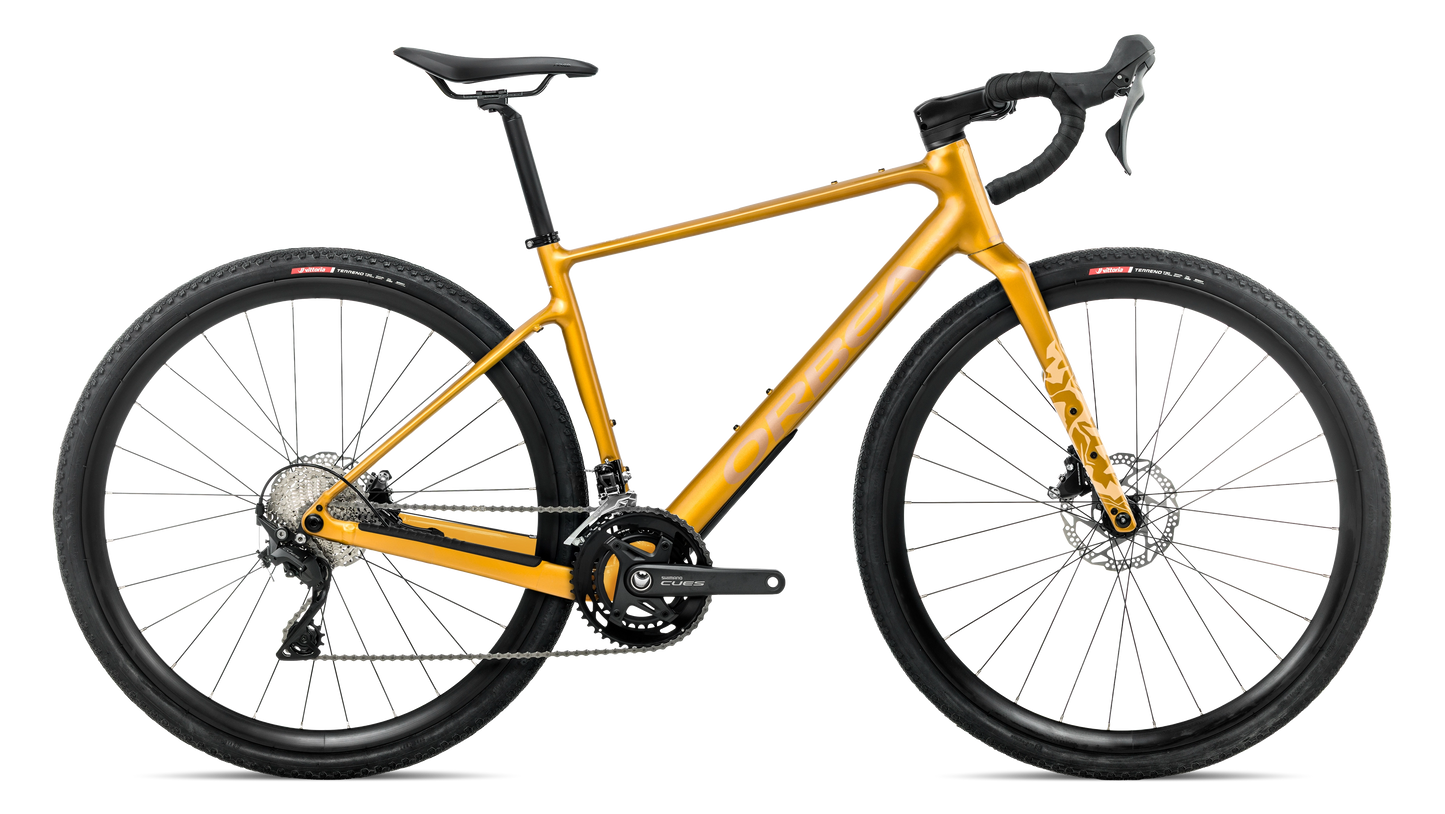

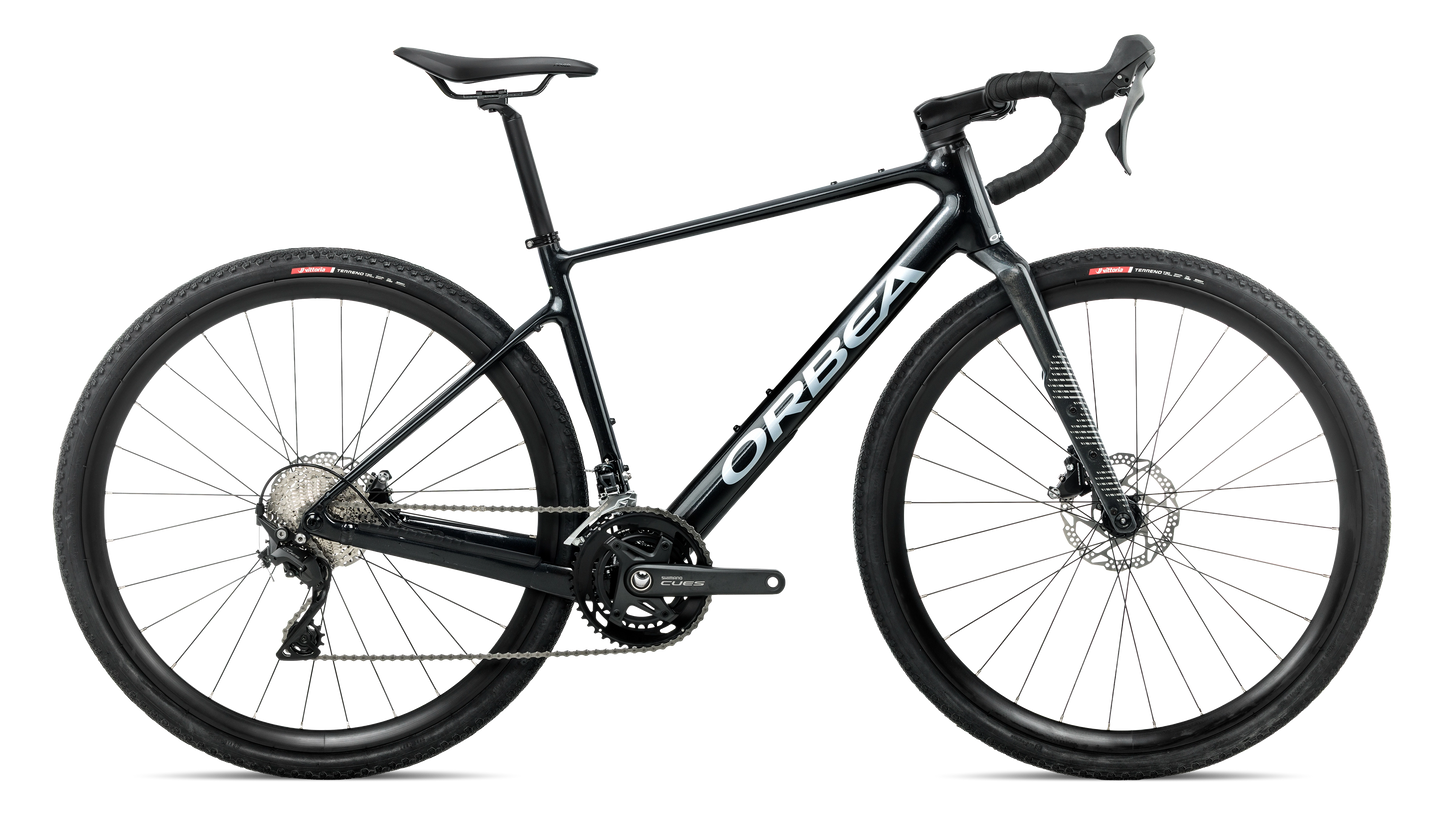

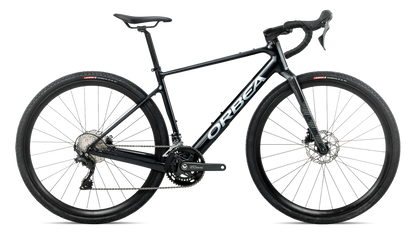

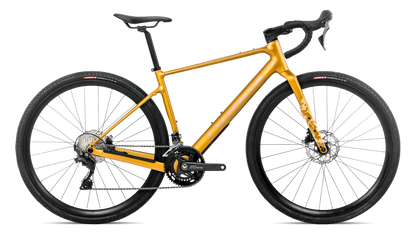

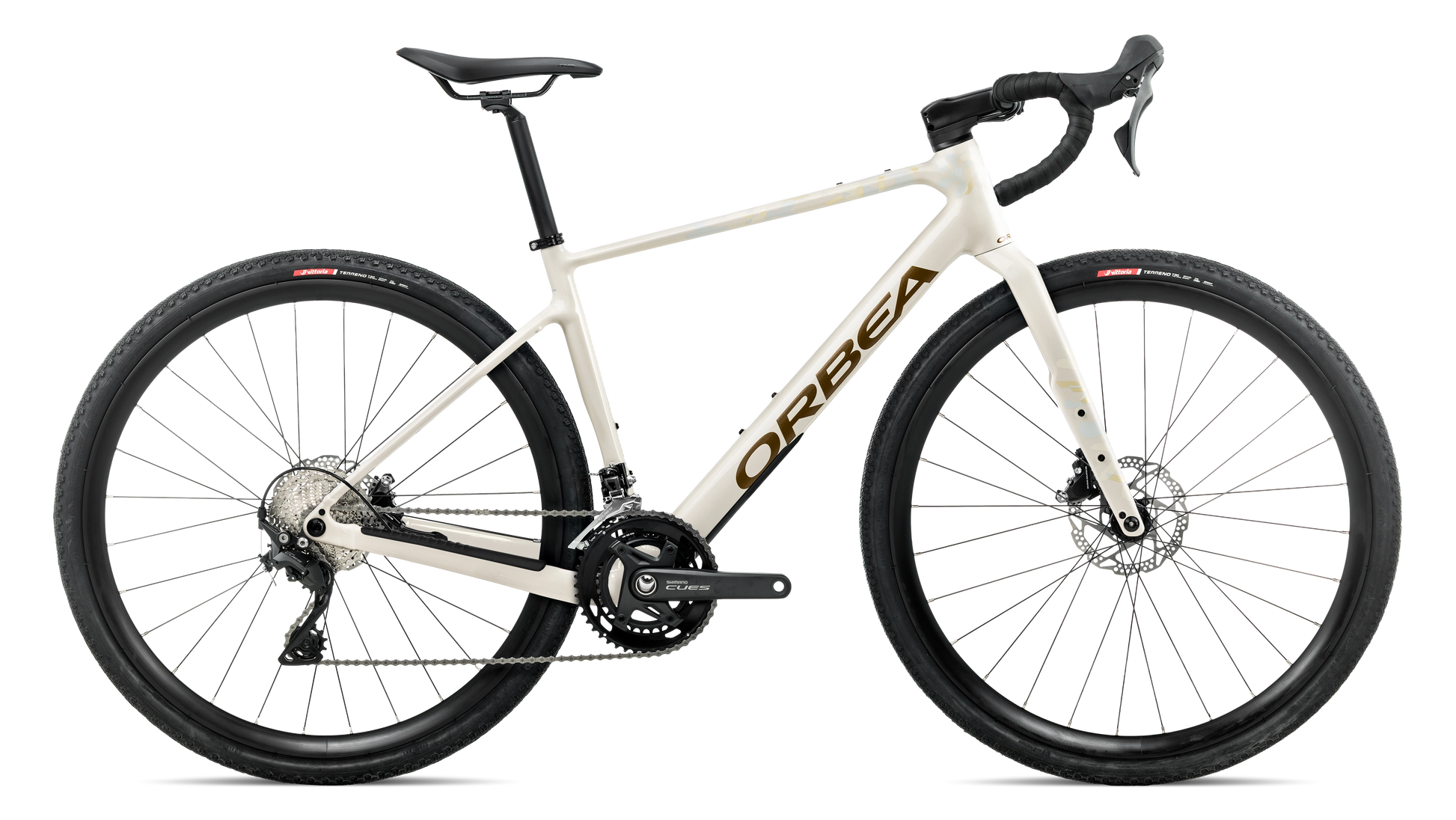

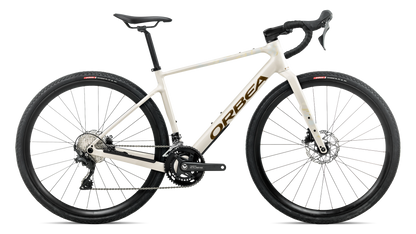

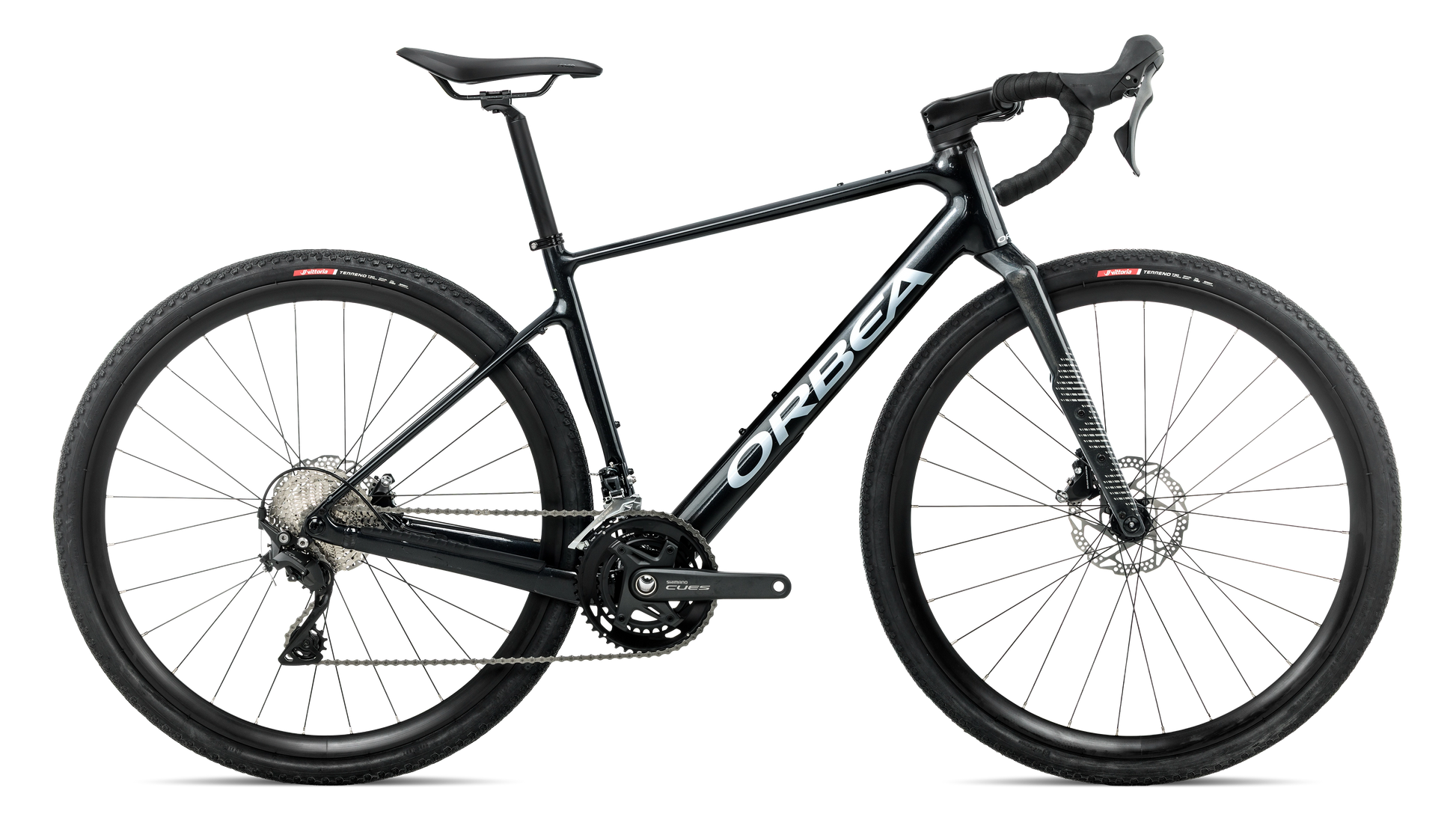

Available in three colorways - Diamond Black - Diamond Carbon View, Bumblebee Yellow - Brown, and Ivory White - Metallic Olive Green - in sizes XS-XXL.

KEY FEATURES:

• Orbea Terra Hydro hydroformed triple-butted alloy frame, 12x142, internal routing, fender + MMS mounts
• Orbea Terra Race ICR full-carbon fork, 12x100
• Shimano Cues 2x11 drivetrain, 11-36t range
• Shimano RS405 hydraulic disc brakes
• Tubeless-ready 700c alloy wheels
• Vittoria Terreno T50 700x40c gravel tires
• Gravel geometry, sizes XS-XXL

BUILD KIT:

• Frame: Orbea Terra Hydro disc, hydroformed triple-butted aluminium, 12x142, internal routing, 27.2mm post
• Fork: Orbea Terra Race ICR full carbon, 12x100
• Brakes: Shimano RS405 Hydraulic Disc
• Rear Derailleur: Shimano Cues U6040 Shadow
• Shifters: Shimano U6030
• Cassette: Shimano CS-RS400 11-36t 11-Speed
• Chain: Shimano LG500
• Wheels: Alloy, Tubeless, 700c, 21c
• Tires: Vittoria Terreno T50 700x40c
• Saddle: Fizik Terra Argo X7
• Seatpost: SP 0.2 Carbon, 27.2mm
• Handlebar: OC Gravel GR31-R
• Stem: OC Road Performance RP23
• Headset: FSA 1-1/2" Integrated Aluminium

SIZING: Orbea's recommended rider height by size (approximate):

• XS: 155-166 cm (5'1"-5'5")
• S: 167-172 cm (5'6"-5'8")
• M: 173-179 cm (5'8"-5'10")
• L: 180-185 cm (5'11"-6'1")
• XL: 186-191 cm (6'1"-6'3")
• XXL: 192-207 cm (6'4"-6'9")

FREQUENTLY ASKED:

• Can I run tubeless tires? Yes - the 700c wheels are tubeless-ready.
• Can I add racks, fenders, or bags? Yes - the frame has fender mounts and MMS accessory mounts.
• What tire clearance does it have? It ships with 700x40c gravel tires with room for wider rubber.
• How does the H40 compare to the H50? The H40 upgrades to an 11-speed Shimano Cues drivetrain with a tighter 11-36t cassette versus the H50's 10-speed.
• What's the difference between the H40 and H40 1X? The H40 1X drops to a single front chainring with a wide 11-50t cassette for simpler, drop-free shifting.
• What's new for 2027? Updated Shimano Cues 11-speed spec and new 2027 Terra colorways.
