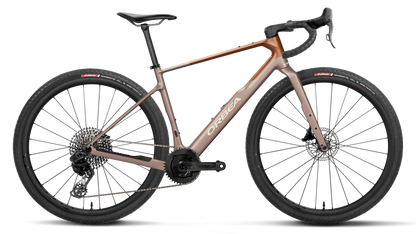

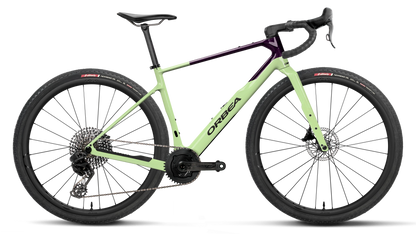

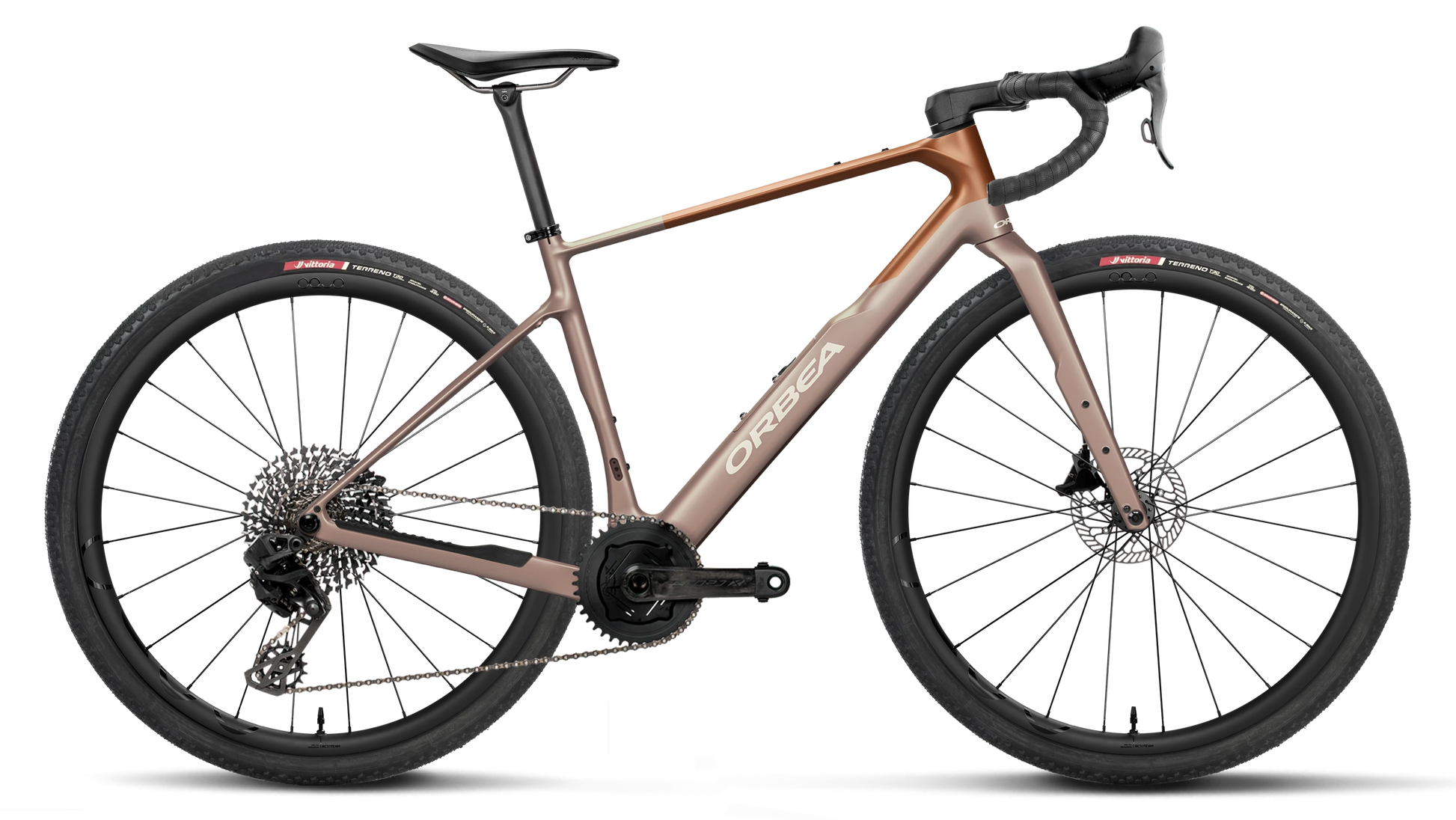

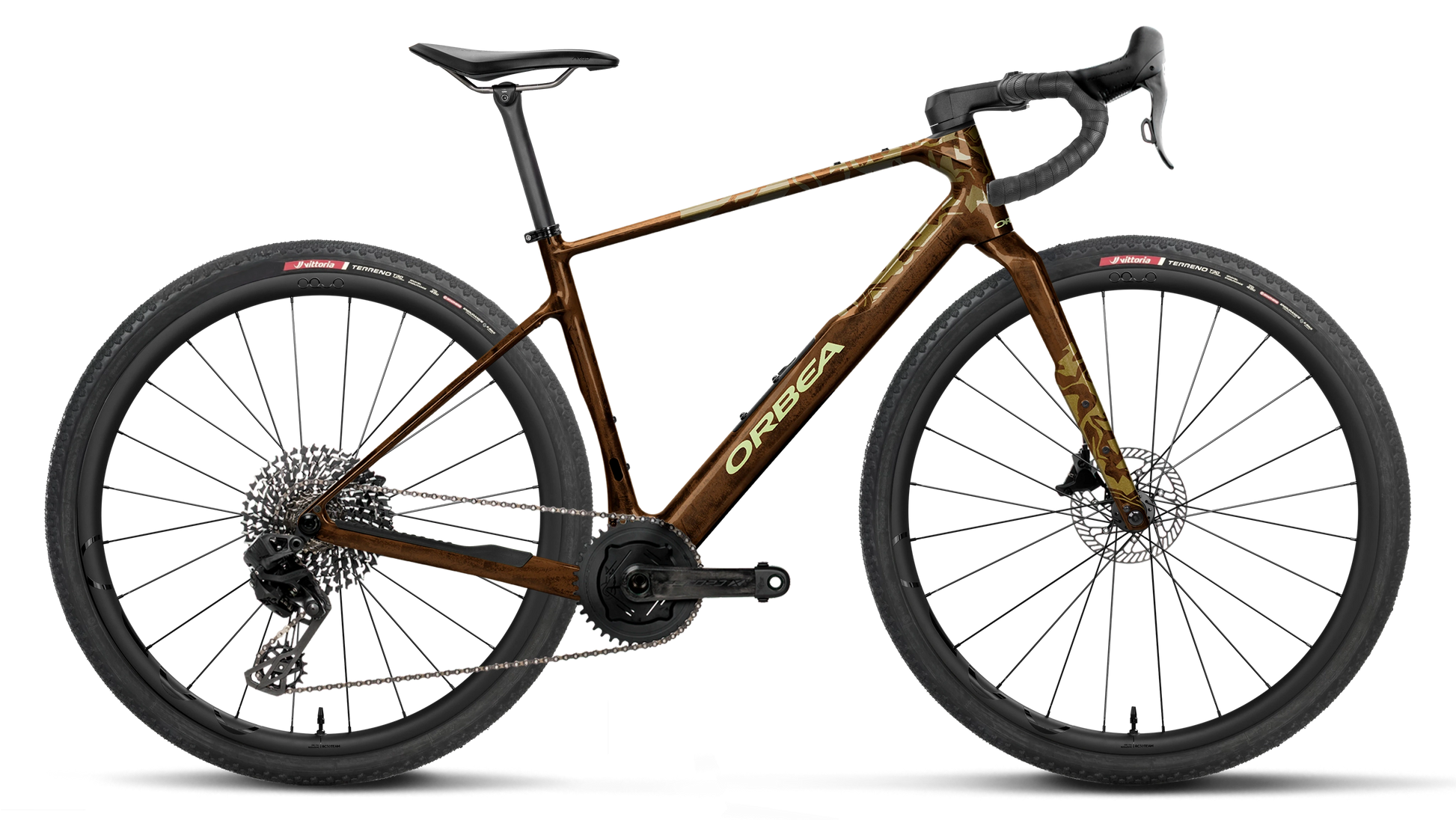

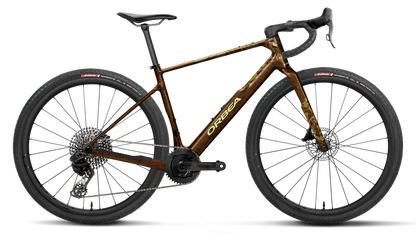

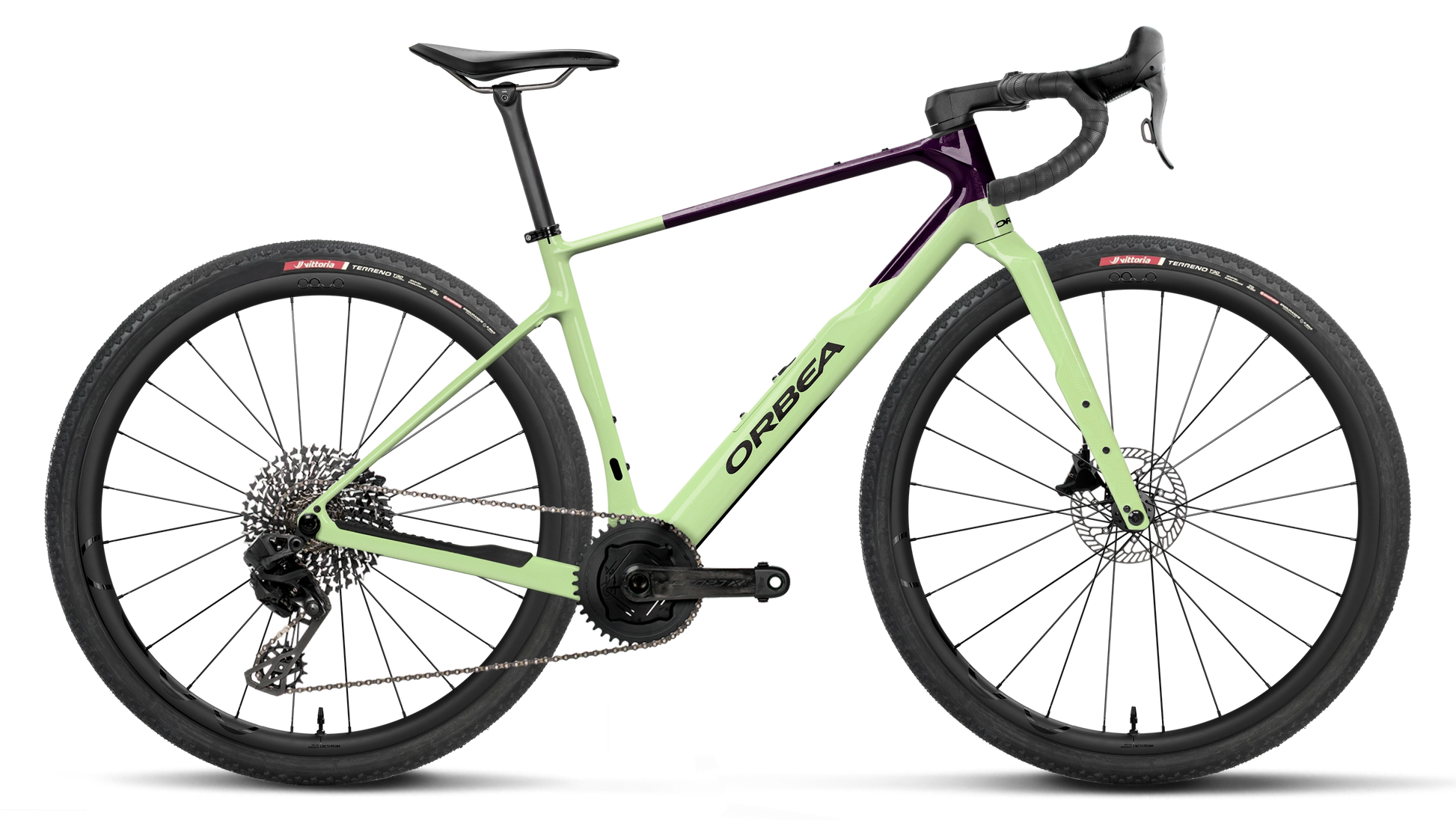

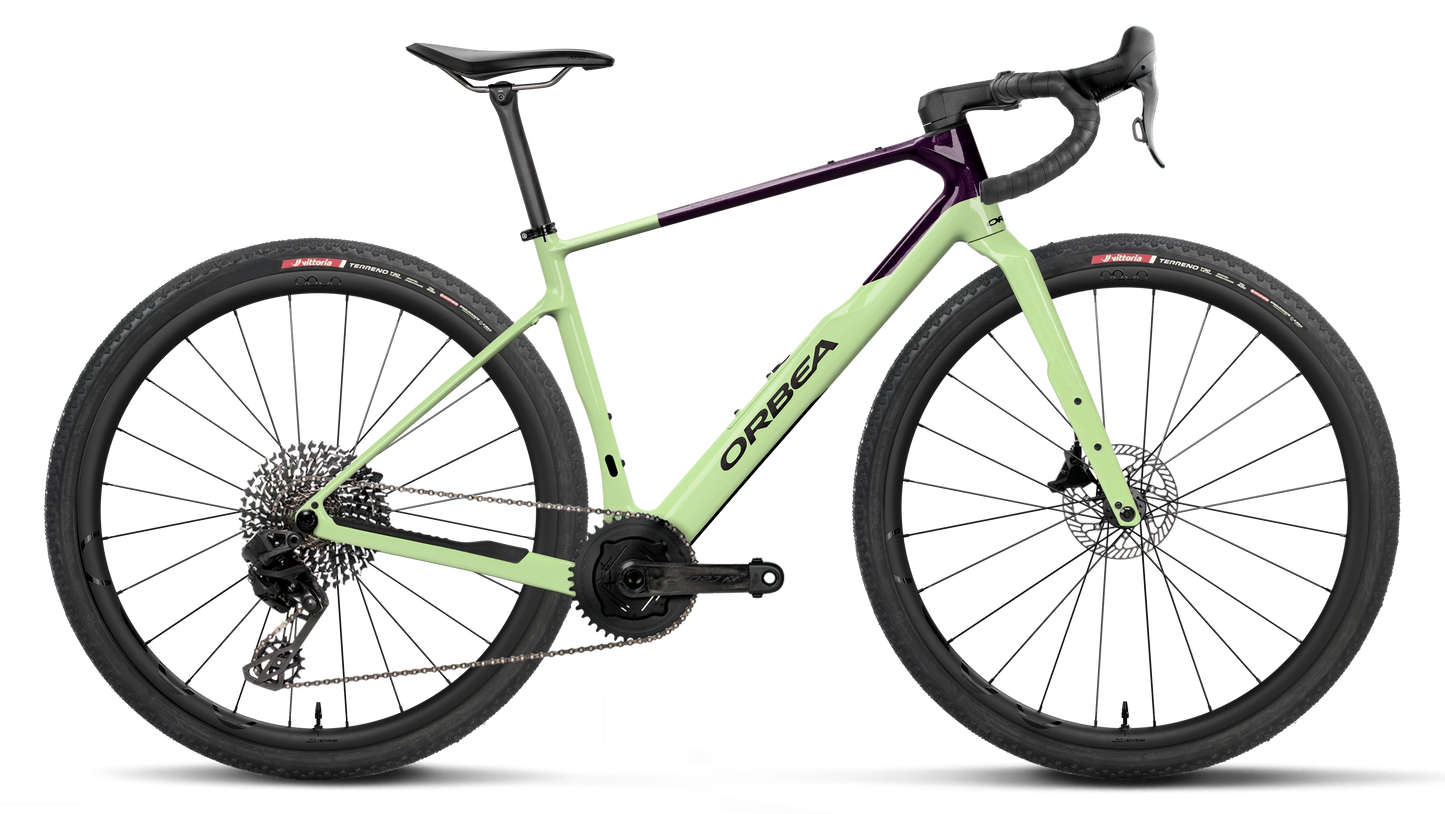

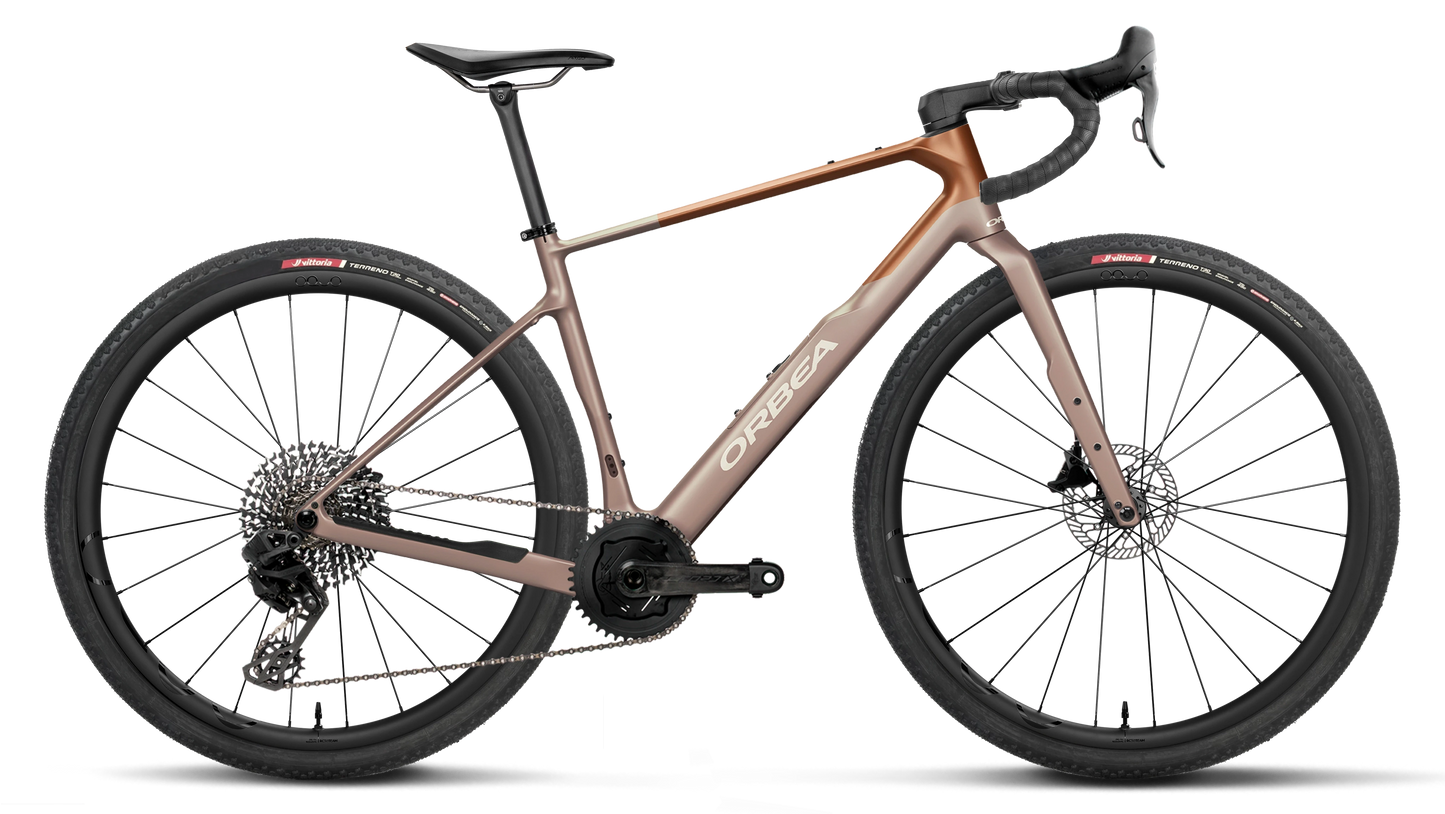

NEW 2027 Orbea TERRA M22 TEAM 1X Carbon Gravel Bike - Campagnolo Record X

The 2027 Orbea Terra M22 TEAM 1X is a distinctive carbon gravel bike built around Campagnolo's wireless Record X 1x13 electronic groupset and Oquo TEAM wheels. On the Terra OMR carbon platform, it delivers premium Italian shifting and a fast, race-ready ride.

Terra OMR Carbon Frame

The Terra OMR monocoque carbon frame is light and gravel-tuned, with internal routing, BB386EVO, a UDH dropout, power-meter compatibility, an integrated LOCKR downtube storage compartment, plus MMS and fender mounts. The full-carbon Terra Race ICR fork keeps the front end light and precise.

Campagnolo Record X Electronic Shifting

A wireless Campagnolo Record X 1x13 drivetrain with a wide 10-48t cassette delivers crisp, premium electronic shifting and a clean, drop-free cockpit. Campagnolo hydraulic disc brakes provide strong, refined control.

Oquo TEAM Wheels + Gravel Roll

Oquo Road Control RC30TEAM wheels and Vittoria Terreno T30 700x45c tubeless tires make the M22 TEAM 1X fast and confident across all terrain.

Available in three colorways - Nickel - Met Cinnamon, Acid Gum - Fantasy Purple Carbon View, and Caramel Carbon View - plus a custom MyO option - in sizes XS-XXL.

KEY FEATURES:

• Orbea Terra OMR monocoque carbon frame, 12x142, internal routing, UDH, power-meter ready, LOCKR storage
• Orbea Terra Race ICR full-carbon fork, 12x100
• Campagnolo Record X 1x13 wireless electronic drivetrain, 10-48t range
• Campagnolo hydraulic disc brakes
• Oquo Road Control RC30TEAM wheels
• Vittoria Terreno T30 700x45c gravel tires
• Gravel geometry, sizes XS-XXL

BUILD KIT:

• Frame: Orbea Terra OMR monocoque carbon, 12x142, internal routing, UDH, power-meter compatible, LOCKR storage, MMS + fender mounts
• Fork: Orbea Terra Race ICR full carbon, 12x100
• Brakes: Campagnolo Record Hydraulic Disc
• Rear Derailleur: Campagnolo Record X (13-speed, electronic)
• Shifters: Campagnolo Record
• Cassette: Campagnolo Record X 10-48t 13-Speed
• Chain: Campagnolo Super Record X
• Wheels: Oquo Road Control RC30TEAM
• Tires: Vittoria Terreno T30 700x45c
• Saddle: Fizik Terra Argo X3 Kium
• Seatpost: OC Performance XP10 Carbon, 27.2mm
• Handlebar: OC Gravel GR10 Carbon
• Stem: OC Road Performance RP11
• Headset: FSA 1-1/2" Integrated Aluminium

SIZING: Orbea's recommended rider height by size (approximate):

• XS: 155-166 cm (5'1"-5'5")
• S: 167-172 cm (5'6"-5'8")
• M: 173-179 cm (5'8"-5'10")
• L: 180-185 cm (5'11"-6'1")
• XL: 186-191 cm (6'1"-6'3")
• XXL: 192-207 cm (6'4"-6'9")

FREQUENTLY ASKED:

• Is the shifting electronic? Yes - Campagnolo Record X is wireless electronic shifting.
• Why Campagnolo? It offers premium, distinctive Italian shifting with a wide 1x13 gravel range.
• Why 1x for gravel? A single chainring keeps the cockpit clean and drop-free, ideal for rough terrain.
• Can I add a power meter? Yes - the frame is power-meter compatible.
• What is the LOCKR compartment? An integrated downtube storage door for tools and essentials.
• What's new for 2027? Campagnolo Record X 1x13 spec, Oquo TEAM wheels, and new 2027 Terra colorways.
