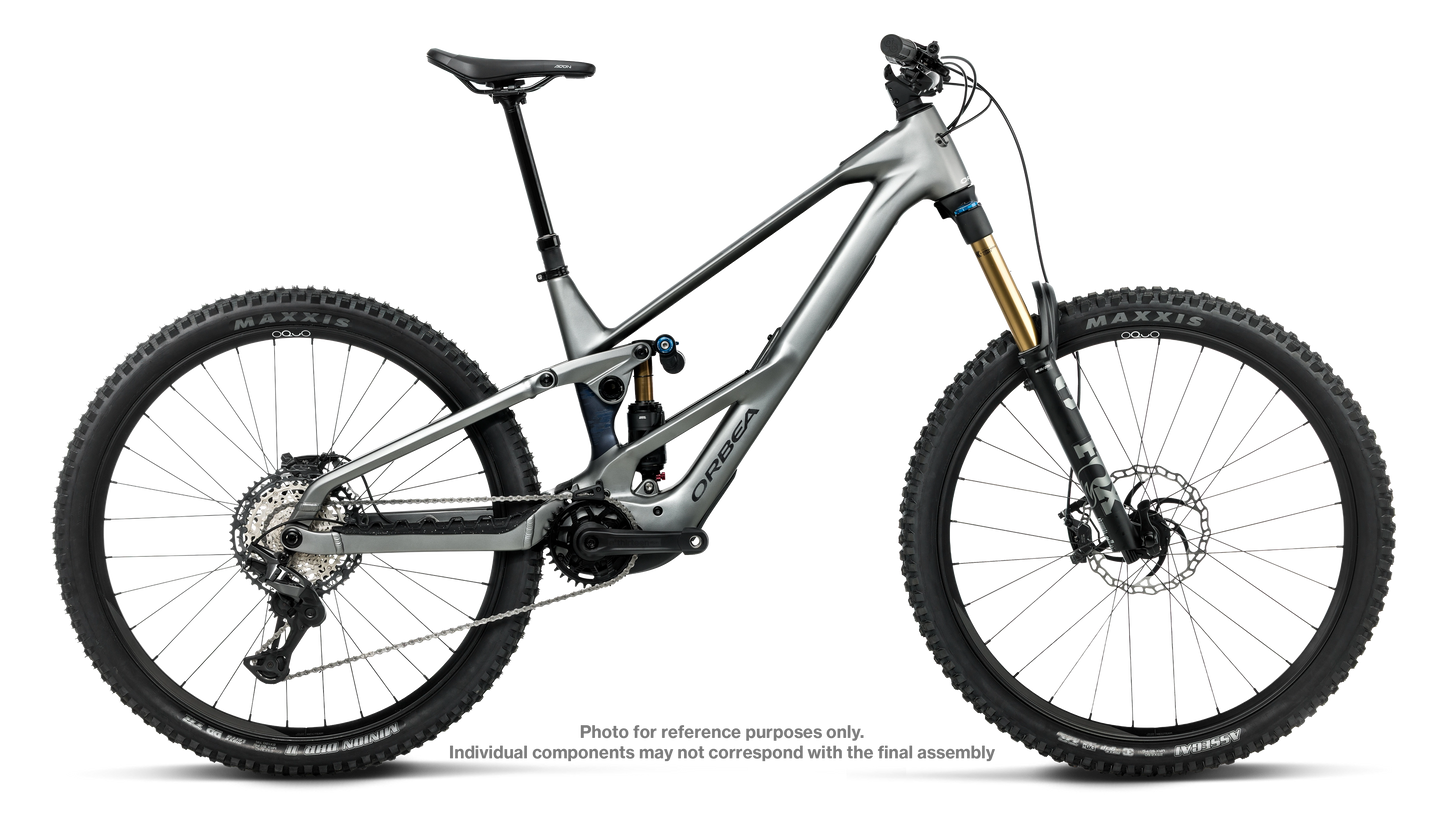

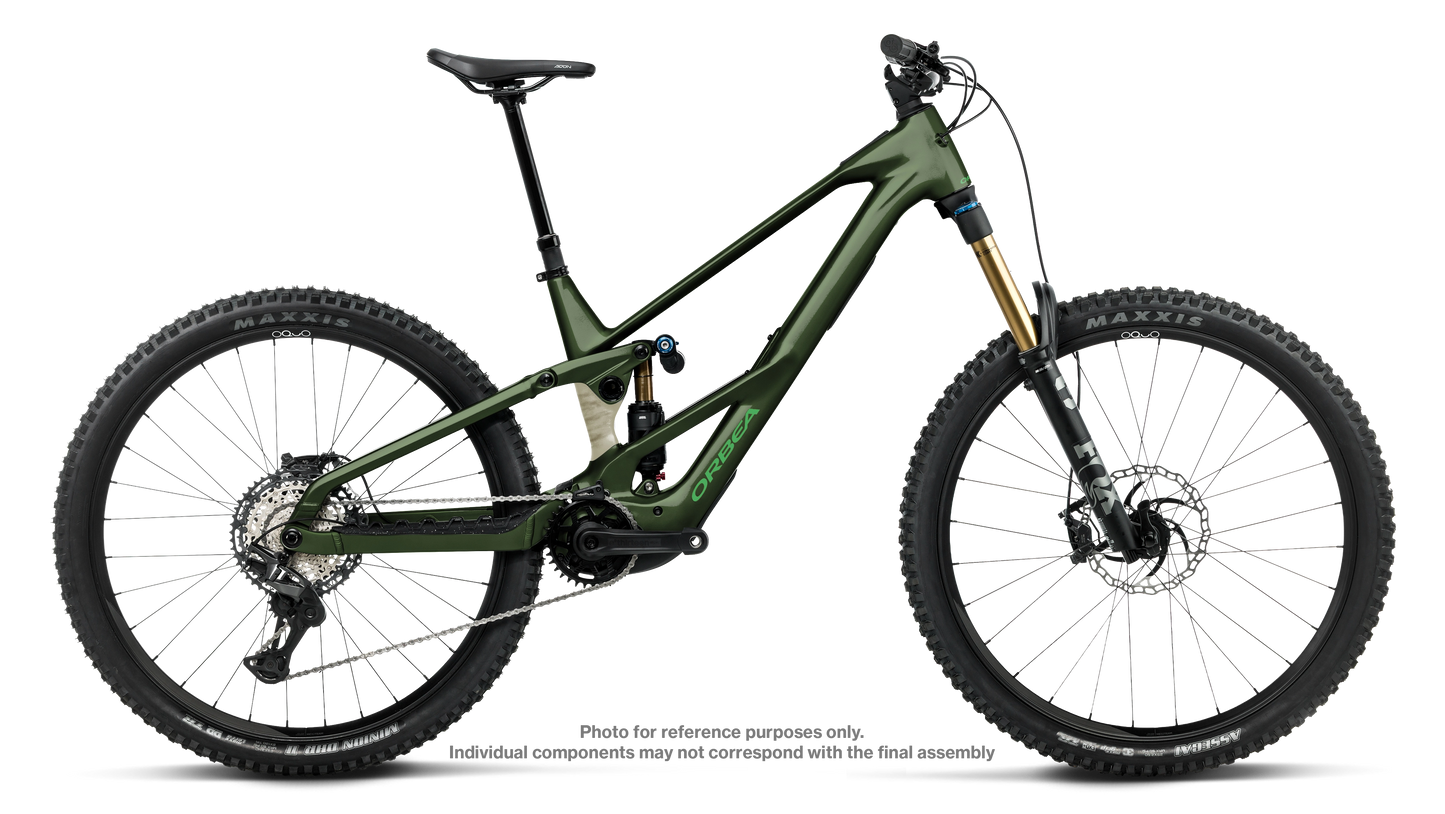

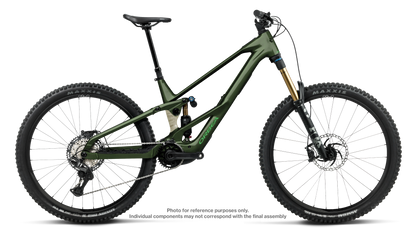

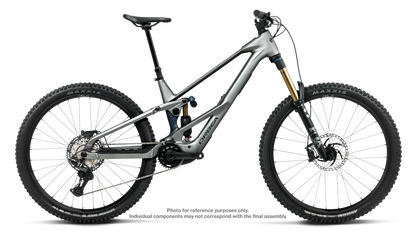

NEW 2027 Orbea Wild LT H-TEAM Mullet 20mph Electric Enduro Mountain Bike - Shimano XT M8200 Di2

The 2027 Orbea Wild LT H-TEAM Mullet is the flagship aluminum-framed full-power electric enduro mountain bike, built for riders who want race-ready descending performance. The advanced DJI Avinox M2S drive system and high-capacity 800Wh battery deliver strong torque and big range, paired with premium Fox Factory Kashima suspension, 170mm of front travel, and a mixed-wheel "mullet" setup (29" front / 27.5" rear).

DJI Avinox Power, All-Day Range

The DJI Avinox M2S motor delivers natural, high-torque assistance for technical climbs, while the integrated 800Wh battery and DP100 display give you the range and ride data to stay out longer. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.

Mullet Geometry, Enduro Capability

A 29" front wheel rolls over everything while the 27.5" rear keeps the bike playful and quick. With a 170mm Fox 38 Float Factory fork, Fox Float X2 Factory shock (both Kashima-coated), and Orbea's Wild Hydro aluminum frame, the H-TEAM is built for the steepest descents and hardest enduro days.

Race-Ready Build

A full Shimano XT M8200 12-speed drivetrain, powerful 4-piston Shimano XT M8220 hydraulic disc brakes on 200mm Galfer rotors, premium OQUO Mountain Control wheels, grippy Maxxis Assegai / Minion tires, and an OC dropper post mean it's ready to race right out of the shop.

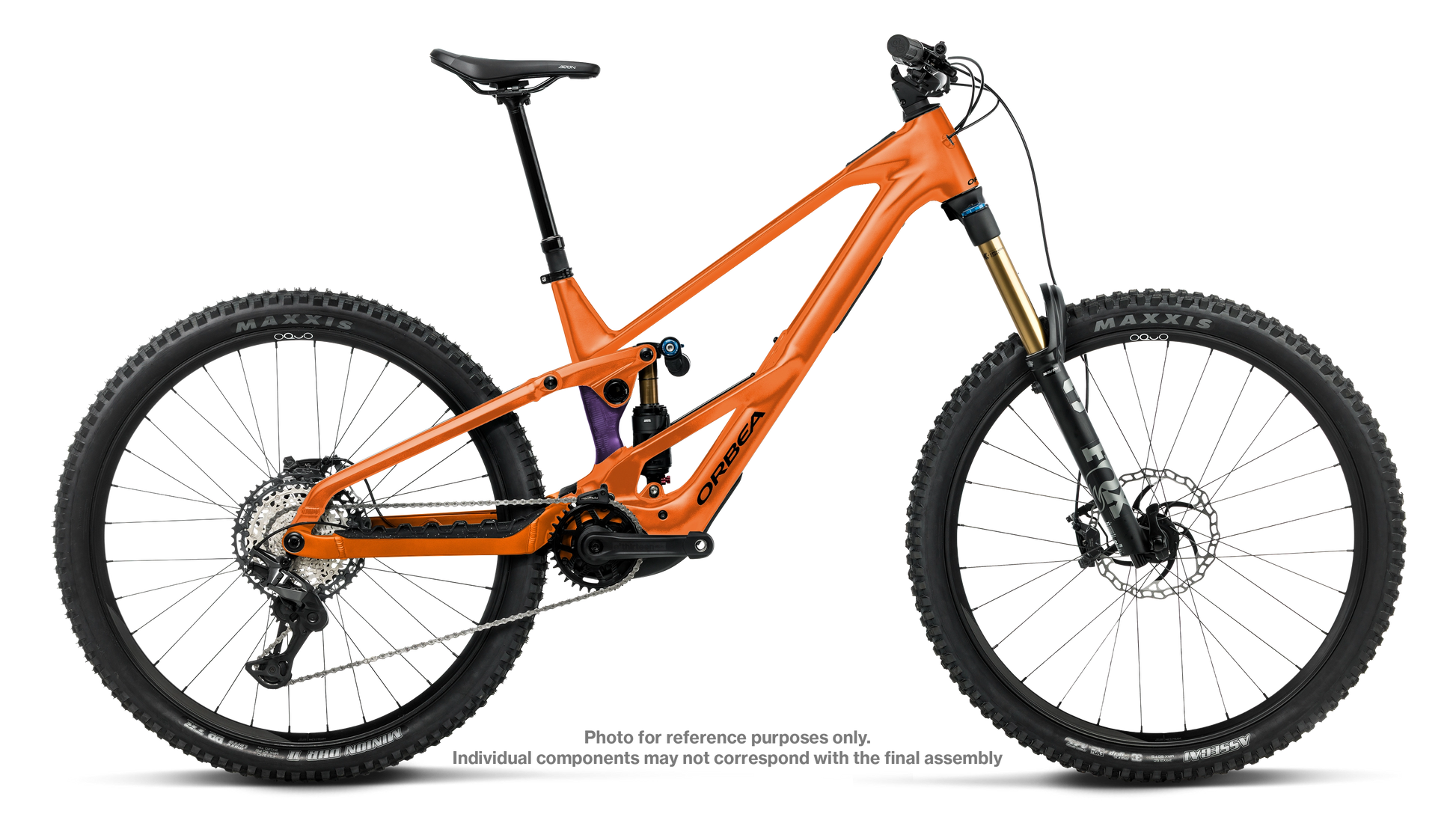

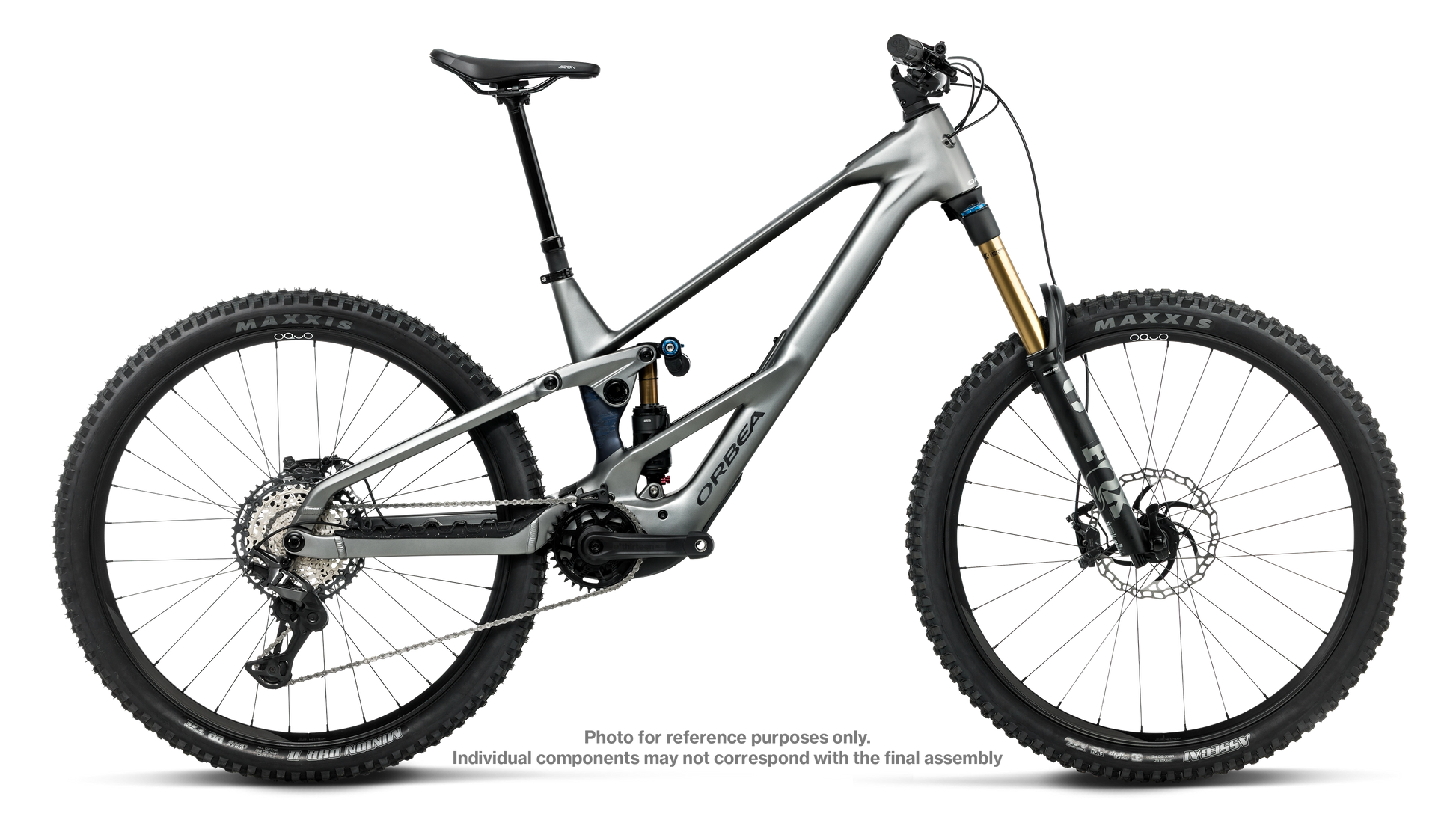

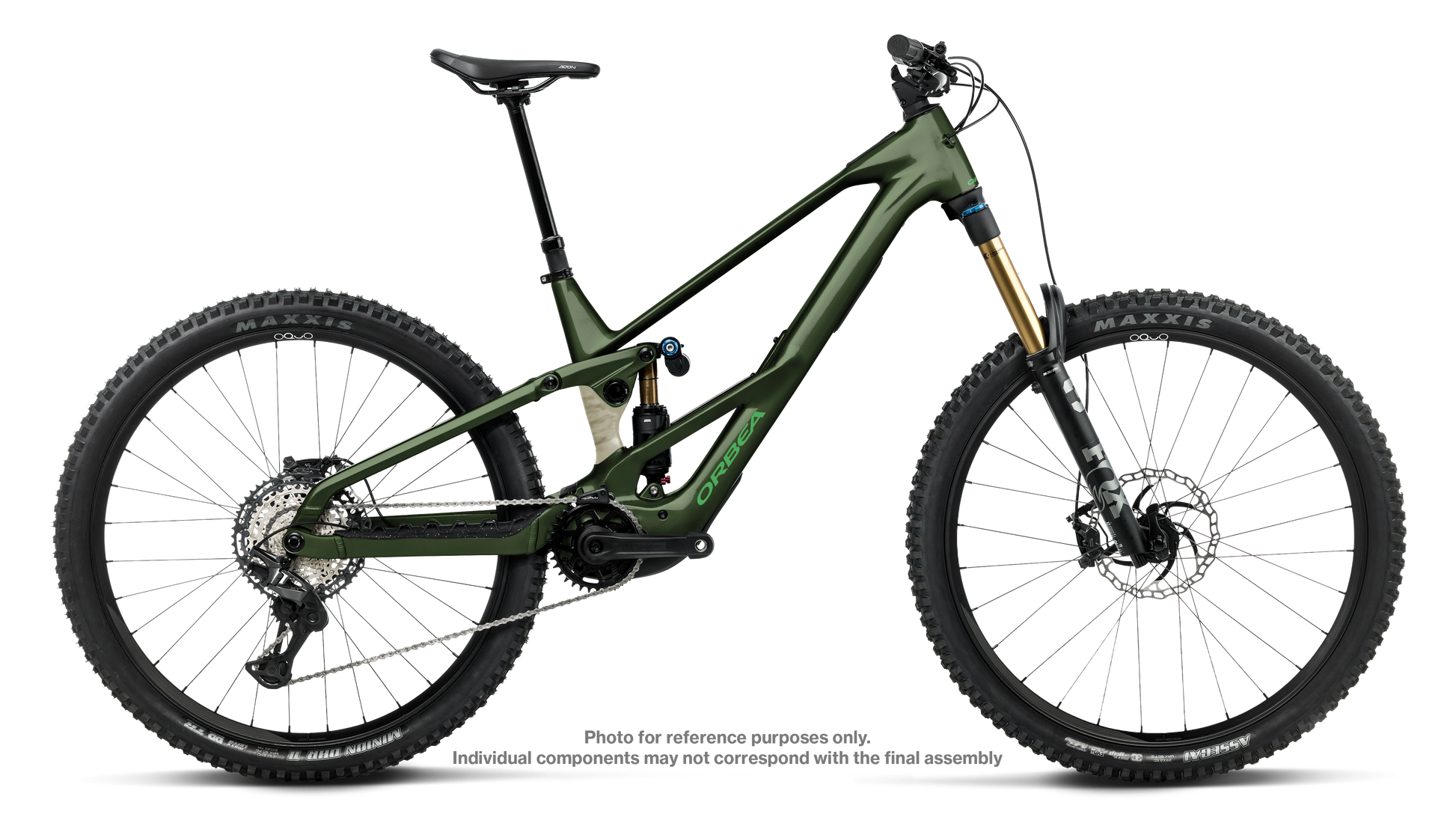

Available in three colorways - Titan Grey (Matt), Racing Green / White Cream (Gloss), and Wild Orange / Royal Plum (Gloss) - in sizes S-XL.

KEY FEATURES:

• DJI Avinox M2S motor with 800Wh integrated battery and DP100 display
• Class 1 / 20mph pedal-assist eMTB
• Mullet wheels: 29" front / 27.5" rear
• 170mm Fox 38 Factory fork + Fox Float X2 Factory shock (Kashima)
• Orbea Wild Hydro aluminum frame
• Full Shimano XT M8200 12-speed drivetrain
• OQUO Mountain Control wheels, Maxxis Assegai / Minion tires

BUILD KIT:

• Frame: Orbea Wild Hydro Aluminum, Mullet Wheels (29" Front / 27.5" Rear), Concentric Boost 12x148
• Fork: Fox 38 Float Factory 170mm, Grip X2 Damper, Kashima Coating, 15x110 Boost
• Rear Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust, Kashima Coating, Custom Tune, 205x65mm
• Headset: Acros ZS56
• Motor: DJI Avinox M2S
• Battery: DJI Avinox 800Wh
• Display: DJI Avinox DP100
• Charger: DJI Avinox Charger 4A
• Remote: DJI Avinox BC100
• Crankset: e*thirteen Helix Core e*spec
• Chainring: e*thirteen Helix Race e*spec Direct Mount 34T, 55mm Chainline
• Shifter: Shimano XT M8200 I-Spec EV
• Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
• Cassette: Shimano CS-M8200 10-51T, 12-Speed
• Chain: Shimano M6100
• Chainguide: Orbea eBike Chainguide
• Handlebar: OC Mountain Control MC20 Alu SL, Rise 35mm, Width 800mm
• Stem: OC Mountain Control MC21, 0°
• Computer Mount: OC Computer Mount CM-05 (Garmin/Sigma Compatible)
• Brakes: Shimano XT M8220 Hydraulic Disc
• Rotors: Galfer Wave 200mm Front / 200mm Rear
• Wheels: OQUO Mountain Control MC32TEAM POWER (29" Front / 27.5" Rear)
• Front Tire: Maxxis Assegai 29x2.50" 60TPI, 3C MaxxGrip, EXO+ TR
• Rear Tire: Maxxis Minion 27.5x2.40" 120TPI, 3C MaxxTerra, DoubleDown TR
• Saddle: Fizik Aidon 208x145mm, Manganese Rails
• Seatpost: OC Mountain Control MC22 Dropper, 31.6mm
• Seatpost Lever: Shimano SL-MT500 I-Spec EV
• Grips: OC Lock-On
• Mudguard: N/A
• Front Light: N/A

SIZING: Orbea recommends the following sizes based on rider height:

• SM: 4'11" - 5'9"
• MD: 5'3" - 6'1"
• LG: 5'7" - 6'5"
• XL: 5'11" - 6'9"

FREQUENTLY ASKED:

• How fast is the Orbea Wild LT H-TEAM? It's a Class 1 e-MTB with pedal assist up to 20 mph.
• What motor and battery does it use? The DJI Avinox M2S motor with an 800Wh battery.
• What wheel setup is it? A mullet configuration - 29" front, 27.5" rear.
• Is it a full-power eMTB? Yes - high-torque, full-power assist for steep climbs and enduro descents.

The Wild LT H-TEAM Mullet 20mph is powered by the advanced DJI Avinox M2S RS motor paired with a high-capacity 800Wh battery, delivering strong torque, smooth assistance, and reliable range for long and demanding rides.

BUILD KIT:

• Frame: Orbea Wild Hydro Aluminum, Mullet Wheels (29" Front / 27.5" Rear), Concentric Boost 12x148
• Fork: Fox 38 Float Factory 170mm, Grip X2 Damper, Kashima Coating, 15x110 Boost
• Rear Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust, Kashima Coating, Custom Tune, 205x65mm
• Headset: Acros ZS56
• Motor: DJI Avinox M2S
• Battery: DJI Avinox 800Wh
• Display: DJI Avinox DP100
• Charger: DJI Avinox Charger 4A
• Remote: DJI Avinox BC100
• Crankset: ethirteen Helix Core espec
• Chainring: ethirteen Helix Race espec Direct Mount 34T, 55mm Chainline
• Shifter: Shimano XT M8200 I-Spec EV
• Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
• Cassette: Shimano CS-M8200 10-51T, 12-Speed
• Chain: Shimano M6100
• Chainguide: Orbea eBike Chainguide
• Handlebar: OC Mountain Control MC20 Alu SL, Rise 35mm, Width 800mm
• Stem: OC Mountain Control MC21, 0°
• Computer Mount: OC Computer Mount CM-05 (Garmin/Sigma Compatible)
• Brakes: Shimano XT M8220 Hydraulic Disc
• Rotors: Galfer Wave 200mm Front / 200mm Rear
• Wheels: OQUO Mountain Control MC32TEAM POWER (29" Front / 27.5" Rear)
• Front Tire: Maxxis Assegai 29x2.50" 60TPI, 3C MaxxGrip, EXO+ TR
• Rear Tire: Maxxis Minion 27.5x2.40" 120TPI, 3C MaxxTerra, DoubleDown TR
• Saddle: Fizik Aidon 208x145mm, Manganese Rails
• Seatpost: OC Mountain Control MC22 Dropper, 31.6mm
• Seatpost Lever: Shimano SL-MT500 I-Spec EV
• Grips: OC Lock-On
• Mudguard: N/A
• Front Light: N/A

SIZING: Orbea recommends the following sizes based on rider height

• SM: 4'11" – 5'9"
• MD: 5'3" – 6'1"
• LG: 5'7" – 6'5"
• XL: 5'11" – 6'9"
