NEW 2027 Orbea Wild LT H10 Mullet 20mph Electric Enduro Mountain Bike - Shimano XT/Deore Di2

The 2027 Orbea Wild LT H10 Mullet is a full-power electric enduro mountain bike that climbs hard and descends harder. The advanced DJI Avinox M2S drive system and a high-capacity 800Wh battery deliver strong torque, smooth assistance, and the range for big mountain days, paired with 170mm of Fox 38 front travel and a mixed-wheel "mullet" setup (29" front / 27.5" rear).

DJI Avinox Power, All-Day Range

The DJI Avinox M2S motor delivers natural, high-torque assistance for technical climbs, while the integrated 800Wh battery and DP100 display give you the range and ride data to stay out longer. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.

Mullet Geometry, Enduro Capability

A 29" front wheel rolls over everything while the 27.5" rear keeps the bike playful and quick. With a 170mm Fox 38 Float fork, Fox Float X shock, and Orbea's Wild Hydro aluminum frame, the H10 is built for steep descents and all-mountain adventures.

Trail-Ready Build

A Shimano XT/Deore 12-speed drivetrain, powerful 4-piston Shimano MT620 hydraulic disc brakes on 200mm Galfer rotors, tough DT Swiss H1900 wheels, grippy Maxxis Assegai / Minion tires, and an OC dropper post mean it's ready to ride hard right out of the shop.

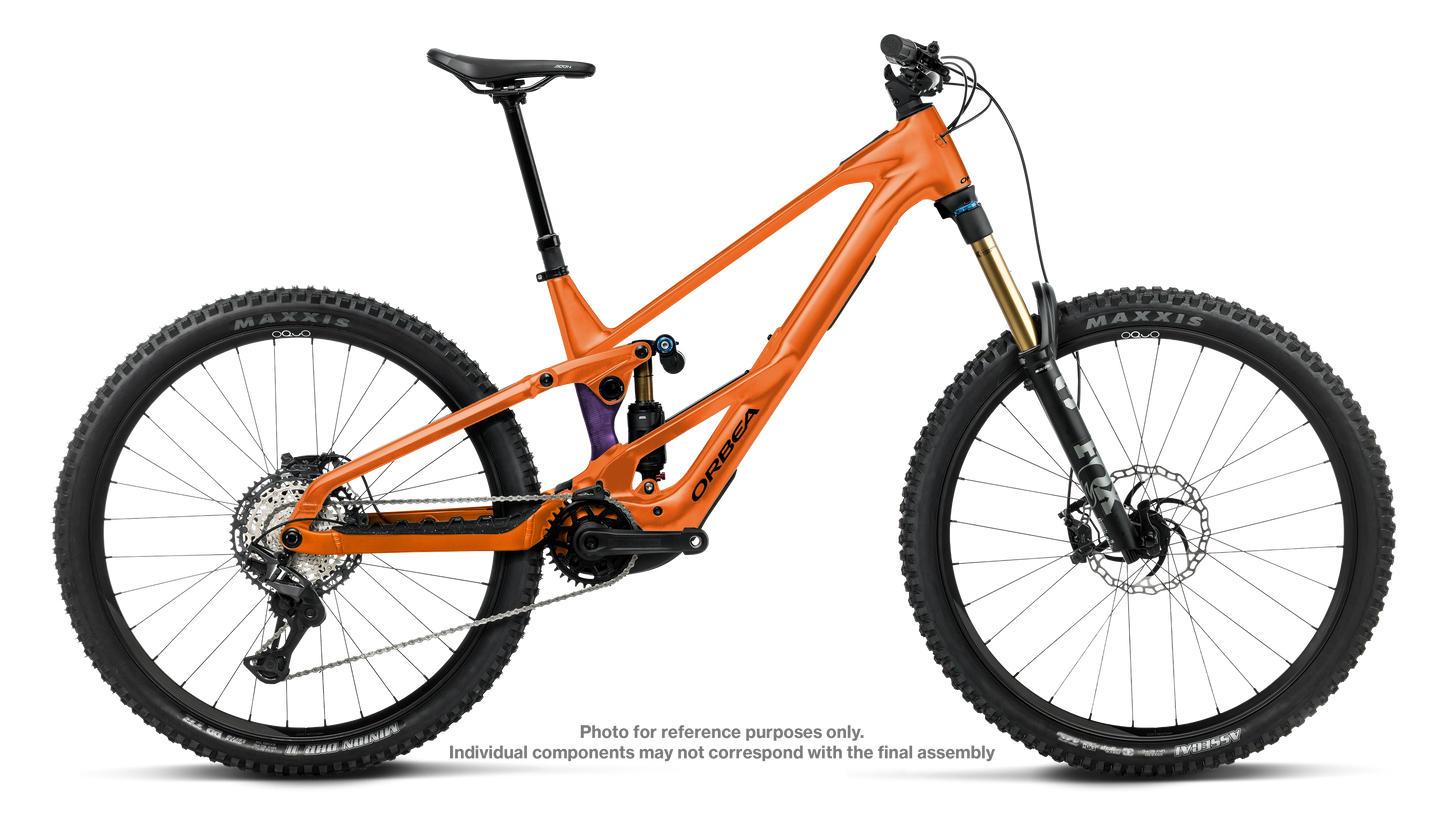

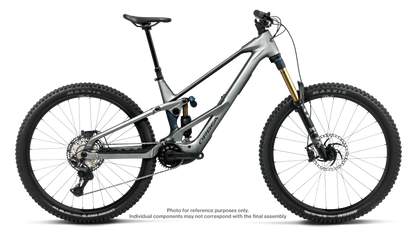

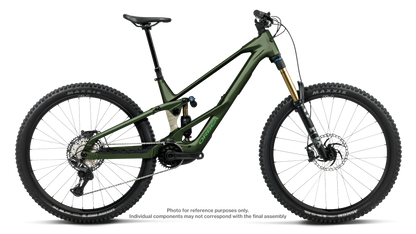

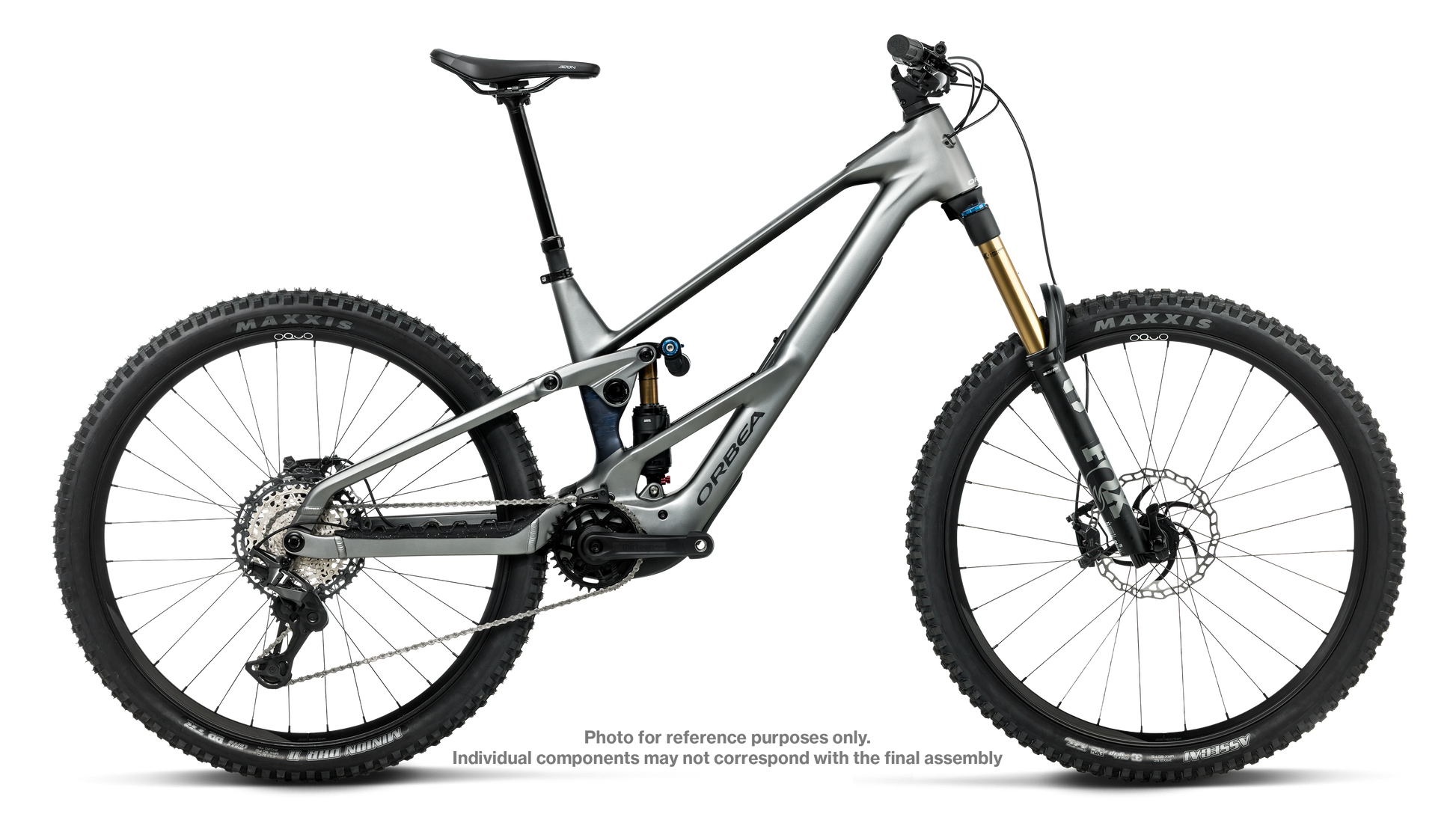

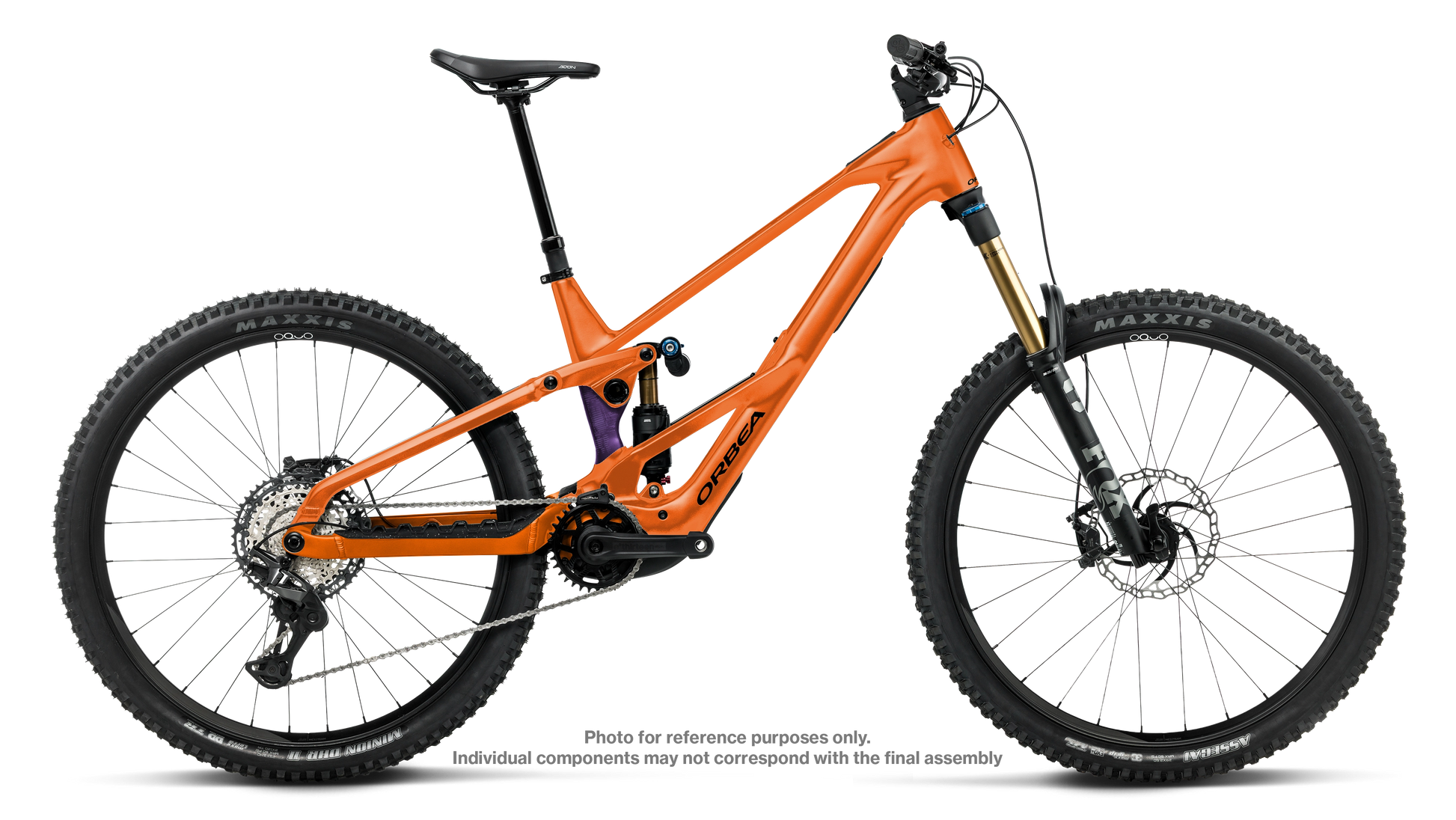

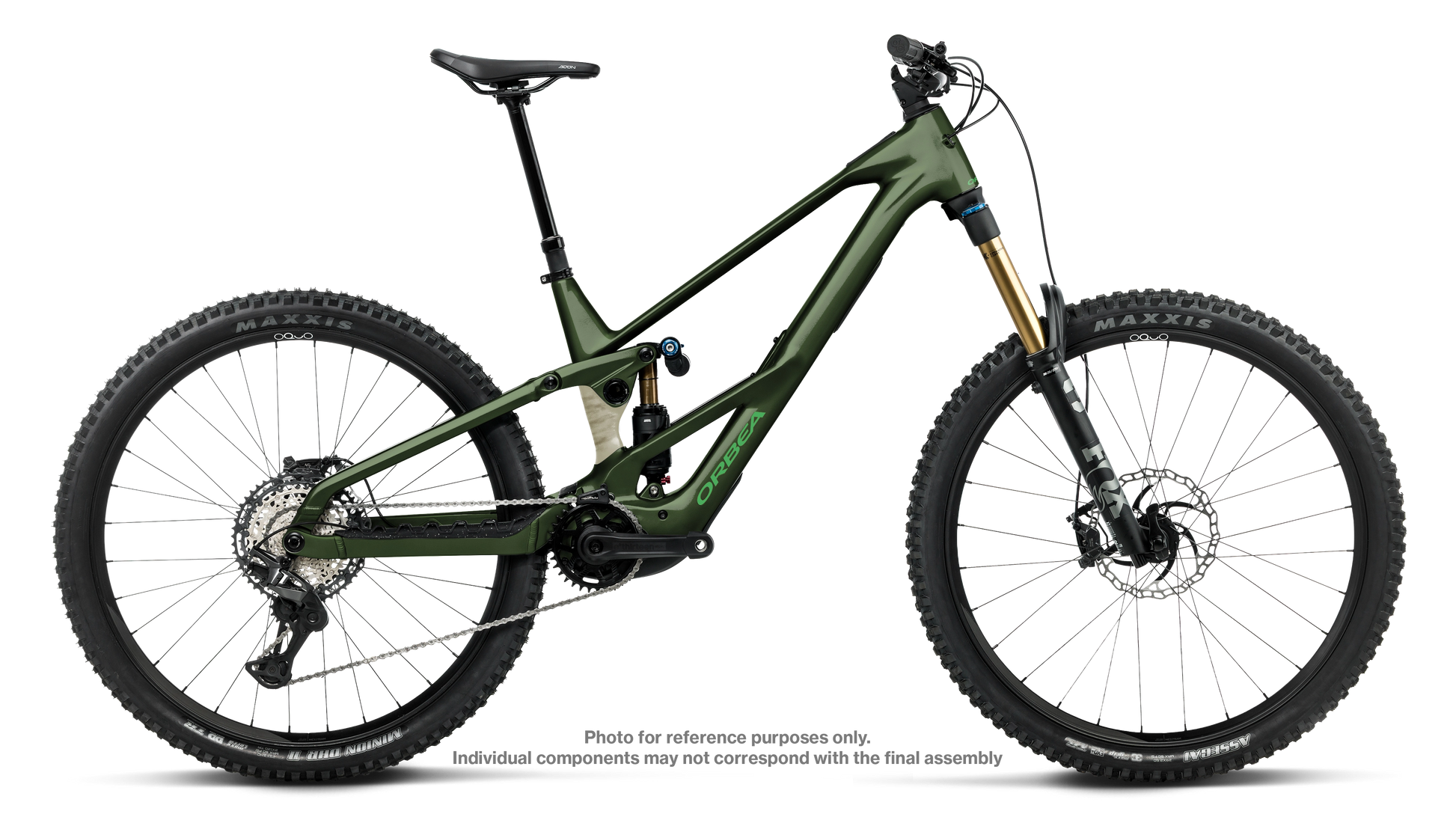

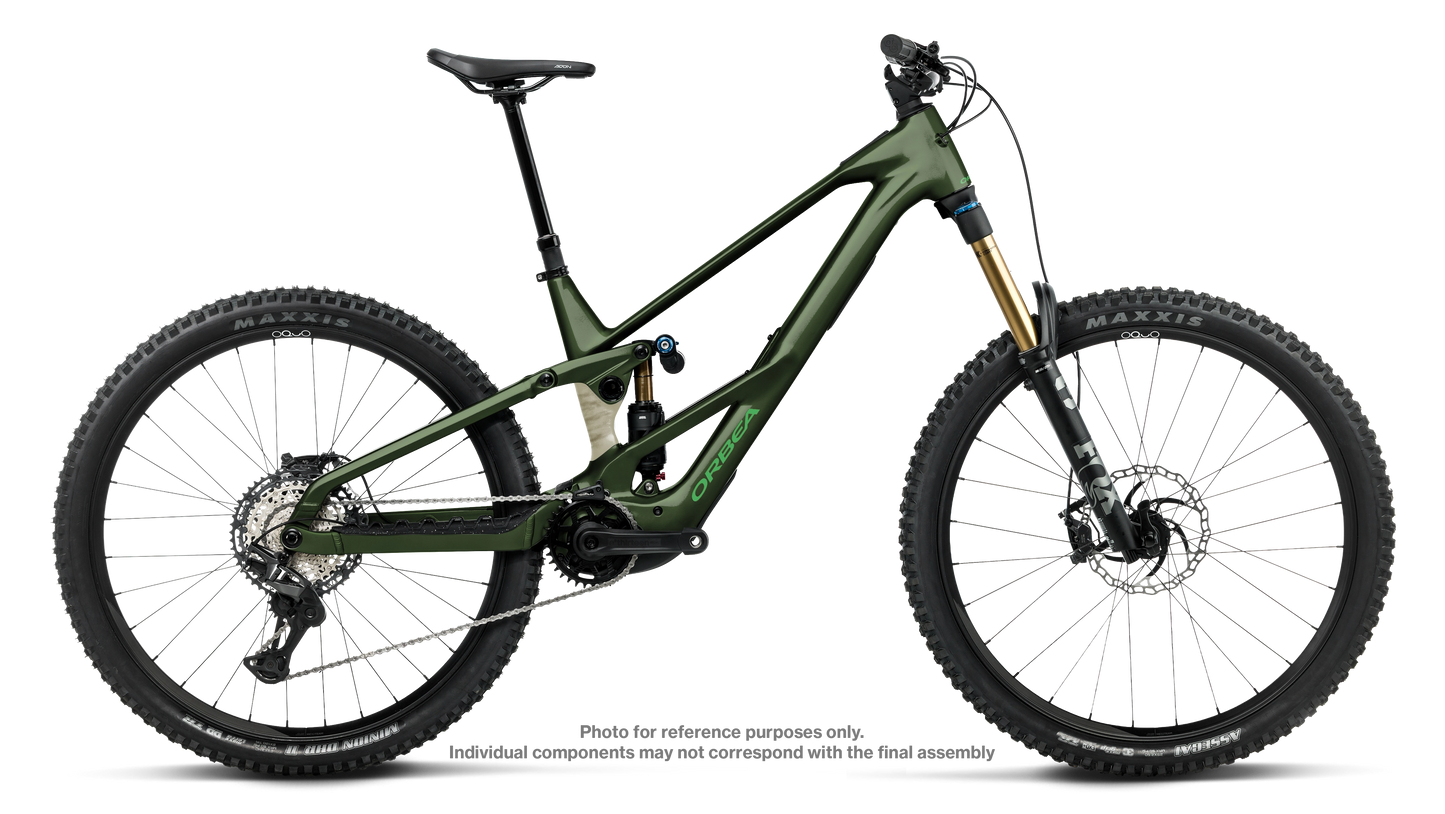

Available in three colorways - Titan Grey (Matt), Racing Green / White Cream (Gloss), and Wild Orange / Royal Plum (Gloss) - in sizes S-XL.

KEY FEATURES:

• DJI Avinox M2S motor with 800Wh integrated battery and DP100 display
• Class 1 / 20mph pedal-assist eMTB
• Mullet wheels: 29" front / 27.5" rear
• 170mm Fox 38 Float fork + Fox Float X shock
• Orbea Wild Hydro aluminum frame
• Shimano XT M8200 / Deore M6200 12-speed drivetrain
• DT Swiss H1900 wheels, Maxxis Assegai / Minion tires

BUILD KIT:

• Frame: Orbea Wild Hydro Aluminum, Mullet Wheels (29" Front / 27.5" Rear), Concentric Boost 12x148
• Fork: Fox 38 Float Performance 170mm, Grip 3-Position Damper, 15x110 Boost
• Rear Shock: Fox Float X Performance Trunnion 2-Pos Evol LV Custom Tune, 205x65mm
• Headset: Acros ZS56
• Motor: DJI Avinox M2S
• Battery: DJI Avinox 800Wh
• Display: DJI Avinox DP100
• Charger: DJI Avinox Charger 4A
• Remote: DJI Avinox BC100
• Crankset: e*thirteen Helix Core e*spec
• Chainring: e*thirteen Helix Race e*spec Direct Mount 34T, 55mm Chainline
• Shifter: Shimano Deore M6200 I-Spec EV
• Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
• Cassette: Shimano CS-M6200 10-51T, 12-Speed
• Chain: Shimano M6100
• Chainguide: Orbea eBike Chainguide
• Handlebar: OC Mountain Control MC20 Alu SL, Rise 35mm, Width 800mm
• Stem: OC Mountain Control MC21, 0°
• Computer Mount: OC Computer Mount CM-05 (Garmin/Sigma Compatible)
• Brakes: Shimano MT620 Hydraulic Disc
• Rotors: Galfer Wave 200mm Front / 200mm Rear
• Wheels: DT Swiss H 1900 Spline 30c (29" Front / 27.5" Rear)
• Front Tire: Maxxis Assegai 29x2.50" 60TPI, 3C MaxxGrip, EXO+ TR
• Rear Tire: Maxxis Minion 27.5x2.40" 120TPI, 3C MaxxTerra, DoubleDown TR
• Saddle: Fizik Aidon 208x145mm, Manganese Rails
• Seatpost: OC Mountain Control MC22 Dropper, 31.6mm
• Seatpost Lever: Shimano SL-MT500 I-Spec EV
• Grips: OC Lock-On
• Mudguard: N/A
• Front Light: N/A

SIZING: Orbea recommends the following sizes based on rider height:

• SM: 4'11" - 5'9"
• MD: 5'3" - 6'1"
• LG: 5'7" - 6'5"
• XL: 5'11" - 6'9"

FREQUENTLY ASKED:

• How fast is the Orbea Wild LT H10? It's a Class 1 e-MTB with pedal assist up to 20 mph.
• What motor and battery does it use? The DJI Avinox M2S motor with an 800Wh battery.
• What wheel setup is it? A mullet configuration - 29" front, 27.5" rear.
• Is it a full-power eMTB? Yes - high-torque, full-power assist for steep climbs and enduro descents.

The Wild LT H10 20mph is powered by the advanced DJI Avinox M2S RS motor paired with a high-capacity 800Wh battery, giving it strong torque, smooth assistance, and excellent range for long mountain rides and steep ascents.

BUILD KIT:

• Frame: Orbea Wild Hydro Aluminum, Mullet Wheels (29" Front / 27.5" Rear), Concentric Boost 12x148
• Fork: Fox 38 Float Performance 170mm, Grip 3-Position Damper, 15x110 Boost
• Rear Shock: Fox Float X Performance Trunnion 2-Pos Evol LV Custom Tune, 205x65mm
• Headset: Acros ZS56
• Motor: DJI Avinox M2S
• Battery: DJI Avinox 800Wh
• Display: DJI Avinox DP100
• Charger: DJI Avinox Charger 4A
• Remote: DJI Avinox BC100
• Crankset: ethirteen Helix Core espec
• Chainring: ethirteen Helix Race espec Direct Mount 34T, 55mm Chainline
• Shifter: Shimano Deore M6200 I-Spec EV
• Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
• Cassette: Shimano CS-M6200 10-51T, 12-Speed
• Chain: Shimano M6100
• Chainguide: Orbea eBike Chainguide
• Handlebar: OC Mountain Control MC20 Alu SL, Rise 35mm, Width 800mm
• Stem: OC Mountain Control MC21, 0°
• Computer Mount: OC Computer Mount CM-05 (Garmin/Sigma Compatible)
• Brakes: Shimano MT620 Hydraulic Disc
• Rotors: Galfer Wave 200mm Front / 200mm Rear
• Wheels: DT Swiss H 1900 Spline 30c (29" Front / 27.5" Rear)
• Front Tire: Maxxis Assegai 29x2.50" 60TPI, 3C MaxxGrip, EXO+ TR
• Rear Tire: Maxxis Minion 27.5x2.40" 120TPI, 3C MaxxTerra, DoubleDown TR
• Saddle: Fizik Aidon 208x145mm, Manganese Rails
• Seatpost: OC Mountain Control MC22 Dropper, 31.6mm
• Seatpost Lever: Shimano SL-MT500 I-Spec EV
• Grips: OC Lock-On
• Mudguard: N/A
• Front Light: N/A

SIZING: Orbea recommends the following sizes based on rider height

• SM: 4'11" – 5'9"
• MD: 5'3" – 6'1"
• LG: 5'7" – 6'5"
• XL: 5'11" – 6'9"
