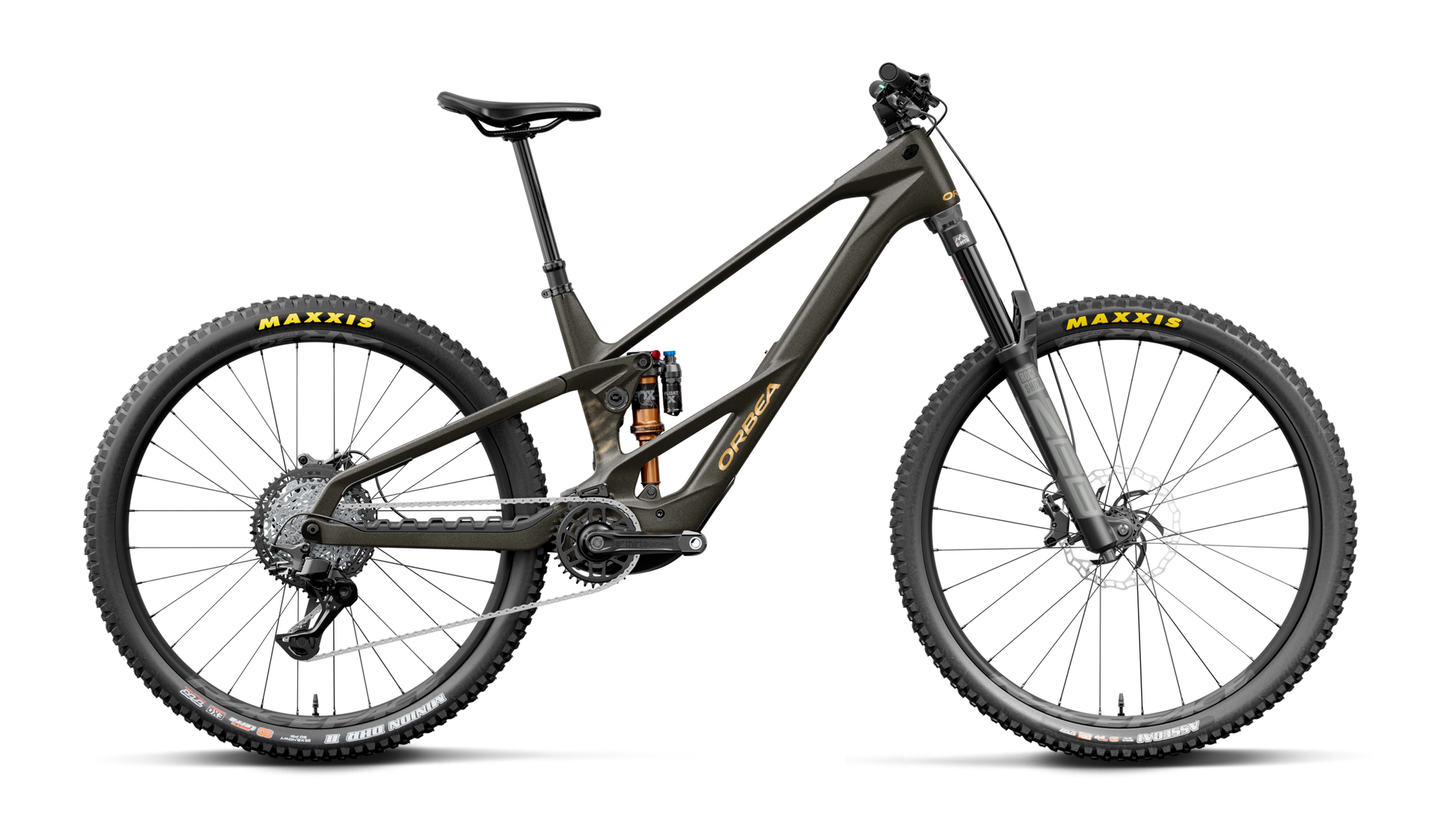

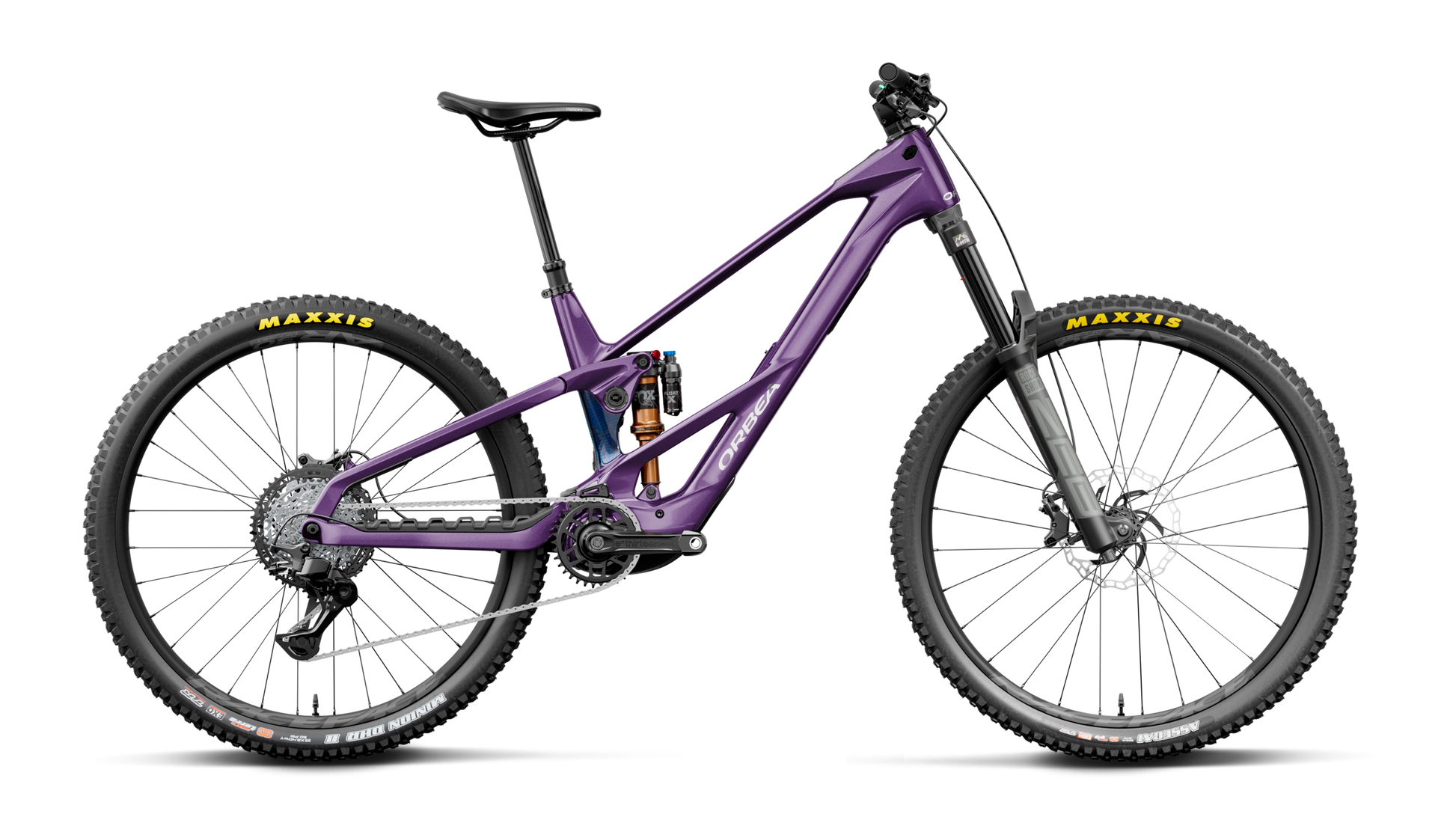

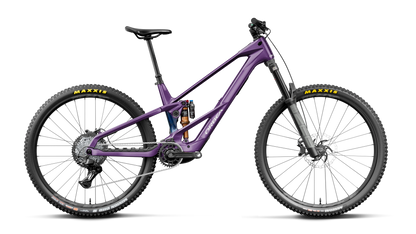

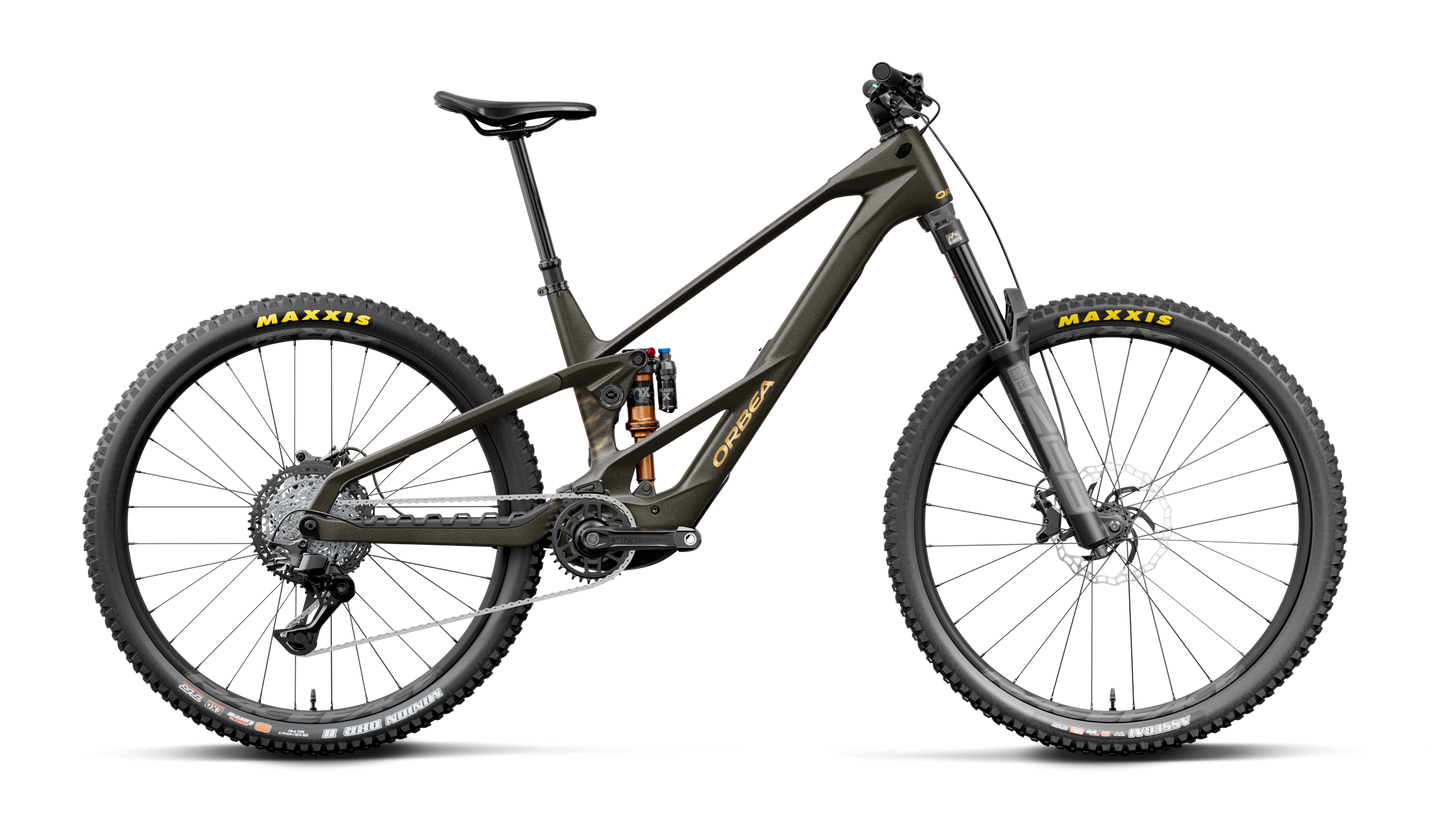

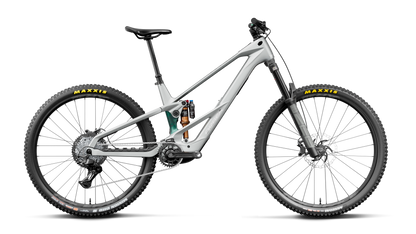

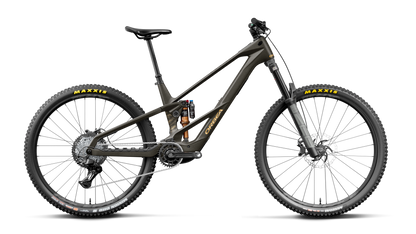

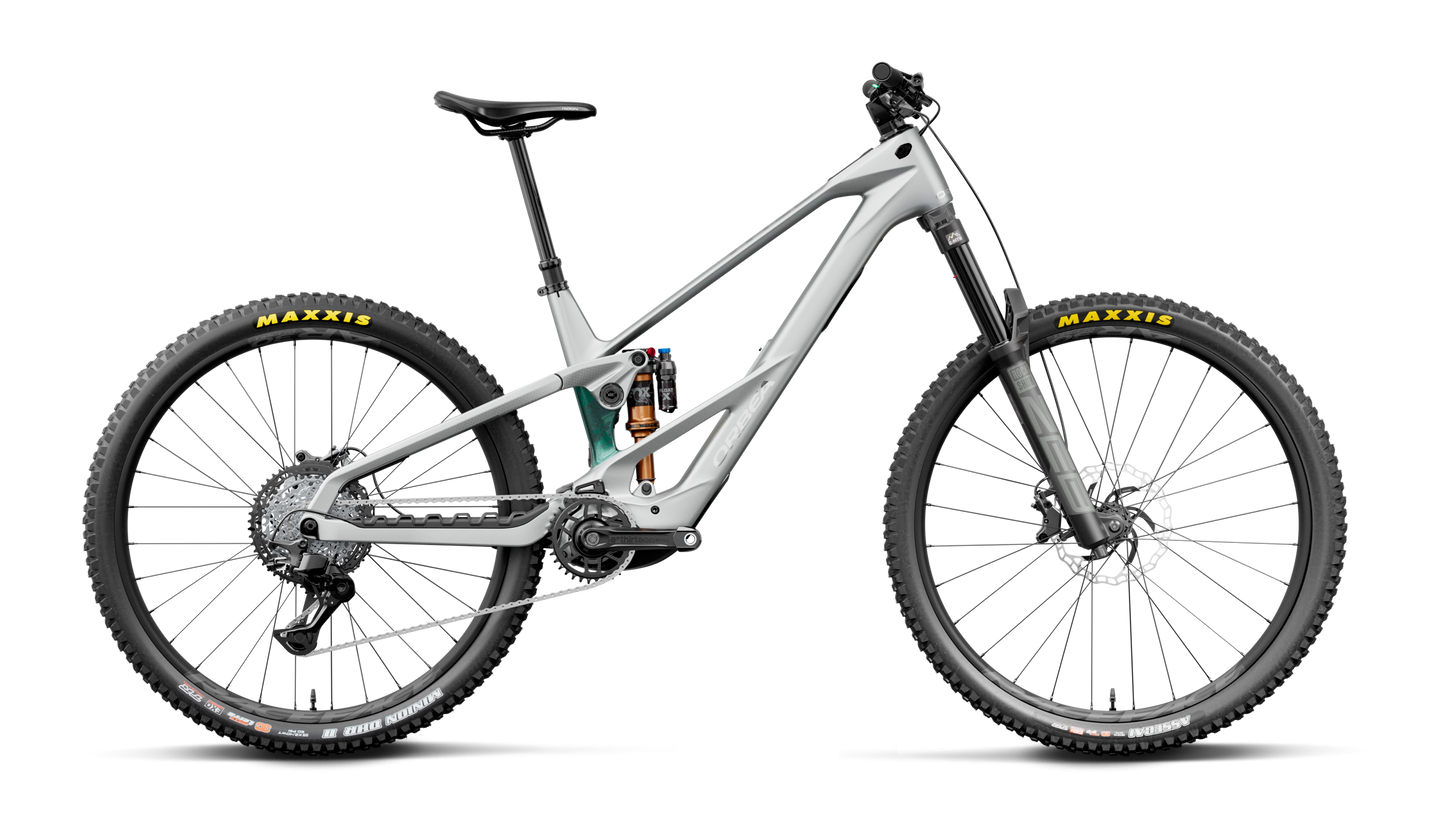

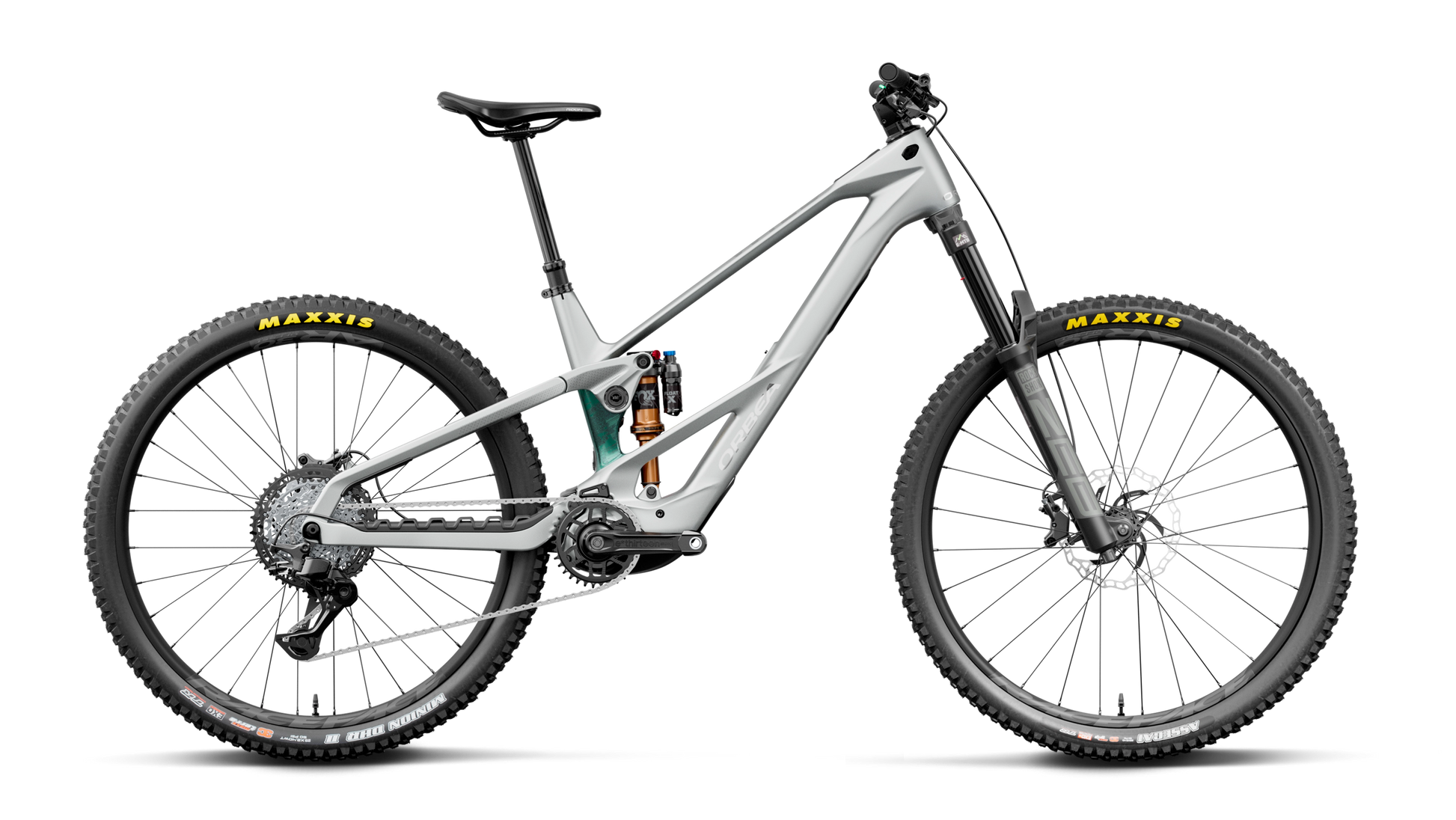

NEW 2027 Orbea Wild LT M20 20mph Electric Carbon Enduro Mountain Bike - Shimano Deore M6200

PREORDER: This bike is not currently in stock. Reserve yours now — contact us for the latest availability and expected arrival timing. Earliest availability for this model is August 2026, but timing will vary based on configuration.

KEY FEATURES:

• DJI Avinox M2S motor with 800Wh integrated battery and DP100 display
• Class 1 / 20mph pedal-assist eMTB
• Full 29" wheels front and rear
• 170mm RockShox ZEB fork + Fox Float X shock
• Orbea Wild carbon frame
• Shimano Deore M6200/M7200 12-speed drivetrain
• Race Face Arc30 Wheels

• Maxxis Assegai / Minion tires
• Shimano MT420 4-piston brakes

The Yes Machine

Nature doesn't like straight lines. It bends and flows, soars and falls. Unlock your instincts. Leave questions of how far or how fast behind. Because whatever question the trail poses, the answer is always yes.

OMR Carbon

High modulus, high-strength fibers, and advanced carbon manufacturing techniques let us use less carbon while maintaining strength and rigidity. The carbon frameset also includes a carbon link which removes further mass higher up in the frame.

Gravity Kinematics

A 170mm fork matched with 170mm rear travel gives Wild LT the balance to perform. or choose the optional 180mm fork for the most aggressive riding.

Avinox M2S Motor

Our custom RS tuning makes the motor respond faster, giving you a stronger, more immediate punch when you need it most on technical climbs.

Maximised Ground Clearance

Carefully tuned bottom bracket height and 155mm cranks on all sizes mean you can keep pedaling even on the roughest climbs.

Fully Loaded Pivot

A multitool with 2, 3, 4, and 5mm hex keys held securely in place with a magnet while the rear axle holds a 6mm hex key for quick adjustments right at hand.

BUILD KIT:

• Frame: Orbea Wild OMR 2027 Carbon, 29" Wheels, Concentric Boost 12x148

• Fork: RockShox ZEB Base DebonAir+ 170mm E-MTB Specific, 15x110 Boost

• Rear Shock: Fox Float X Performance Trunnion 2-Pos Evol LV Custom Tune, 205x65mm

• Headset: Acros ZS56

• Motor: DJI Avinox M2S

• Battery: DJI Avinox 800Wh

• Display: DJI Avinox DP100

• Charger: DJI Avinox Charger 4A

• Remote: DJI Avinox BC100

• Crankset: ethirteen Helix Core espec

• Chainring: ethirteen Helix Race espec Direct Mount 34T, 55mm Chainline

• Shifter: Shimano Deore M6200 I-Spec EV

• Rear Derailleur: Shimano Deore M7200 SGS Shadow Plus

• Cassette: Shimano CS-M6200 10-51T, 12-Speed

• Chain: Shimano M6100

• Chainguide: Orbea eBike Chainguide

• Handlebar: OC Mountain Control MC30, Rise 20mm, Width 800mm
  Stem: OC Mountain Control MC20, 0°

• Computer Mount: OC Computer Mount CM-05 (Garmin/Sigma Compatible)

• Brakes: Shimano MT420 Hydraulic Disc

• Rotors: Galfer Wave 200mm Front / 200mm Rear

• Wheels: Race Face AR 30c Tubeless Ready 29"

• Front Tire: Maxxis Assegai 29x2.50" 60TPI, 3C MaxxGrip, EXO+ TR

• Rear Tire: Maxxis Minion 29x2.40" 120TPI, 3C MaxxTerra, DoubleDown TR

• Saddle: Fizik Aidon 208x145mm, Manganese Rails

• Seatpost: OC Mountain Control MC22 Dropper, 31.6mm

• Seatpost Lever: Shimano SL-MT500 I-Spec EV

• Grips: OC Lock-On

• Mudguard: N/A


SIZING: Orbea recommends the following sizes based on rider height:

• SM: 4'11" – 5'9"
• MD: 5'3" – 6'1"
• LG: 5'7" – 6'5"
• XL: 5'11" – 6'9"

FREQUENTLY ASKED:

• How fast is the Orbea Wild LT M20? It's a Class 1 e-MTB with pedal assist up to 20 mph.
• What motor and battery does it use? The DJI Avinox M2S motor with an 800Wh battery.
• What wheel setup is it? Full 29" wheels front and rear.
• Is it a full-power eMTB? Yes - high-torque, full-power assist for steep climbs and enduro descents.
