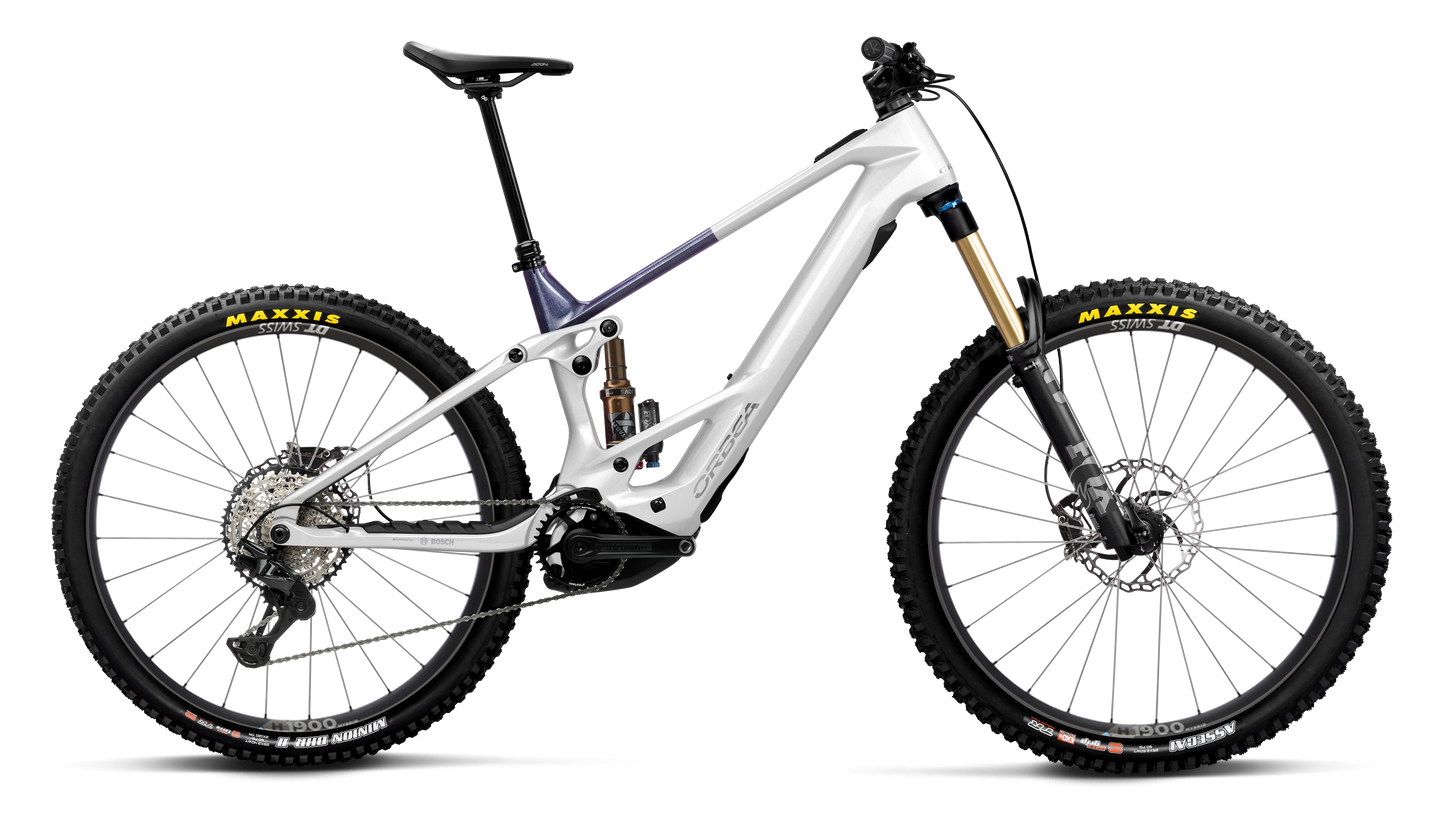

NEW 2027 Orbea Wild TR M10 20mph Carbon Electric Trail Mountain Bike - Shimano XT M8200

PREORDER: This bike is not currently in stock. Reserve yours now — contact us for the latest availability and expected arrival timing.

The 2027 Orbea Wild TR M10 is a full-power electric trail mountain bike built around Orbea's lightweight Wild OMR carbon frame. Powered by the Bosch Performance Line CX motor and a 750Wh PowerTube battery, the Wild TR pairs long-range, high-torque pedal assist with 150mm of trail-tuned travel and full 29" wheels for confident, all-day riding on technical terrain.

Bosch Performance CX Power, All-Day Range

The Bosch Performance Line CX (Gen 5) motor delivers smooth, natural assistance and up to 120Nm of torque for steep, technical climbs, while the integrated 750Wh PowerTube battery and full-color Bosch Kiox 400C display give you the range and ride data to go bigger and stay out longer. An optional 250Wh Range Extender pushes total capacity to 1000Wh. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.

Lightweight OMR Carbon, 150mm Trail Travel

Orbea's Wild OMR carbon frame trims weight and adds stiffness for a livelier, more precise ride. With 150mm of travel from a Fox 36 Float Factory fork with Kashima coat and a Fox Float X Factory shock and big 29" wheels, the M10 climbs efficiently and stays composed on fast, rough descents.

Trail-Ready Build

Shimano XT M8200 12-speed shifting, 4-piston Shimano XT 8220 hydraulic disc brakes, grippy Maxxis Assegai 2.5" MaxxGrip tires, DT Swiss H1900 Spline tubeless-ready wheels, and a dropper-ready cockpit mean it's ready to ride hard right out of the shop.

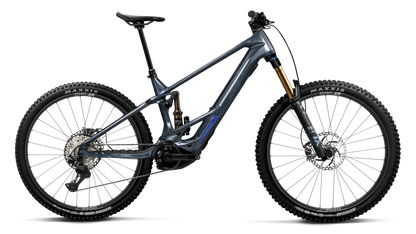

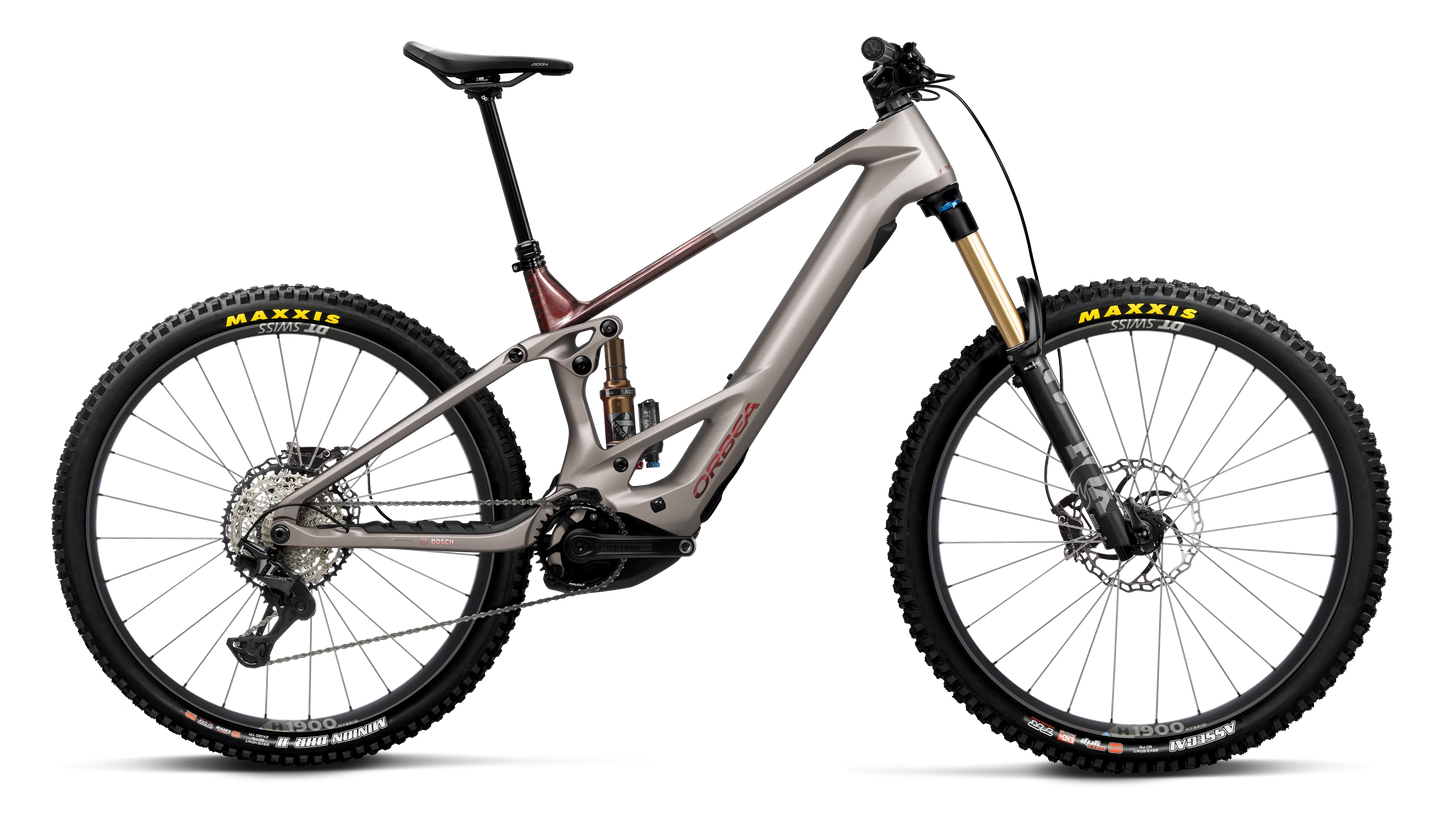

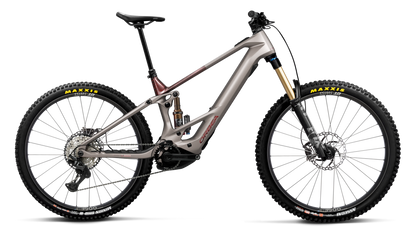

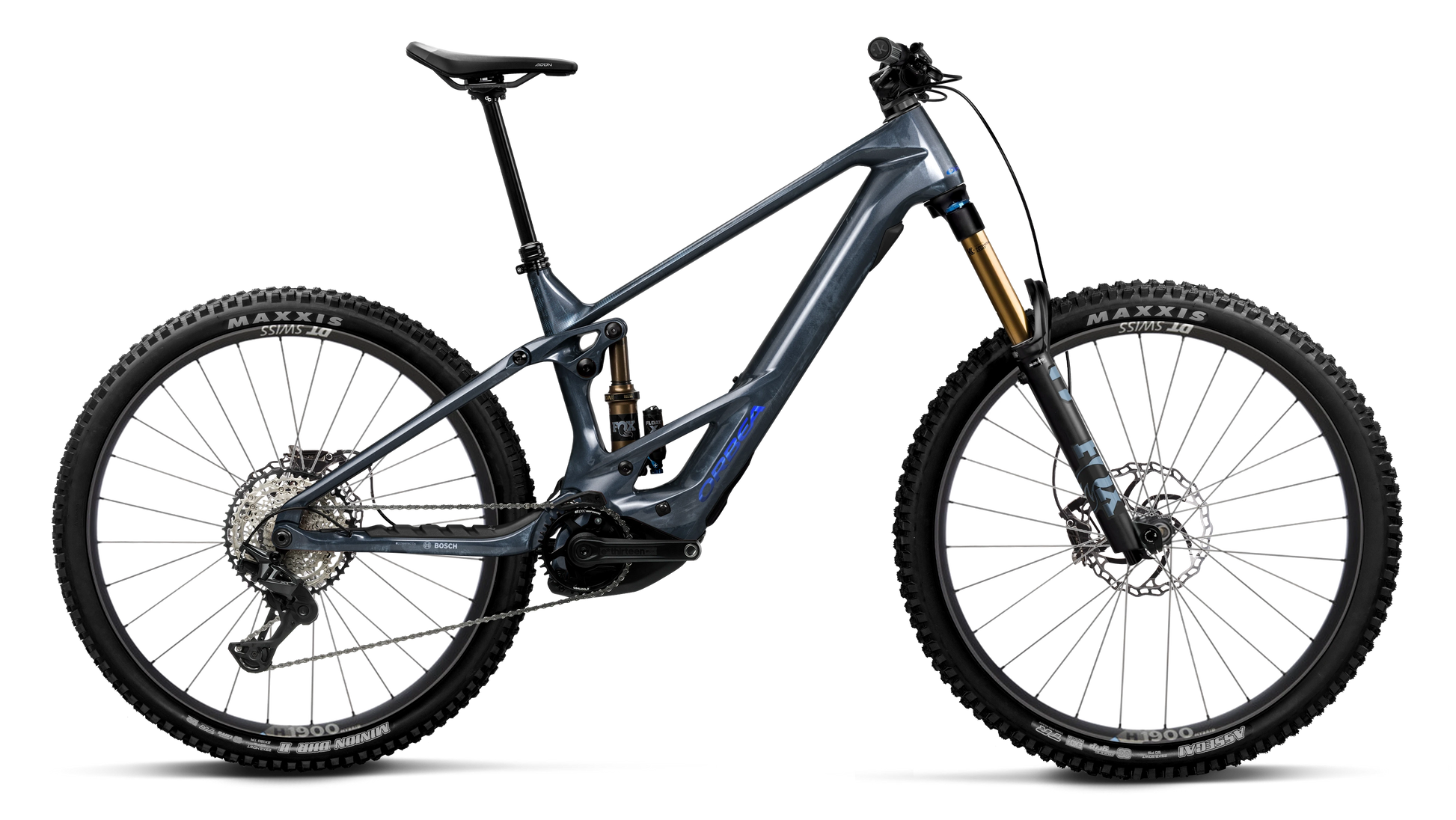

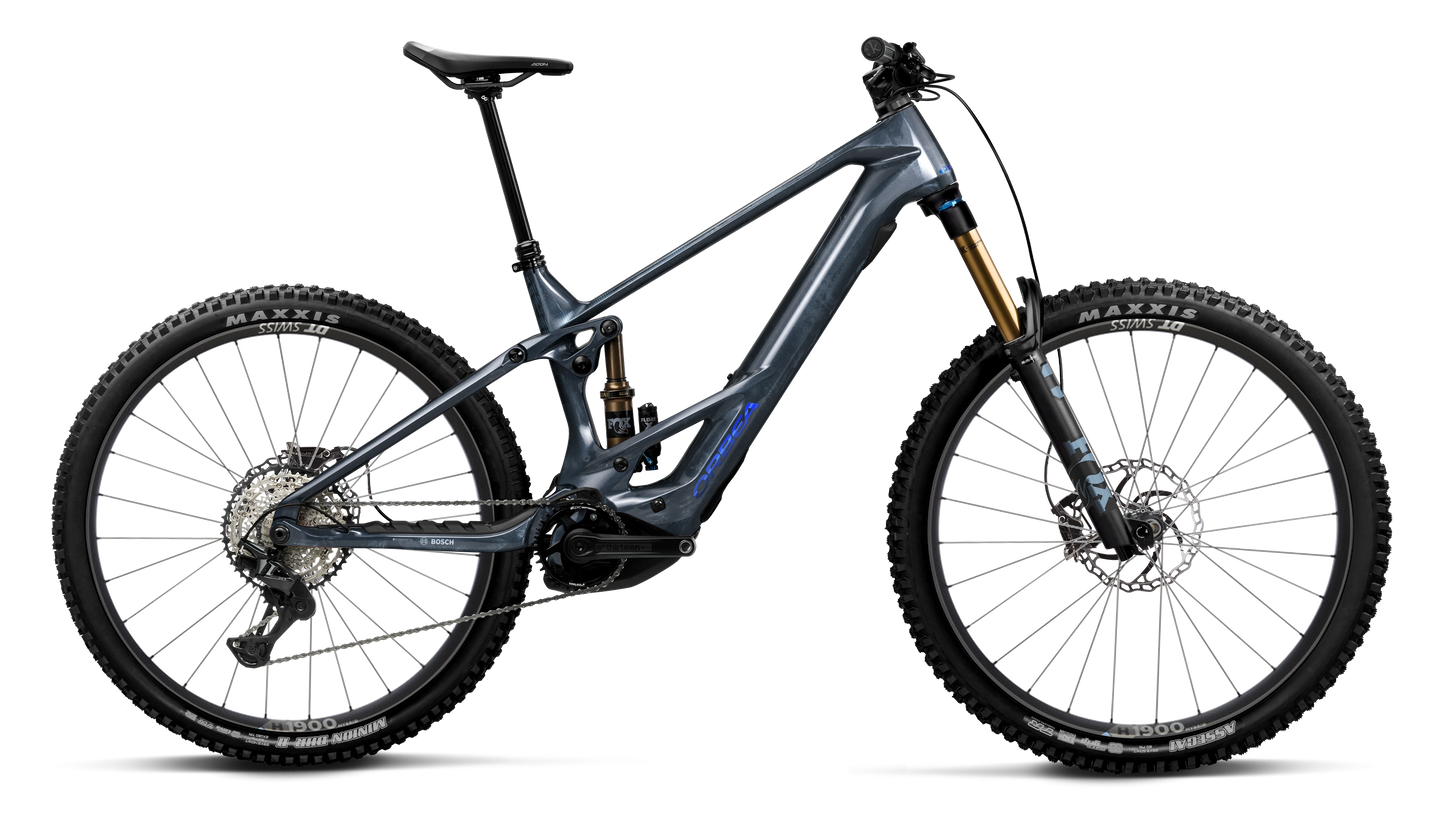

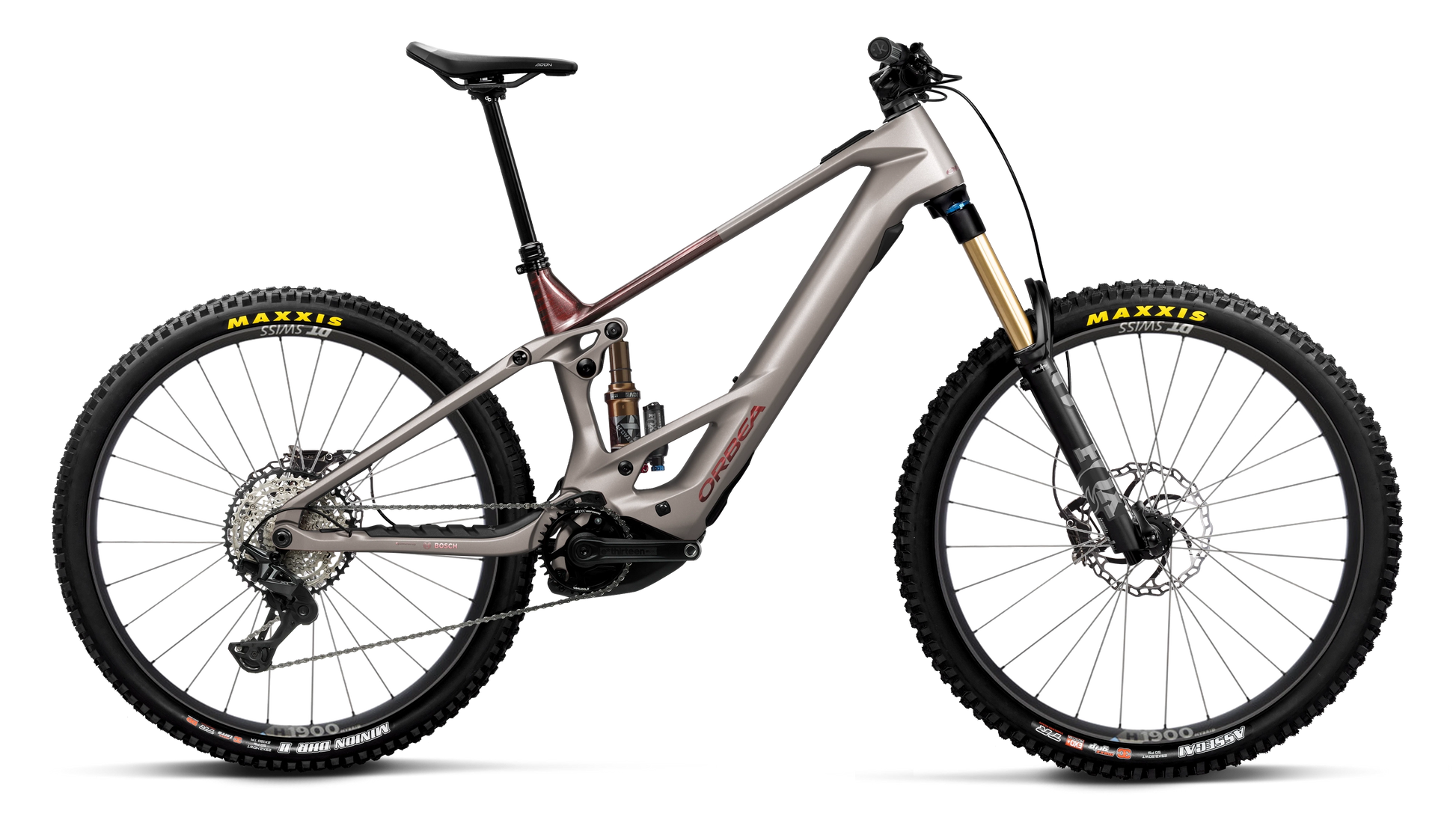

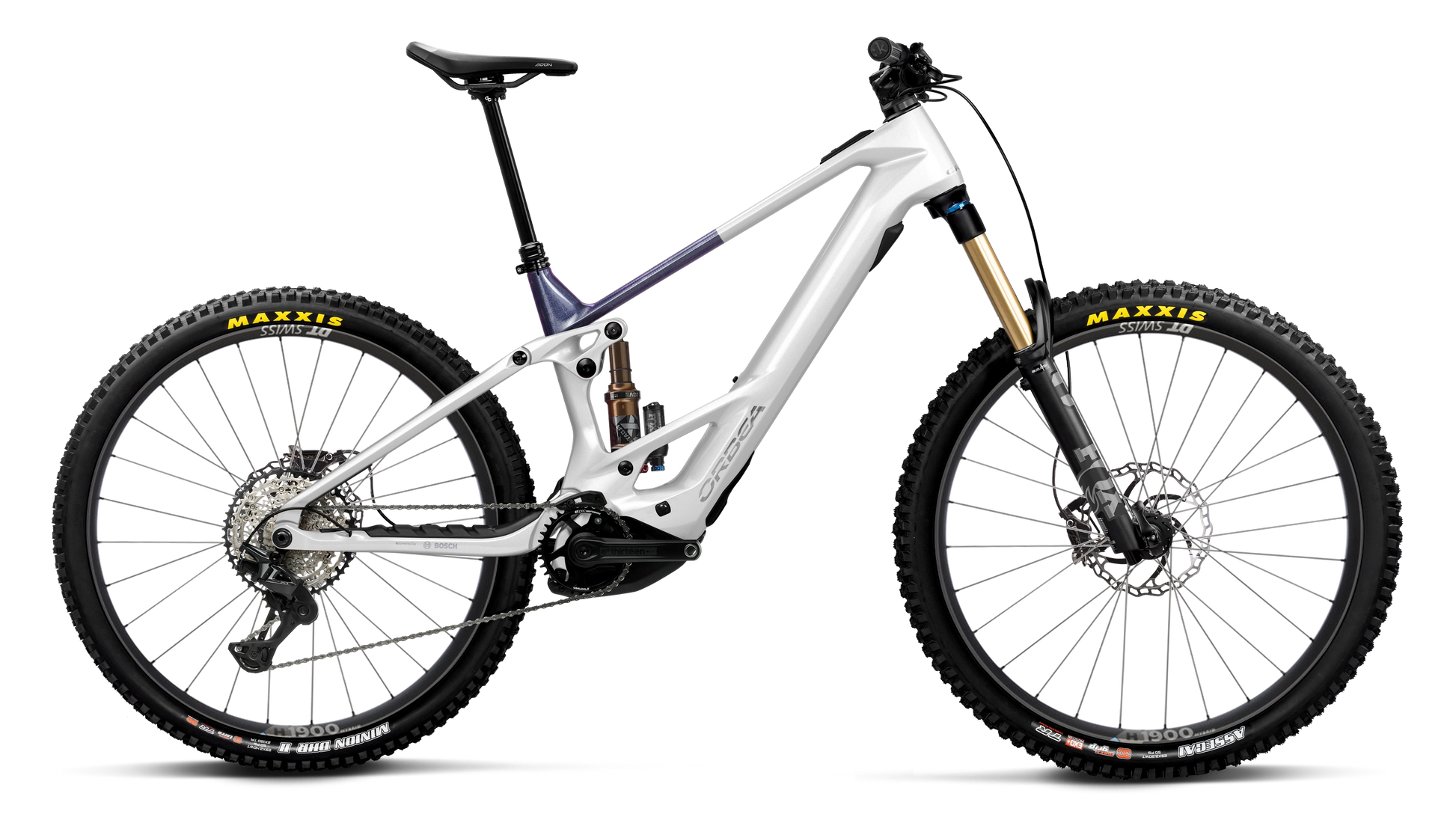

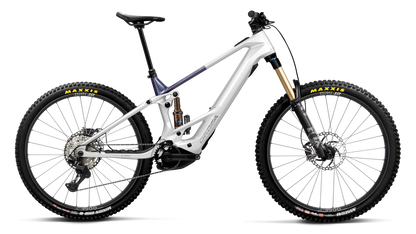

Available in 4 colorways - Carbon - Blue, White - Carbon, Rose - Carbon, and MyO custom paint - in sizes S-XL.

KEY FEATURES:

• Orbea Wild OMR carbon frame
• Bosch Performance Line CX motor (Gen 5, up to 120Nm) with 750Wh PowerTube battery and Bosch Kiox 400C display
• Class 1 / 20mph pedal-assist eMTB
• 150mm travel, full 29" wheels
• Fox 36 Float Factory Kashima fork + Fox Float X Factory shock
• Shimano XT M8200 12-speed drivetrain
• Maxxis Assegai 2.5" MaxxGrip tires, Shimano XT 8220 4-piston brakes
• DT Swiss H1900 Spline tubeless-ready wheels
• Dropper-ready cockpit (Shimano SL-MT500 lever included)

BUILD KIT:

• Frame: Orbea Wild OMR Carbon, 29" Wheels, Concentric Boost 12x148
• Fork: Fox 36 Float Factory, GRIP X2, Kashima, 150mm, 15x110
• Rear Shock: Fox Float X Factory Trunnion 2-Pos Evol LV Custom Tune, 205x57.5mm
• Headset: Alloy 1-1/2", Black Oxidated Bearing
• Motor: Bosch Performance Line CX (BDU3843)
• Battery: Bosch PowerTube 750Wh Horizontal
• Display: Bosch System Module Kiox 400C
• Crank: e*thirteen Helix Core
• Chainguide: e*thirteen Bosch CX Gen5 CL55 32-36t
• Shifter: Shimano Deore M6200 I-Spec EV
• Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
• Cassette: Shimano CS-M7200 10-51T, 12-Speed
• Chain: Shimano M6100
• Handlebar: OC Mountain Control MC20 Alu SL, Rise 20mm, Width 800mm
• Stem: OC Mountain Control MC21, 0°
• Computer Mount: OC Computer Mount CM-05 (Garmin/Sigma Compatible)
• Brakes: Shimano XT 8220 4-Piston Hydraulic Disc
• Wheels: DT Swiss H 1900 Spline 30c, Tubeless Ready
• Tires: Maxxis Assegai 2.50" 60TPI, 3C MaxxGrip, EXO+ TR
• Saddle: Fizik Aidon 208x145mm
• Seatpost Lever: Shimano SL-MT500 I-Spec EV (dropper-ready)
• Grips: OC Lock-On

SIZING: Orbea's recommended rider height by size (approximate):

• S: 150–175 cm (4'11"–5'9")
• M: 160–185 cm (5'3"–6'1")
• L: 170–195 cm (5'7"–6'5")
• XL: 180–205 cm (5'11"–6'9")

FREQUENTLY ASKED:

• How fast is the Orbea Wild TR M10? It's a Class 1 e-MTB with pedal assist up to 20 mph.
• What motor and battery does it use? The Bosch Performance Line CX motor with a 750Wh PowerTube battery (optional 250Wh Range Extender for up to 1000Wh total).
• What wheel setup is it? Full 29" wheels with 150mm of travel.
• Does it come with a dropper post? The frame and cockpit are dropper-ready and include the Shimano SL-MT500 lever; ask us about adding a dropper post.
• Is it a full-power eMTB? Yes - high-torque, full-power Bosch CX assist for steep climbs and trail descents.
• How does the M10 upgrade over the M20? The M10 steps up to Fox Factory suspension with Kashima coat (36 Float Factory fork + Float X Factory shock), a Shimano XT M8200 drivetrain with 4-piston XT 8220 brakes, DT Swiss H1900 Spline wheels, and the full-color Bosch Kiox 400C display - over the M20's Fox Performance suspension, Deore M7200 drivetrain, MT420 brakes, Race Face AR30 wheels, and System Controller.
• What's new for 2027? Orbea restructured the Wild line for 2027 - the trail-focused build is now the Wild TR (evolving the previous Wild ST), keeping the proven Bosch Performance Line CX motor and 150mm of trail-tuned travel, with an expanded lineup that now adds these carbon-frame models alongside the alloy H-series.
