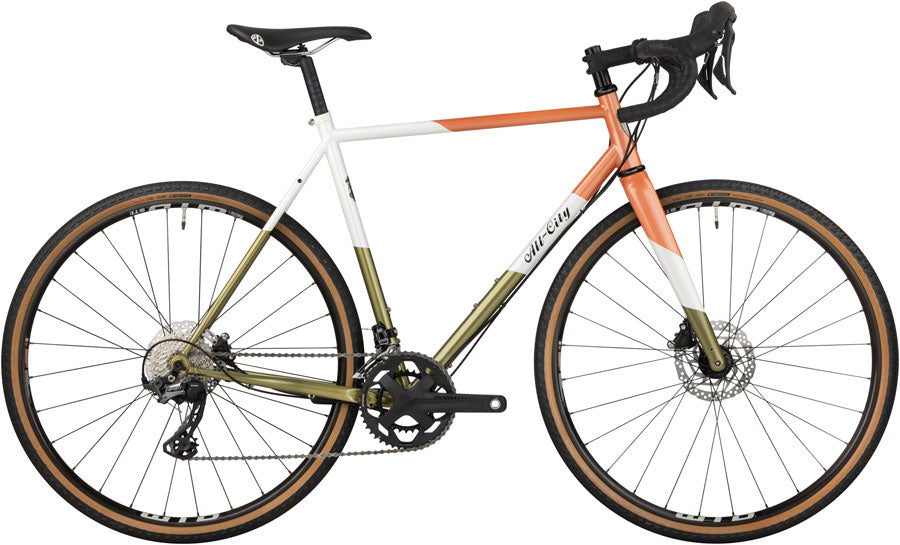

NEW All-City Cosmic Stallion - 700c, Steel, GRX Gravel Bike, Coral Moss
NEW All-City Cosmic Stallion - 700c, Steel, GRX Gravel Bike, Coral Moss
Regular price
$ 2,899.00 USD
Regular price
$ 2,899.00 USD
Sale price
$ 2,899.00 USD
Unit price
/
per
SKU: 210000049041
PRODUCT DETAILS
The Cosmic Stallion is ready for any road, and any distance. From fast mountain road rides, to all day gravel epics, this bike sets a new standard for beauty and functionality. Thoroughly modern, classically styled, all on a lightweight disc-brake frameset.
- Crafted from All-City’s proprietary heat-treated, air-hardened, and custom-extruded A.C.E. steel tubing
- Columbus Futura Cross Carbon Fork with 4mm adjustable rake to dial in your performance needs
- 12mm thru-axles and flat-mount disc brakes
- Three bottle cages, rear rack mounts, front and rear fender eyelets
- Tire Clearance: 700c x 47mm or 650b x 42mm (both without fenders)
Build Kit
- Frame : All-City A.C.E. Air-Hardened, Custom, Extruded steel
- Fork : Whisky No.9 CX Disc 12 Tapered
- Front Derailleur : Shimano GRX 810
- Rear Derailleur : Shimano GRX 810
- Cassette/Cog : Shimano 105, 11-32t
- Chain : Shimano HG 601
- Crankset : FSA Omega MegaExo AGX+ 46/30t
- Bottom Brcket : FSA MegaExo
- Shifter(s) : Shimano GRX 600
- Brakes : Shimano GRX 600
- Rotors : Shimano RT26, 160mm front and rear
- Headset : Cane Creek 40 Series
- Stem : Whisky No.7 Black Alloy Stem; ±6° Rise
- Handlebar : Whisky No.7 Black 12° Flair Drop Bar
- Seatpost : Whisky No.7 Black Alloy Seatpost
- Saddle : All-City Gonzo
- Wheels : WTB ST Light i23 28h Rims, All City Go Devil Hubs
- Tires : Teravail Cannonball Tire, 700c x 38mm, Tubeless Ready, 60 tpi Light and Supple
Sizing
Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.
- 46cm 5' - 5'5"
- 49cm 5'2" - 5'8"
- 52cm 5'6" - 5'11"
- 55cm 5'9" - 6'1"
- 58cm 5'11 - 6'4"
- 61cm 6'1" - 6'6"
Geometry
Frame measurements (mm) | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
A. BB Drop | 73 | 73 | 73 | 73 | 73 | 73 |
B. Chainstay Length | 436 | 441 | 446 | 446 | 446 | 446 |
C. Fork Length - Axle to Crown | 395 | 395 | 395 | 395 | 395 | 395 |
D. Fork Offset | 45 | 45 | 45 | 45 | 45 | 45 |
E. Head Tube Angle (deg) | 70 | 71 | 71.3 | 72.2 | 72.2 | 72.2 |
F. Headtube Length | 95 | 110 | 124 | 149 | 173 | 198 |
G. Reach | 371 | 381 | 384 | 389 | 397 | 413 |
H. Seat Tube Angle (deg) | 75 | 74.5 | 73.7 | 73.5 | 73 | 72.5 |
I. Seat Tube Length - Center to Top | 450 | 480 | 510 | 540 | 570 | 600 |
J. Stack | 518 | 536 | 550 | 577 | 600 | 624 |
K. Standover | 744 | 767 | 790 | 818 | 844 | 872 |
L. Top Tube Length (Effective) | 510 | 530 | 545 | 560 | 580 | 610 |
M. Wheelbase | 1005 | 1017 | 1028 | 1032 | 1047 | 1071 |
Component measurements (mm)
|
||||||
Crank Arm Length | 165 | 165 | 170 | 170 | 175 | 175 |
Handlebar Width | 400 | 420 | 420 | 440 | 460 | 460 |
Stem Length | 60 | 70 | 80 | 90 | 100 | 110 |
Stem Angle (deg) | 6 | 6 | 6 | 6 | 6 | 6 |
