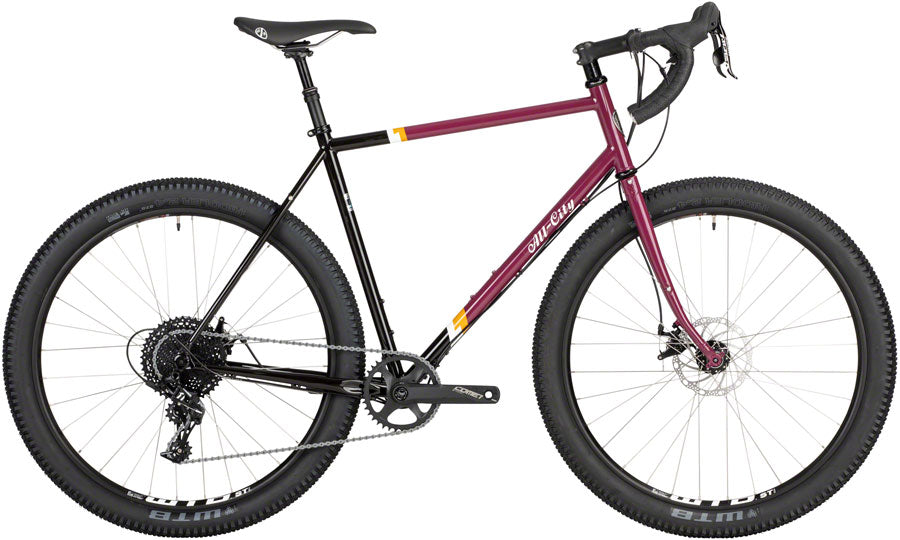

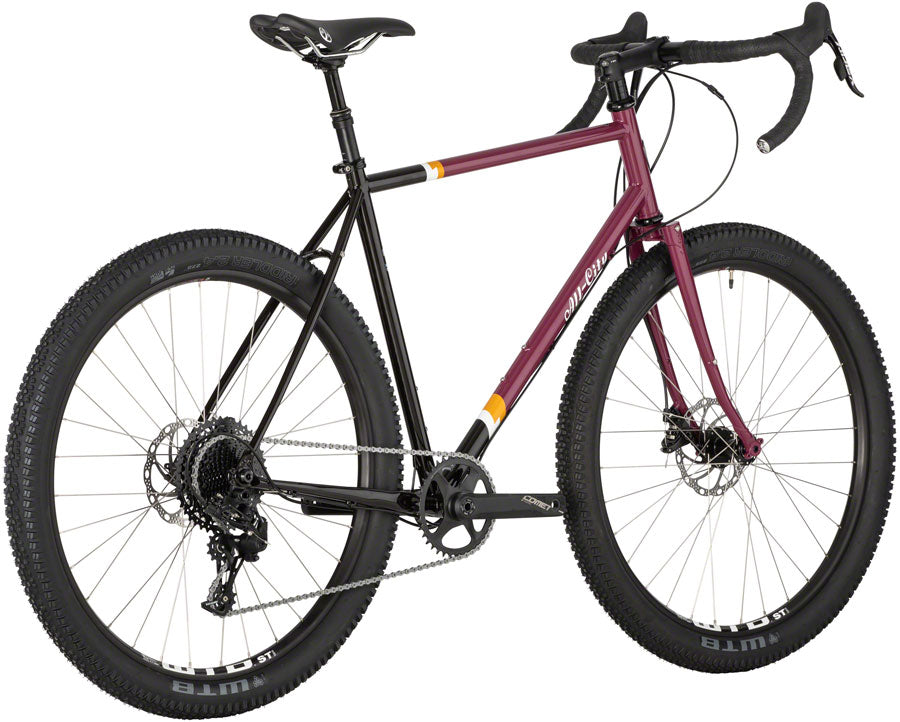

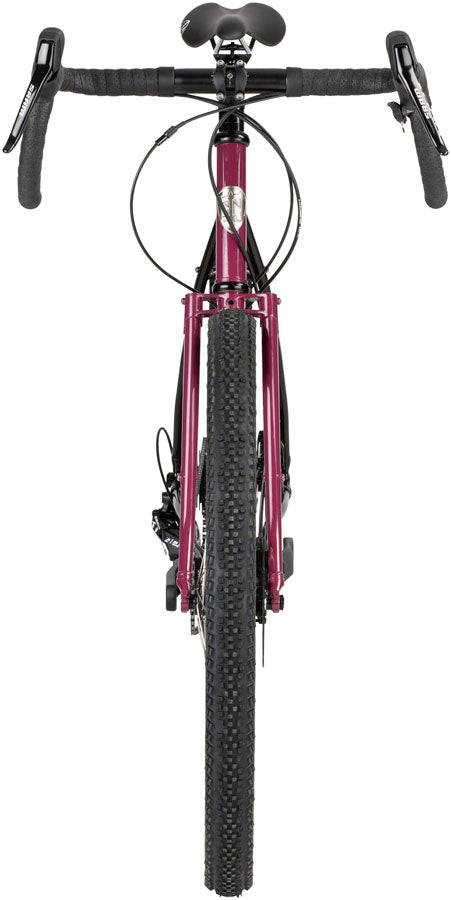

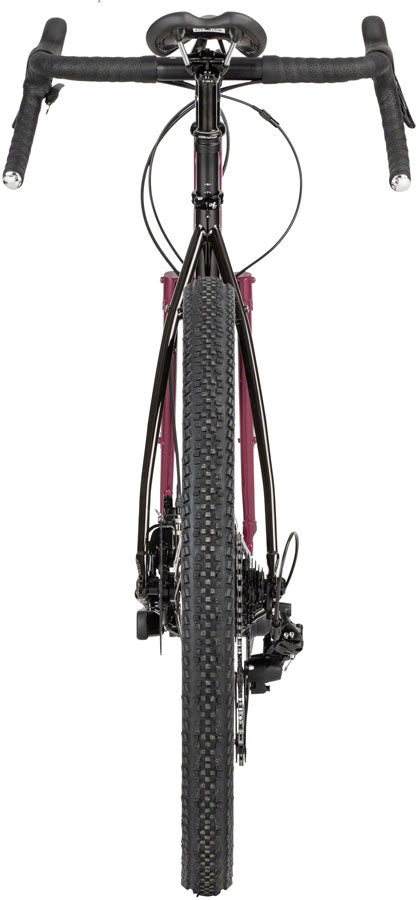

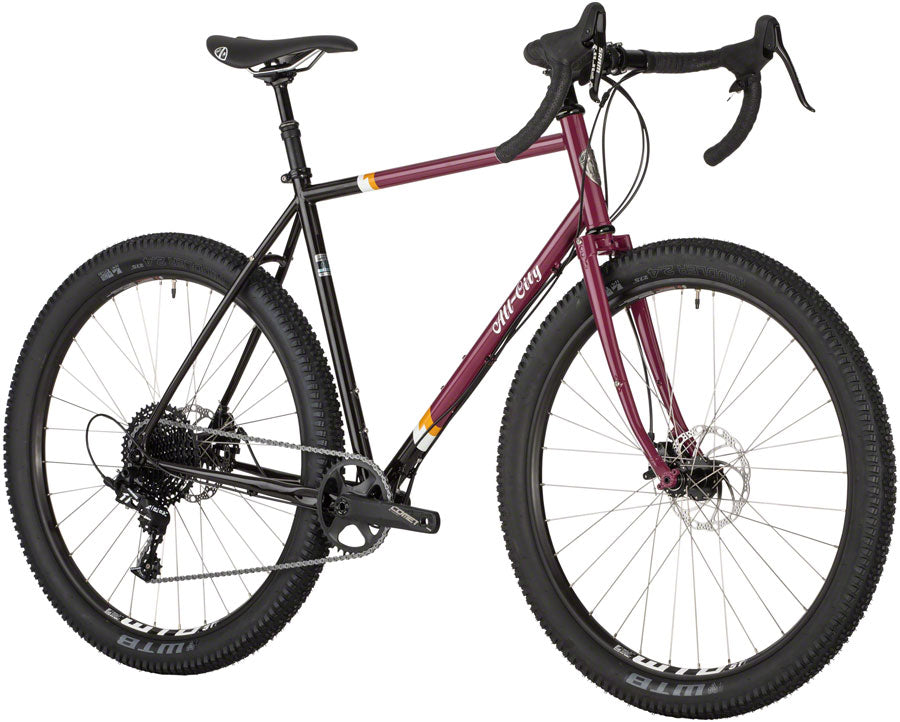

NEW All-City Gorilla Monsoon APEX All-Road/Gravel Bike, Charred Berry

NEW All-City Gorilla Monsoon APEX All-Road/Gravel Bike, Charred Berry

Regular price $ 1,599.97 USD
Regular price $ 2,199.00 USD Sale price $ 1,599.97 USD
Sale Sold out
Size
SKU: 210000044835
Available In Store

PRODUCT DETAILS

A sweet beast designed for chasing good times, the Gorilla Monsoon builds on All-City’s proven cross geometry to handle camping, dirt touring, and exploring the unknown. Built around 27.5 x 2.4” tires and offered in seven frame sizes, it comfortably accommodates our smallest and tallest riders for long days in the saddle. Features like stealth dropper post routing and full touring mounts round out this elegantly styled steed.

  • 612 Select Tubing — Selected specifically for sporty handling on the course, comfort on tours, and maximum fun
  • Geometry – adapted from All-City CX geo, plus the ability to support some load
  • 73mm bottom bracket allows for a wider chainring option and ample tire clearance
  • Stealth dropper routing
  • Tire clearance – 27.5 x 2.4” or 700c x 42mm
  • Bi-plane fork crown features four-point rack mount and mounts for fender
  • Flat-mount brakes, front and rear thru-axles, 1-1/8” head tube, All-City Shot Collar, three water bottle mounts
  • Seven frame sizes: 43, 46, 49, 52, 55, 58, and 61cm

Build Kit

  • Frame : 612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated
  • Fork : 612 Select Chromoly Steel, All-City Signature fork ends, Bi-Wing Crown, TIG Welded and Brazed, E.D. Coated
  • Rear Derailleur : SRAM APEX1, Long Cage
  • Cassette/Cog : SunRace 11-speed, 11/42t
  • Chain : KMC X11 EPT
  • Crankset : FSA Comet 38t, MegaEVO
  • Bottom Brcket : FSA MegaEVO
  • Shifter(s) : SRAM APEX 1x11
  • Brakes Levers : SRAM APEX 1x11
  • Brakes : Tektro MD-C550, with short cable pull
  • Rotors : Tektro TR160-22, 160mm, 6-bolt
  • Headset : Cane Creek 40 Series
  • Stem : JD, AL6061, 3D forged, 4-bolt stem, 31.8mm, ±6° Rise
  • Handlebar : JD, AL6061, 31.8mm, 12° Flair
  • Seatpost : TranzX JD-TSI01, 27.2, 350mm L, 50mm drop; w/TranzX DL-24 lever
  • Saddle : All-City Gonzo or DDK-5255
  • Wheels : WTB ST i25 TCS 2.0, 32h rims, Novatech Hubs
  • Tires : WTB Riddler, 27.5 x 2.4", TCS Light/Fast

Sizing

Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

  • 43cm 4'11" - 5'4"
  • 46cm 5'2" - 5'8"
  • 49cm 5'4" - 5'9"
  • 52cm 5'5" - 5'10"
  • 55cm 5'9" - 6'1"
  • 58cm 6' - 6'5"
  • 61cm 6'1" - 6'6"

Geometry

Frame measurements (mm) 43cm 46cm 49cm 52cm 55cm 58cm 61cm
A. BB Drop 62.5 62.5 62.5 62.5 62.5 62.5 62.5
B. Chainstay Length 430 430 430 430 430 430 430
C. Fork Length - Axle to Crown 395 395 395 395 395 395 395
D. Fork Offset 50 50 50 47 47 47 47
E. Head Tube Angle (deg) 70 71 71 71.5 71.5 71.5 71.5
F. Headtube Length 115 125 135 155 175 200 225
G. Reach 357 363 368 374 382 389 402
H. Seat Tube Angle (deg) 74.5 74 74 73.5 73 72.5 72.5
I. Seat Tube Length - Center to Top 415 445 475 510 540 570 600
J. Stack 534 547 557 579 598 622 645
K. Standover 711 735.5 758.2 788.3 813.4 840.1 866.8
L. Top Tube Length (Effective) 505 520 528 545 565 585 605
M. Wheelbase 1007 1008 1017 1021 1036 1051 1072
Component measurements (mm)
Crank Arm Length 165 165 170 170 170 175 175
Handlebar Width 400 400 420 440 440 460 460
Stem Length 70 80 90 100 100 110 120
