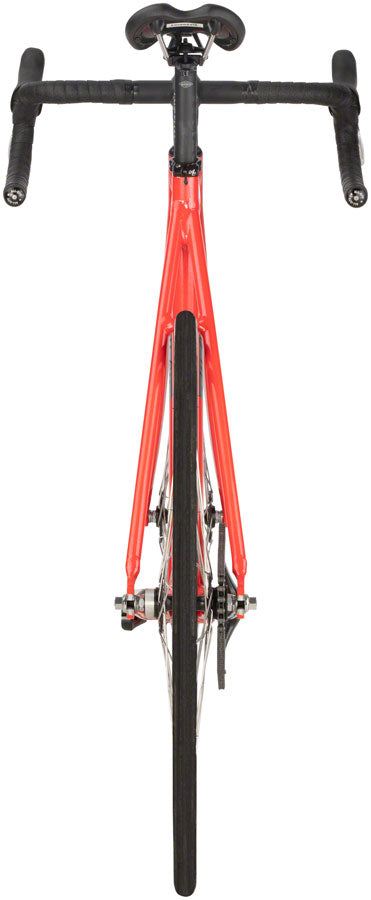

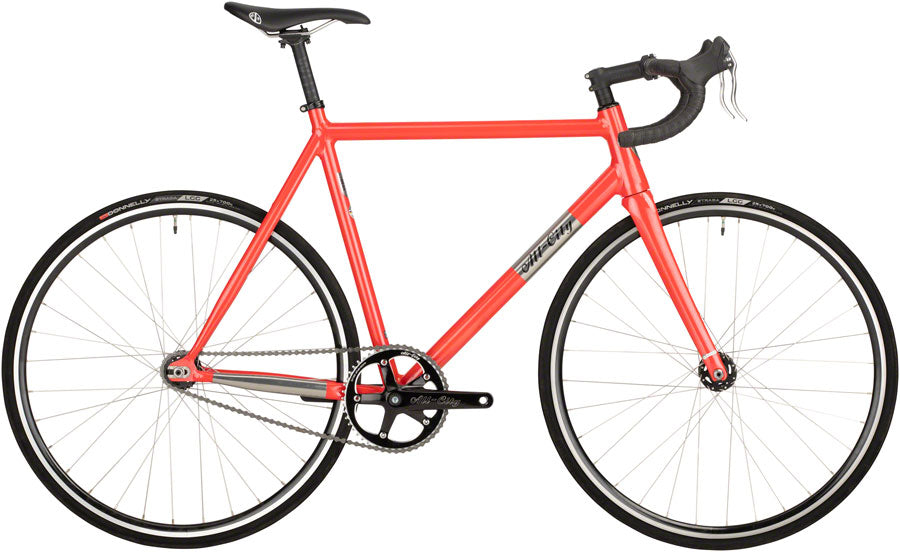

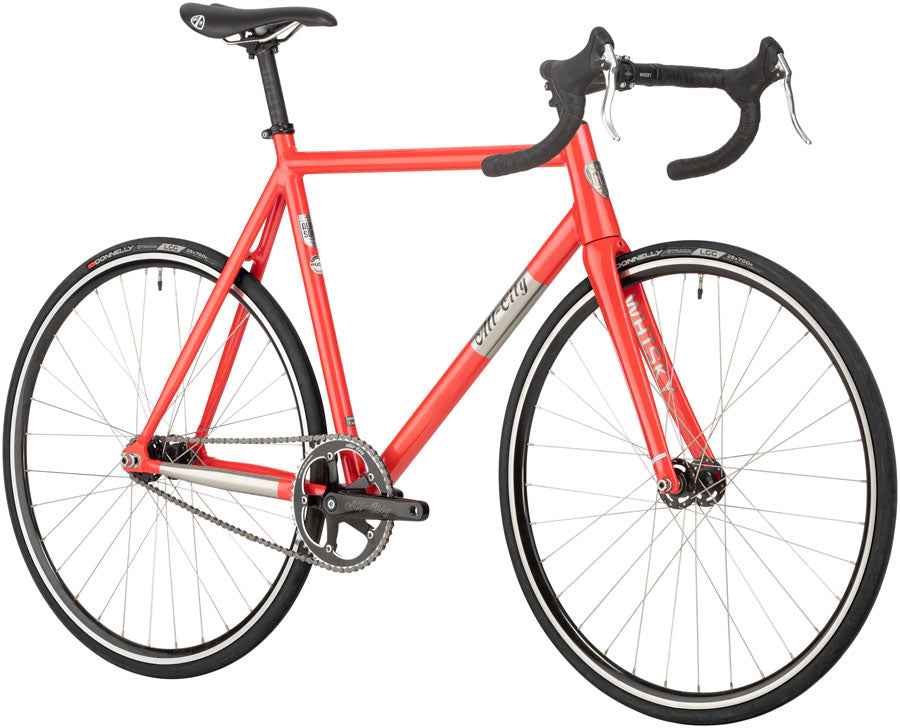

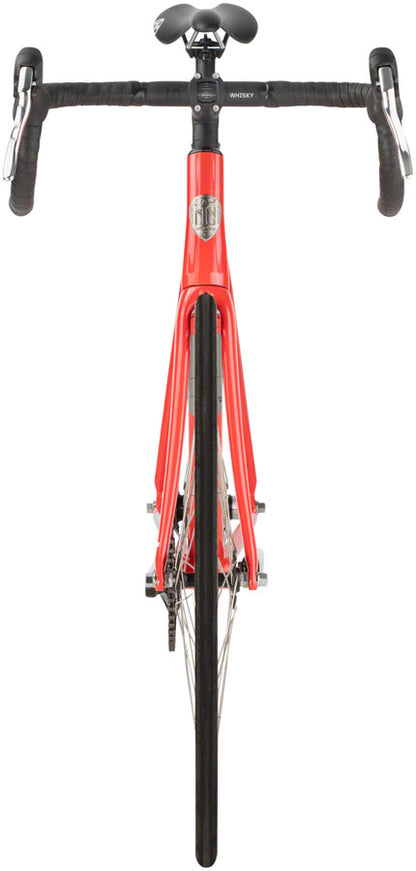

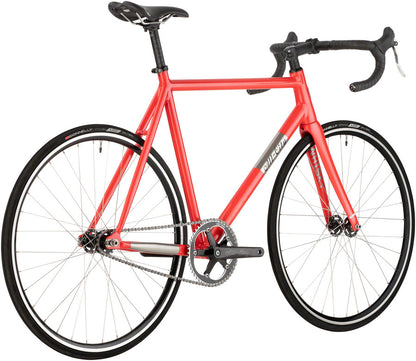

NEW All-City Thunderdome - Hot Pink Blink Track Bike

Drilled for front and rear brakes and quicker than ever, the All-City Thunderdome is crafted from our proprietary blend of race-ready Alumisonic aluminum tubes. Lightweight and responsive, this UCI-certified sprinter has proven itself on the boards of velodromes across the globe. On the track or on the city streets, its one and only speed is fast.

• UCI-certified track bike
• Classic round-profile tubing constructed from Alumisonic aluminum
• Replaceable stainless steel axle pads
• Tapered head tube and tapered steerer carbon fork
• Signature Shot Collar seat post clamp
• Tire clearance: 700 x 25c

Build Kit

• Frame : All-City Alumasonic, TIG Welded
• Fork : Whisky No.7 RD Tapered
• Cassette/Cog : All-City standard, 17t
• Chain : KMC B1H-Wide
• Crankset : All-City 612 Track Crank, 165mm, 49t ring
• Bottom Brcket : Square Taper, 68 x 110mm steel cups, sealed bearings
• Brakes Levers : Tektro RL340
• Brakes : Tektro R326
• Headset : Cane Creek 40 Series
• Stem : Whisky No.7
• Handlebar : Whisky No.7
• Seatpost : Whisky No.7
• Saddle : Black Saddle
• Wheels : Alex AT505, 32h w/ Joytech Hubs
• Tires : Donnelly Strada LGG, 700x25, 60tp

Sizing

Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

• 46cm 5'0" - 5'5"
• 49cm 5'2" - 5'8"
• 52cm 5'5" - 5'10"
• 55cm 5'8" - 6'
• 58cm 5'10" - 6'3"
• 61cm 61" - 6'6"

Geometry

Frame measurements (mm)	46cm	49cm	52cm	55cm	58cm	61cm
A. BB Drop	53	53	53	53	53	53
B. Chainstay Length	396	396	396	396	396	396
C. Fork Length - Axle to Crown	367	367	367	367	367	367
D. Fork Offset	45	45	45	45	45	45
E. Head Tube Angle (deg)	72	72.5	72.5	72.5	72.5	72.5
F. Headtube Length	113	128	148	168	193	218
G. Reach	378	384	394	403	417	430
H. Seat Tube Angle (deg)	75	75	74.5	74.5	74.5	74.5
I. Seat Tube Length - Center to Top	460	490	520	550	580	610
J. Stack	493	509	528	547	571	595
K. Standover	742	766	791	816	843	870
L. Top Tube Length (Effective)	510	520	540	555	575	595
M. Wheelbase	961	967	983	999	1020	1041
Component measurements (mm)
Crank Arm Length	165	165	165	165	165	165
Handlebar Width	380	400	420	420	440	440
Seatpost Offset	0	0	0	0	0	0
Stem Length	90	90	100	100	110	120
Stem Angle (deg)	7	7	7	7	7	7
