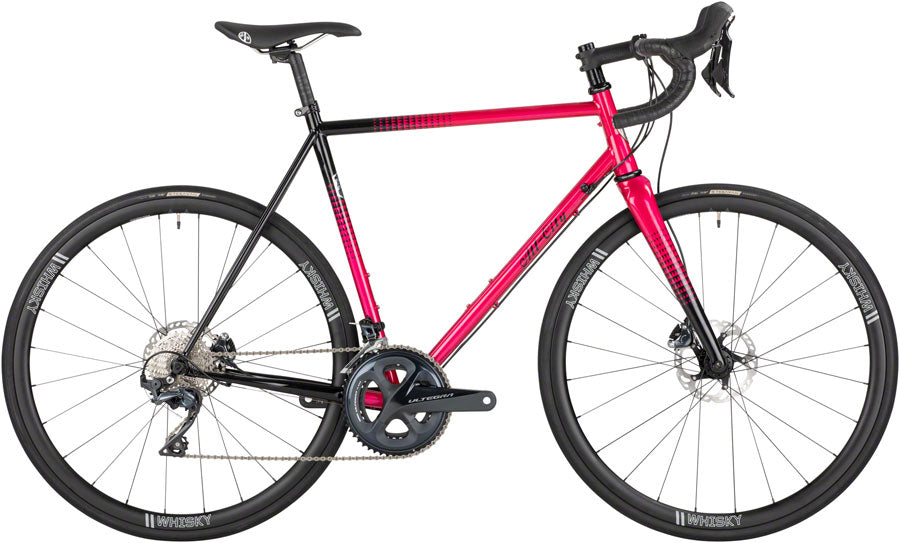

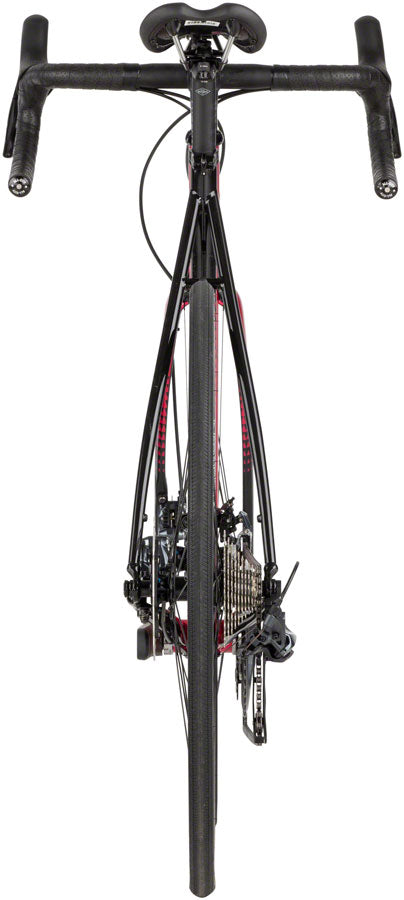

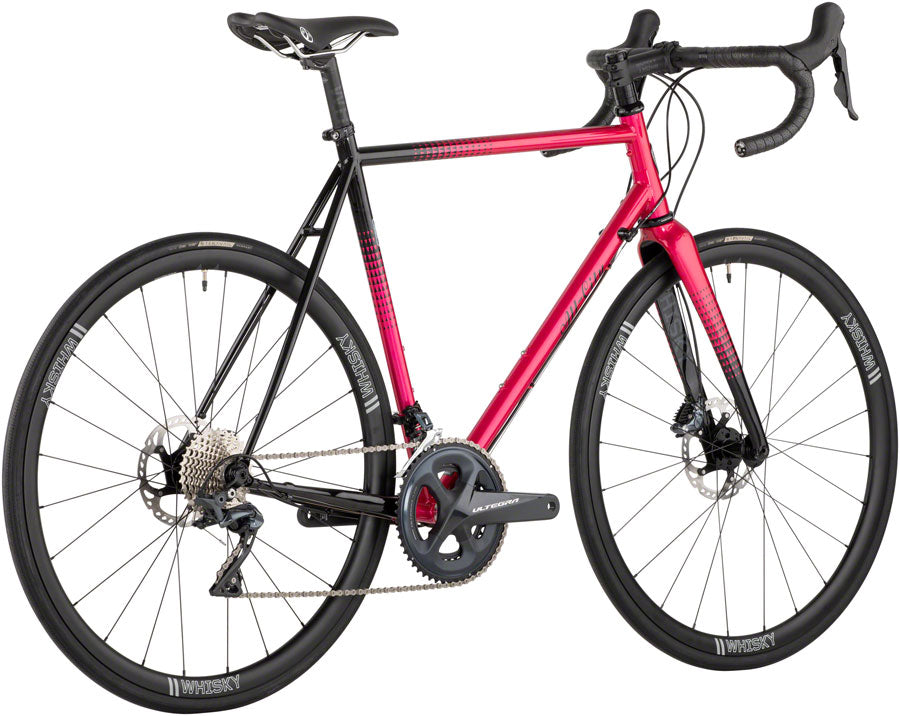

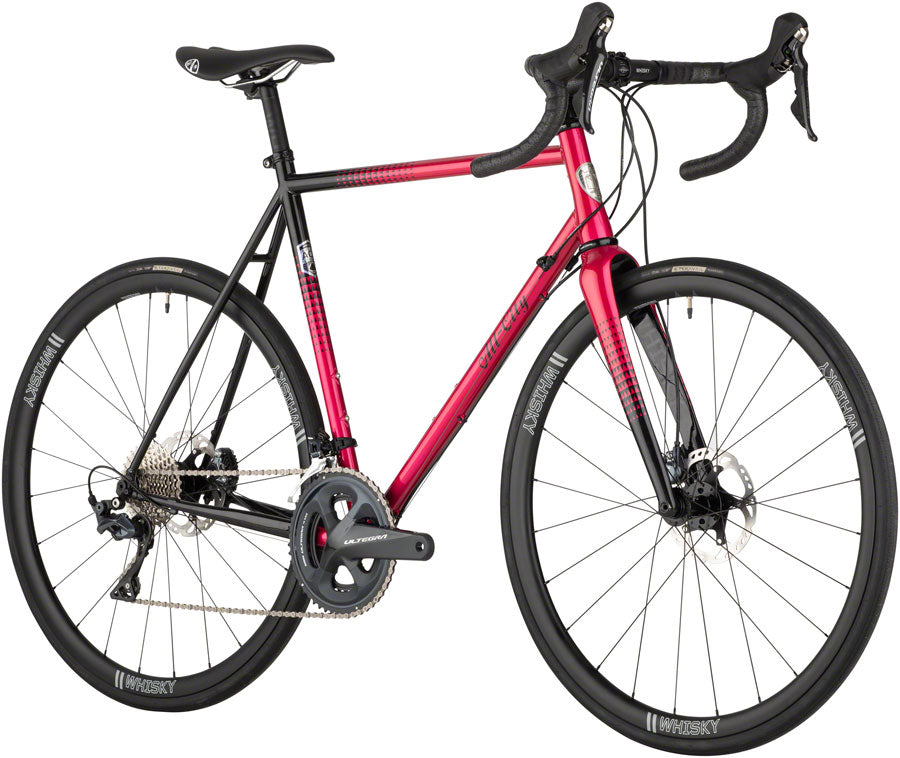

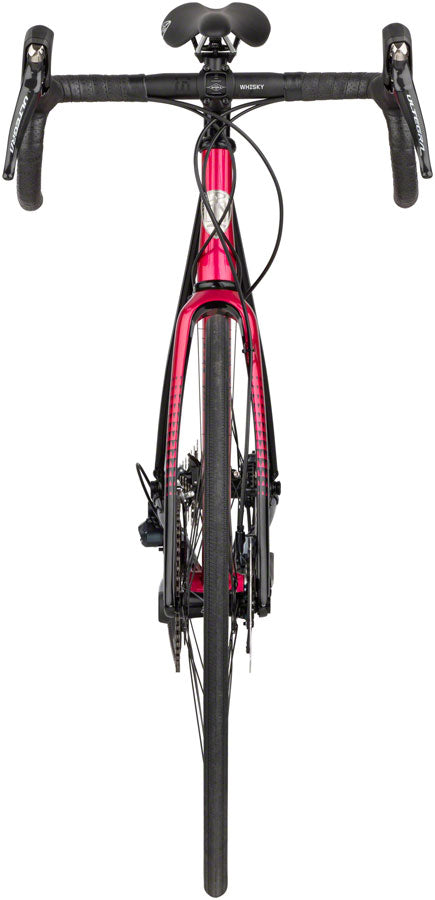

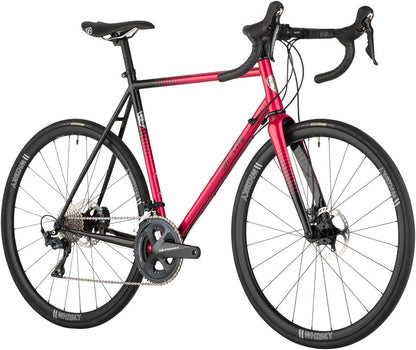

NEW All-City Zig Zag Ultegra - Sour Cherry Seltzer Road Bike

The Zig Zag is All-City’s answer to what a Modern Endurance Steel Road Bike should be. Elegant and eye-catching, it’s a ripping-fast and efficient machine built to shield the rider from road chatter and unnecessary fatigue. Designed for speed, style, and maximum comfort, the Zig Zag allows riders to go further, faster, and have more fun.

• A.C.E. Tubing — Our proprietary heat-treated, air-hardened, extruded steel tubing that we custom designed for riding and racing
• Whisky No.9 RD+ carbon fork
• Whisky No.7 handlebar, stem and seatpost
• A classic road silhouette blends with a contemporary road geo to balance power with comfort for long days in the saddle or attacks off the front
• Clearance for 700c x 35mm tires without fenders; 700c x 32mm with fenders
• Custom head badge, Signature dropouts, Signature brazed-on seat collar, pump peg, two bottle bosses, and hidden fender mounts

Build Kit

• Frame : All-City A.C.E. Air-Hardened, Custom, Extruded steel
• Fork : Whisky No.9 RD+ Thru-Axle Tapered
• Front Derailleur : Shimano Ultegra R8000
• Rear Derailleur : Shimano Ultegra R8000
• Cassette/Cog : Shimano R7000 11-32
• Chain : Shimano HG601
• Crankset : Shimano Ultegra R8000 52-36
• Bottom Brcket : Shimano RS500
• Shifter(s) : Shimano Ultegra R8000
• Brakes : Shimano Ultegra R80000 Hydro
• Rotors : Shimano 6-bolt SM-RT26 160 rotors
• Headset : Cane Creek 40 Series
• Stem : Whisky No.7 Black Alloy Stem; ±6° Rise
• Handlebar : Whisky No.7 Black 6° Flair Drop Bar
• Seatpost : Whisky No.7 Black Alloy Seatpost
• Saddle : Black with Chromo Rails
• Wheels : Whisky No.9 30mm Carbon 24h w/ All CIty Go Devil Hubs
• Tires : Teravail Rampart 700x28 60tpi Light and Supple

Sizing

Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

• 46cm 5' - 5'5"
• 49cm 5'2" - 5'8"
• 52cm 5'6" - 5'11"
• 55cm 5'9" - 6'1"
• 58cm 5'11 - 6'4"
• 61cm 6'1" - 6'6"

Geometry

Frame measurements (mm)	46cm	49cm	52cm	55cm	58cm	61cm
A. BB Drop	70	70	70	70	70	70
B. Chainstay Length	415	415	415	415	420	420
C. Fork Length - Axle to Crown	386	386	386	386	386	386
D. Fork Offset	51	51	51	51	51	51
E. Head Tube Angle (deg)	70	71	72	72	72.5	72.5
F. Headtube Length	106	121	140	160.5	185.5	210.5
G. Reach	375	377	384	389	400	415
H. Seat Tube Angle (deg)	75.5	74	73.5	73	72.5	72.5
I. Seat Tube Length - Center to Top	460	490	520	550	580	610
J. Stack	524	540	562	583	607	631
K. Standover	736.9	761.4	787.7	813.4	840.1	866.4
L. Top Tube Length (Effective)	520	530	545	560	580	605
M. Wheelbase	1003.3	1006.8	1011.3	1019.35	1043.5	1065.6
Component measurements (mm)
Crank Arm Length	165	170	172.5	172.5	175	175
Handlebar Width (cm)	38	40	40	42	44	46
Seatpost Offset	0	18	18	18	18	18
Stem Length	70	80	90	100	110	110
Stem Angle (deg)	6	6	6	6	6	6
