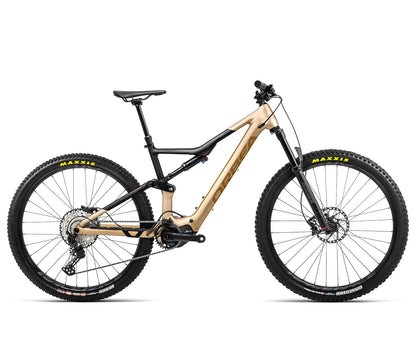

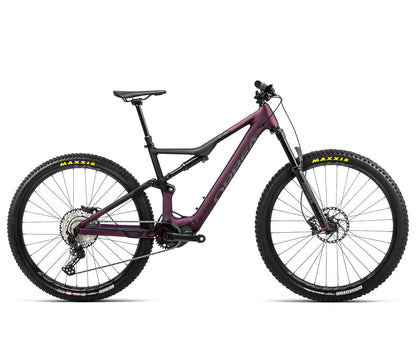

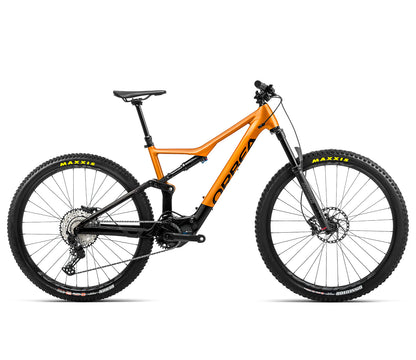

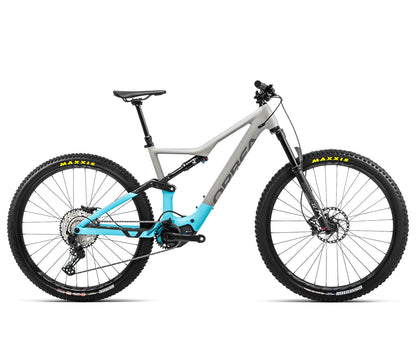

NEW 2022 Orbea Rise H30 20mph Trail E-Mountain Bike - Shimano EP8-RS - 540Whr

BUILD KIT:

• Frame: Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148
• Shock: Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
• Fork: Marzocchi Bomber Z2 140 QR15x110
• Chainring: e*thirteen e*spec Direct Mount 32T Boost
• Crank: e*thirteen Plus Alu
• Headset: Acros Alloy 1-1/8 - 1-1/2" Integrated
• Handlebar: OC1 35mm 12mm Rise 780mm
• Stem: OC1 3D Forged 35mm interface 7º
• Shifters: Shimano Deore M6100
• Brakes: Shimano MT410 Hydraulic Disc
• Rotors: 180mm Front /180mm Rear
• Cassette: Shimano CS-M7100 10-51t 12-Speed
• Rear derailleur: Shimano SLX M7100 SGS Shadow Plus
• Chain: Shimano M6100
• Wheels: Race Face AR 30c Tubeless Ready
• Tyres: Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
• Tyres: Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
• Seatpost: OC MC20 Mountain Control Dropper, 31,6mm
• Dropper Lever: OC Horizontal
• Saddle: Fizik Taiga S-alloy rail
• Chainguide: Orbea Rise chainguide
• Motor: Shimano EP8-RS
• Battery: Orbea RS Internal 540Wh
• Display: Shimano SC-E7000
• Charger: Orbea Smart Charger (42V-4A)
• Remote: Shimano E7000 switch unit for assist

SIZING: Orbea recommends the following sizes

• SM: 4'11" - 5'5"
• MD: 5'3" - 5'9"
• LG: 5'7" - 6'1"
• XL: 5'11" - 6'6"
