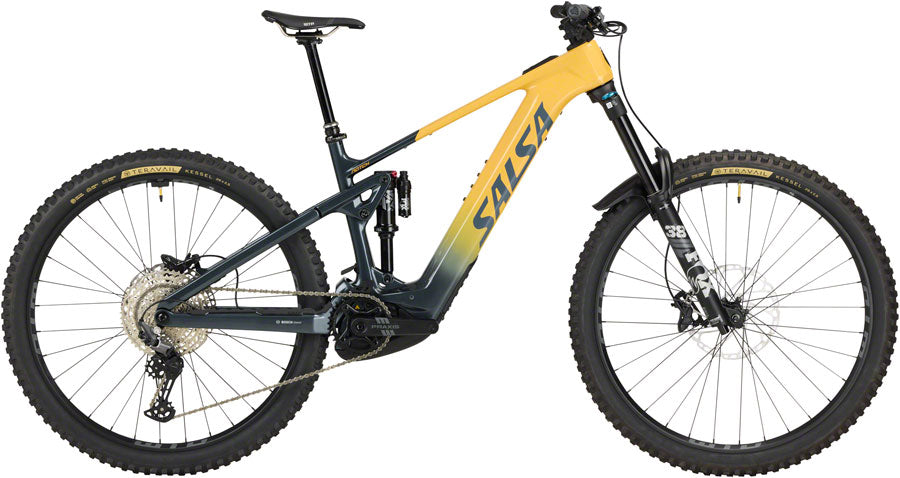

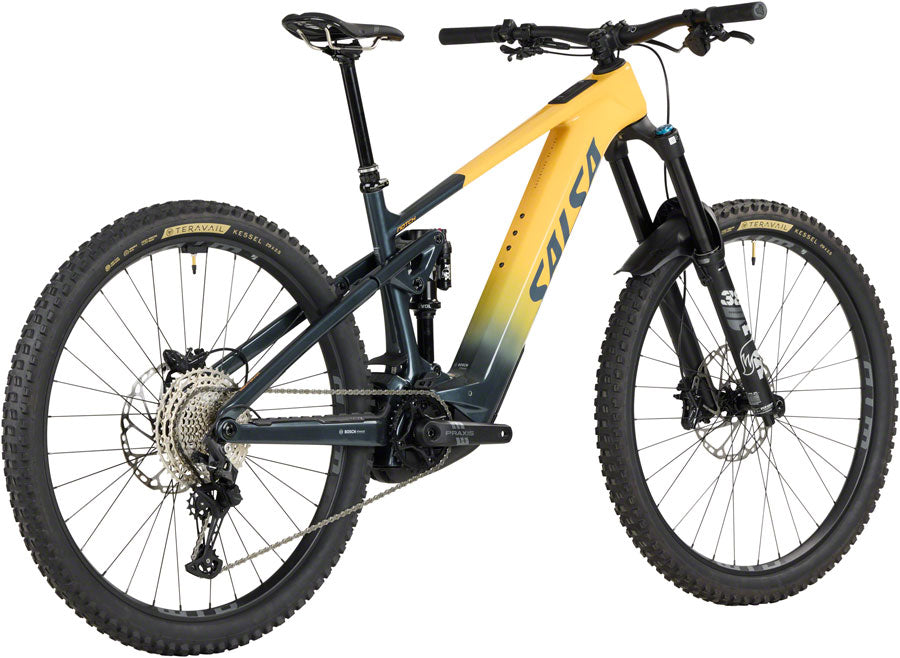

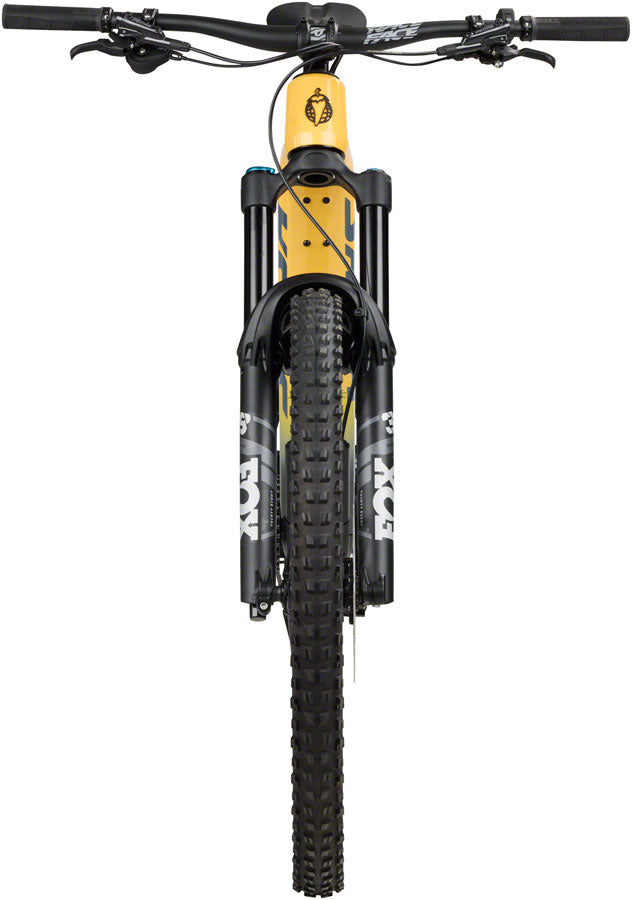

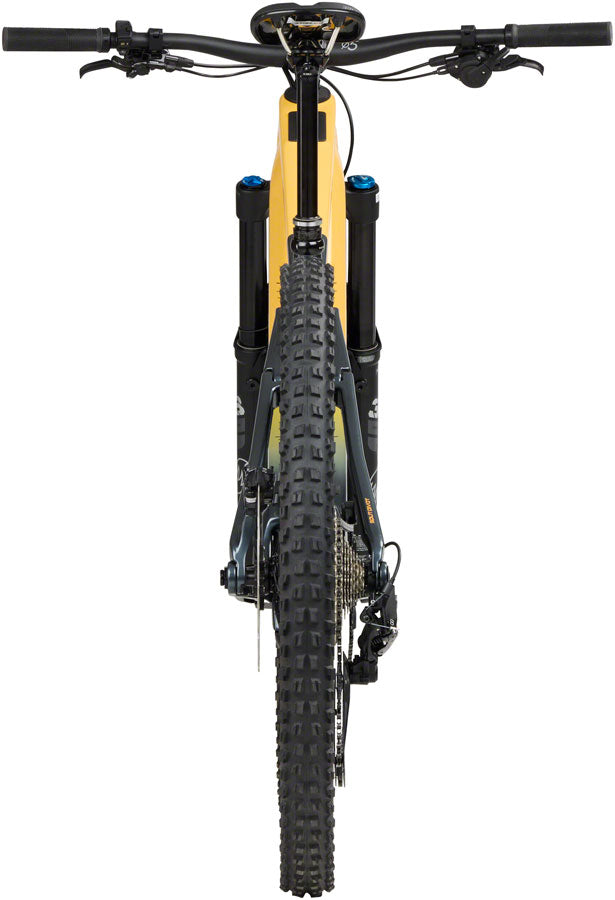

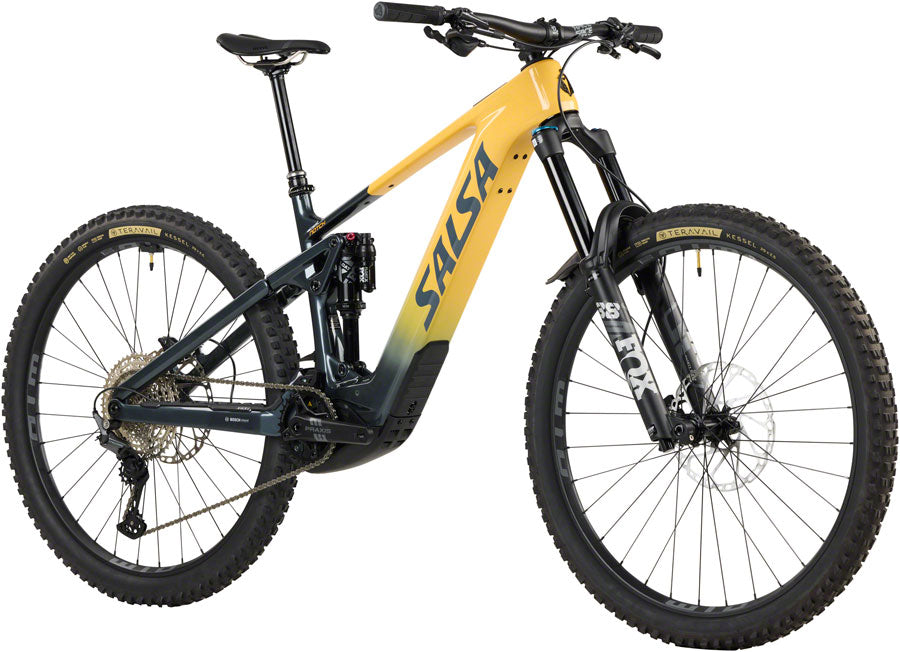

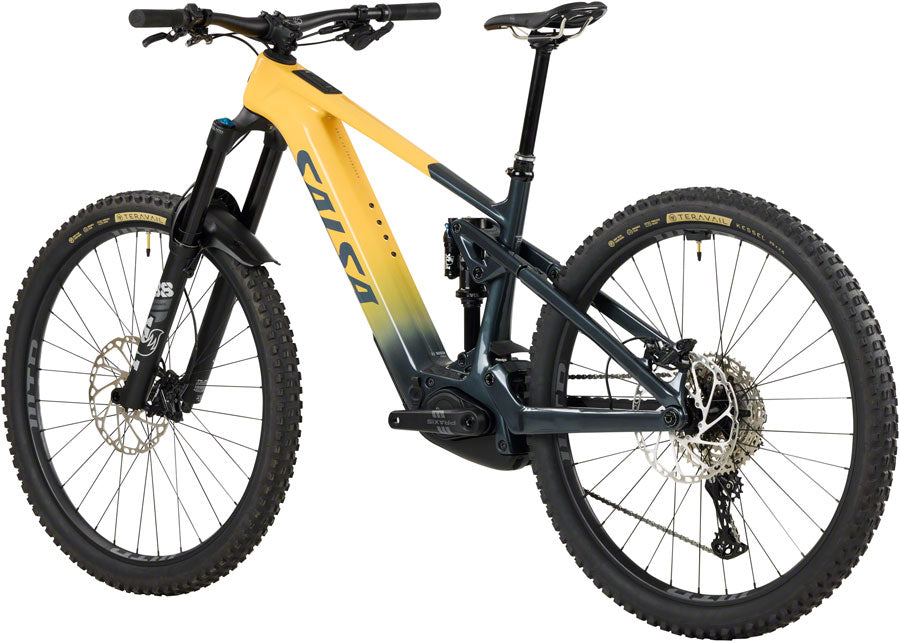

NEW Salsa Notch C Deore 12 Ebike - 29", Carbon, Slate / Apricot

Notch C is Salsa's high-torque electric mountain bike. In 170mm-travel mode, It’s a balanced platform built for roaming far on rowdy terrain. With a carbon fiber frame, geometry poised for stability at speed, a powerful Bosch Performance Line CX motor, efficient Split Pivot suspension, and on-bike storage, Notch is happiest when it’s putting in extra laps, exploring new trail systems, or battling between the tape in an enduro event.

• High-modulus carbon fiber frame and control link
• Split Pivot suspension design with 170mm of efficient rear travel
• Split Pivot+ frame design allows riders to swap between travel classes
• Bosch Performance Line CX BDU38 mid-drive motor with smart system (class 1, 20 mph/32 kph max assist)
• 85Nm max torque
• 625Wh Bosch PowerTube battery fully enclosed in downtube
• Compatible with 250Wh Bosch PowerMore range-extender battery (sold separately)
• Bosch BRC3100 top tube System Controller with BRC3300 Bluetooth mini-remote on handlebar
• All sizes fit one bottle or Bosch PowerMore range-extender battery
• Tool and tube mount on underside of top tube
• 29 x 2.6″ tire clearance in frame
• Flip chip for geometry tweaks
• Frame protection in high-wear areas (downtube, main pivot, seatstay, and chainstay)
• SRAM UDH compatible
• Meets UL 2849, and UL 2271 certification

• Weight - Complete Bike: 50 lb 8 oz (MD frame)

BUILD KIT:

• Frame: Notch Carbon
• Suspension Fork: Fox 38 Performance Series, 180mm
• Rear Shock: Fox Float X Performance Series
• Drive Unit: Bosch Performance Line CX, BDU38 Universal Mount
• E-Bike Classification: Class 1
• Drive Type: Mid-drive
• Max Assist: Speed 20 mph
• Motor Torque: 85Nm
• Range Estimate: See FAQ
• Assist Levels: Four: Eco, Tour, eMTB, Turbo (Smart systems offers customizable mode settings via the Bosch Flow App)
• Walk Assist: Yes
• Max Motor: Assist 340% up to 600 watts
• Throttle: No
• Battery Capacity Watt Hours: 625Wh
• Battery Capacity Amp Hours: 16.7Ah
• Battery Power Volts: 36V
• Battery Type: Bosch PowerTube 625 lithium ion
• Removable Battery: Removable for service
• Estimated Charge Time: 50% charge: approx. 2.1 hours 100% charge: approx. 5.4 hours
• Charger Included: Yes
• Lights Included: No
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore M6100-SGS
• Cassette: Shimano Deore M6100, 10–51t, 12-speed
• Chain: Shimano Deore M6100 HYPERGLIDE+
• Crankset: Praxis TYPE2 ISIS Crank Arms w/ E-Spider, 34t, MRP 1x CS2 32-36T chainguide for Bosch BDU38
• Shifter: Shimano Deore SL-M6100 12-spd
• Brake Levers: Shimano Deore M6100
• Brake Caliper: Shimano Deore M6120, 4-piston
• Rotors: Shimano Deore RT64 (Center Lock, 220mm front and rear)
• Headset: ACROS AZX-720 ZS56/ZS66 for 1.5" tapered steerer
• Stem: Salsa Guide 40mm
• Handlebar: Race Face Chester, SM–MD: 780mm x 20mm rise; LG–XL: 780mm x 35mm rise
• Grips / Bar Tape: WTB Wavelength
• Seatpost: Tranz X YSI05 RAD+, SM: 150mm travel; MD–LG: 170mm travel; XL: 200mm travel
• Saddle: WTB Solano, Medium, Steel Rail, Fusion Form
• Front Hub: Shimano TC500-15-B, 15x110mm
• Rear Hub: Shimano TC500-15-B, 12x148mm
• Spoke: Butted, 3-cross lacing, black
• Rim: WTB KOM Tough i30 TCS, 32h
• Front Tire: Teravail Kessel 29x2.5", Durable Plus casing, WTB TCS Sealant included
• Rear Tire: Teravail Kessel 29x2.5", Durable Plus casing, WTB TCS Sealant included

SIZING: Salsa recommends the following sizes based on rider height:

• SM: 5'5" - 5'8"
• MD: 5'8" - 5'11"
• LG: 5'11" - 6'2"
• XL: 6'2" and up
