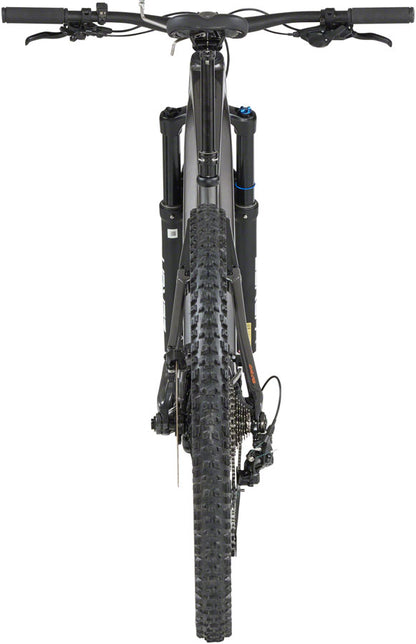

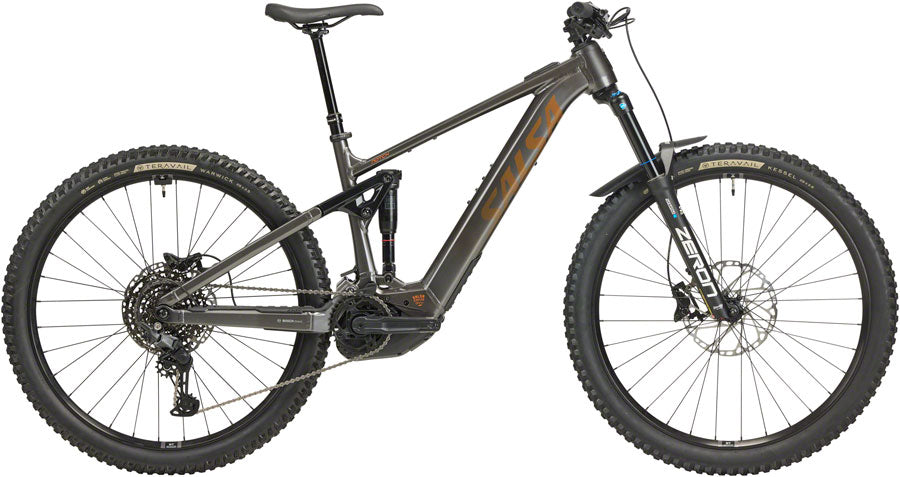

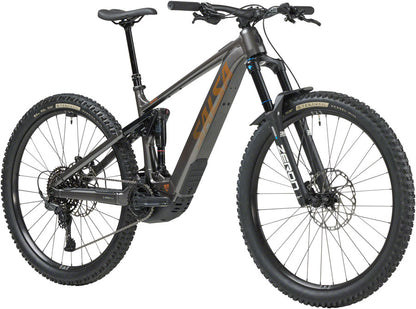

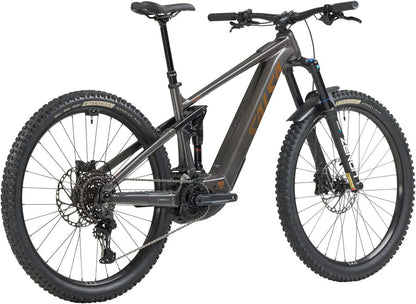

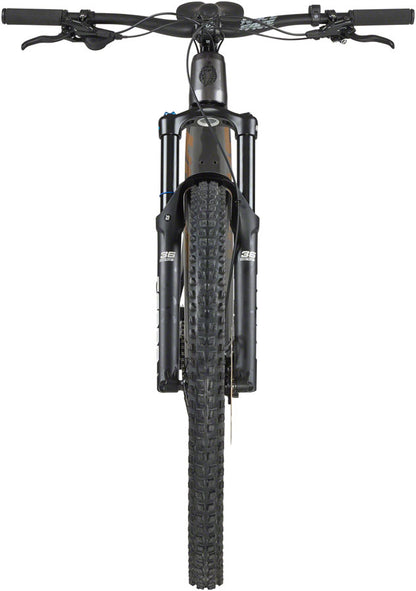

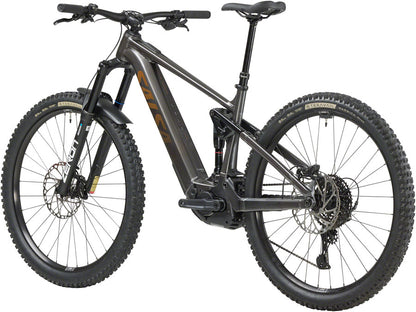

NEW Salsa Notch Cues 10 Mountain Ebike - 29", Aluminum, Charcoal Black

Notch is Salsa's high-torque electric mountain bike. In 160 mm-travel mode, It’s a balanced platform built for roaming far on rowdy terrain. With geometry poised for stability at speed, a powerful Bosch Performance Line CX motor, efficient Split Pivot suspension, and on-bike storage, Notch is happiest when it’s putting in extra laps, exploring new trail systems, or battling between the tape in an enduro event.

• 6061-T6 alloy frame with high-modulus carbon fiber control link

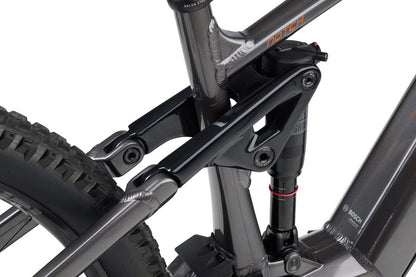

• Split Pivot suspension design with 160 mm of efficient travel
• Split Pivot+ frame design allows riders to swap between travel classes
• Bosch Performance Line CX class 1 mid-drive motor with smart system (20 mph/32 kph max assist)
• 85 Nm max torque​
• 500 Wh Bosch PowerTube battery fully enclosed in downtube​

BUILD KIT

• Frame: Notch Aluminum
• Suspension Fork: SR Suntour ZERON36 Boost EQ, 160mm
• Rear Shock: RockShox Deluxe Select

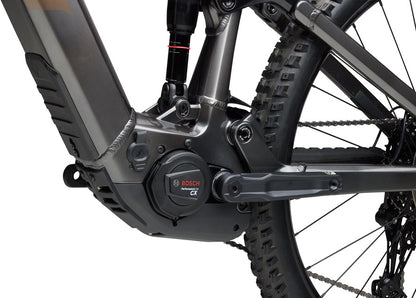

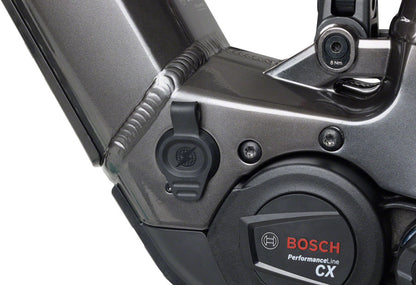

• Drive Unit: Bosch Performance Line CX
• E-Bike Classification: Class 1
• Drive Type: Mid-drive
• Max Assist Speed: 20 mph
• Motor Torque: 85Nm
• Range Estimate: 60 miles
• Assist Levels: Four (Eco, Tour, eMTB, Turbo), programmable via Bosch app
• Walk Assist: Yes
• Max Motor Assist: 340% up to 600 watts
• Battery Capacity: 500Wh
• Battery Amp Hours: 13.4Ah
• Battery Voltage: 36V
• Battery Type: PowerTube 500 (Lithium-Ion)
• Removable Battery: Yes (for service)
• Estimated Charge Time: 4.5 hours
• Charger Included: Yes
• Rear Derailleur: Shimano U6000 SHADOW RD+
• Cassette: Shimano LINKGLIDE LG400, 11–48t, 10-speed
• Chain: Shimano LG500 LINKGLIDE
• Crankset: FSA CK-762 w/ 55mm CL, 104 BCD spider, MegaTooth 34t steel chainring
• Shifter: Shimano U6000-10R
• Brake Levers: Shimano M4100
• Brake Caliper: Shimano MT420
• Rotors: Shimano RT64, Center Lock, 220mm (front and rear)
• Headset: ACROS AZX-721 ZS56/ZS66 for 1.5" tapered steerer
• Stem: Salsa Guide, 40mm
• Handlebar: RaceFace Chester, SM/MD: 780mm wide, 20mm rise; LG/XL: 780mm wide, 35mm rise
• Grips: WTB Wavelength
• Seatpost: Tranz X YSP18, SM: 150mm travel; MD/LG/XL: 170mm travel
• Saddle: WTB Solano, Medium, Fusion Form, steel rail
• Front Hub: Shimano TC500-15-B, 32h
• Rear Hub: Shimano TC500-MS-B, 32h
• Spokes: 2.0 mm straight gauge, black
• Rim: WTB ST i30 Tough, TCS
• Front Tire: Teravail Kessel 29 x 2.6", Ultra Durable casing, WTB TCS Sealant included (tubes installed)
• Rear Tire: Teravail Warwick 29 x 2.5", Ultra Durable casing, WTB TCS Sealant included (tubes installed)

SIZING: Salsa recommends the following sizes based on rider height

• SM: 5'5" - 5'8"
• MD: 5'8" - 5'11"
• LG: 5'11" - 6'2"
• XL: 6'2" and up
