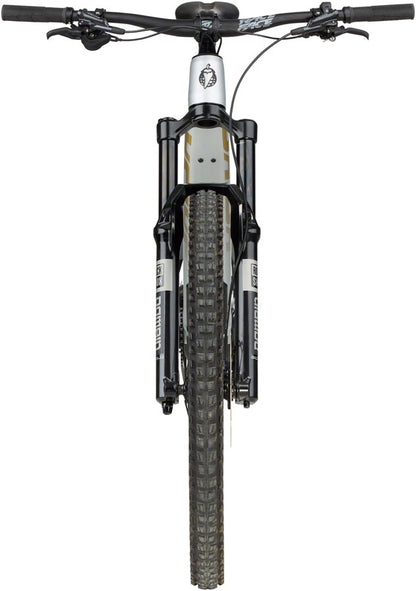

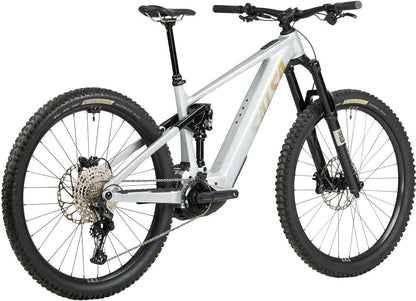

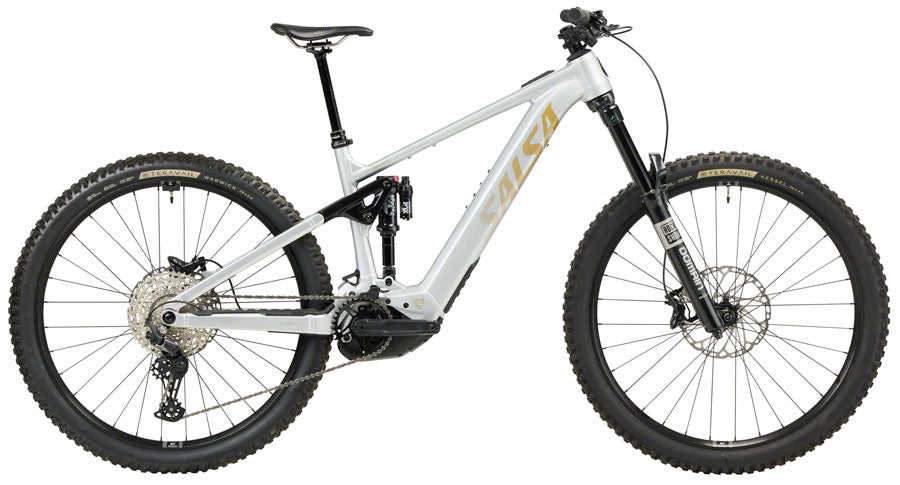

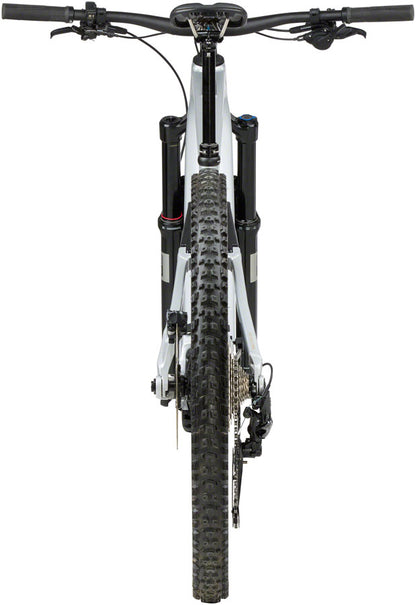

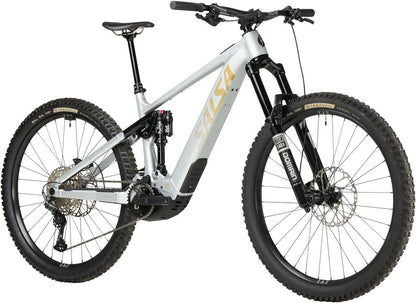

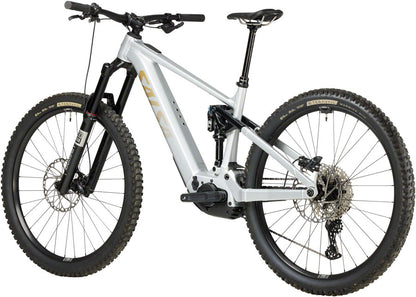

NEW Salsa Notch Deore 12 Mountain Ebike - 29", Aluminum, Silver

Notch is Salsa's high-torque electric mountain bike. In 160 mm-travel mode, It’s a balanced platform built for roaming far on rowdy terrain. With geometry poised for stability at speed, a powerful Bosch Performance Line CX motor, efficient Split Pivot suspension, and on-bike storage, Notch is happiest when it’s putting in extra laps, exploring new trail systems, or battling between the tape in an enduro event.

• 6061-T6 alloy frame with high-modulus carbon fiber control link
• Split Pivot suspension design with 160 mm of efficient travel
• Split Pivot+ frame design allows riders to swap between travel classes
• Bosch Performance Line CX class 1 mid-drive motor with smart system (20 mph/32 kph max assist)
• 85 Nm max torque
• 500 Wh Bosch PowerTube battery fully enclosed in downtube
• Compatible with 250 Wh Bosch PowerPack range-extender battery (sold separately)
• Bosch top tube System Controller and handlebar Mini Remote
• 29 x 2.6" tire clearance
• Tool and tube mount on underside of top tube
• All sizes fit one bottle or Bosch PowerPack range-extender battery
• Frame protection in high-wear areas (downtube, main pivot, seatstay, and chainstay)
• Meets UL 2849, and UL 2271 certification

BUILD KIT:

• Frame: Notch Aluminum
• Suspension Fork: RockShox Domain Gold RC, 170mm
• Rear Shock: Fox Float X Performance Series
• Drive Unit: Bosch Performance Line CX
• E-Bike Classification: Class 1
• Drive Type: Mid-drive
• Max Assist Speed: 20 mph
• Motor Torque: 85Nm
• Range Estimate: 60 miles
• Assist Levels: Four — Eco, Tour, eMTB, Turbo; Smart System offers programmable mode settings via the Bosch app
• Walk Assist: Yes
• Max Motor Assist: 340% up to 600 watts
• Throttle: No
• Battery Capacity: 500Wh
• Battery Capacity: 13.4Ah
• Battery Power: 36V
• Battery Type: PowerTube 500 (Lithium-Ion)
• Removable Battery: Removable for service
• Estimated Charge Time: 4.5 hours
• Charger Included: Yes
• Lights Included: No
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore M6100-SGS
• Cassette: Shimano Deore M6100-12, 10–51t, 12-speed
• Chain: Shimano Deore M6100 HYPERGLIDE+
• Crankset: FSA CK-762 w/ RaceFace direct-mount chainring, 34t
• Shifter: Shimano Deore M6100
• Brake Levers: Shimano Deore M6100
• Brake Caliper: Shimano Deore M6120, 4-piston
• Rotors: Shimano Deore RT64, Center Lock, 220mm front and rear
• Headset: ACROS AZX-721 ZS56/ZS66 for 1.8" tapered steerer
• Stem: Salsa Guide 40mm
• Handlebar: RaceFace Chester, 780mm wide, 20mm rise
• Grips / Bar Tape: WTB Wavelength
• Seatpost: Tranz X YSP18, SM: 150mm travel; MD, LG, XL: 170mm travel
• Saddle: WTB Solano, Medium, Fusion Form, steel rail
• Front Hub: Shimano TC500-15-B, 32h
• Rear Hub: Shimano TC500-MS-B, 32h
• Spoke: 2.0mm straight gauge, black
• Rim: WTB ST i30 Tough, TCS
• Front Tire: Teravail Kessel 29 x 2.6", Ultra Durable casing, WTB TCS Sealant included, tubes installed
• Rear Tire: Teravail Warwick 29 x 2.5", Ultra Durable casing, WTB TCS Sealant included, tubes installed
• Misc: -

SIZING: Salsa recommends the following sizes based on rider height:

• Small: 5' 2" - 5' 7"

• Medium: 5' 6" - 5' 11"

• Large: 5' 10" - 6' 3"

• X-Large: 6' 2" - 6' 7"
