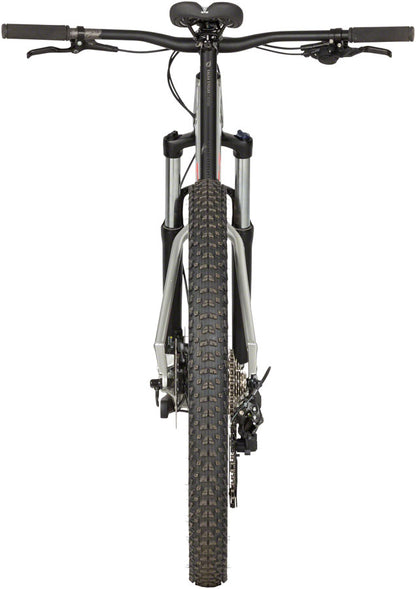

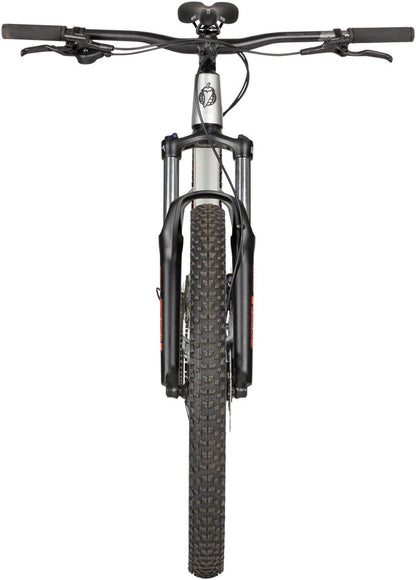

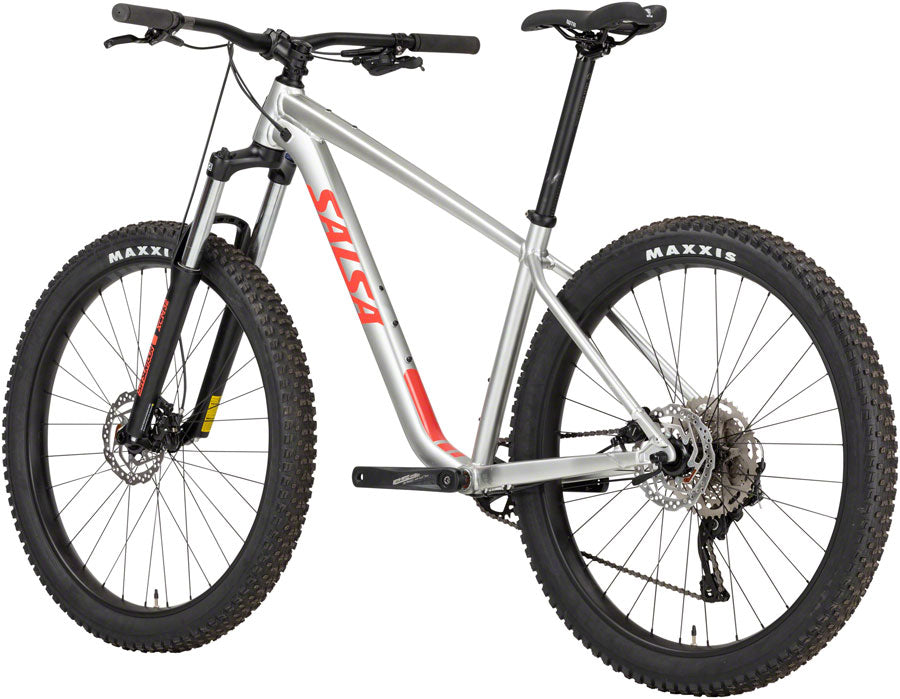

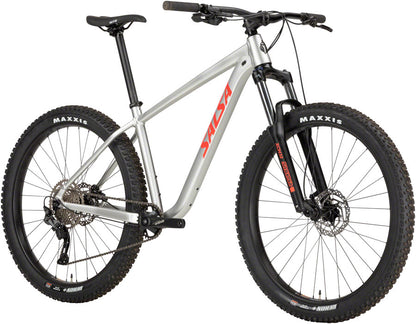

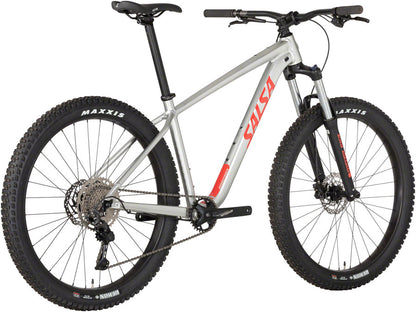

NEW Salsa Rangefinder Deore 10 27.5+ - Silver Hardtail Mountain Bike

Rangefinder is Salsa’s confidence-building trail hardtail. Built for riders who want to start discovering their local trail systems, Rangefinder offers geometry and spec designed for the perfect introduction to mountain biking. Rangefinder opens up singletrack and doubletrack adventures and offers provisions for bikepacking setups so riders can expand their off-road repertoires. Rangefinder is mountain biking for the masses.

• 6061-T6 alloy frame
• Internally-routed shift, brake and dropper post housing
• 120 mm suspension fork
• 1x drivetrain keeps shifting simple with plenty of gear range
• Hydraulic brakes offer confident stopping power
• Compatible with 29" or 27.5 plus wheels and tires
• Carry what you need with the integrated top tube bag mount, two bottle cage mounts in the frame on M, L, and XL sizes, one accessory mount under the down tube, and rear rack mounts
• Geometry that grants confidence to newer mountain bikers

GEOMETRY

Size	XS	SM	MD	LG	XL
Recommended Rider Height	5'2"–5'6"	5'3"–5'9"	5'8"–6'0"	5'11"–6'3"	6'2"–UP
A. Toptube Effective	22.4"	23.2"	24.2"	25.3"	26.4"
B. Seat Tube Length	14.0"	15.0"	17.0"	18.5"	20.0"
C. Headtube Angle	68.0°	68.0°	68.0°	68.0°	68.0°
D. Seat Tube Angle	74.0°	74.0°	74.0°	74.0°	74.0°
E. BB Drop	2.3"	2.3"	2.3"	2.3"	2.3"
F. Chainstay Length	17.3"	17.3"	17.3"	17.3"	17.3"
G. Headtube Length	3.7"	3.9"	4.1"	4.5"	4.9"
H. Fork Length	20.1"	20.1"	20.1"	20.1"	20.1"
J. Fork Offset	1.8"	1.8"	1.8"	1.8"	1.8"
K. Wheelbase	43.3"	44.2"	45.2"	46.4"	47.5"
M. Stack	23.8"	24.0"	24.2"	24.6"	24.9"
N. Reach	15.6"	16.4"	17.3"	18.3"	19.3"
P. Standover	26.7"	27.5"	29.0"	30.3"	31.4"
